Page 1
>> Audio system navigation/multimedia.
Supplement
Nur für internen Gebrauch / For internal use only
Page 2
Symbols
$
%
!
+
X
YY
(Y page)
Warning
Environmental note
Possible damage to the vehicle
Tip
Instruction
Continuation symbol
Page reference
Page 3
Contents
1
Index ............................................ 2
Introduction .................................. 6
At a glance ..................................... 7
General settings ............................ 21
Navigation .................................... 31
Telephone ..................................... 65
Audio .......................................... 79
Video ......................................... 101
4515842683
É4515842683-ËÍ
Page 4
Index
2
A
Address entry menu ......................... 36

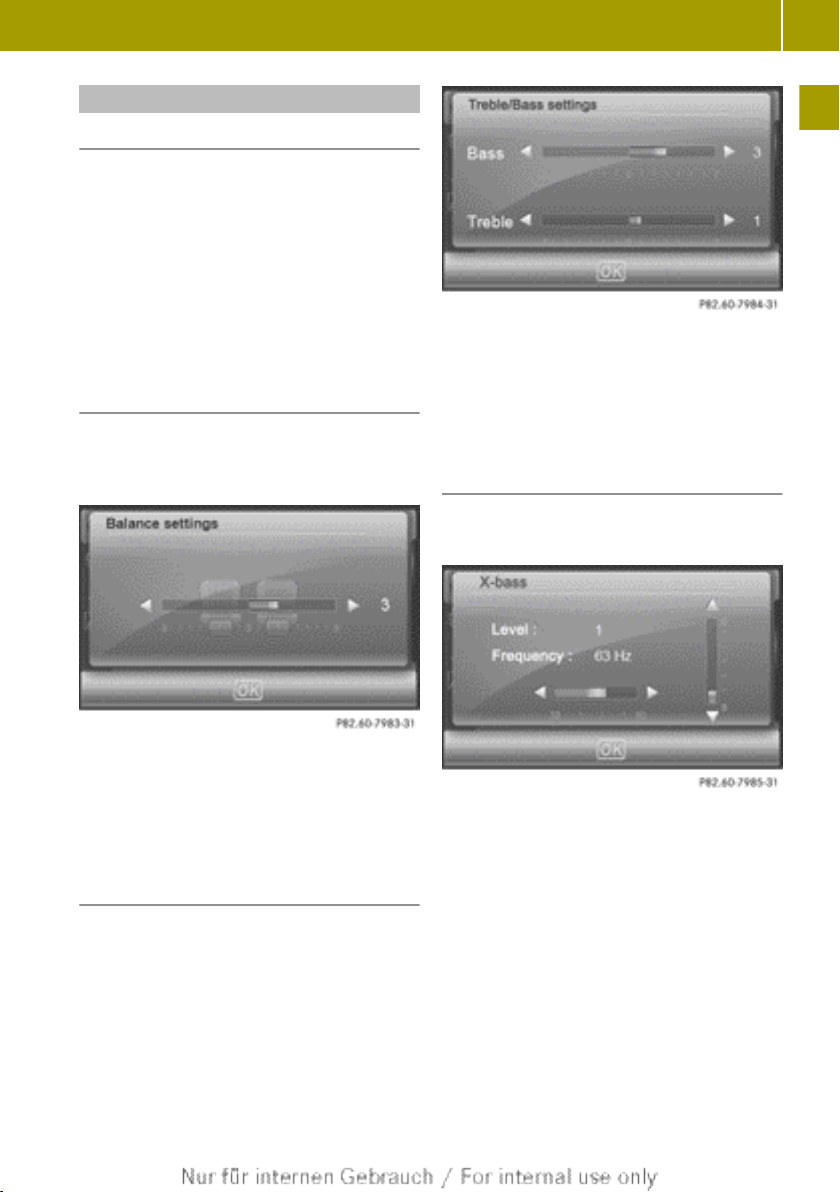

Adjusting the balance ..................... 19
Adjusting the volume
Click ...................................... 23
Confirmation tone ..................... 23
Navigation messages .............. 18, 22
Switch-on volume ...................... 23
Traffic announcements ........... 18, 22
Alternative route
Calculating .............................. 40
Viewing information .................. 40
Audio system navigation/multime-
dia operating system ........................ 8
Auto zoom (navigation) .................... 58
AUX jack ...................................... 88
B
Bluetooth
®
Conditions (telephone) ............... 67
Editing device names ................. 77
LED display .............................. 68
Searching for and registering a
mobile phone ............................ 68
D

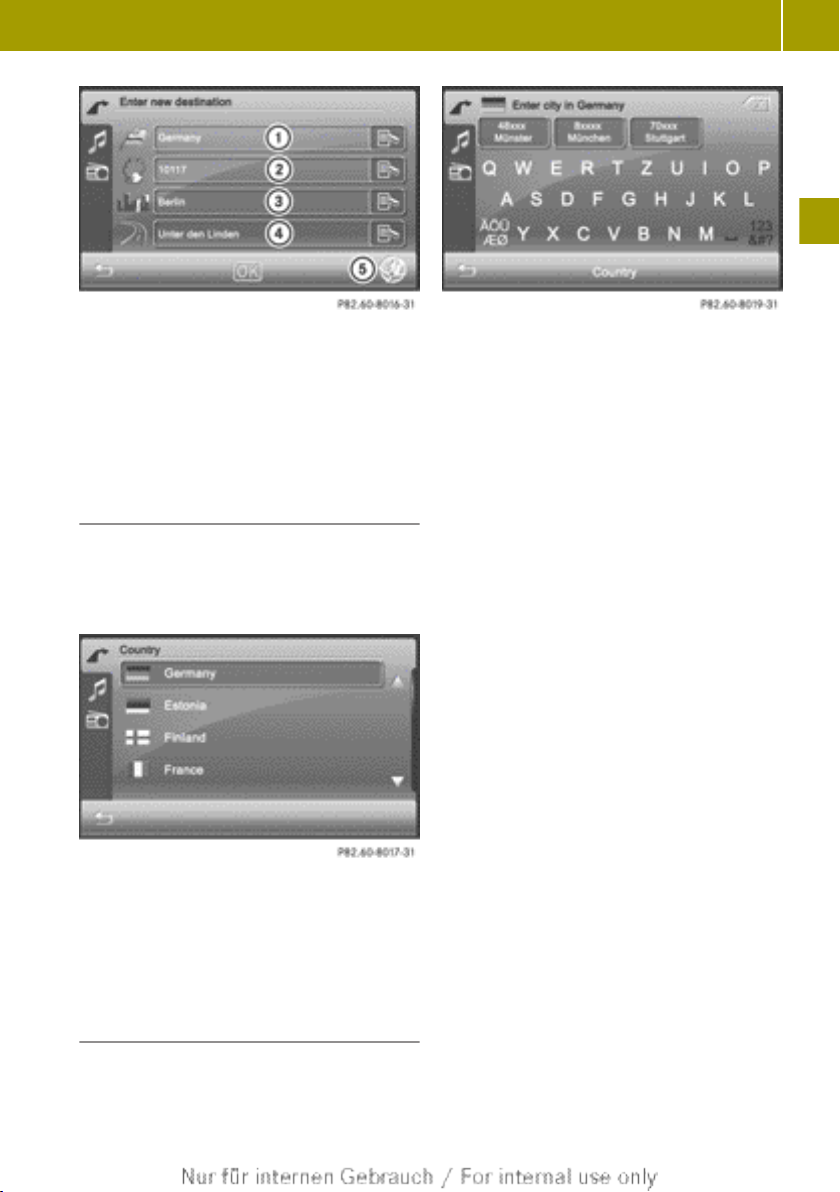

Destination (navigation)
Entering a destination by
address ................................... 36
Entering a destination using
the map ................................... 43
Entering a special destination .... 43
Entering using geo-coordinates ... 42
Selecting from favourites ........... 43
Selecting from last locations ...... 42
Viewing on the map .................... 39
Destination input .......................... 36
Destination memory
see Favourites
DNC
see Dynamic Noise Covering
Dynamic Noise Covering .................. 99
E
Easy mode (navigation) .................... 34
Electromagnetic compatibility .......... 6
Emergency call 999 or 112 ................. 67
Example: entering an address ........... 36
Expert mode (navigation) ................. 34
C
Call
Ending ..................................... 71
Transferring from the hands-
free system to the mobile phone .... 71
CD/DVD
Ejecting (DVD single drive) ......... 87
Inserting (DVD single drive) ........ 87

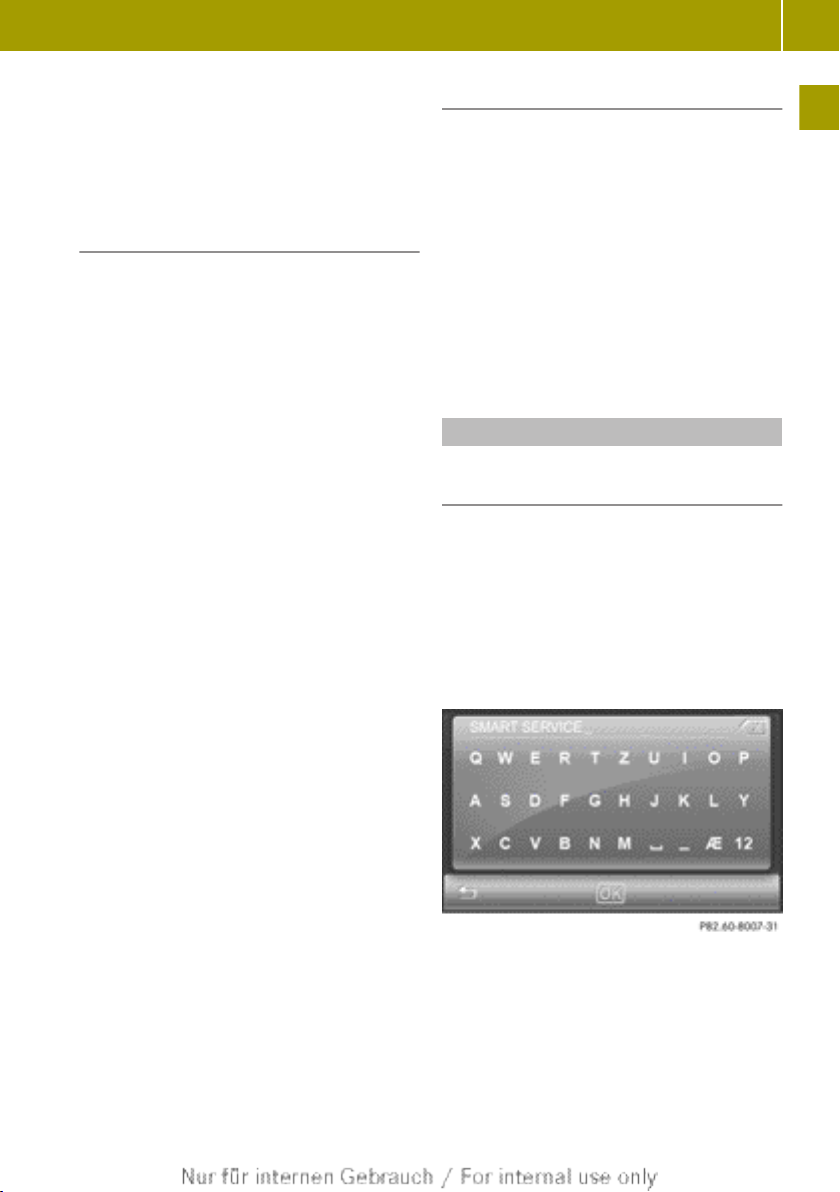

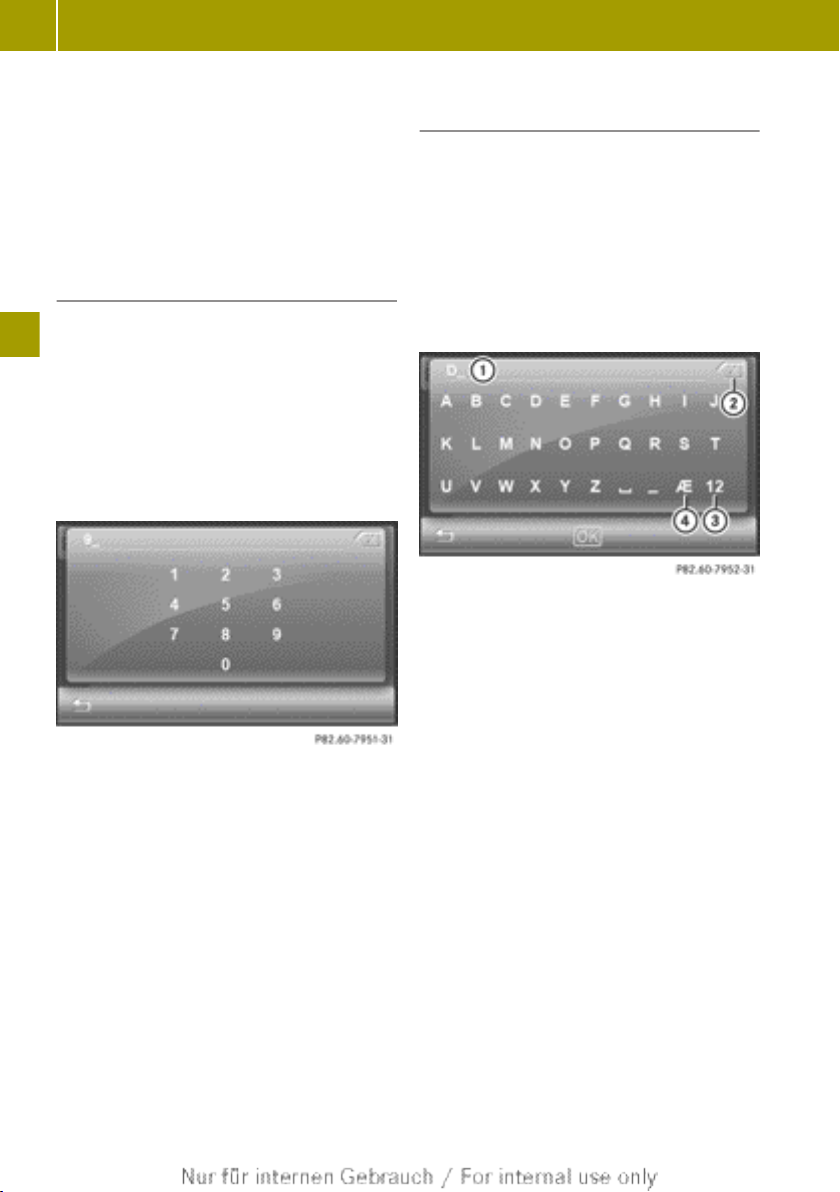

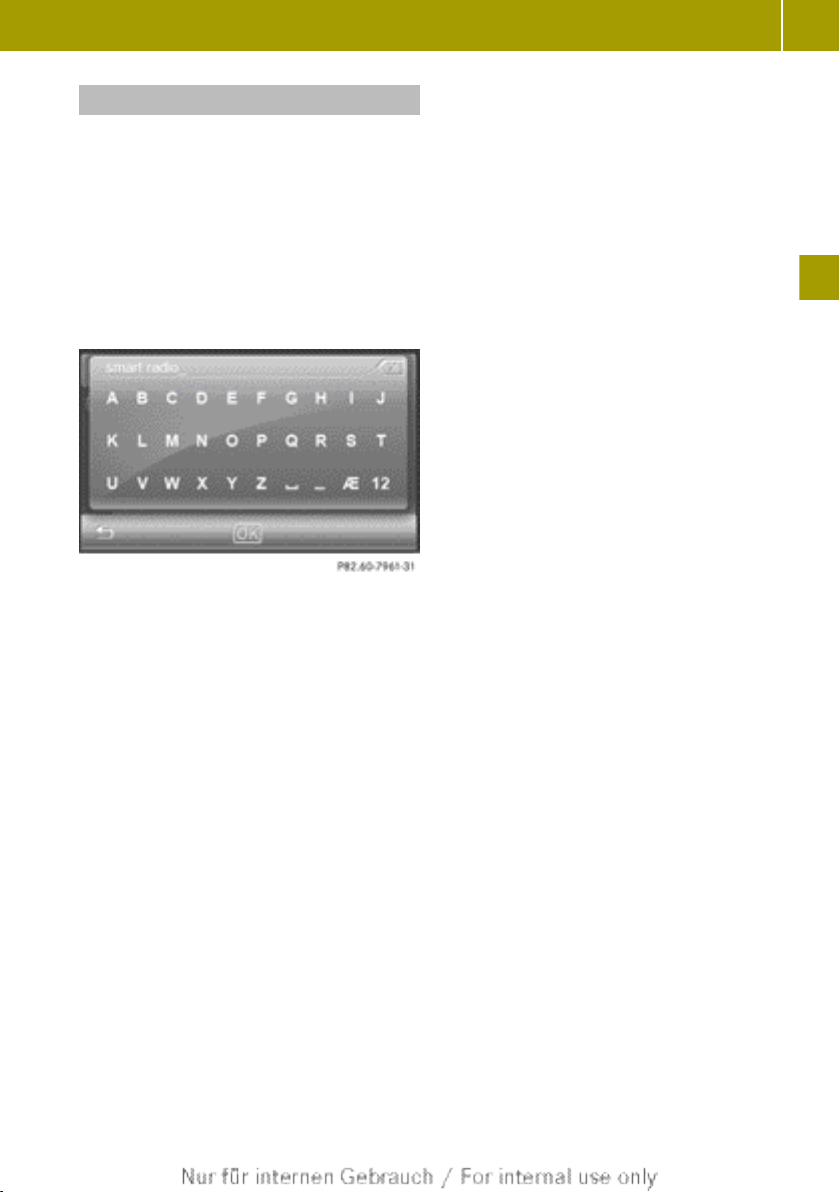

Character entry
Navigation ............................... 14
Phone book ............................... 15
Connecting an audio device .............. 89
Connecting an iPod®/iPhone® ............ 88
Connecting a USB device .................. 89
Connecting Bluetooth® audio devi-
ces .............................................. 90
F
Factory settings ............................ 28

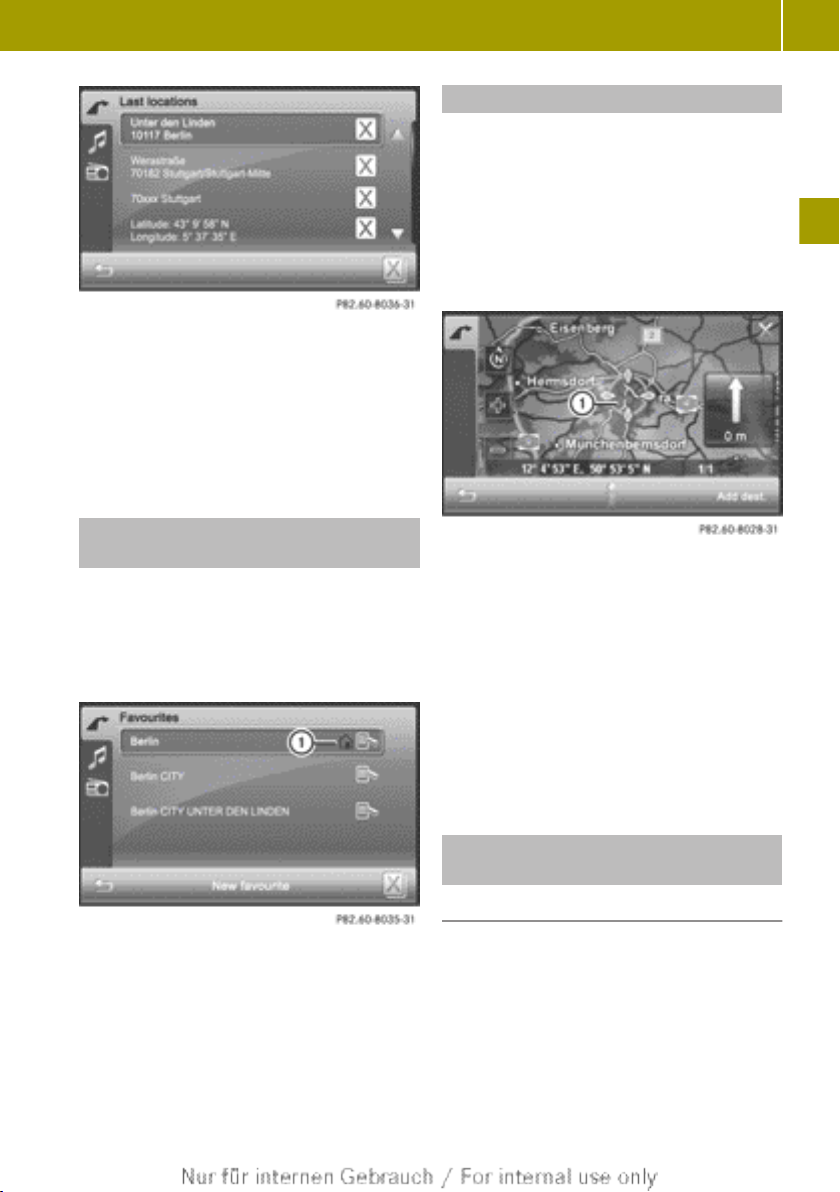

Favourites .................................... 55
Creating a new favourite ............. 55
Deleting a destination ............... 56
Renaming a destination .............. 56
Saving a destination .................. 55

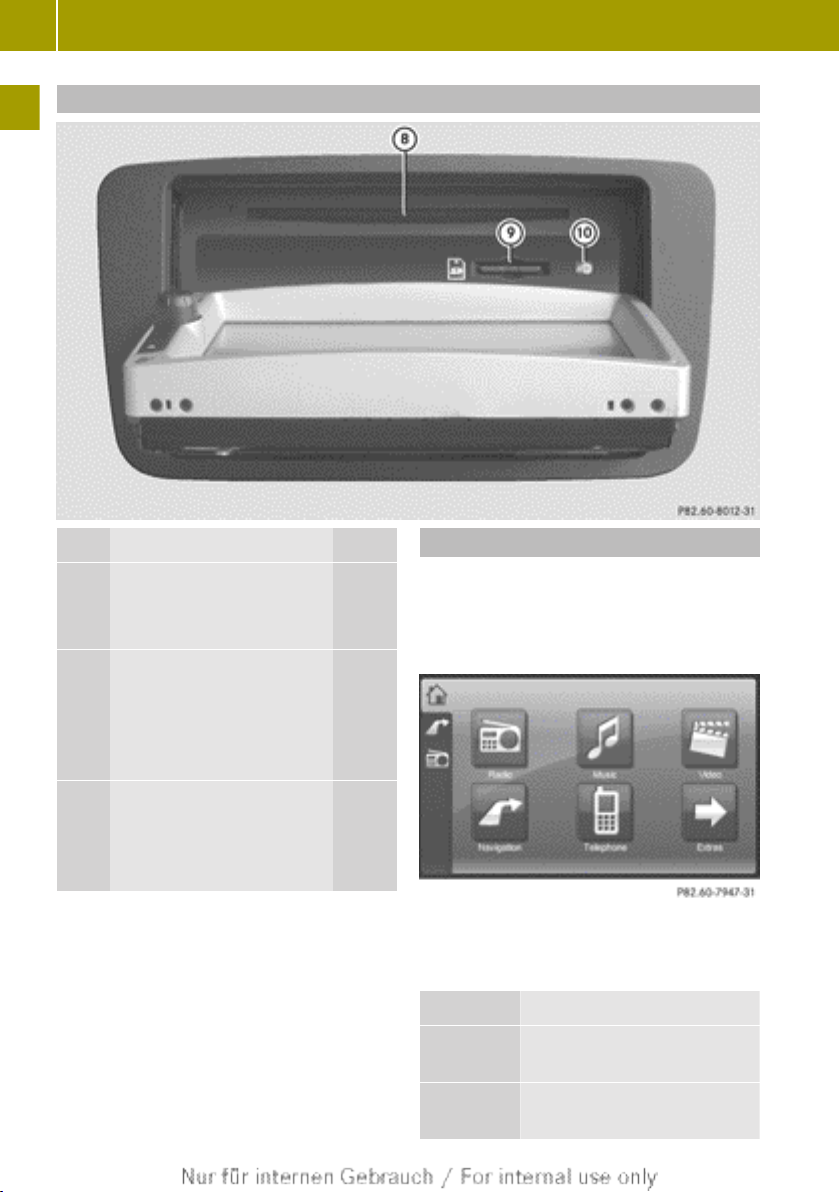

Front panel
Moving up/down ......................... 10
Full screen mode (video mode) ......... 103
Full screen video (automatic) .......... 107
Function restrictions
Using the telephone ................... 66
G
Guarantee ...................................... 6
Page 5
Index
3
H
Home address
Entering and saving ................... 39
I
Interference ................................... 6
J
Junction
Entering .................................. 38
L
Last locations (navigation) .............. 54
M

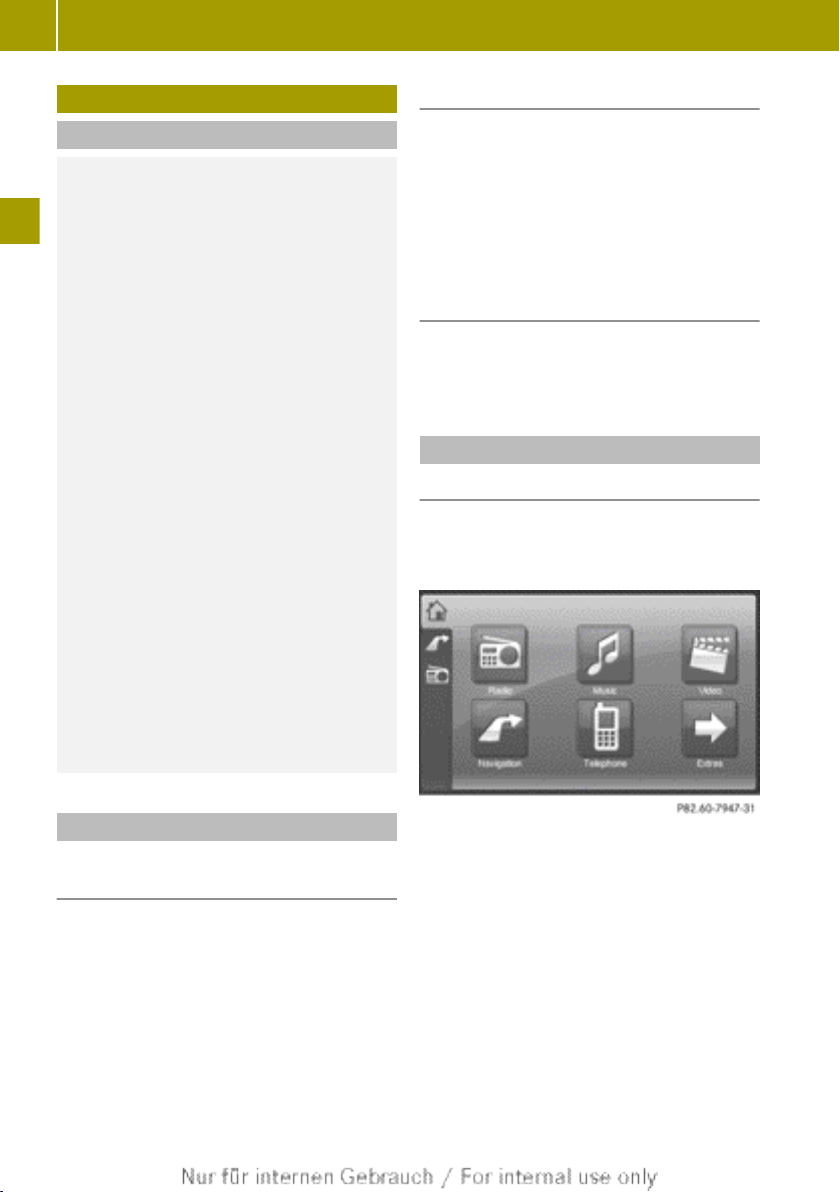

Main menu .................................... 10
Navigation ............................... 33
Map (navigation)
Adjusting the scale .................... 56
Display ................................... 57
Moving .................................... 57
Map view ...................................... 58
Master device (mobile phone)
Determining ............................. 69
Menu

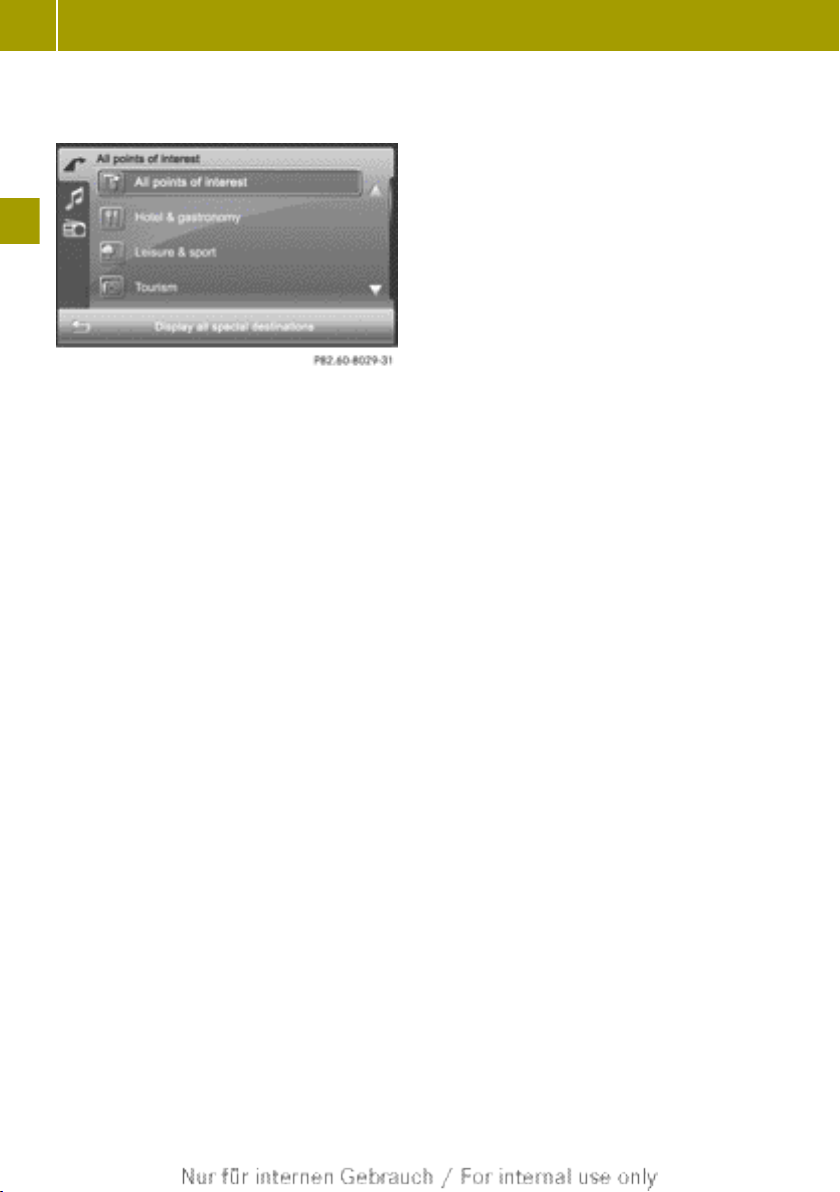

All special destinations ............. 43
Audio settings .......................... 98
Bluetooth® settings .................... 76
Detailed information ................. 39
Edit a route .............................. 52
Entering a new destination
(navigation) ............................. 36
Entering a street name ............... 38
Programme settings (navigation) .. 59

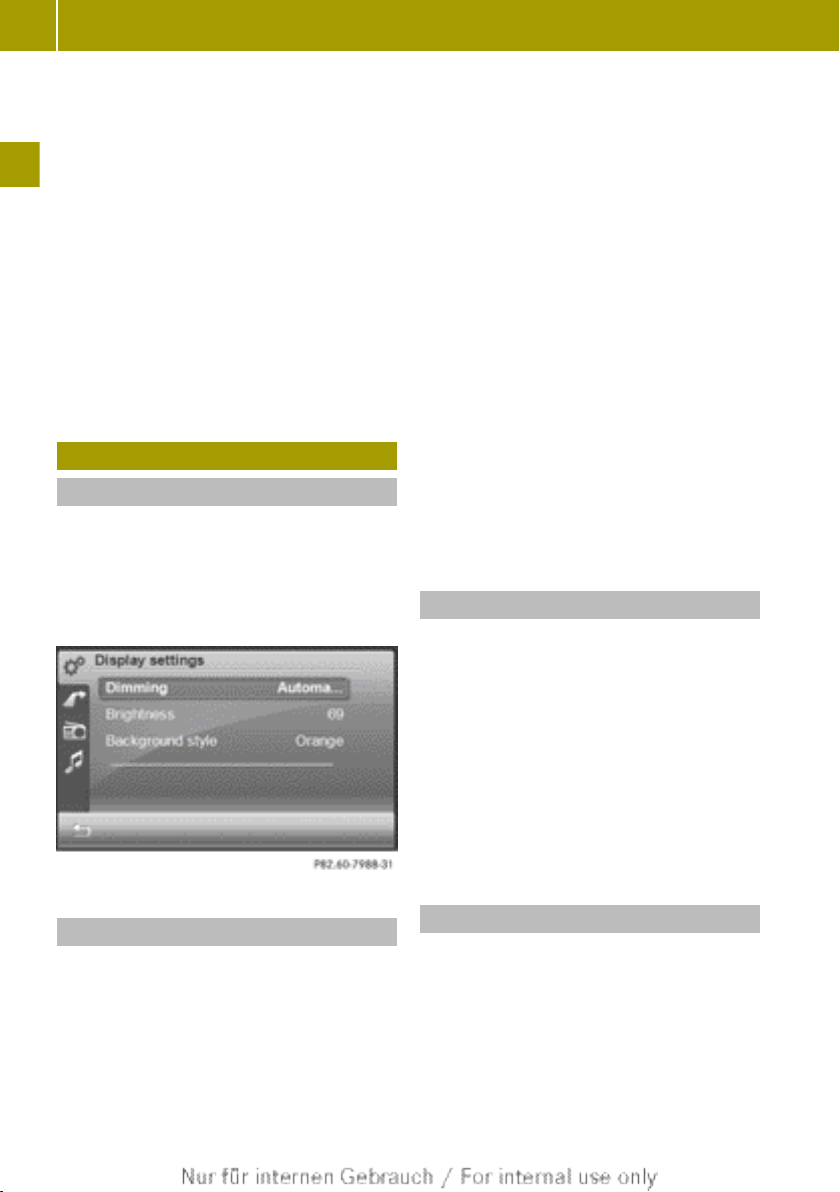

Screen settings ......................... 24
Searching for a special desti-
nation ..................................... 45

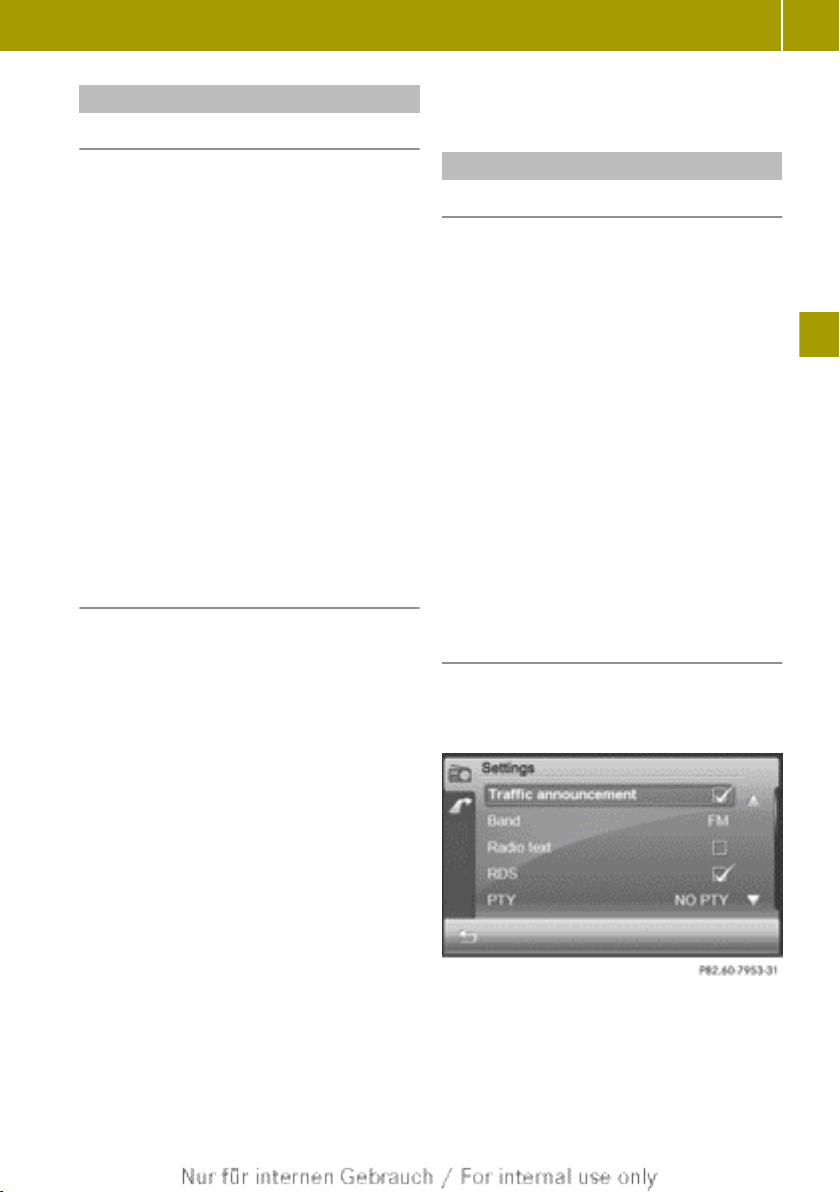

Settings (radio) ........................ 83
Settings (video) ....................... 105
System settings ......................... 26

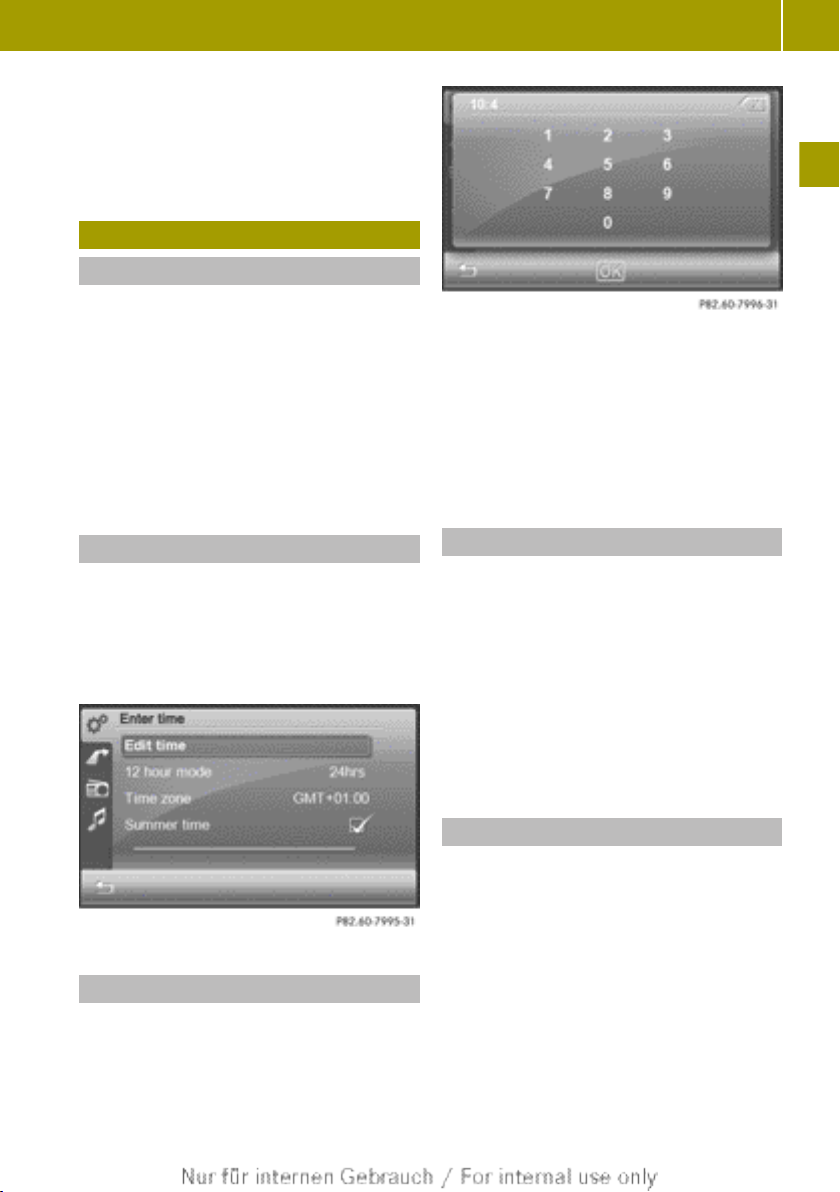

Time entry ............................... 25

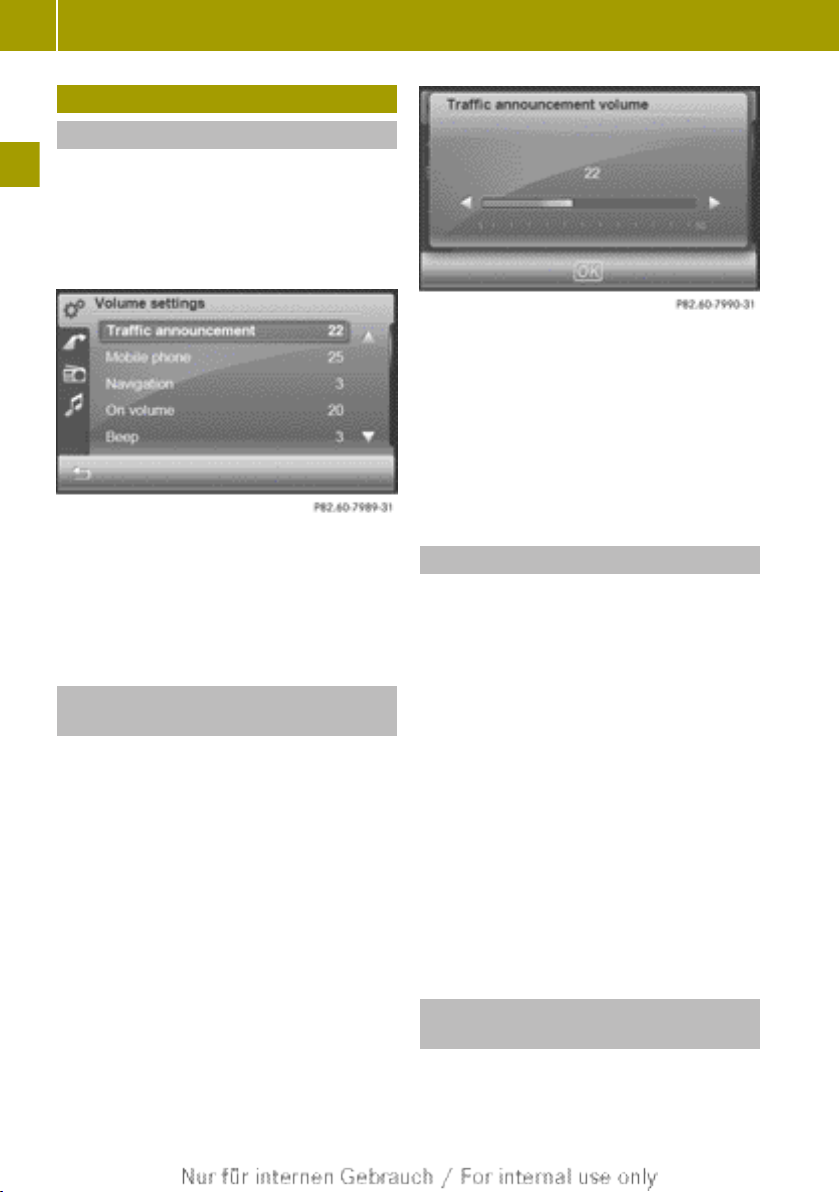

Volume settings ........................ 22
Mobile phone
Connecting (Bluetooth® inter-
face) ....................................... 67
De-authorising ......................... 70
Registering (authorising) ........... 67

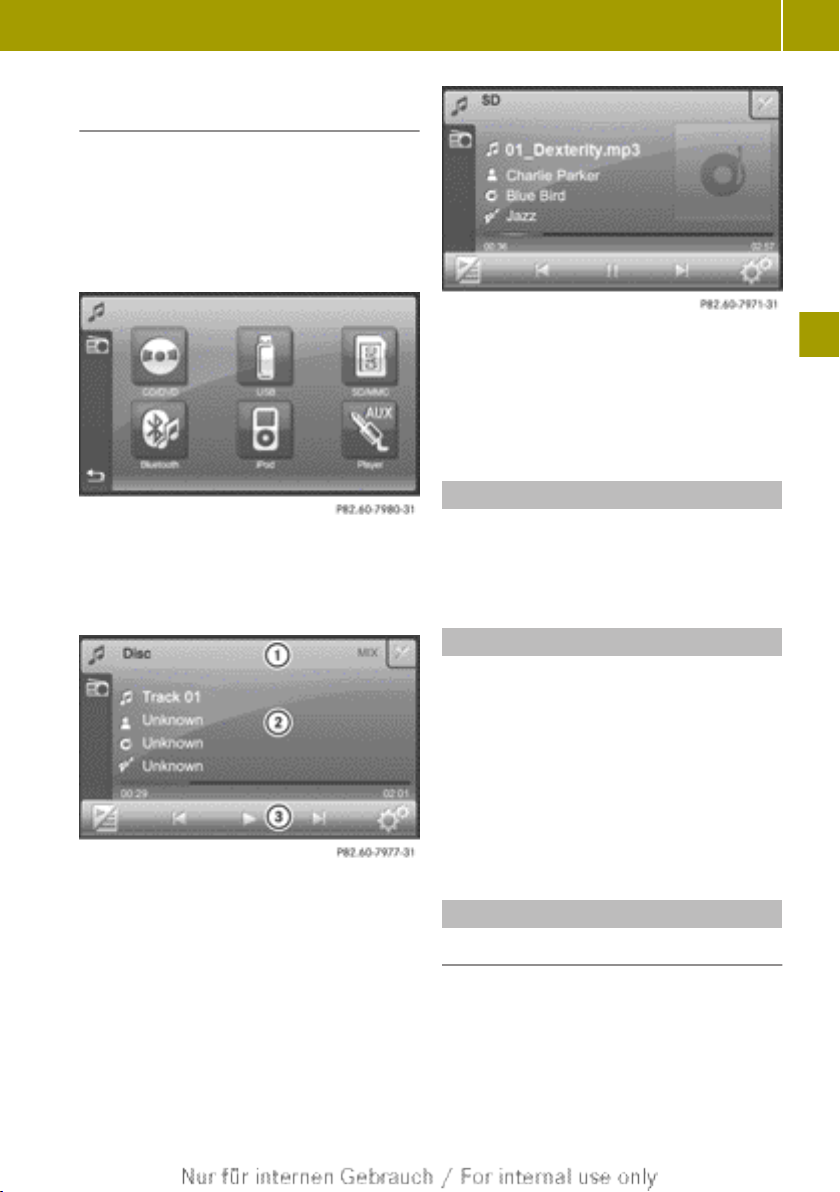

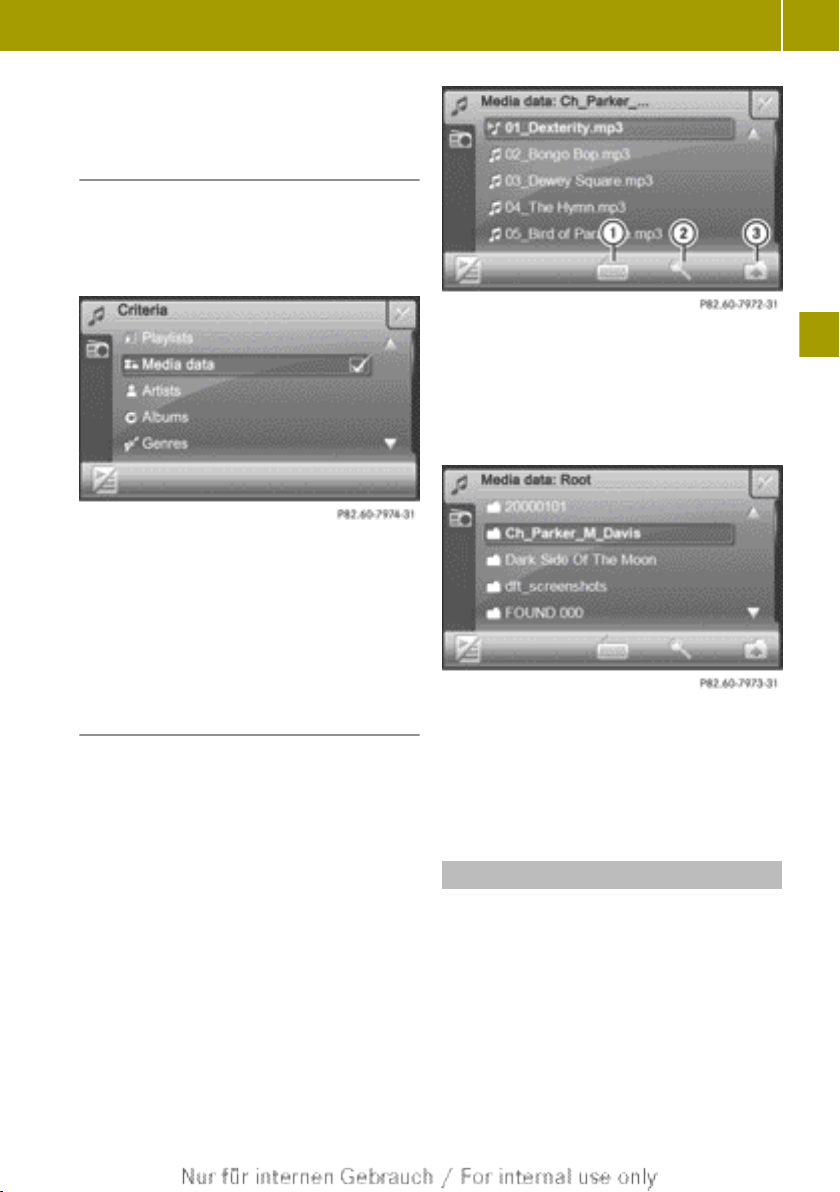

Music main menu ............................ 91
Music mode
Activating ............................... 90
Switching off ............................ 91
N
Navigation
Deactivating ............................ 33
Navigation announcements
Switching off ........................... 49
Switching on ............................ 49
Navigation menu
Showing ................................. 103
Navigation mode
Switching on ............................ 32
O
Operating safety ............................. 6
P
Phone book
Audio system navigation/multi-
media ..................................... 73
Downloading (from mobile
phone) ..................................... 76
Mobile phone ............................ 72
Picture viewer
Calling up .............................. 109
Displaying pictures .................. 110
Rotating pictures ..................... 111
Product information ....................... 28
Proper use ..................................... 6
Q

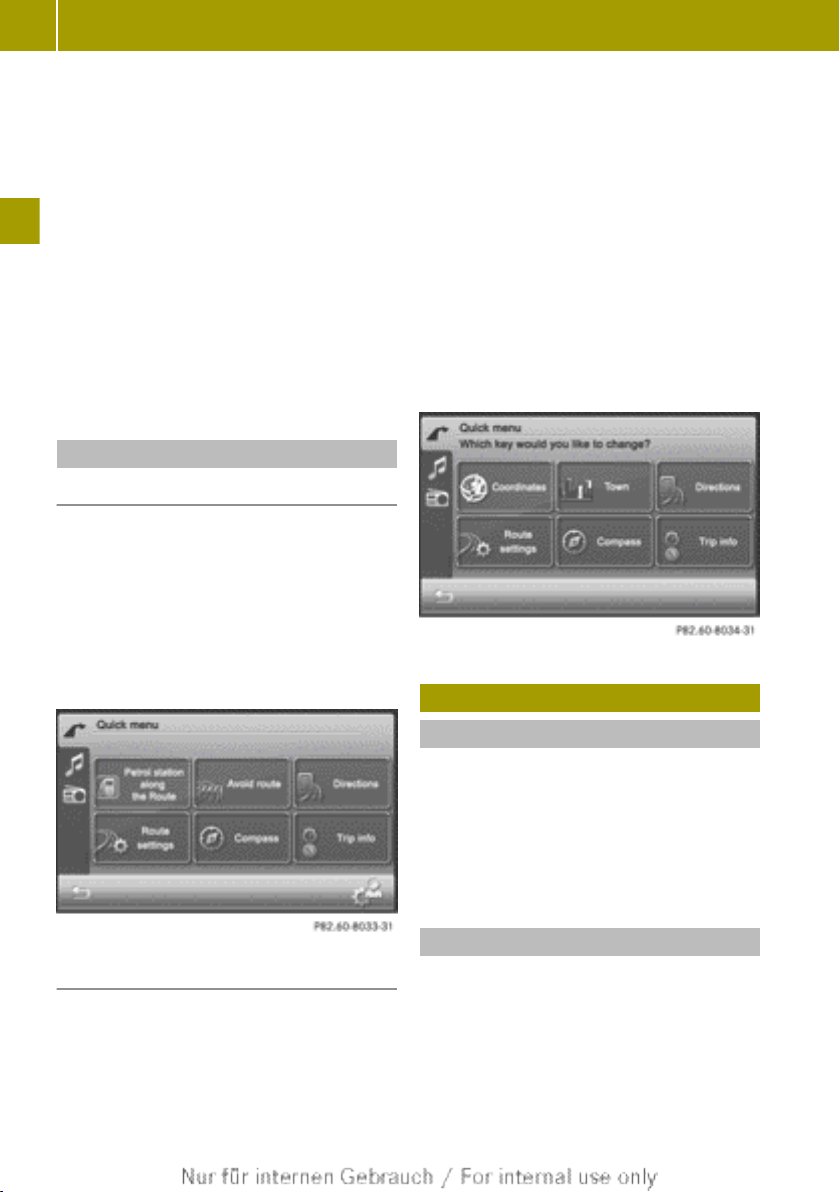

Quick menu (navigation, Expert
mode)
Calling up ............................... 54
Editing ................................... 54
Page 6
Index
4
R

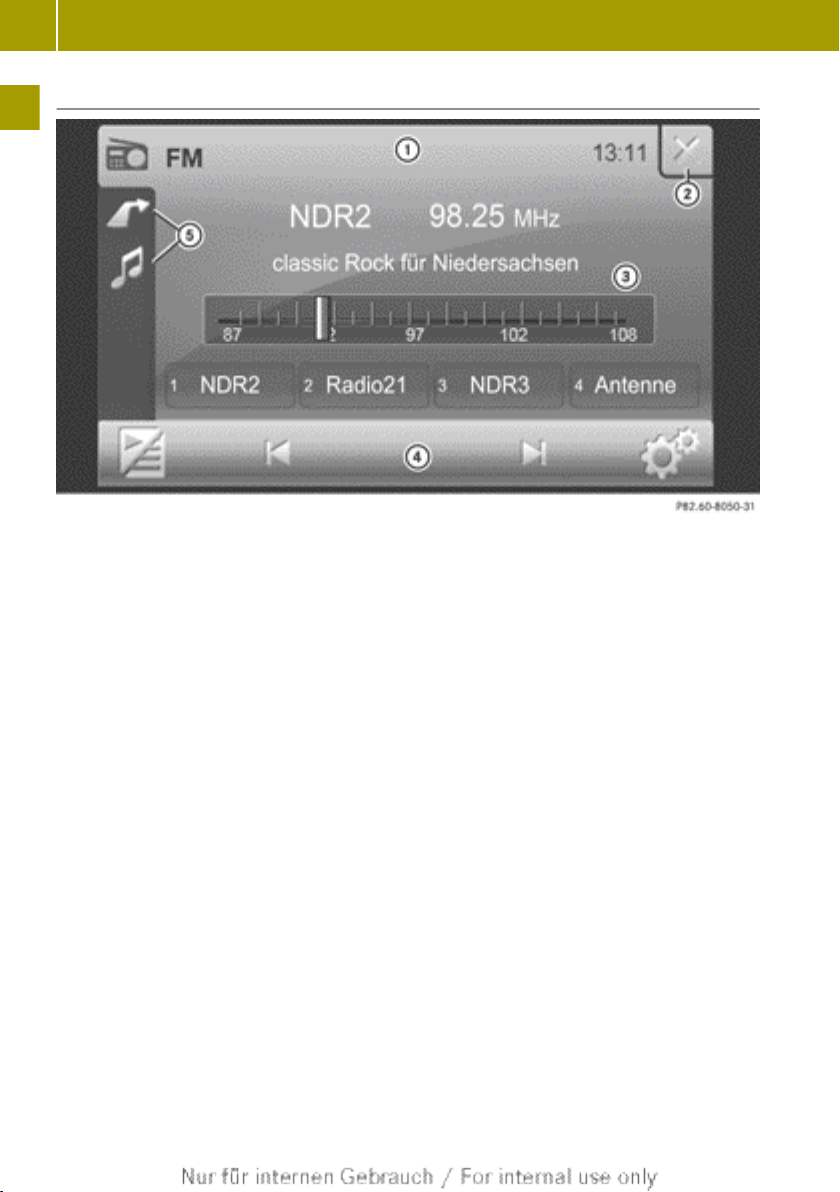

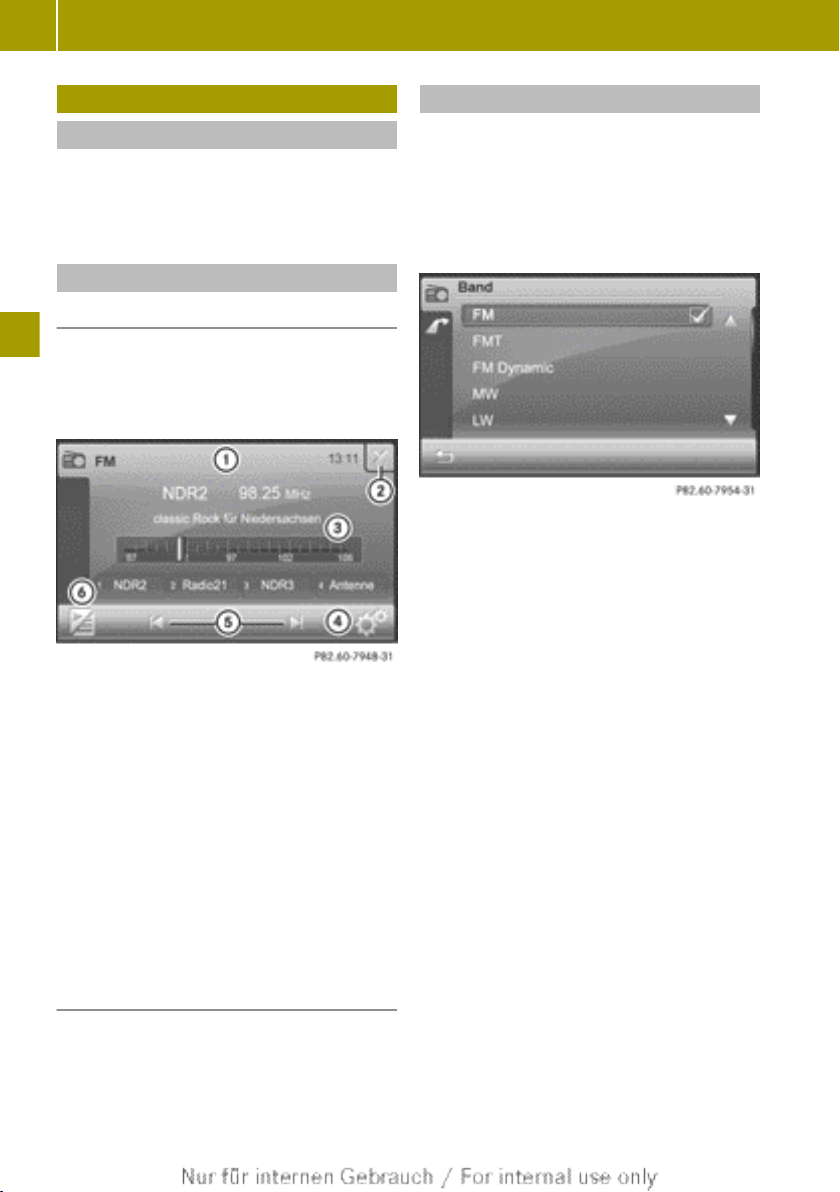

Radio display ................................ 80
Radio text .................................... 86
Recording the GPS track (Expert
mode) .......................................... 53
Route
Alternative routes ..................... 40
Calculating .............................. 39
Route guidance
Map view ................................. 47

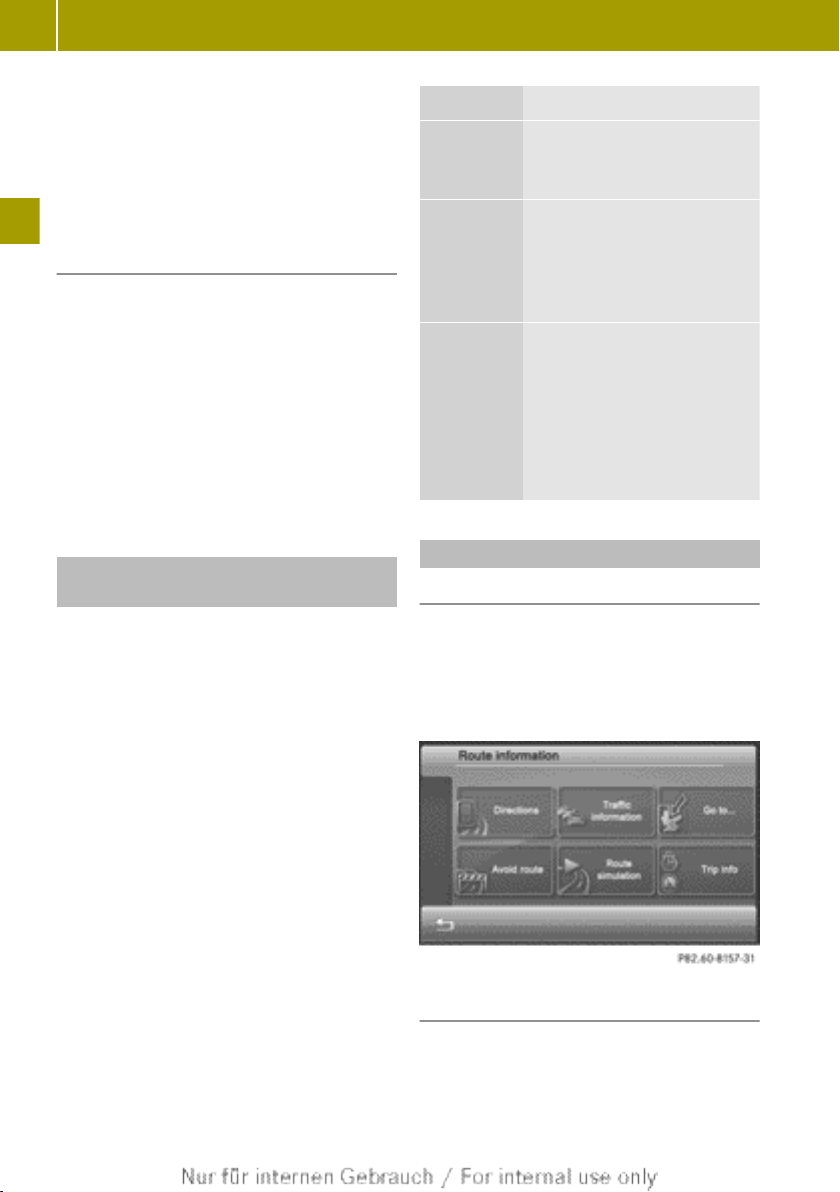

Route information (Expert mode) ....... 50
Trip info ................................. 52

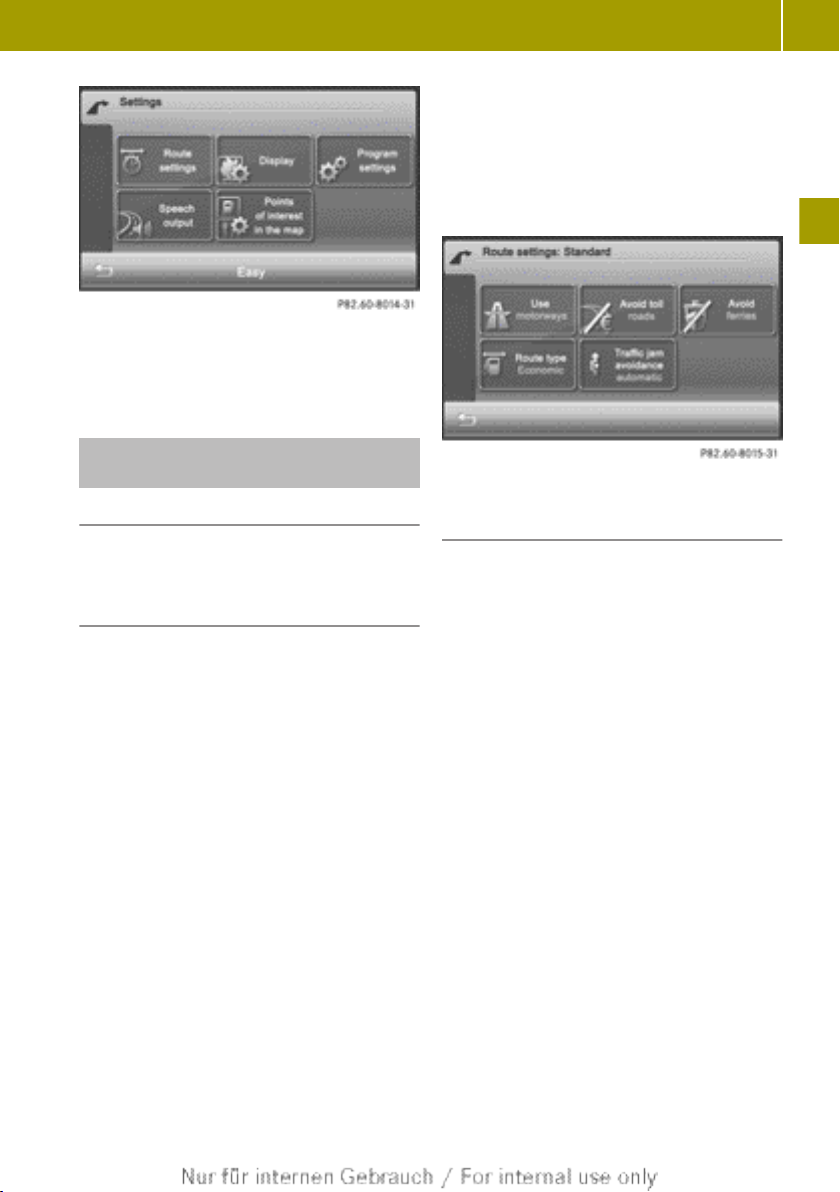

Route options
Checking/changing .................... 39
Setting ................................... 35
S
Screen
Dimming .................................. 24
SD/MMC memory card
Inserting ................................. 88
Removing ................................. 88
Security code
Changing ................................. 27
Selecting a keyboard ...................... 27
Selecting a station (radio)
Using the waveband scan ............. 81
Selecting stations
Entering the frequency manually ... 82
Using station memory ................. 81
Selecting traffic jam avoidance
(Expert mode) ................................ 50
Selecting video files .................... 104
Setting the standby time .................. 27
Setting the volume
Telephone calls ........................ 22
Setting treble and bass .................... 19
Setting X-bass ............................... 19
Sound
Switching on/off ....................... 18
Sound settings ............................... 19
Special destination
Category .................................. 46
Entry ...................................... 43
Symbols on the map .................... 60
Speed Limit Assist ......................... 60
Station
Setting the sensitivity ............... 86
Station memory .............................. 81
Stations
Setting .................................... 81
Station search ............................... 81
Storing stations
Manually .................................. 83
Storing stations (radio)
Automatically ........................... 83
Switching audio system navigation/
multimedia on/off .......................... 17
Switching radio mode on/off ............ 80
T
Telephone
Incoming call ........................... 70
Rejecting/ending a call .............. 70
Transferring a hands-free call
to the mobile phone .................... 71

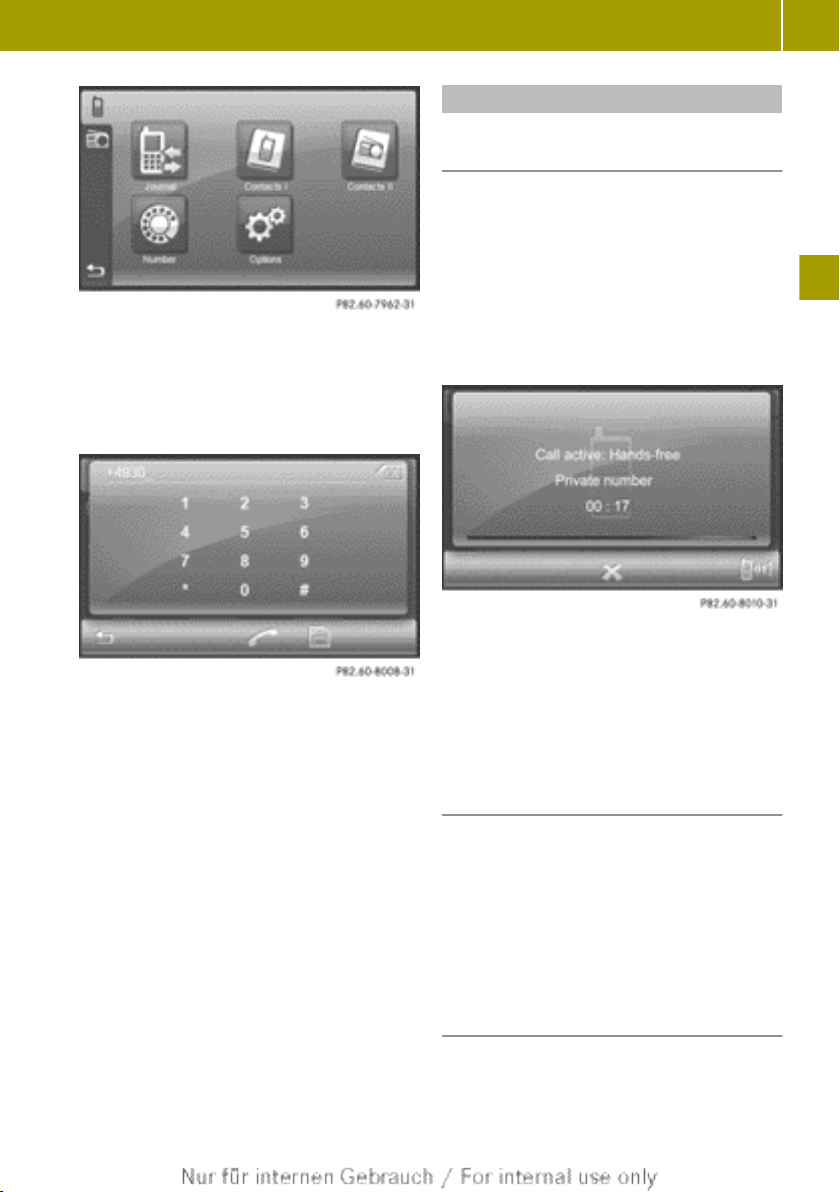

Telephone menu ............................. 76
Touch screen
Calibrating ............................. 28
Overview .................................. 11
Traffic Announcement (TA)
Interrupting ............................ 85
Switching on/off ....................... 85
Travelstore
Storing stations automatically ..... 83
U
Updating the digital map ................. 29
USB port ....................................... 88
V
Video DVD
Playing conditions ................... 102
Selecting a scene/chapter .......... 104
Video main menu ........................... 102
Video mode
Starting playback ..................... 103
Switching off .......................... 104
Switching on ........................... 102
Page 7
Voice control system
Switching off ........................... 62
Switching on ............................. 61
Index
5
Page 8
>> Introduction.
6
General information
Guarantee
The smart sales organisation1 provides a
guarantee for the period of 24 months without kilometre limit for this accessory or
replacement part.
Operating safety
WARNING
G
Your attention must always be focused on
the traffic conditions. Only operate the
radio when the traffic situation permits.
Operating the radio could distract you from
the traffic conditions and cause you to lose
control of your vehicle. This could result
in an accident.
Bear in mind that, at a speed of only
50 km/h, your vehicle covers a distance of
nearly 14 m per second.
WARNING
G
Always set the volume so that you remain
able to hear the sounds of your environment
(e.g. car horns, ambulances, police sirens
etc.). You could otherwise cause an accident.
Correct use
Always observe the following when using
the audio equipment:
R
the safety notes in this manual
R
national road traffic regulations
WARNING
G
If work on electronic equipment or systems
(e.g. the radio) and its software is carried
out incorrectly, this equipment could stop
functioning. The electronic systems are
linked together by interfaces. Modifica-
tions to electronic systems may also cause
systems that have not been modified to malfunction. These malfunctions could affect
the operating safety of your vehicle and
therefore also have a considerable effect
on your safety.
Therefore, only have work on and changes to
electronic components carried out at a
qualified specialist workshop which has
the necessary specialist knowledge and
tools to carry out the work required.
Daimler recommends that you visit a
smart Centre for this purpose.
This radio receiver is suitable for operation by all persons in accordance with
valid EU directives.
The device conforms to currently applicable European or harmonised national
standards.
Therefore, adherence to the relevant specifications for electromagnetic compatibility is guaranteed for this device.
As a result, interference caused by your
equipment to other electrical/electronic
equipment, as well as interference to your
equipment caused by other electrical/
electronic equipment, is largely prevented.
The equipment is approved by the vehicle
manufacturer in accordance with European
Automotive EMC Directive 95/54/EC. Therefore, operation according to its intended
purpose is approved for your vehicle. The
equipment does not require certification.
It complies with device-specific EMC
requirements according to the following
European standards:
R
EN 55013
R
EN 55020
!
Portable electronic devices in the car
can severely impair the radio reception.
1
The guarantor is the respective sales organisation in the country in which the accessory or replacement
part was bought (see list in the service booklet).
Page 9
Audio system navigation/multimedia
operating system ................................ 8
Operation ........................................ 13
Basic functions ................................. 17
>> At a glance.
Page 10
Audio system navigation/multimedia operating system
8
Audio system navigation/multimedia operating system
Overview
>> At a glance.
Function Page
:
t button
Press briefly: calls up the
main menu 10
Press and hold: calls up
the audio settings menu 10
;
LED 68
Lit blue: Bluetooth
®
device (mobile phone,
audio equipment) is connected
Flashing blue: Bluetooth
connection is being
established
Unlit: no Bluetooth
®
device is connected
=
Touch screen
Function Page
?
Microphone
Telephone operation 70
Voice commands in navigation 61
Dynamic Noise Covering 99
A
Brightness sensor 24
B
þ button
Moving the front panel up/
down
®
10
11
Page 11
Audio system navigation/multimedia operating system
Function Page
C
Briefly press the control
knob:
• switches audio system
navigation/multimedia
on 17
• mutes the audio/video
source or the current navigation announcement 18
Press and hold the control
knob:
• switches audio system
navigation/multimedia
off 17
Turn the control knob:
• adjusts the volume 18
9
>> At a glance.
Page 12
Audio system navigation/multimedia operating system
10
Moving the front panel up/down
>> At a glance.
t
Function Page
D
Disc slot:
• inserts CDs/DVDs 87
• ejects CDs/DVDs 87
E
SD/MMC memory card slot:
• loads SD/MMC memory
cards 88
• ejects SD/MMC memory
cards 88
F
Eject button 87
Lit orange: CD/DVD is
inserted
Unlit: no CD/DVD inserted
button
You can call up the main menu or the audio
settings menu using this button.
X
To call up the main menu: press the
t button briefly.
X
To move the front panel down: press button B.
X
To move the front panel up: press button
B again.
i
The front panel is moved up automati-
cally after one minute.
Main menu
The following functions can be selected
from the main menu:
Selection Step
Radio
Music
Switches on radio mode
(Y page 80)
Calls up the music main
menu (Y page 91)
Page 13
Audio system navigation/multimedia operating system
11
Selection Step
Video
Calls up the video main
menu (Y page 102)
Naviga‐
tion
Tele‐
phone
Extras
Switches on navigation
mode (Y page 32)
Calls up the telephone menu
(Y page 76)
Calls up the picture viewer
(Y page 109)
or
Selecting general settings:
R
Audio settings
(Y page 98)
R
Volume settings
(Y page 22)
R
Screen settings
(Y page 24)
R
Clock settings
(Y page 25)
R
System settings
(Y page 26)
X
To call up the audio settings menu: press
and hold the t button.
Touch screen
General notes
Wearing polarised sunglasses may impair
your ability to read the display.
Cleaning instructions
The display must be switched off and cooled
down before you start cleaning. Clean the
display screen, when necessary, with a
commercially available microfibre cloth
and cleaning agent for TFT/LCD displays.
Then, dry the surface with a dry microfibre
cloth.
Do not use any alcohol-based thinners, petrol or abrasive cleaning agents. These
could damage the display surface. Do not
apply pressure to the display surface when
cleaning it, as this could cause irreversible damage.
>> At a glance.

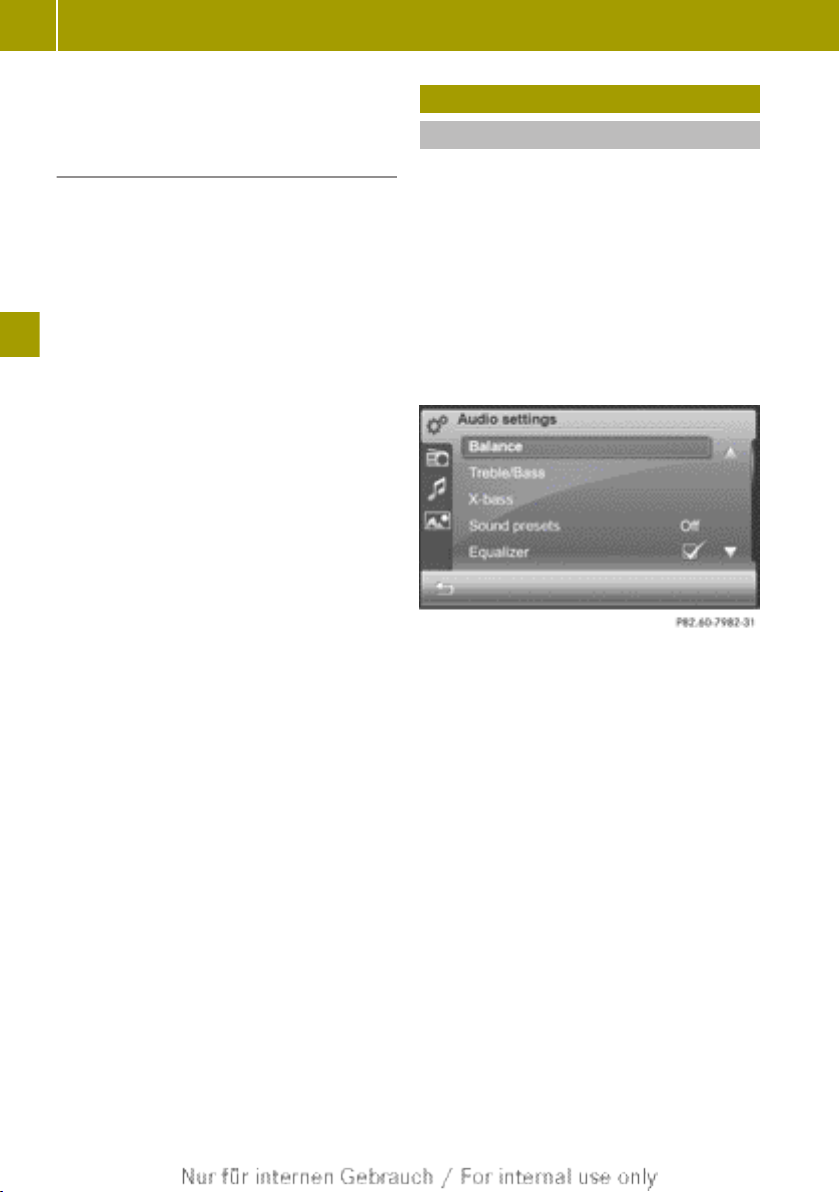

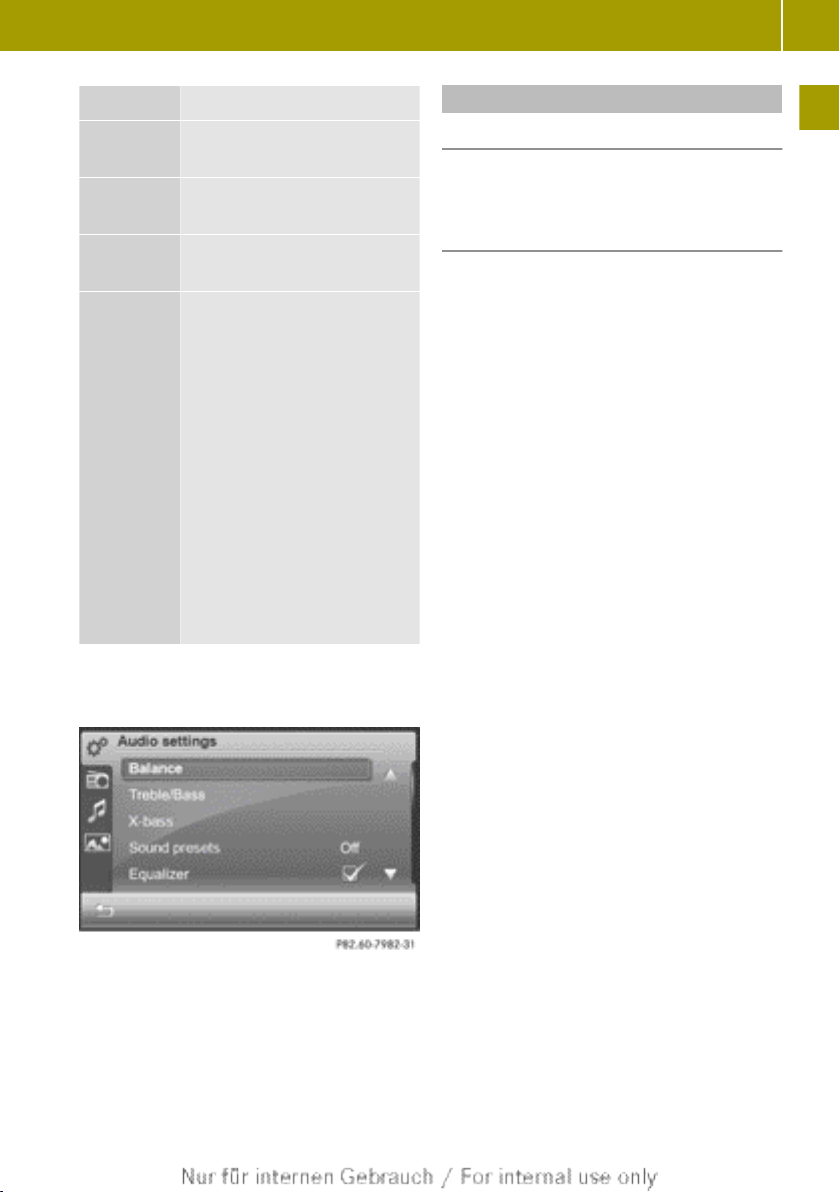

Audio settings menu
The setting options for Balance, Bass/
Treble and X-bass can be found in the
"Sound settings" section (Y page 19). Further setting options are described in the
"Audio settings" section (Y page 98).
Page 14
Audio system navigation/multimedia operating system
12
Overview
>> At a glance.

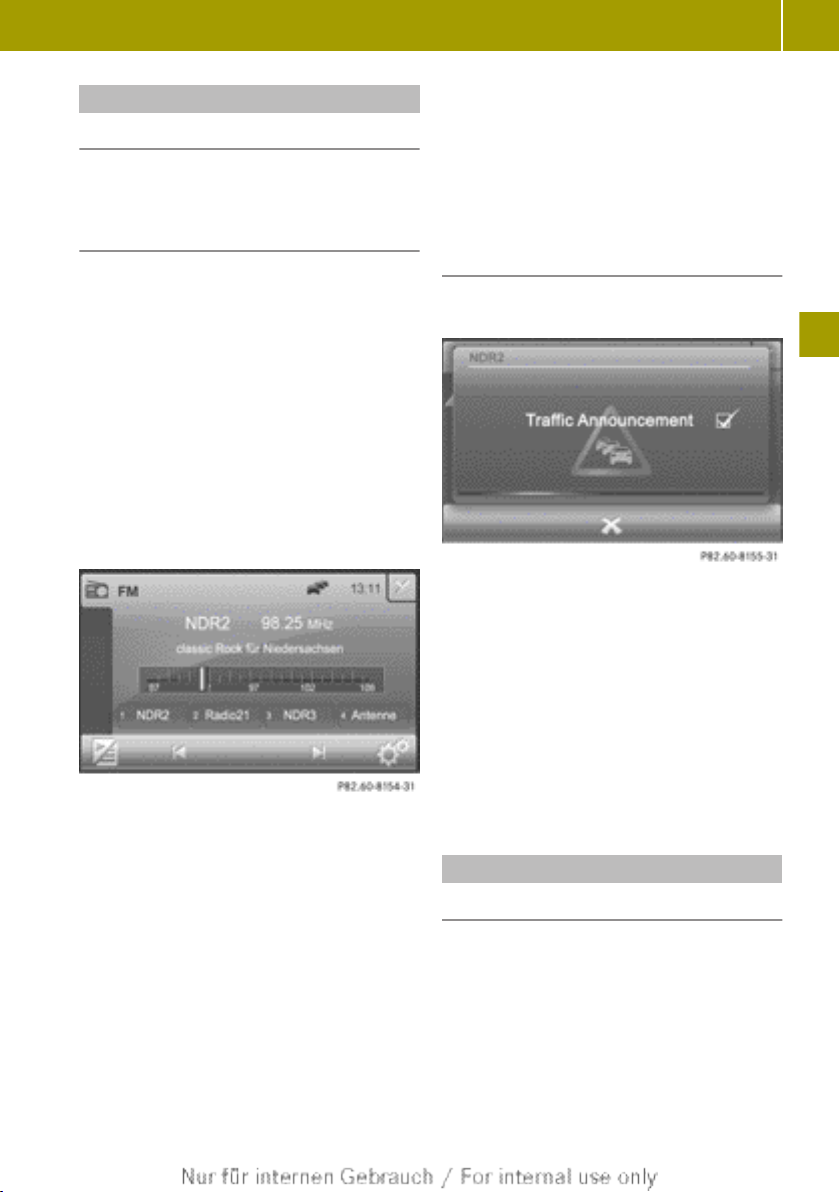

Example: radio display
:
Status bar
;
To switch radio mode off
=
Display/selection window
?
Radio menu bar
A
Icon bar showing the activated functions for fast switching
Status bar : shows the time and the current settings for radio operation.
You can switch the radio mode off using close box ;.
Display/selection window = shows:
R
the station name and the station frequency (line 1)
R
the radio text as scrolling text (line 2)
R
the waveband (line 3)
R
the assignment of the first four presets (line 4)
i
The radio text is switched off in the standard setting. Switching radio text on/off
(Y page 86).
Radio menu bar ? allows you to operate the different radio functions.
Icon bar A shows which other functions are currently activated. In the example, these
are navigation and music mode. Pressing one of the symbols switches to the corresponding
mode.
Page 15

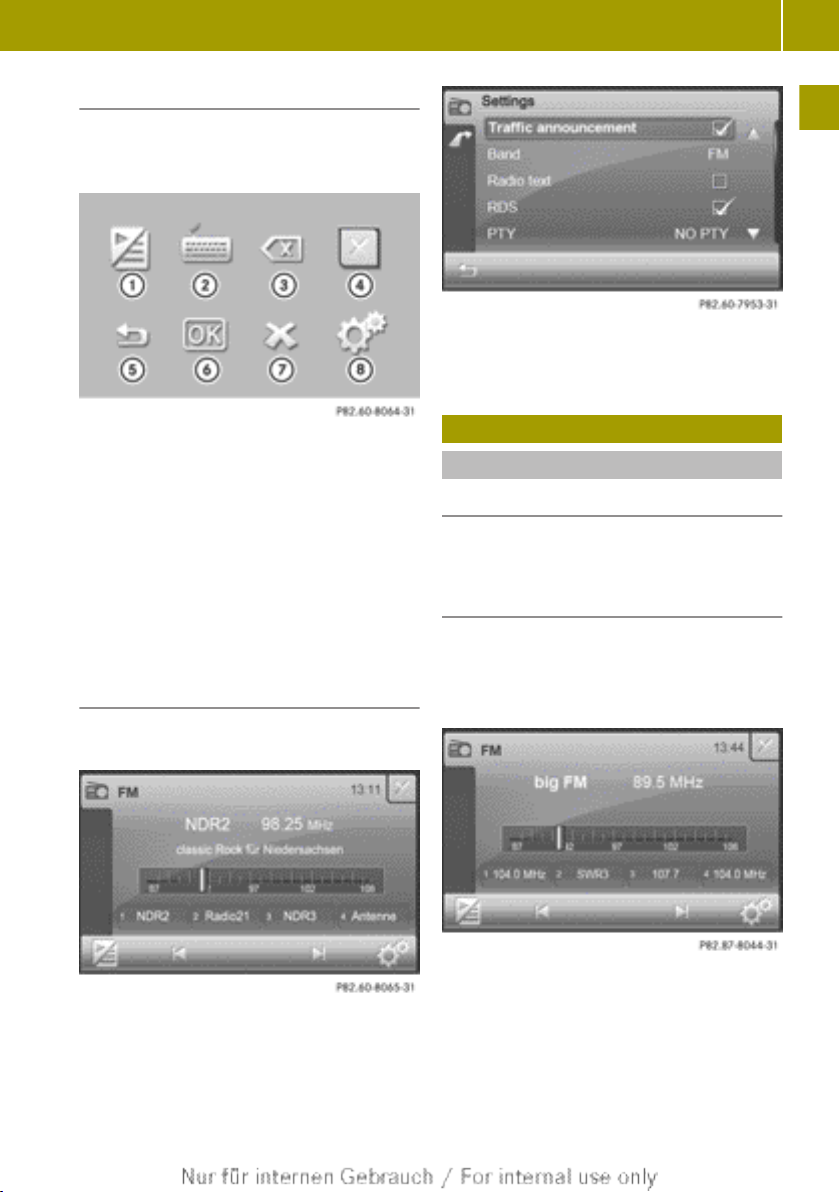

Important menu functions
The following illustration shows important
symbols that are shown in many menus and
can be selected by pressing.
Operation
X
Press the & button to call up the radio
display again.
13
>> At a glance.
:
To switch between a preset/list and the
playback display
;
To call up the search menu
=
To delete a character or an entry
?
To switch off the current set function
A
To call up the next higher menu level
B
To confirm an entry
C
To cancel a function
D
To call up the settings menu
Selecting a function
You would like to call up the radio settings,
for example, in the radio display.
Operation
Example of operation
Initial situation
You would like to store your preferred
radio station in the station presets.
Switching to radio mode
X
Press Radio in the main menu
(Y page 10).
The radio display appears. You will hear
the station currently selected.
X
Press the d symbol.
The radio settings menu appears.
You hear a clicking sound. You can set the
volume of the click (Y page 23).
Page 16
14
Operation
Selecting a station
X
Press the û or ü button in the
radio menu.
The needle jumps left or right in the
waveband and stops at the next station
with adequate reception.
X
Repeat the operation step until the
desired station is selected.
>> At a glance.
Further setting options can be found in the
"Selecting a station" section
(Y page 81).
Storing stations
In the example, the station "big FM" is
selected and you would like to store this as
preset position 1 in the station presets.
You can save your four favourite stations to
the first four preset positions in this way.
X
Press and hold preset position 1 until you
hear a confirmation tone.
X
Call up the enter street menu
(Y page 38).
All letters are available in the menu.
X
Enter U, N, T.
The letters are entered in entry line :.
:
The current station is stored as preset
1
Further setting options can be found in the
"Storing a station" section (Y page 83).

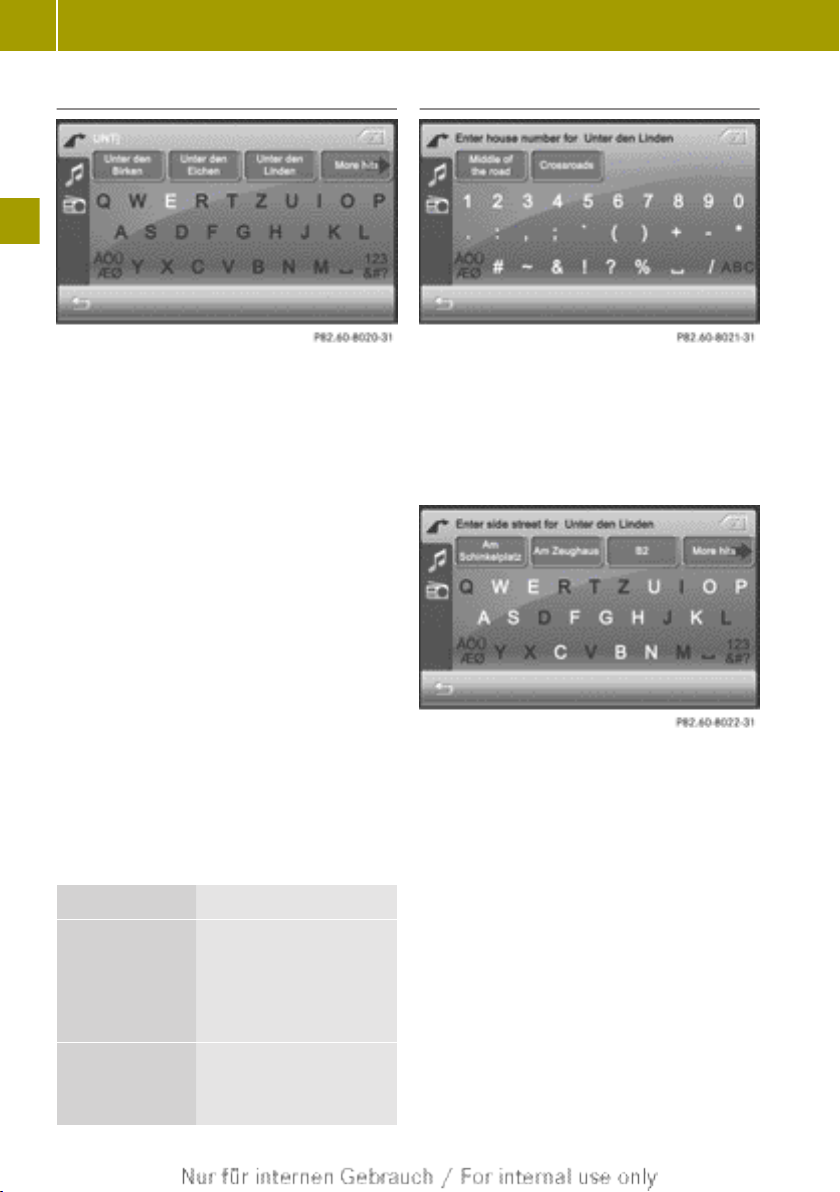

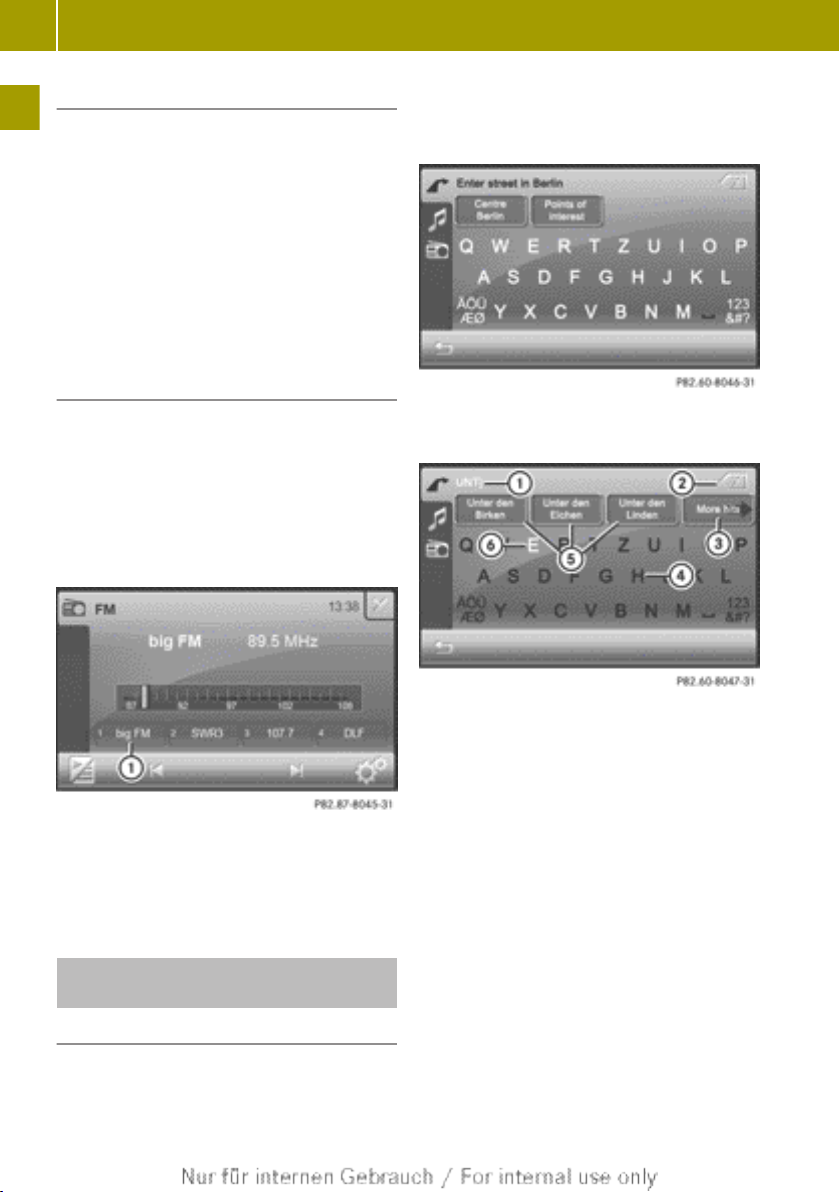

Entering characters in navigation mode
Entering characters
The following sections explain character
entry for the example of entering the street
name Unter den Linden.
:
Letters entered by the user UNT
;
To delete a character or an entry
=
To call up all entries that match the
current user entry
?
Characters not currently available
A
The first three entries that best match
the current user entry
B
Characters currently available
The first three entries A that best match
the current user entry are displayed. If the
entry you were searching for is shown, you
can select it.
All of the characters that have been entered
so far are shown in white, letters UNT :
in the example.
Characters that can be entered next B are
shown in white on the keyboard. The characters available depend on the entry made
Page 17
Operation
15
by the user so far and the data contained in
the digital map. Characters that are not
available are black ?.
The More hits = option can be used to
switch to the list.
Further entry options
X
To delete a character: press symbol ;.
X
To delete an entry: press symbol ;
repeatedly until the entire entry has
been deleted.
X

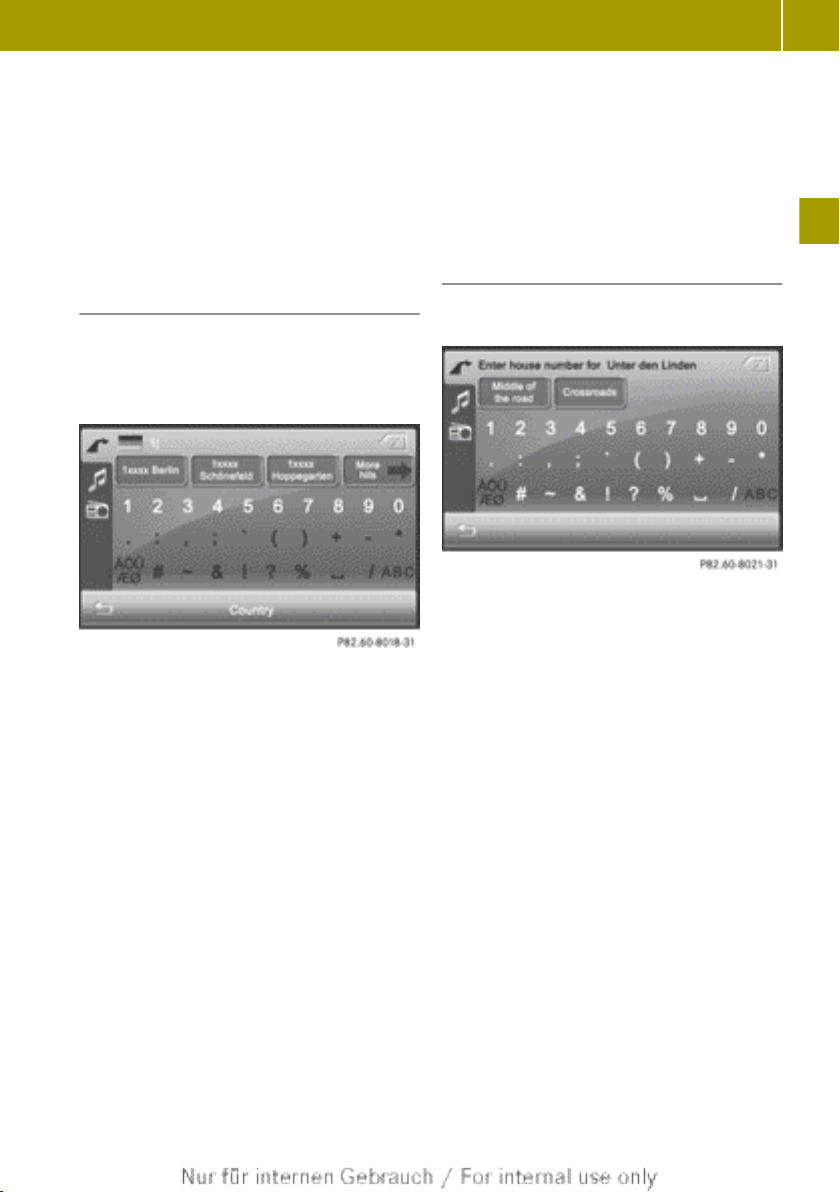

To select a number/special character:
press 123&#?.
X
Select a number or special character.
X
Press ABC to return to entering letters.
X
To select an umlaut: press ДЦЬЖШ.
X
Select an umlaut.
X
Press ABC to return to entering letters.
X
To select a keyboard: call up the system
settings menu (Y page 26) and select a
keyboard (Y page 27).
You can select the following keyboard settings:
R
Alphabetical
R
German (German "QWERTZ" computer keyboard)
R
English (UK)
R
French
R
Cyrillic
i
You can change the keyboard to Cyrillic; however, the destination must be
entered with Latin characters. The
Cyrillic names are shown in brackets
after the Latin entries.
X
To exit character entry: press &.
Calling up the list of streets
X
Press More hits.
The list of streets appears and shows the
section of the list that best matches the
user entry so far.
X
Press the 9 or : button to scroll
through the list.
X
Select the desired street.
The street is accepted.
Information about entering a destination
can be found in the "Destination entry"
section (Y page 36).

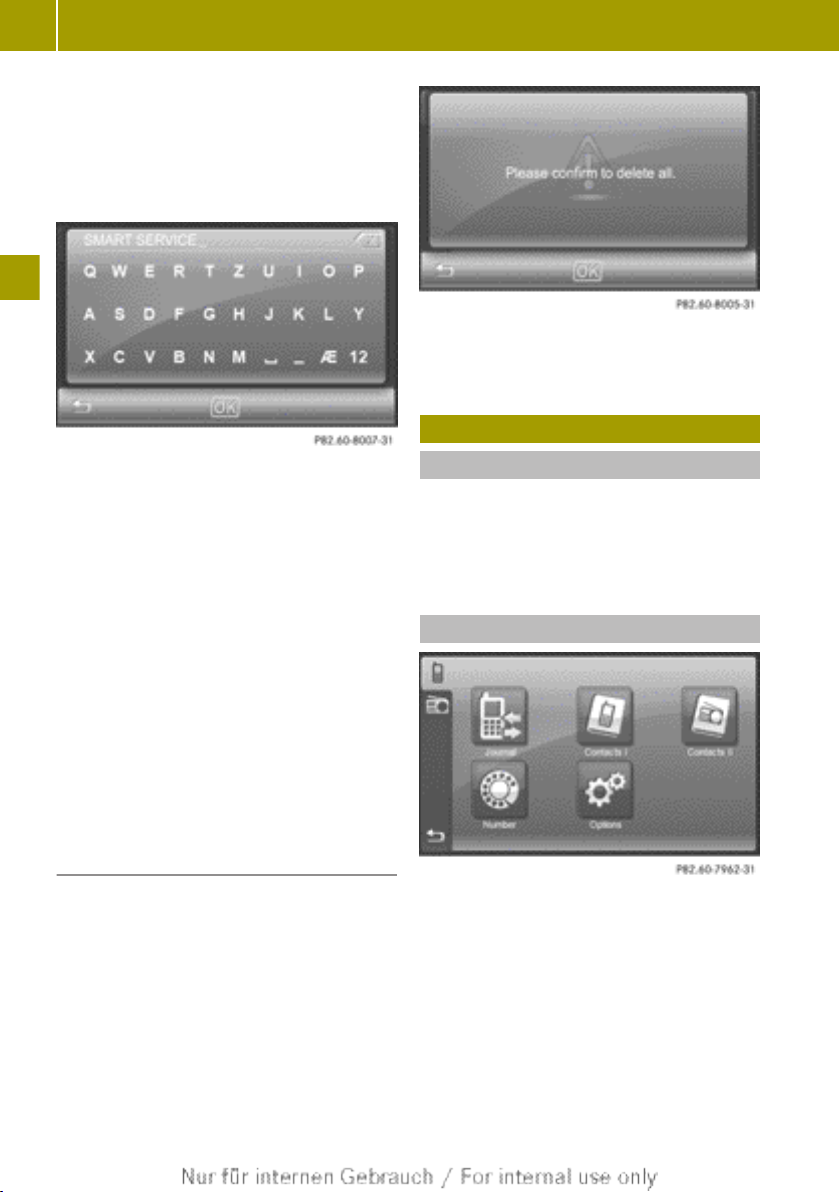

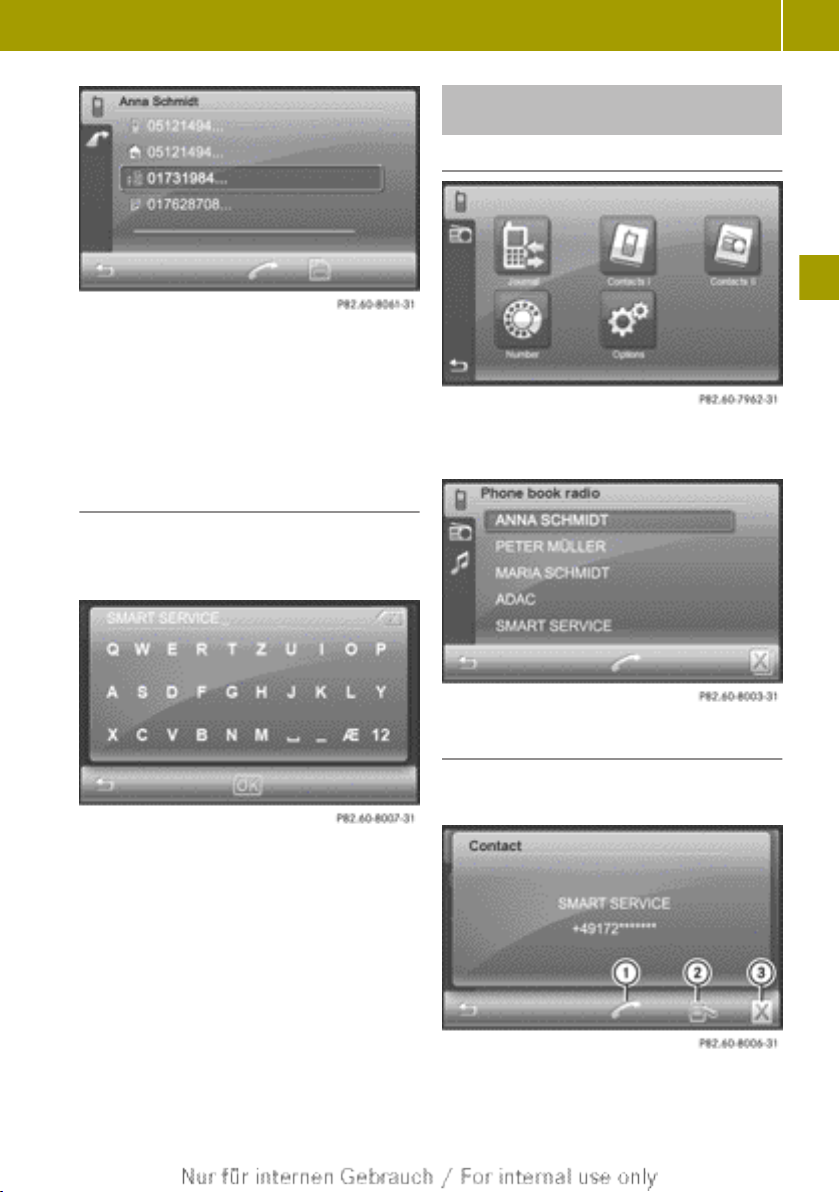

Character entry in the phone book
Creating a new entry in the audio system
navigation/multimedia phone book
The example shows how to import a contact
from the phone book of the mobile phone
(Y page 72) to the audio system navigation/multimedia phone book.
X
Select a contact from the phone book in
the mobile phone and press the save symbol.
An input menu appears.
X
Enter a name. Proceed as described in the
"Entering characters in navigation
mode" section (Y page 14).
X
Press OK and confirm the name.
The Saved message appears.
>> At a glance.
Page 18
Operation
16
Further entry options
>> At a glance.
:
To call up umlauts
;
To call up numbers and special characters
X
To delete a character: press the 1 sym-
bol.
X
To delete an entry: press the 1 symbol
until the entire entry has been deleted.
X
To select a number/special character:
press ;.
X
Select an umlaut.
X
Press AB to return to entering letters.
X
To select a keyboard: call up the system
settings menu (Y page 26) and select a
keyboard (Y page 27).
X
To exit character entry: press the &
button.
Finishing and saving an entry
X
Press OK.
X
Select a number or special character.
X
Press AB to return to entering letters.
X
To select an umlaut: press :.
Scrolling through lists
You can start rapid scrolling through lists
with many entries.
Country list in navigation mode (example)
X
Press and hold the 9 or : button
until the entry you are searching for is
shown.
Page 19
Basic functions
Safety note
WARNING
G
Before driving off, you should be familiar
with the operation of the functions which
you consider the most important. Never try
out new functions while the vehicle is in
motion. This will distract you from the
traffic conditions and may result in an
accident.
Operate the radio only in such a manner as
to allow you to retain full control of your
vehicle in all traffic conditions.
Bear in mind that, at a speed of 50 km/h,
your vehicle is already covering a distance
of 14 m per second.
Switching audio system navigation/ multimedia on/off
Switching on
X
Press W the control knob briefly.
After the initial screen, either the last
activated menu or the security code entry
menu appears.
Basic functions
i
The security code is set to "0000" at the
factory. It is recommended that you
change the security code (Y page 27).
i
You have ten attempts to enter the correct security code. If you enter an incorrect security code, the Wrong code mes-
sage stating the number of attempts
remaining is shown for two seconds.
i
If audio system navigation/multimedia
is switched off by switching the engine
off, it is then switched on again when the
engine is next started.
Switching off
X
To switch off and go to standby mode:
press and hold W the control knob.
Audio system navigation/multimedia
always switches to standby mode after the
Good Bye message.
Standby mode is terminated after a defined
time period (standby time). The device is
then switched off. You can set the standby
time (Y page 27).
In standby mode, the device is ready for use
quickly after being switched on again.
i
If audio system navigation/multimedia
is operated whilst the engine is
switched off, the device also goes into
standby mode after 30 minutes. A message
to this effect will be shown first.
X
To switch off without going to standby
mode: press W the control knob for
approximately ten seconds.
The audio system navigation/multimedia
is reset (e.g. if it is not working correctly) and can then be restarted.
17
>> At a glance.
X

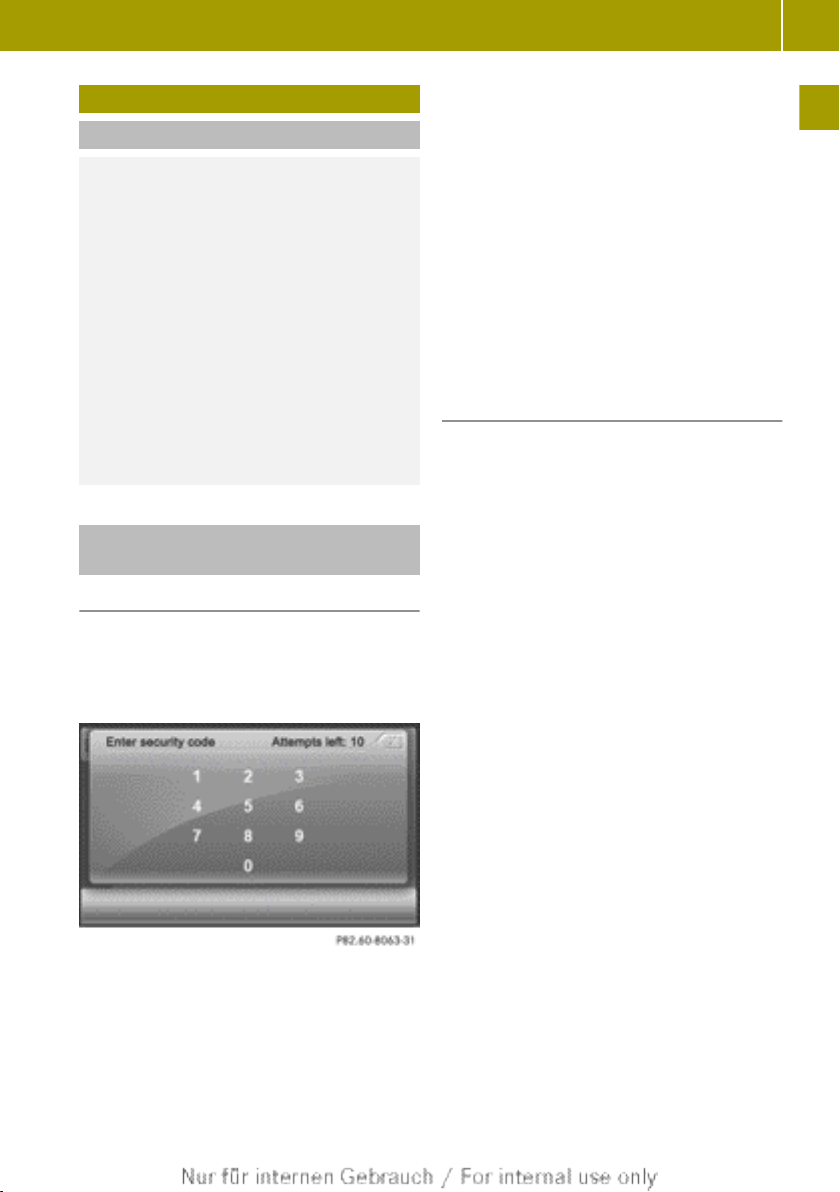

Enter the four-digit security code and
press OK.
Audio system navigation/multimedia is
switched on and shows the previously
selected menu.
Z
Page 20
Basic functions
18
Mute
Audio and video source
X
Press W the control knob briefly.
The audio or video source is muted. When
the sound is switched off, you will see
the , symbol in the status bar.
i
You will still hear traffic announce-
>> At a glance.
ments and navigation announcements,
even if the sound is muted.
The , symbol cannot be seen on very
bright areas of the screen in video mode
and in the picture viewer.
Audio sources are muted automatically if
you activate the voice control system for
the navigation (Y page 61).
Switching Traffic Programme and navigation announcements on/off
X
To switch Traffic Programme on/off: call
up the settings menu in radio mode and
press Traffic announce‐
ment(Y page 85).
Depending on the previous status, the
function is switched on O or off ª.
X
To switch off navigation announcements: press W the control knob briefly
during a navigation announcement.
or
X
Switch off voice output via the settings
menu (Y page 49).
X
To switch on navigation announcements:
press the arrow indicating the driving
direction on the map during route guidance.
or
X
Switch on voice output via the settings
menu (Y page 49).
Adjusting the volume
Adjusting the volume for the audio or
video source
X
Turn cVd the control knob.
Adjusting the volume for the traffic
announcements and navigation
announcements
Option 1
X
Turn cVd the control knob during a traf-
fic announcement or a navigation
announcement.
Option 2
X
Adjust the volume for the traffic
announcements (Y page 18) or the audio
fadeout during a traffic announcement
(Y page 18) in the volume settings menu.
Adjusting the volume for phone calls
Option 1
X
Turn cVd the control knob during a
phone call.
i
The volume is set to the default value
again for the next phone call.
Option 2
X
Set in the volume settings menu
(Y page 22).
Further volume settings
Further settings can be made in the volume
settings menu:
R
switch-on volume (Y page 23)
R
volume of the confirmation tone
(Y page 23)
R
click volume (Y page 23)
Page 21
Adjusting the sound settings
Introduction
You can adjust the balance, treble and bass,
as well as the X-bass in the audio settings
menu.
The balance function is used to control
whether the sound is louder on the driver's
or front-passenger side.
X-bass can be used to increase the bass by
up to six levels for a selected frequency
(32 Hz, 40 Hz, 50 Hz, 63 Hz, 80 Hz).
Adjusting the balance
X
Call up the audio settings menu
(Y page 98).
X
Press Balance.
Basic functions
X
Press the = or Ì button to set bass
and treble.
X
Press OK.
The settings are stored and you exit the
menu.
Setting X-bass
X
Call up the audio settings menu.
X
Press X-bass.
19
>> At a glance.
X
Press the = or Ì button to set the
sound focus point.
X
Press OK.
The settings are stored and you exit the
menu.
Setting treble and bass
X
Call up the audio settings menu
(Y page 98).
X
Press Bass/Treble.
X
Press the = or Ì button to set the
frequency.
X
Press the 9 or : button to increase
the X-bass level by level.
X
Press OK.
The settings are stored and you exit the
menu.
Z
Page 22
20
Page 23
Volume settings ................................ 22
Screen settings ................................ 24
Clock settings .................................. 25
System settings ................................ 26
>> General settings.
Page 24
Volume settings
22
Volume settings
Calling up the volume settings menu
X
Press Extras in the main menu
(Y page 10).
X
Press Options in the extras menu.
The general settings menu appears.
X
Press Volume settings.
>> General settings.
i
If you then want to adjust one of the volumes, you will hear the volume currently
selected.
You cannot adjust the volume settings
during a navigation announcement.
Adjusting the volume for traffic announcements
You can increase or decrease the volume for
subsequent traffic announcements.
X
Call up the volume settings menu.
The entry on the right beside Traffic
announcement shows the current setting.
X
Press Traffic announcement in the
menu.
A settings menu appears.
X
Press the = or Ì button to adjust
the volume. You can select values between
0 (switched off) and 50 (loud).
or
X
Turn cVd the control knob.
X
To confirm the setting: press OK.
The volume settings menu appears.
Adjusting the volume for phone calls
You can adjust the volume for hands-free
mode.
X
Call up the volume settings menu
(Y page 22).
The entry on the right beside Mobile
phone shows the current setting.
X
Press Mobile phone in the menu.
A settings menu appears.
X
Press the = or Ì button to adjust
the volume. You can select values between
0 (switched off) and 50 (loud).
or
X
Turn cVd the control knob.
X
To confirm the setting: press OK.
The volume settings menu appears.
Audio fadeout during a navigation announcement
The volume of an audio source can be lowered during a navigation announcement.
Page 25
X
Call up the volume settings menu
(Y page 22).
The entry on the right beside Naviga‐
tion shows the current setting.
X
Press Navigation in the menu.
A settings menu appears.
X
Press the = or Ì button to adjust
the volume fadeout. You can select values
between 0 (no fadeout), 1 to 5 (light to
strong fadeout) and 6 (full fadeout).
or
X
Turn cVd the control knob.
X
To confirm the setting: press OK.
The volume settings menu appears.

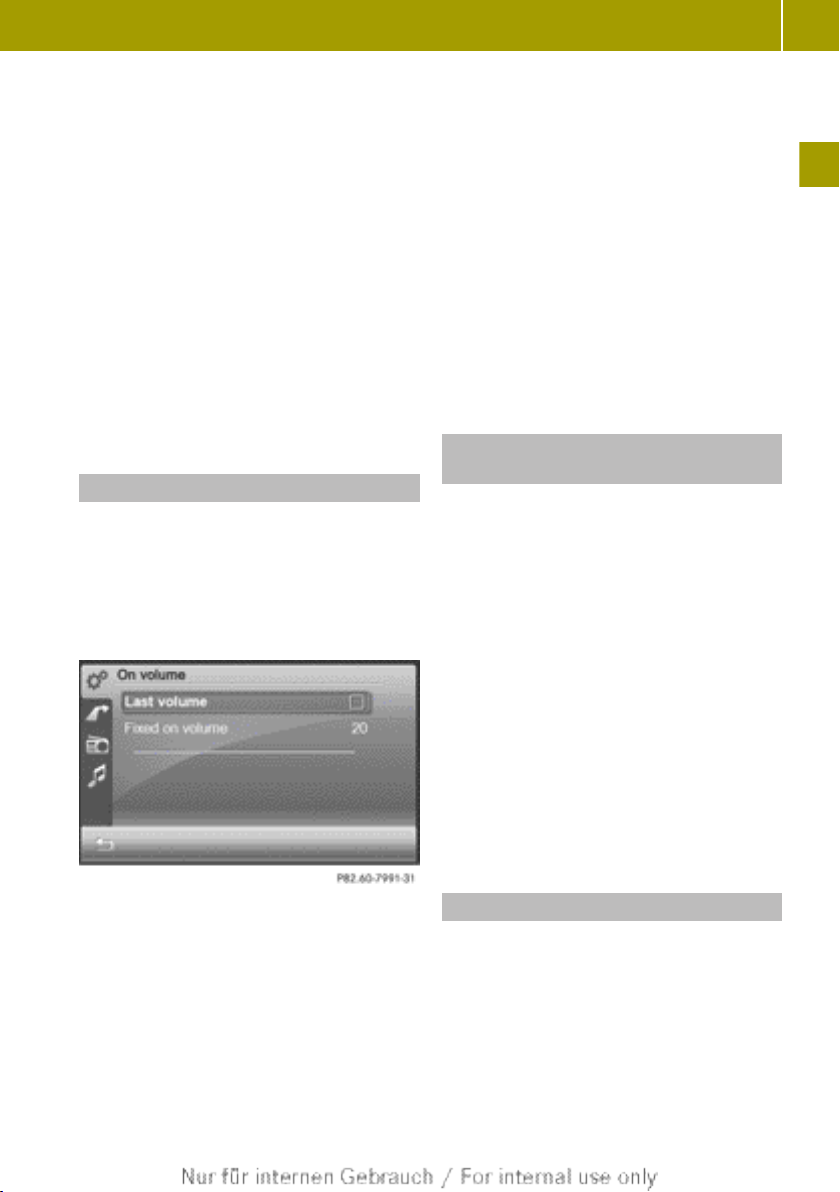

Adjusting the switch-on volume
X
Call up the volume settings menu
(Y page 22).
The entry on the right beside On vol‐
ume shows the current setting.
X
Press On volume in the menu.
A menu appears.
Volume settings
on the right beside On volume in the
menu.
or
X
Press Fixed on volume.
A settings menu appears.
X
Press the = or Ì button to adjust
the volume. You can select values between
0 (switched off) and 50 (loud).
or
X
Turn cVd the control knob.
X
To confirm the setting: press OK.
The volume settings menu appears.
Adjusting the volume of the confirmation tone (beep)
Some functions, such as storing a radio
station, are acknowledged with a confirmation tone. You can adjust the volume of
the confirmation tone.
X
Call up the volume settings menu
(Y page 22).
The entry on the right beside Beep shows
the current setting.
X
Press Beep in the menu.
A settings menu appears.
X
Press the = or Ì button to adjust
the volume. You can set values between 0
(switched off) and 3 (loud).
X
To confirm the setting: press OK.
The volume settings menu appears.
23
>> General settings.
X
Press Last volume.
Depending on the previous status, the
function is switched on O or off ª.
When the function is switched on, the
switch-on volume is the volume at which
audio system navigation/multimedia was
last switched off. Last is then displayed
Adjusting the click volume
Entries that you make by pressing briefly
on the screen are accompanied by a tone
(click). You can adjust the volume of this
click.
Page 26
Screen settings
24
X
Call up the volume settings menu
(Y page 22).
The entry on the right beside Click shows
the current setting.
X
Press the : button until the Click
entry appears.
X
Press Click.
A settings menu appears.
X
Press the = or Ì button to adjust
the volume. You can set values between 0
(switched off) and 6 (loud).
X
To confirm the setting: press OK.
The volume settings menu appears.
>> General settings.
Screen settings
Calling up the screen settings menu
X
Press Extras in the main menu
(Y page 10).
X
Press Options in the extras menu.
The general settings menu appears.
X
Press Display settings.
X
Call up the screen settings menu
(Y page 24).
The entry on the right beside Dimming
shows the current setting.
X
Select Dimming.
A menu appears.
X
Automatic setting: press Automatic
first and then press &.
The setting is accepted and the screen
settings menu appears.
X
Manual setting: press Manual.
A settings menu appears.
X
Press = or Ì to select a value
between 0 (very dark) and 16 (bright) for
the dimmer.
X
Press OK.
The setting is accepted.
X
Press &.
The screen settings menu appears.
Setting the brightness
X
Call up the screen settings menu
(Y page 24).
X
Press Brightness. The entry on the right
beside Brightness shows the current
setting.
A settings menu appears.
X
Press = or Ì to select a value for
the brightness.
X
Press OK.
The setting is accepted.
Dimming the screen
The brightness determined by the brightness sensor (Y page 8) (item A) of audio
system navigation/multimedia affects the
setting options for this function.
When you dim the screen, adjust the display
lighting accordingly. You can choose
between automatic or manual setting.
Selecting a colour scheme
X
Call up the screen settings menu
(Y page 24).
X
Press Background style. The entry on
the right beside Background style
shows the current setting.
A menu appears.
Page 27
X
Select the desired colour scheme.
X
Press OK to confirm the selection.
The display appears in the selected colour scheme.
Clock settings
Introduction
Audio system navigation/multimedia sets
the time automatically if it has sufficient
GPS reception.
You can also set the time manually (e.g. if
there is no GPS reception or the reception
is insufficient). However, the time that you
enter will be overwritten when there is GPS
reception. The time zone and summer time
settings are not changed.
Clock settings
X
Press the available numbers (shown in
white) one after another.
The colon between the hours and minutes
is entered automatically.
X
Press OK.
The setting is accepted and the "Time
entry" menu appears.
25
>> General settings.
Calling up the "Time entry" menu
X
Press Extras in the main menu
(Y page 10).
X
Press Options in the menu.
The general settings menu appears.
X
Press Clock settings.
Setting the time
The time is shown in the status bar in the
radio display.
X
Call up the "Time entry" menu
(Y page 25).
X
Press Edit time.
Setting the time format
You can set the format to 24-hour or 12-hour
(AM/PM).
X
Call up the "Time entry" menu
(Y page 25).
The entry on the right beside 12 hour
mode shows the current setting.
X
Press 12 hour mode.
The entry on the right beside 12 hour
mode changes.

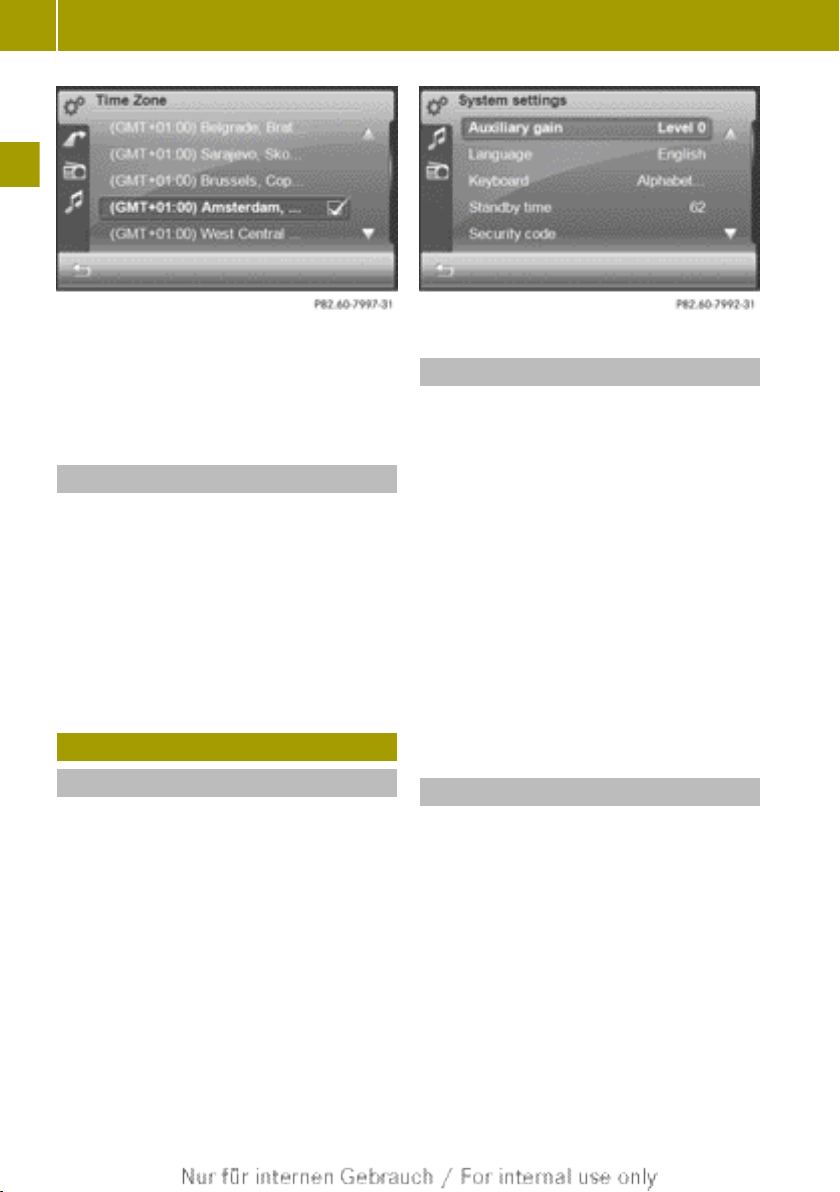

Setting the time zone
X
Call up the "Time entry" menu
(Y page 25).
The entry on the right beside Time
zone shows the current setting.
X
Press Time zone.
A list appears for the selection of the
time zone. The currently selected time
zone is identified by the O symbol.
Page 28
System settings
26
X
Press 9 or : to scroll in the list.
X
Select the desired time zone.
The O symbol indicates the currently
set time zone.
>> General settings.
Setting summer time
If no summer time conversion takes place
in the time zone selected, this menu item
is not available.
X
Call up the "Time entry" menu
(Y page 25).
X
Press Summer time.
Depending on the previous status, summer time is switched on O or off ª.
System settings
Increasing the volume for audio AUX
In some cases, the volume of the external
audio device may be quieter or louder, or
the usual maximum possible volume may be
lower. On some devices, it is possible to
adjust the volume separately. In this case,
start at a medium volume and increase it
gradually. This enables you to determine
whether the system is able to play the music
at high volume without distorting it.
X
Call up the system settings menu
(Y page 26).
X
Press Auxiliary gain in the menu.
The level (level, value) on the right
beside the entry changes. You can select
level 0 (no volume increase), 1 or 2.
Calling up the system settings menu
X
Press Extras in the main menu
(Y page 10).
X
Press Options in the extras menu.
The general settings menu appears.
X
Press System settings.
Setting the language
You can use this function to determine the
language for the menu displays and the navigation announcements. The selected language affects the characters available for
entry. When you set the system language, the
language for the voice control system
changes at the same time (Y page 61). If
the voice control system does not support
this language, voice commands are not possible.
Page 29
X
Call up the system settings menu
(Y page 26).
The entry on the right beside Language
shows the current setting.
X
Press Language.
The list of languages appears. The currently selected language is identified
by the O symbol.
X
Press 9 or : to scroll through the
list.
X
Select the desired language.
Audio system navigation/multimedia
loads the language and switches back to
the system settings menu.
Selecting a keyboard
The keyboard selection affects the selection options in the input menus (keyboard
layout, special character entry).
You can select the following keyboard settings:
R
Alphabetical
R
German (German "QWERTZ" computer keyboard)
R
English (UK)
R
French
R
Cyrillic
X
Call up the system settings menu
(Y page 26).
The entry on the right beside Keyboard
shows the current setting.
X
Press Keyboard.
A list appears.
X
Select the desired keyboard.
Audio system navigation/multimedia
loads the keyboard and switches back to
the system settings menu.
Setting the standby time
After it has been switched off, audio system
navigation/multimedia switches to
standby mode in which it consumes more
System settings
power. In this mode, the device is ready for
use quickly after being switched on again.
Standby mode is terminated after a defined
time period (standby time). The device is
now switched off and changes to the energysaving operating mode. You can set the
standby time individually.
i
The standby time is preset to 18 h. Setting a low standby time is recommended
when, for example, the battery charge is
low.
If audio system navigation/multimedia
is operated while the engine is switched
off, the device also goes into standby
mode after 30 minutes. You will see a
warning message to this effect.
X
Call up the system settings menu
(Y page 26).
The entry to the right of Standby time
shows the current setting.
X
Press Standby time in the menu.
A settings menu appears.
X
Press = or Ì to adjust the standby
time. You can select values between 1 and
24 h.
X
Press OK.
Audio system navigation/multimedia
accepts the value and switches back to
the system settings menu.
Changing the security code
Entering a four-digit security code serves
to protect against theft. The security code
must be entered after disconnecting the
battery, for example.
The security code is set to "0000" at the
factory. It is recommended that you change
the security code.
i
Memorise the changed security code. If
you have incorrectly entered the security code ten times, audio system navigation/multimedia is locked. In this case,
27
>> General settings.
Page 30
System settings
28
you must have audio system navigation/
multimedia unlocked at a smart Centre.
X
Call up the system settings menu
(Y page 26).
X
Press Security code.
An input menu appears for the entry of the
current security code.
X
To enter the current (old) code: press the
numbers one after another.
X
Press OK to confirm the entry.
An input menu appears for the entry of the
new security code.
X
To enter the new code: press the numbers
one after another.
>> General settings.
X
Press OK to confirm the entry.
The Please confirm again entry prompt
appears.
X
To confirm the new code: enter the new
code again and press OK.
The New code saved message appears.
The new security code is requested when
audio system navigation/multimedia is
switched on again.
X
Press the cross.
The cross moves across the screen.
X
Repeat this action until the system settings menu appears.
Loading the factory settings
Audio system navigation/multimedia can
be reset to the factory settings. Amongst
other things, this will delete all personal
data (e.g. station presets, entries in the
destination memory and in the list of previous destinations in the navigation system, phone book entries). Resetting is recommended before handing over or selling
the vehicle, for example.
X
Call up the system settings menu
(Y page 26).
X
Press Factory settings.
The Please confirm to load the fac‐
tory settings entry prompt appears.
X
Press OK.
To cancel the reset to factory settings:
press &.

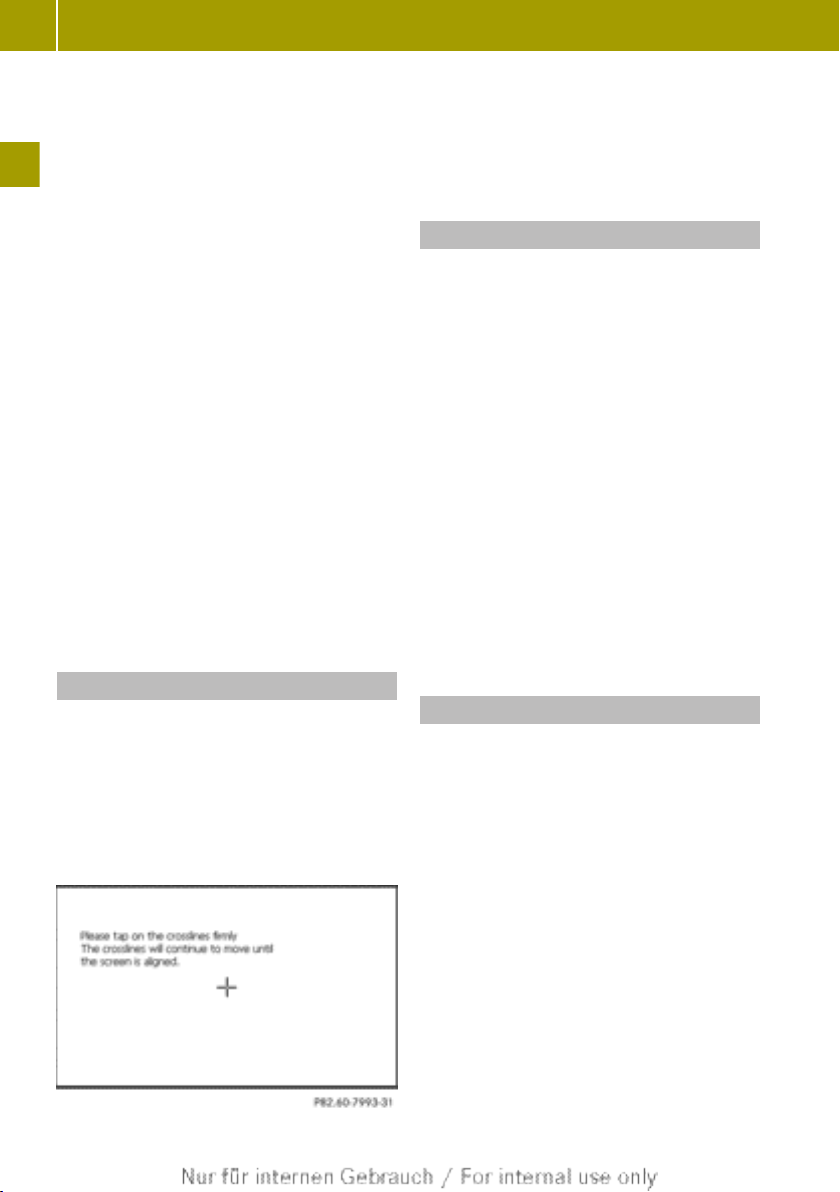

Calibrating the touch screen
The touch screen is calibrated before
delivery. Recalibrate it if it no longer
responds precisely to your entries.
X
Call up the system settings menu
(Y page 26).
X
Press Touch calibration.
An entry prompt is shown.

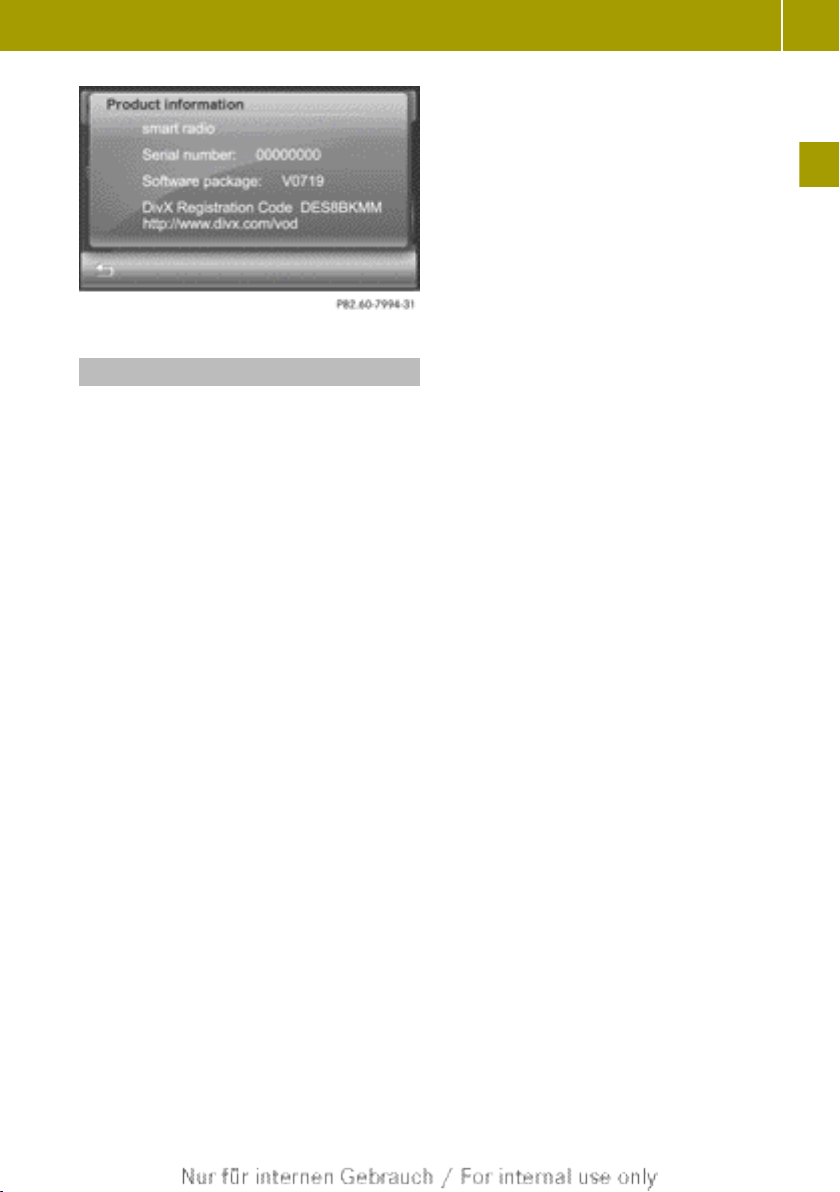

Displaying product information
Product information includes:
R
the serial number
R
the software package number
R
the DivX registration code with the
internet address (enables downloading
of films in DivX format)
i
The serial number can be used to identify audio system navigation/multimedia unambiguously.
X
Call up the system settings menu
(Y page 26).
X
Press Product information.
Page 31
Updating the digital map
The digital maps generated by the map
software become outdated in the same way
as conventional road maps. Optimal route
guidance can only be provided by the navigation system in conjunction with the
most up-to-date map software.
You can have the map software updated at
your smart Centre. You will need to specify
the vehicle identification number, the
name of the vehicle owner and the device
code of your audio system navigation/multimedia (Y page 59).
System settings
29
>> General settings.
Page 32
30
Page 33
Introduction .................................... 32
Basic settings .................................. 34
Destination entry .............................. 36
Route guidance ................................. 46
Last locations .................................. 54
Favourites (destination memory) .......... 55
Map operation and settings ................. 56
Voice control system .......................... 61
>> Navigation.
Page 34
Introduction
32
Introduction
Safety notes
WARNING
G
For safety reasons, only enter a new destination when the vehicle is stationary. You
may otherwise be distracted from the traffic conditions, cause an accident and
injure yourself and others.
The device calculates the route to the destination without taking account of the following, for example:
R
traffic lights
R
stop and give way signs
>> Navigation.
R
parking or stopping restrictions
R
road narrowing
R
other road and traffic rules and regulations
The device may provide incorrect navigation announcements if the surroundings do
not correspond to the data on the digital
map. For example, a route may have been
diverted or the direction of a one-way
street may have changed.
For this reason, you must always observe
road and traffic rules and regulations during your journey. Road and traffic rules and
regulations always have priority over the
system's driving recommendations.
GPS reception
Correct functioning of the navigation system depends, amongst other things, on GPS
reception. In certain situations, GPS
reception may be impaired, there may be
interference or there may be no reception
at all, e.g. in tunnels or multi-storey car
parks.
Available/unavailable functions
Functions that are currently available are
highlighted; functions that are currently
unavailable are greyed out.
Switching navigation mode on/off
Switching on navigation mode
X
To switch on navigation mode: press the
t button.
The main menu appears.
General notes
Operational readiness of the navigation
system
The navigation system must determine the
position of the vehicle before first use or
whenever operational status is restored.
Therefore, you may have to drive for a while
before the position of the vehicle can be
determined precisely.
X
Press Navigation. You will see the navigation start screen. The Please follow traffic regula‐
tions! Do not operate any function
while driving! note then appears
X
Press OK and confirm the note.
Option 1: the Would you like to start
in Easy or Expert mode? prompt appears
when the navigation is switched on for the
first time.
Easy mode makes the basic functions for
settings, destination entry and route
guidance available.
Page 35
Expert mode provides additional functions, such as:
R
special destination entry
R
alternative routes
R
displaying the maximum permissible
speed on the map with a warning tone if
this is exceeded
R
settings for traffic jam avoidance
R
route plotting (GPS track)
X
Press Easy or Expert.
The navigation main menu is shown in
Easy or Expert mode. You can switch
between Easy and Expert mode
(Y page 34).
Option 2: the navigation system shows the
display that was exited before switching
off.

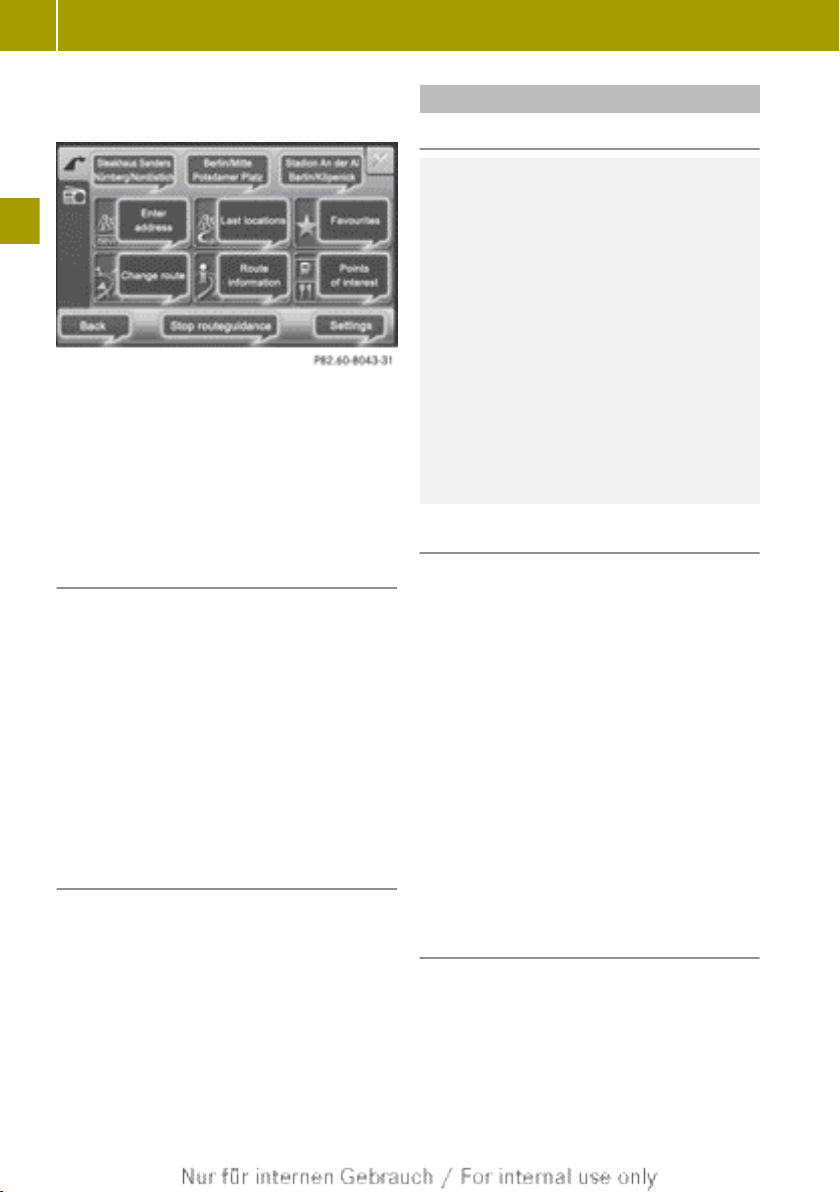

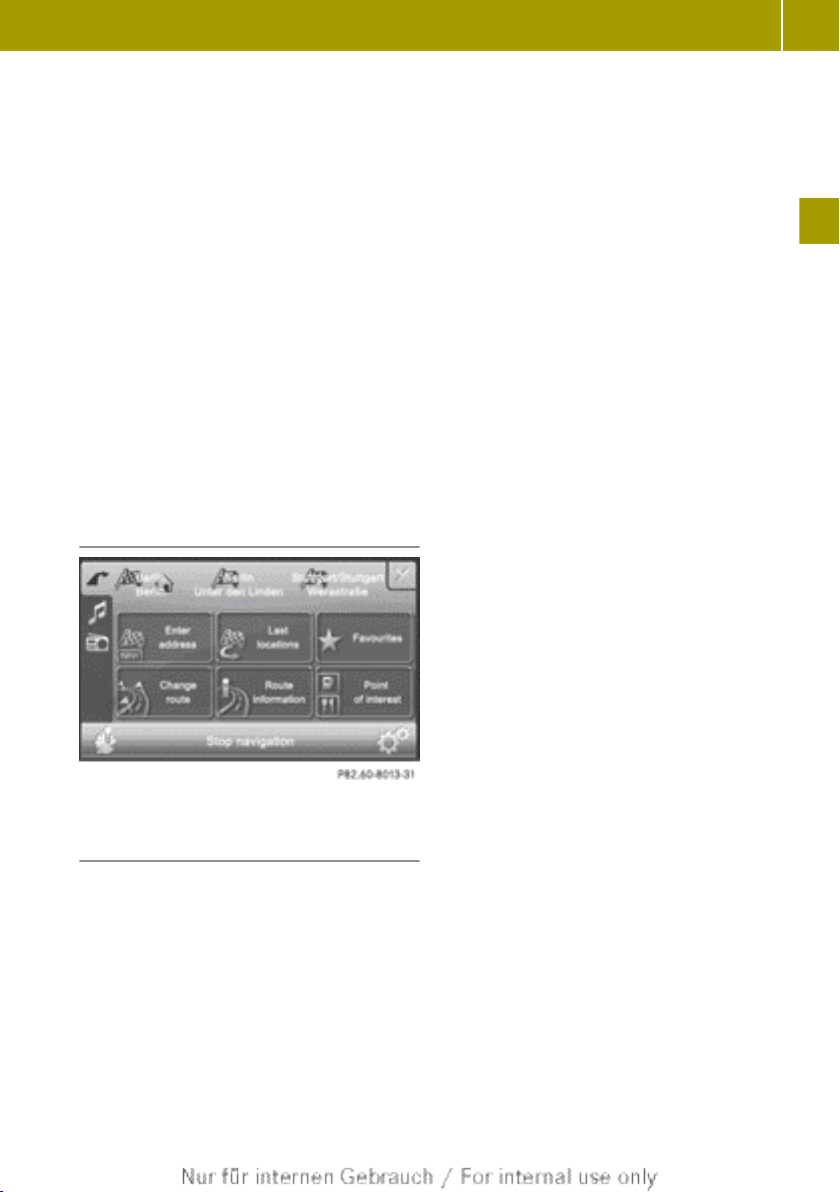

Navigation main menu
Introduction
33
>> Navigation.
Example: Expert mode
Switching off navigation mode
X
Press 1 at the top right of the navigation menu.
Z
Page 36
Basic settings
34
Basic settings
Easy and Expert modes
Introduction
You can select Easy or Expert mode when switching on navigation mode (Y page 32) or
switch between the two modes in the settings menu.
Easy/Expert mode overview
Function Easy mode Expert mode
navigation main
menu
>> Navigation.
settings menu
R
Entering an address
R
Last locations
R
Favourites (destination
memory)
R
Route options
R
Display
R
Programme settings
R
Voice output
R
Entering an address
R
Last locations
R
Favourites (destination memory)
R
Changing the route
R
Route information
R
Special destinations
R
Route options (additionally: route
type, alternative routes, traffic
jam avoidance)
R
Display (additionally: junction
zoom, map colours)
R
Program settings (additionally:
displaying the speed limit on the
map, route recording)
R
Voice output
R
Special destinations on the map
Route calculationRStandard route
R
Standard route and alternative
routes
Route guidance
R
Route guidance functions
R
Route guidance functions
R
Quick menu: allows fast access to
six individually selectable functions
R
Plotting the GPS track
Setting Easy/Expert mode
X
Option 1: select the mode when the Would
you like to start in Easy or
Expert mode? prompt is shown when
switching on navigation mode for the
first time.
X
Option 2: press the d symbol at the
bottom right of the navigation main menu
(Y page 33).
The settings menu appears.
Page 37

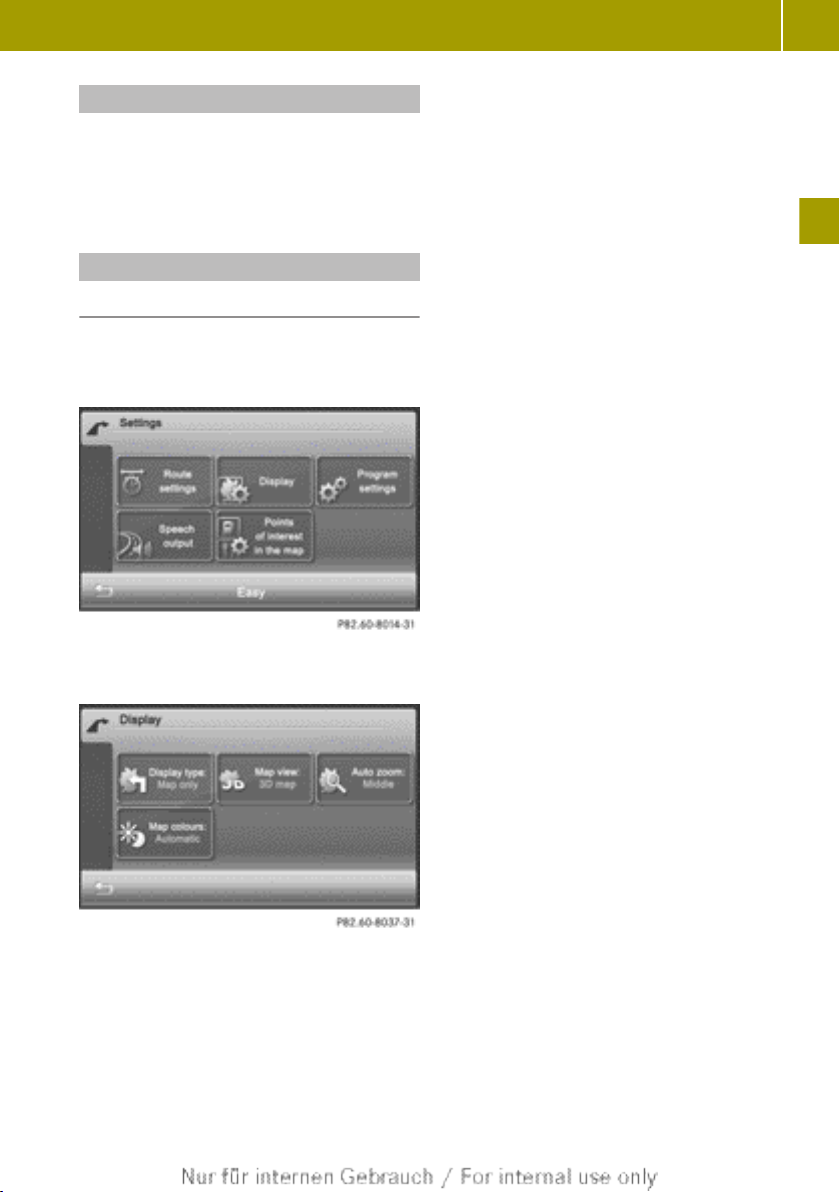

settings menu (example: Expert mode)
X
Depending on the current mode, press
Easy or Expert.
Setting the route options and route type
Note
The route options and route type (Expert
mode) determine the route calculation.
Setting route options
X
Press Route options in the settings
menu.
Depending on the mode selected, the
available route options are shown.
Easy mode: you can use/avoid motorways,
toll roads and ferries (standard route).
Expert mode: in addition to the standard
route, there are two alternative routes
available for route calculation. You can
use/avoid motorways, toll roads and ferries, as well as set the route type and
select traffic jam avoidance.
X
Easy mode: press one of the route
options.
Depending on the previous setting, use
or avoid the route options.
X
Press & to return to the settings menu.
or
Basic settings
X
Expert mode: press Standard, Alterna‐
tive 1 or Alternative 2.
The route options appear.
X
Press one of the route options.
Depending on the previous setting, use
or avoid the route options.
Route options menu (example: Expert mode)
Setting the route type (Expert mode)
X
Press Route type.
X
Press short, fast or economic.
X
Press & twice to return to the settings
menu.
You can set the following route types:
R
Short route: the device calculates a
route with the shortest possible (minimised) distance.
R
Fast route: the device calculates a
route with the shortest possible (minimised) driving time.
R
Economic route: economic route is an
optimised mix of the short and fast
routes.
i
Traffic jam avoidance is described in
the section with the same name
(Y page 50).
35
>> Navigation.
Z
Page 38
Destination entry
36
Destination entry
Introduction to destination entry
WARNING
G
For safety reasons, only enter a new destination when the vehicle is stationary. You
could otherwise be distracted from the
traffic conditions, cause an accident and
injure yourself and others.
The following destination entry options
are available:
R
entering a destination by address
R
entering a destination as geo-coordi-
>> Navigation.
nates
R
entering a destination from the previous
towns
R
entering a destination from the favourites (destination memory)
R
entering a destination using the map
R
entering a special destination
R

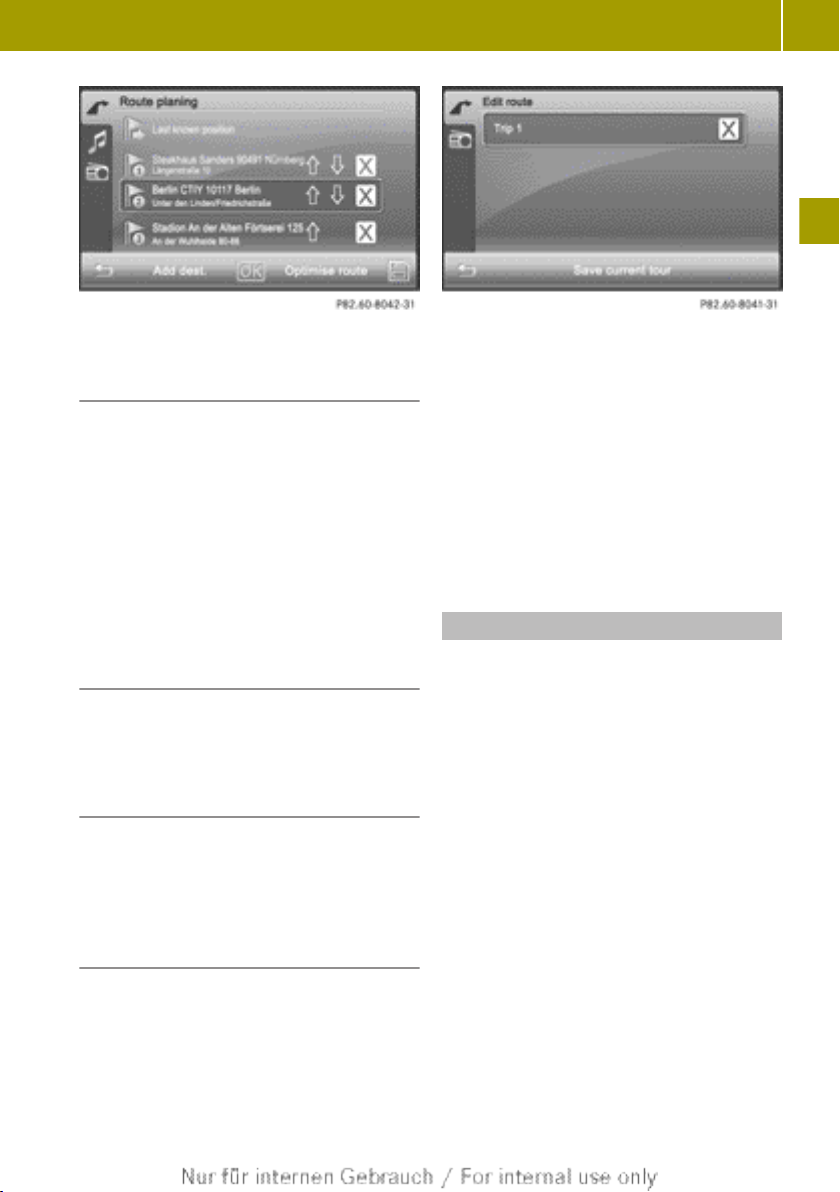

compiling a route with multiple destinations
Entering a destination by address
Introduction
When entering an address as the destination, you have the following options:
R
entering the country, town/postcode,
street and house number
R
entering the country, town/postcode and
street
R
entering the country, town/postcode,
street and junction
R
entering the country, town/postcode and
centre
R
entering the country, town/postcode and
special destinations
R
entering the country, town/postcode
Country and town/postcode are sufficient
to start navigating. You can enter either a
town or a postcode. By entering further
address data such as the street and house
number, you can specify the destination
more precisely.
i
Note that you can only enter a street,
house number, junction etc. once you
have entered a country and a town or postcode.
i
You can only enter those towns, streets,
postcodes etc. that are stored in the digital map. This means that for some countries, you cannot enter postcodes, for
example.
Example of entering an address
The following is a step-by-step example of
how to enter an address in Expert mode. The
destination address is as follows:
Germany
Berlin
Unter den Linden/Friedrichstraße (junction)
You can of course enter any country, town,
street and house number desired and enter,
for example, your home address (Home
address).
Calling up the address entry menu
X
Call up the navigation main menu
(Y page 33).
X
Press Enter address.
The enter new destination menu appears.
Page 39
Destination entry
37
"Entering a new destination" menu
:
To select the country
;
To enter a postcode
=
To enter a town
?
To enter a street name
A
To enter geo-coordinates (Expert mode)
Selecting the country
X
Press the country entry in the "Entering
a new destination" menu (Y page 36), e.g.
Germany.
You see the country list.
X
Press 9 or : to scroll in the list.
X
Press the desired country.
The country is selected and is now
entered in the "Entering a new destination" menu.
Option 1
X
Enter B. Instructions for entering characters can be found in the "Entering
characters in navigation mode" section
(Y page 14).
As soon as the letter has been entered,
the three largest towns found can be
selected.
i
You can set the keyboard (Y page 27).
X
Press 1xxxx Berlin.
You can now enter the street name.
Option 2
X
Enter B.
As soon as the letter has been entered,
More hits can be selected.
X
Press More hits.
A list shows the first three largest towns
that match the entry and then shows all
other entries in alphabetical order. The
towns are shown on the left-hand side of
the map.
X
Press Hide map to only show the list.
X
Press Display on map to show the map
and the list.
X
Press 9 or : to scroll in the list.
X
Press 1xxxx Berlin.
You can now enter the street name.
>> Navigation.
Entering a town
X
Press the town entry in the "Entering a
new destination" menu (Y page 36).
The input menu for the town appears.
Z
Page 40
Destination entry
38
Entering a street name
i
The menu also appears if you press the
street entry in the "Entering a new des-
>> Navigation.
tination" menu (Y page 36).
Option 1:
X
Enter UNT. Instructions for entering
characters can be found in the "Entering
characters in navigation mode" section
(Y page 14).
After entering UNT, the desired street is
shown in the first three entries.
X
Press Unter den Linden.
You can now enter a house number or a
junction.
Option 2
X
Enter UNT.
X
Press More hits and select Unter den
Linden from the list.
You can now enter a house number or a
junction.
Further entry options immediately after
calling up the menu:
Selection Function
Berlin Centre
Sets the destination to
the town centre and
calls up the detailed
information menu
(Y page 39).
X
Points of
interest
Enter a special destination
(Y page 43).
Entering a junction name
X
Press Crossroads in the "Entering a
house number" menu.
The input menu for the junction appears.
The first three side streets that can be
selected are shown in alphabetical
order.
Option 1:
X
Enter F. Instructions for entering characters using street input as an example
can be found in the "Entering characters
in navigation mode" section (Y page 14).
X
Press Friedrichstraße.
The address is now complete and the
detailed information menu appears.
Option 2
X
Enter F.
X
Press More hits and select Friedrich‐
straße from the list.
The address is now complete and the
detailed information menu appears.
Page 41

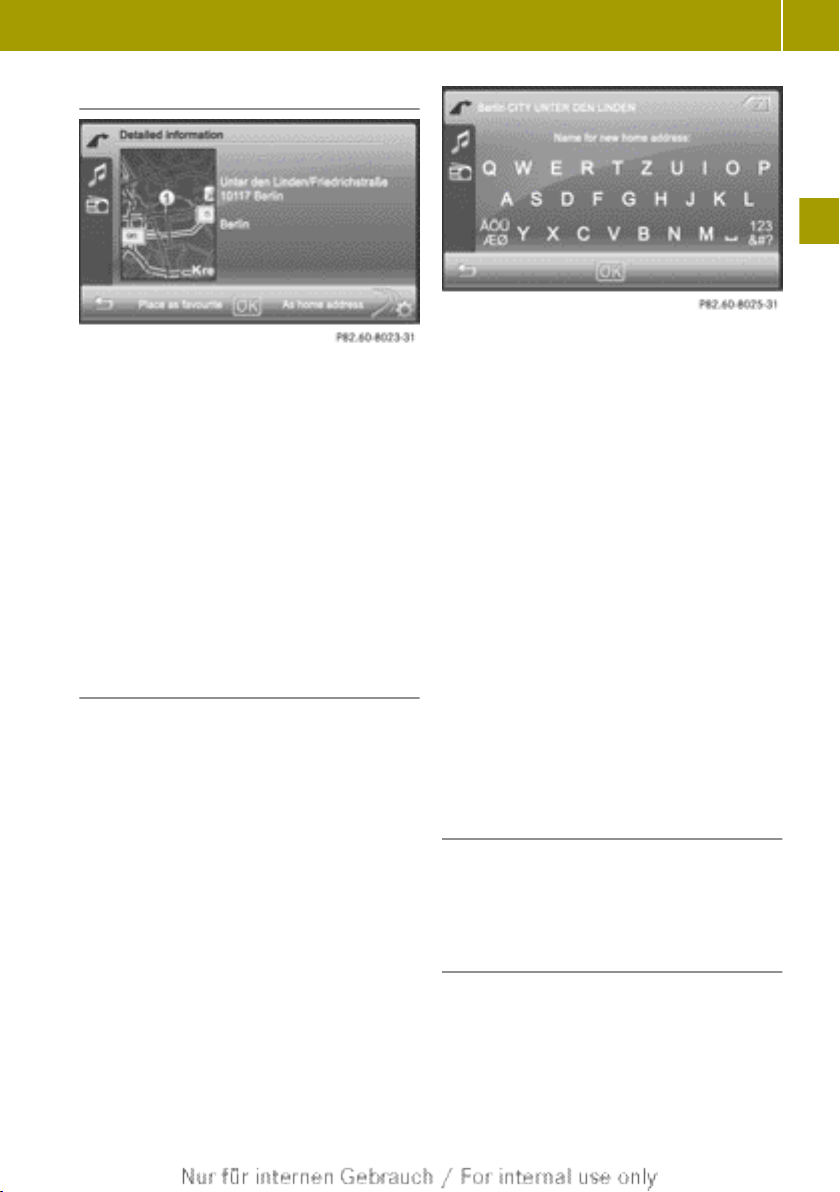

Detailed information menu
The menu shows the address entered and the
destination on map :.
Before calculating the route to the destination entered, you can:
R
store the address as your home address
(Y page 39)
R
store the address as a favourite
(Y page 55)
R
view the destination on the map
(Y page 39)
R
check/change the route options for the
address (Y page 39)
Entering and storing your home address
You can either enter your home address for
the first time (option 1) or edit a previously stored home address (option 2).
X
Option 1: enter the address, e.g. a town,
street and junction.
X
After entering the address, press As
home address in the detailed informa-
tion menu.
An input menu appears.
Destination entry
i
You can set the keyboard (Y page 27).
X
Enter a name for the home address.
Instructions for entering characters
using street input as an example can be
found in the "Entering characters in navigation mode" section (Y page 14).
X
Press OK.
The destination is stored as the home
address in the favourites under the name
entered (Y page 55).
X
Option 2: proceed as described under
"Option 1".
The A favourite with this name
already exists. Do you want to
replace this file? message appears.
X
Press OK if you want to overwrite the home
address.
X
If you do not want to overwrite the home
address: press &.
Viewing the destination on the map
X
Press the map.
X
To return to the "Detailed information
menu": press &.
39
>> Navigation.
Calculating the route
Checking/changing route options
The detailed information menu appears
after the address has been entered. Before
starting the route calculation, you can
check and change the route options.
Z
Page 42
Destination entry
40
X
Press the symbol at the bottom right of
the detailed information menu
(Y page 39).
The "Route options" menu appears
(Y page 35) and shows the current settings.
X
Change the route options.
X
Press & to return to the detailed infor-
mation menu.
Calculating the route
X
Press OK in the detailed information
menu (Y page 39).
The route to the destination is calcula-
>> Navigation.
ted using the selected route options.
After the route has been calculated, you
will hear Route calculation comple‐
ted.
The map shows:
R
the destination address (at the top)
R
the route as a blue line
R
the selected route option (e.g. standard) with the distance and estimated
journey duration to the destination

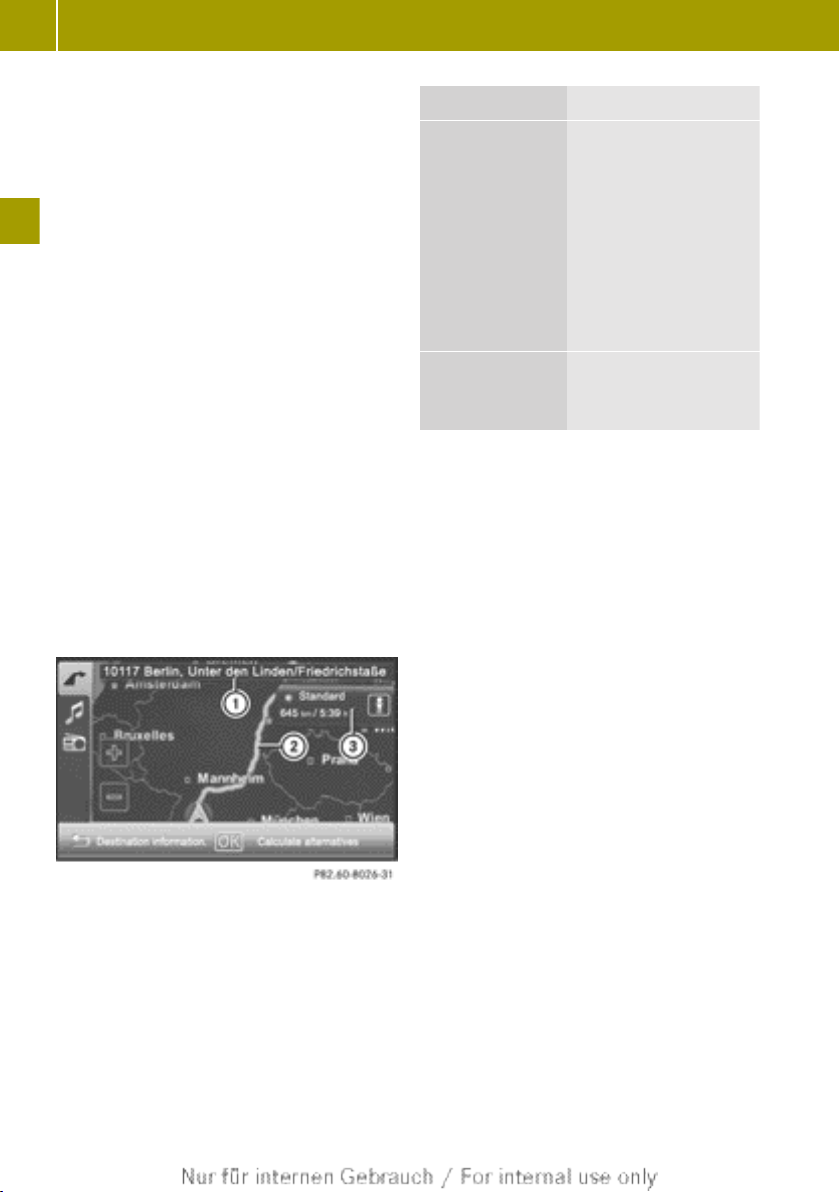

Map after route calculation (Expert mode)
:
Address entered
;
Route calculated (light blue)
=
Selected route option
Selection Function
Destination
information
Calls up the detailed
information menu
X
Store the town as a
favourite or as the
home address
(Y page 39).
X
Check/change the
route options
(Y page 39).
Calculate
alternatives
(Expert mode)
Calculates two additional alternative
routes
Calculating alternative routes
Audio system navigation/multimedia calculates two alternative routes in Expert
mode (e.g. short, fast).
X
Press Calculate alternatives.
The alternative routes are calculated.
After the alternative routes have been
calculated, you will hear Route calcu‐
lation completed.
The map shows the following routes on the
right:
R
standard (light blue)
R
alternative 1 (green)
R
alternative 2 (light brown)
Each route is shown with the distance and
estimated journey time to the destination.
X
To view information about route/alternative route =: press ã.
You see the following information:
R
length (distance)
R
journey time (estimated)
R
arrival time (estimated)
R
motorways (length of the route used)
R
toll roads (length of the route used)
R
ferries (length of the route used)
X
Press & to close the display.
Page 43
Destination entry
41
i
The ã symbol is shown in red if a route
option (e.g. Avoid ferries) that has
been selected for the route does not make
sense. Set the route options (Y page 35).
X
To hide the alternative routes: press
Hide alternatives.
X
To start route guidance: press OK.
Entering a postcode
X
Press the entry with the postcode in the
"Entering a new destination" menu
(Y page 36).
The input menu for the postcode appears.
Option 1
X
Enter a postcode, e.g. 10117. Instructions for entering characters can be
found in the "Entering characters in navigation mode" section (Y page 14).
As soon as the first number has been
entered, the first three towns found can
be selected.
X
Press 10117 Berlin.
You can now enter the street name.
Option 2
X
Enter the first number, e.g. 1.
As soon as the number has been entered,
More hits can be selected.
X
Press More hits.
A list shows the three largest towns that
match the entry and then shows all other
entries in alphabetical order. The towns
are shown on the left-hand side of the
map.
X
Press Hide map to only show the list.
X
Press Display on map to show the map
and the list.
X
Press 9 or : to scroll in the list.
X
Press 1xxxx Berlin.
You can now enter the street name.
Entering a house number
A house number can be entered after the
street name has been entered.
X
Enter a house number, e.g. 40. Instructions for entering characters can be
found in the "Entering characters in navigation mode" section (Y page 14).
As soon as the first number has been
entered, the first three entries found can
be selected.
X
Press 40.
The detailed information menu appears
(Y page 39).
>> Navigation.
Z
Page 44
Destination entry
42
Further entry options immediately after
calling up the menu:
Selection Function
Middle of
the road
Sets the destination to
the middle of the street
and calls up the
detailed information
menu (Y page 39).
Calls up a list from
which you can select an
entry. The detailed
information menu then
>> Navigation.
Crossroads
appears.
X
Enter a junction
(Y page 38).
Entering geo-coordinates (Expert mode)
X
Press the globe at the bottom right of the
"Entering a new destination" menu
(Y page 36).
The "Enter coordinates" menu appears.
You can enter the geo-coordinates as
degrees or in decimal notation.
mode" section (Y page 14). An example
entry is shown in the table.
X
To switch to decimal notation: press
decimal notation.
X
To switch to degree notation: press
degree notation.
Notation Example input
(Berlin)
Degree notation
R
Latitude N 52° 33' 40", 00
(N latitude)
R
Longitude E 13° 17' 22", 00
(E longitude)
Decimal notation
R
Latitude 52.561111
R
Longitude 13.289444
X
To confirm the entry: press OK.
The detailed information menu appears
(Y page 39).

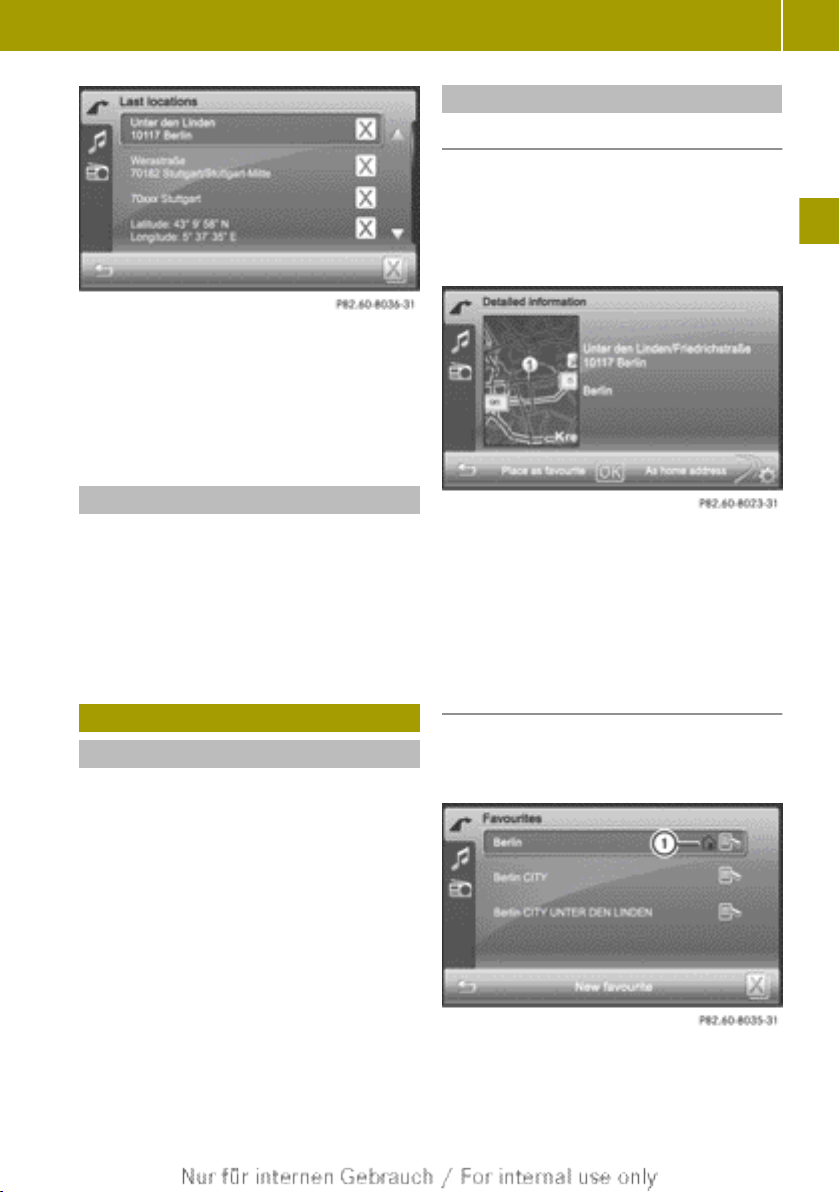

Selecting a destination from "Last locations"
Audio system navigation/multimedia automatically stores the last destinations
entered.
X
Press Last locations in the navigation
main menu (Y page 33).
The "Last locations" destination memory
appears.
X
Enter the geo-coordinates. Instructions
for entering characters can be found in
the "Entering characters in navigation
i
Expert mode: the first three entries
from the "Last locations" memory are
shown at the top of the "navigation" main
menu. These can be selected for fast destination entry.
Page 45
X
Press 9 or : to scroll in the list.
X
Press a destination address.
The detailed information menu appears
(Y page 39).
i
You will find further information in the
"Last locations" section (Y page 54).
Selecting a destination from favourites
X
Press Favourites in the navigation main
menu (Y page 33).
The "Favourites" destination memory
appears. Your home address : is also
stored here.
Destination entry
Entering the destination using the map
X
Press the map when it is displayed.
A light blue circle appears on the map.
If there are destinations available for
this town, these are shown as an address
or as geo-coordinates. If further destination information is available, the
specification"1/3" and the symbols
9, : are shown after the entry.
:
Circle marking the destination on the
map
X
To call up further destination information (if available): press 9 or :.
X
To display an address: press ã.
X
To move the destination on the map: press
the crosshair and move it on the map.
X
To select a destination: press Add dest.
The detailed information menu appears
(Y page 39).
43
>> Navigation.
:
Home address symbol
X
Press 9 or : to scroll in the list.
X
Press a destination address.
The detailed information menu appears
(Y page 39).
Further information, e.g. about storing,
can be found in the "Favourites (destination memory)" section (Y page 55).

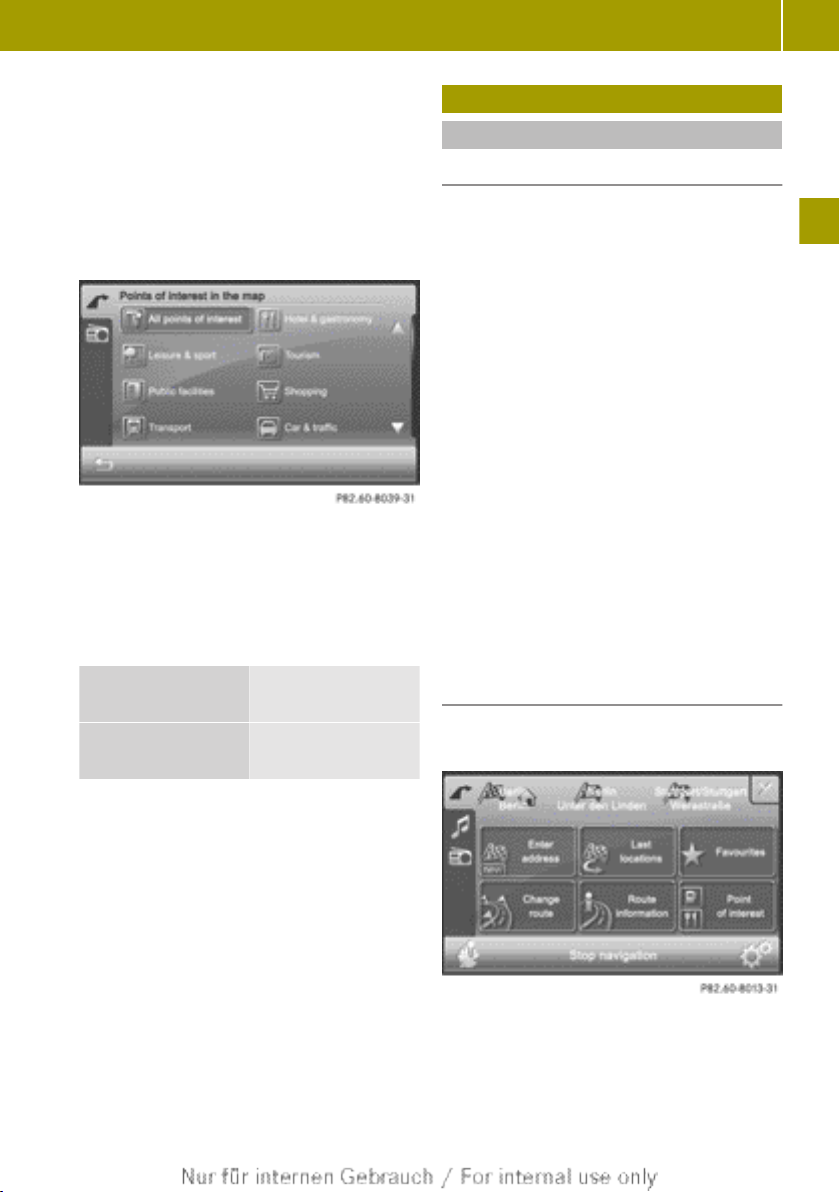

Entering a special destination (Expert mode)
Initiating special destination entry
X
Set Expert mode (Y page 34).
X
Press Points of interest in the navigation main menu (option 1), (Y page 33)
or in the "Entering a street name" menu
(option 2).
The "All points of interest" menu
appears. You can display all special destinations or search for special destina-
Z
Page 46
Destination entry
44
tions within a category, e.g. Leisure
and sport.
>> Navigation.
Page 47
Destination entry
Option 1: calling up from the navigation main menu
X
Press All points of interest or select a category first (Y page 46).
A menu appears.
45

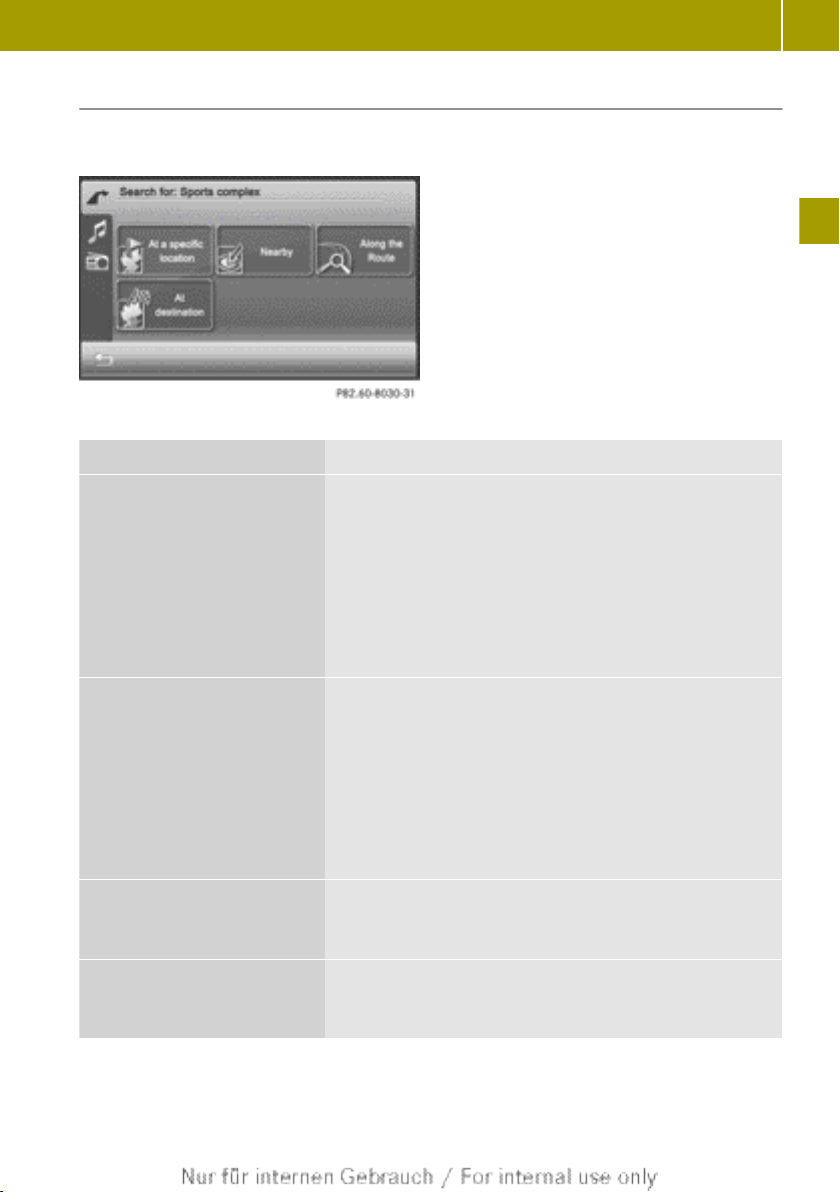

Searching for a special destination in the "Sports complex" category
Selection Instructions
At a specific location
X
Enter a town name or press Display all special
destinations.
Depending on the selection, an input menu or a list
appears.
X
Enter a special destination and press Display
selection.
X
Select a special destination from the list.
The detailed information menu appears (Y page 39).
Nearby
X
Enter a destination or press Display all special
destinations.
Depending on the selection, an input menu or a list
appears.
X
Enter a special destination and press Display
selection.
X
Select a special destination from the list.
The detailed information menu appears (Y page 39).
Along the Route (available
X
Proceed as described under Nearby.
when the route has been calculated)
At destination (available
X
Proceed as described under Nearby.
when the route has been calculated)
>> Navigation.
Z
Page 48
Route guidance
46
Option 2: calling up from the "Entering
a street name" menu
X
Press All points of interest or select
a category first (Y page 46).
The "Entering a special destination in
<Town>" menu appears.
X
Option 1: enter a special destination and
press Display selection.
X
Option 2: press All points of inter‐
est.
The special destinations are displayed
and shown on the left of the map.
X
Select a POI.
>> Navigation.
The detailed information menu appears
(Y page 39). You can place a call to the
special destination if a telephone number is stored and the mobile phone has
been connected (Y page 67).
i
The phone number displayed may be out-
dated due to the data's date of creation.
X
Press Call now.
This initiates dialling.
Selecting a category
Example: you would like to go to an Indian
restaurant.
X
Press Hotel & gastronomy in the "All
points of interest" menu (Y page 43).
The "Hotel & gastronomy" menu shows the
available categories.
X
Press Restaurant/Nightlife.
The "Restaurant/Nightlife" menu shows
the available categories.
X
Press 9 or : until Indian is
selected.
X
Press Indian.
Either the "Searching for a special destination" menu (option 1), (Y page 45) or
the "Entering a special destination in
<Town>" menu (option 2) appears.
X
Proceed as described under option 1 or 2.
Route guidance
General notes
Audio system navigation/multimedia
guides you to your destination by means of
navigation commands in the form of audible navigation announcements and route
guidance displays.
If you do not follow the navigation
announcements or if you leave the calculated route, the device automatically calculates a new route to the destination.
If the digital map contains the corresponding information, the following
applies:
R
when selecting a route, audio system
navigation/multimedia tries to avoid
roads that only have limited access, e.g.
roads closed to through traffic and nonresidents.
R
roads that have time restrictions (e.g.
closed on Sundays and public holidays)
are avoided for route guidance.
If the digital map provides no information
or incomplete information during route
guidance, the current vehicle position is
shown using geo-coordinates.
This occurs in the following situations,
e.g.:
R
the vehicle is outside of the area covered
by the digital map section (off-map
location).
R
the vehicle is travelling through an area
that is only partially shown on the map.
R
the vehicle is within the area covered by
the digital map section but not on a
digitalised road (off-road location).
Starting route guidance
X
Calculate a route or alternative route
(Y page 39) and then press OK.
Route guidance starts.
Page 49
Displaying the map during route guidance

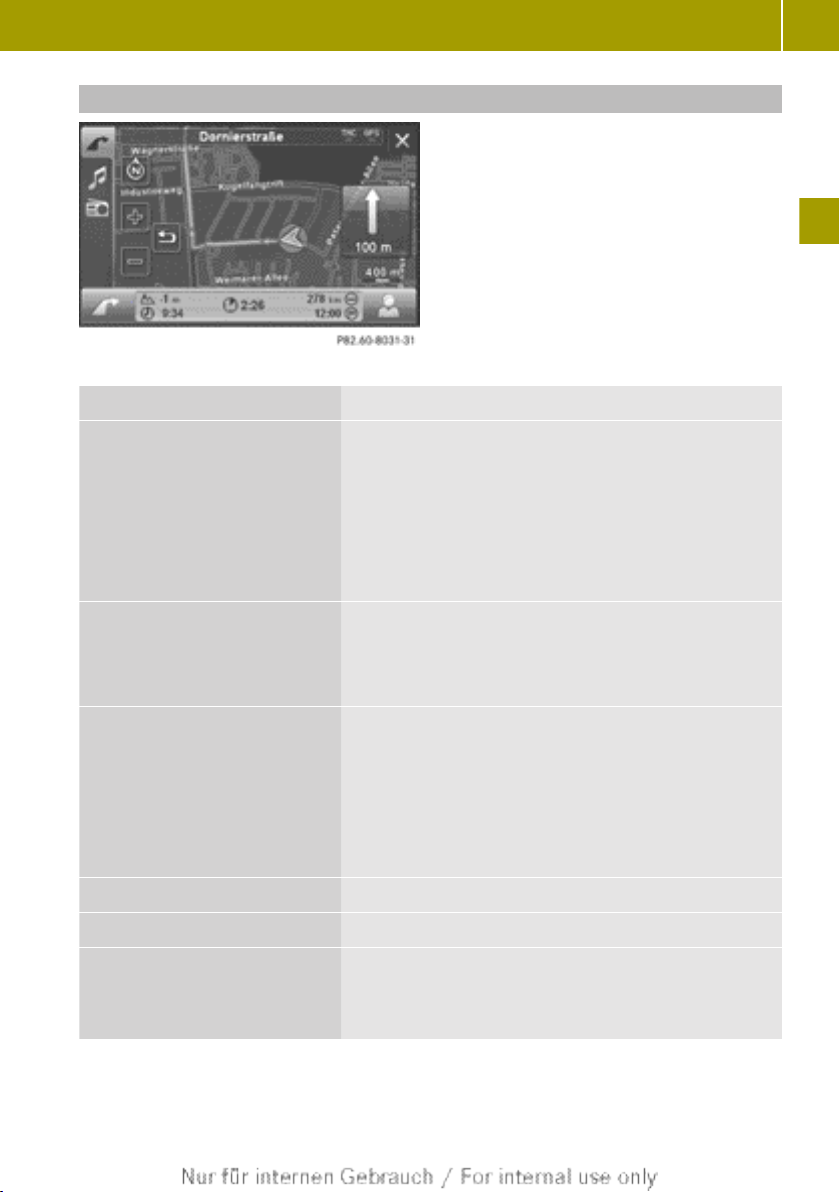

Example: map during route guidance
Route guidance
47
Function Explanation
Route guidance display with
arrow indicating the direction
of travel (example shows an
arrow pointing straight ahead
and a distance of 100 m)
The upcoming change of direction is shown with an
arrow indicating the direction of travel and the distance.
The route guidance display can also be seen in other
operating modes, e.g. radio mode.
X
To repeat the current navigation announcement:
press the route guidance display.
Auto zoom As you approach a change in direction, the area of the
junction is zoomed in on the map.
In Expert mode, you can set how much the map section
is zoomed in (Y page 58).
Lane recommendations Lane recommendations may be shown for multi-lane
roads. The corresponding data must be available in
the digital map. Recommended lanes are shown with a
green arrow, lanes that are not recommended are shown
with a red cross.
Lane recommendations apply to the next change of
direction.
Current map scale Appears under the route guidance display.
Map view Enables different map orientations (Y page 58).
Setting the map scale
X
Zoom in on the map section using W or zoom out
using X.
X
Press % to return to the original auto zoom view.
>> Navigation.
Z
Page 50
Route guidance
48
Function Explanation
Speed Limit Assist (Expert
mode)
The maximum permissible speed is shown when the
corresponding map data is available and the Speed
limit function is not deactivated (Y page 60).
A warning tone sounds if the maximum permissible
speed is exceeded and one of the Warning at x
km/h settings is activated.
i
The maximum permissible speed display may differ from the actual traffic situation, e.g. as a result
of incorrect map data.
TMC and GPS display Blue display: reception
>> Navigation.
Red display: no reception
Destination information The current height above average sea level is shown
at the bottom edge of the screen.
For the next destination (intermediate stop, final
destination), you will also see:
R
the estimated driving time to the destination
R
the distance to the destination
R
the estimated time of arrival at the destination
X
Press the field with the destination information to
show the "Trip info" display with additional information (Y page 52).
Displaying special destination symbols
Special destinations are Restaurant/Nightlife or
Petrol station, for example. The corresponding
symbols can be displayed on the map (Y page 60).
Selecting a route guidance display
You can choose between the Map only, Turn
Icons or Compass display, see the "Dis-
play" section (Y page 57).
Example: "Turn Icons" display
If Turn Icons has been selected, the arrow
indicating the direction of travel and the
Page 51
Route guidance
49
distance before the next change of direction are shown.

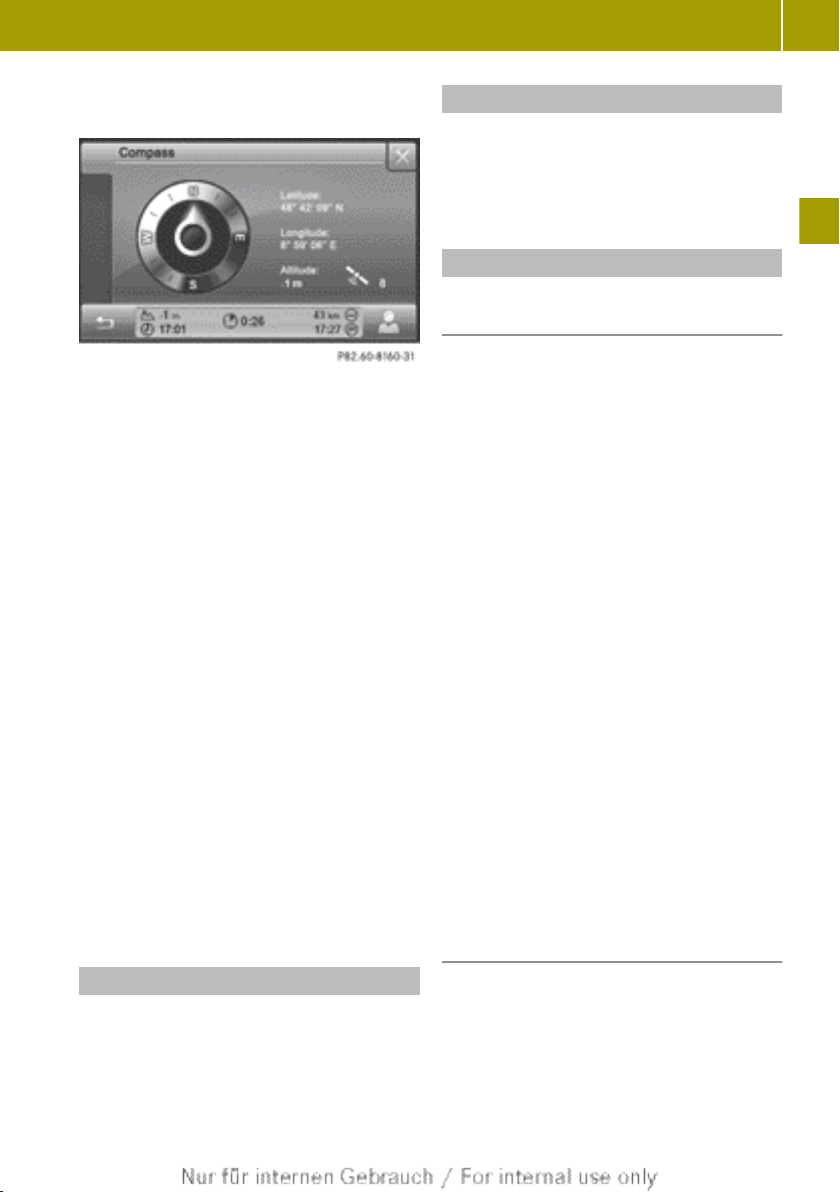

Example: compass display
You see the following information:
R
current direction of travel
R
latitude coordinates
R
longitude coordinates
R
current height above mean sea level
R
number of satellites currently being
used
The bar underneath shows the following
information:
R
current height above mean sea level
R
current time (if route guidance is not
active)
R
remaining journey time to next destination (intermediate stop, final destination)
R
remaining distance to next destination
(intermediate stop, final destination)
R
estimated time of arrival at next destination (intermediate stop, final destination)
X
To close the compass display: press &.
Destination reached
When you reach your destination, a chequered flag is displayed on the right-hand
side of the display and route guidance is
ended automatically.
Navigation announcements
Switching navigation announcements on/
off
Option 1
X
To switch off: press W the control knob
briefly during a navigation announcement.
X
To switch on: press the arrow indicating
the direction of travel on the map
(Y page 47).
The current navigation announcement is
repeated.
i
Navigation announcements are muted in
the event of a traffic announcement, an
incoming call or during a phone call.
Option 2
X
Press the arrow at the bottom left of the
map (Y page 47).
The navigation main menu appears.
X
Press d.
The settings menu appears.
X
Press Speech output.
The "Speech output" menu appears.
X
Press Speech output again.
Depending on the previous setting, the
function is switched on or off.
>> Navigation.
Stopping route guidance
X
Press Stop route guidance in the navigation main menu (Y page 33).
Route guidance is interrupted.
Announcing the street names
X
Press the arrow at the bottom left of the
map (Y page 47).
The navigation main menu appears.
X
Press d.
The settings menu appears.
Z
Page 52
Route guidance
50
X
Press Speech output.
The "Speech output" menu appears.
X
Press Street names.
Depending on the previous setting, the
function is switched on or off.
Adjusting the volume for navigation
announcements
X
Turn cVd the control knob during a navigation announcement.
or
X
Set the volume of traffic announcements
compared to the volume of the active
>> Navigation.
audio source (Y page 18).
The volume of the active audio source is
lowered to the selected value for the
duration of the navigation announcement.
Selection Explanation
none
Traffic jams are not taken
into account for route guidance.
manual
The selected traffic jam
section and additional
information are shown on
the map. However, no new
route is calculated.
automatic
Audio system navigation/
multimedia calculates a
detour if TMC traffic
announcements are
received.
i
In Easy mode, the stand-
ard setting is automatic.
Selecting traffic jam avoidance (Expert mode)
X
Press the arrow at the bottom left of the
map (Y page 47).
The navigation main menu appears.
X
Press Route options.
The "Route options" menu appears. The
by pass option shows the current set-
ting.
X
Press by pass.
A menu appears.
X
Press none, manual or automatic.
Route information (Expert mode)
Calling up the "Route information" menu
X
Press the arrow at the bottom left of the
map (Y page 47).
The navigation main menu appears.
X
Press Route information.
The "Route information" menu appears.

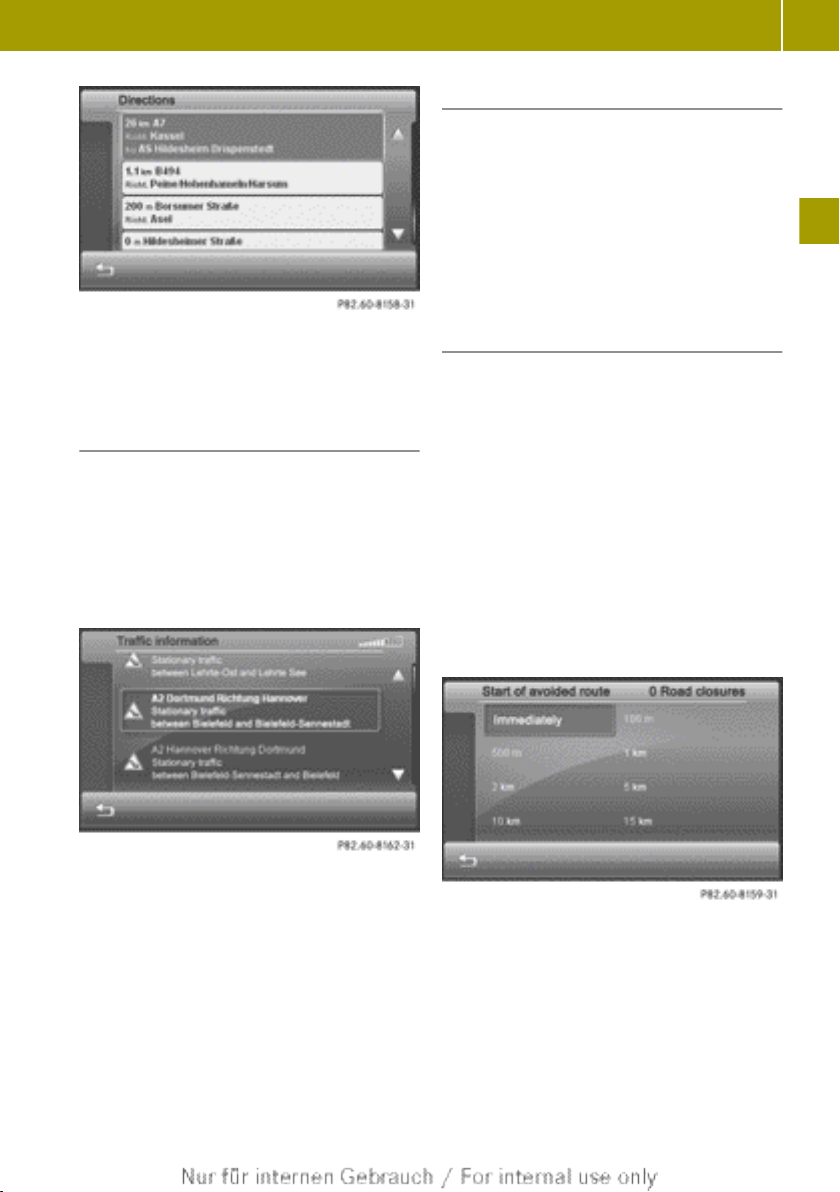

Calling up a route list
X
Press Directions in the "Route information" menu.
The route list shows the street sections
yet to be travelled.
Page 53
X
Press 9 or : to scroll through the
list.
X
To close the route list: press &.
Checking the traffic conditions
X
Press Traffic information in the
"Route information" menu.
The list shows the current TMC traffic
announcements. Traffic announcements
with a red symbol affect the current
route, traffic announcements with a grey
symbol apply to other sections of road.
Route guidance
Setting the map to a route position
X
Press Go to... in the "Route information" menu (Y page 50).
A menu appears.
X
Press Current position, Destination
area, Overview or Starting point.
The map shows the route section with the
selected route position or a complete
overview of the route.
Blocking a section of the route
It is possible to block more than one route
section. The number of active blocks can be
seen in the "Length of avoided route" and
"Start of avoided route" lists at the top
right.
X
Press Avoid route in the "Route information" menu (Y page 50).
The "Length of avoided route" list
appears.
X
Press a selection option, e.g. 5 km, to
select the extension of the block.
The "Start of avoided route" list
appears.
51
>> Navigation.
i
The list can be displayed by pressing
the TMC symbol on the top right-hand
side of the display (Y page 47). The display does not depend on the RDS TMC
radio station currently playing.
X
To close the list: press &.
X
Press Immediately or another selection
option to determine when the block
should start.
The route section is blocked. The route
is recalculated.
X
To delete blocks: press 1 at the bottom
right in the "Length of avoided route"
list.
Z
Page 54
Route guidance
52
Starting route simulation
X
Press Simulation mode in the "Route
information" menu (Y page 50).
The route is shown from the start (or previous position) to the destination.
Displaying trip info
X
Press Trip info in the "Route information" menu (Y page 50).
You see the following information:
R
maximum speed
R
average speed
R
distance covered
>> Navigation.
R
driving time
R
total remaining driving time
R
total remaining journey distance
The bar underneath shows the following
information:
R
current height above sea level
R
current time (if route guidance is not
active)
R
remaining journey time to next destination (intermediate stop, final destination)
R
remaining distance to next destination (intermediate stop, final destination)
R
estimated time of arrival at next destination (intermediate stop, final
destination)
X
To close trip info: press &.
i
The information can also be shown by
pressing the field with the destination
information at the bottom of the map
(Y page 47).
X
Press the arrow at the bottom left of the
map (Y page 47).
The navigation main menu appears.
X

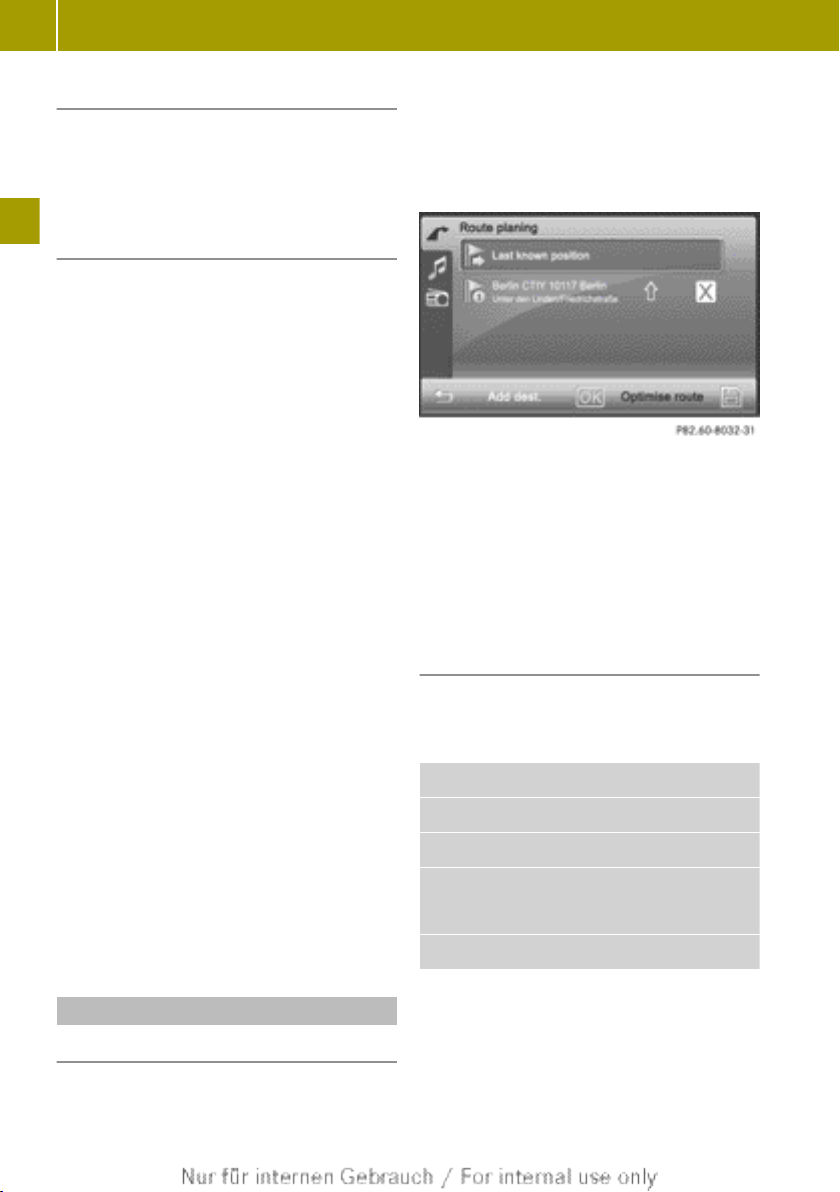

Press Route planning.
The edit route menu appears.
The following functions can be selected:
R
adding a destination
R
optimising a route (available with four
or more destination entries)
R
changing the order of the destinations
within the route
R
loading/saving a route
Adding a destination
X
Press Alternative route.
The new destination menu appears.
X
Select destination entry.
Entering an address (Y page 36)
Last locations (Y page 42)
Current position (if available)
Special destinations (Y page 43)
X
Select option 1.
Favourites (Y page 43)
Editing a route
Introduction
You can add additional destinations to the
route, optimise route guidance or change
the order of the destinations.
X
Press OK in the detailed information
menu (Y page 39).
The destination is entered in the edit
route menu.
Page 55
Route guidance
53
X
To calculate a new route: press OK.
Optimising a route
This function is available when there are
four or more entries (including the starting point and the destination).
X
Press Optimise route in the edit route
menu.
The order of the destinations is checked
and the route is optimised according to
the distance. The route's starting point
and destination are not changed.
Changing the order of the destinations
within the route
X
Press the up or down arrow in the edit
route menu.
The destination is moved up or down.
Deleting a destination from the route
X
Press 1 after an entry in the edit route
menu.
The destination is deleted from the
route.
Loading/saving a route
X
Press the memory card symbol in the edit
route menu (Y page 52).
The loading and saving a route menu
appears.
X
To save a route: press Save current
tour.
An input menu appears.
X
Enter a name for the route and then press
OK.
The route is stored.
X
To load a route: press an entry.
The route is loaded.
X
To delete a route: press 1 after an
entry.
Recording the GPS track (Expert mode)
If this function is activated and an SD/MMC
memory card has been inserted
(Y page 88), the route taken is recorded.
The route is saved as a GPX file in the "GPS
tracks" folder on the SD/MMC memory card.
You can view the route later, in Google
Earth for example.
Feature specific to simultaneous playback
of SD/MMC memory cards or USB devices:
R
playback may be interrupted occasionally.
R
after switching audio system navigation/multimedia off and on again, the
first music track on the data medium is
played.
>> Navigation.
Z
Page 56
Last locations
54
X
Press d in the navigation main menu
(Y page 33).
The settings menu appears.
X

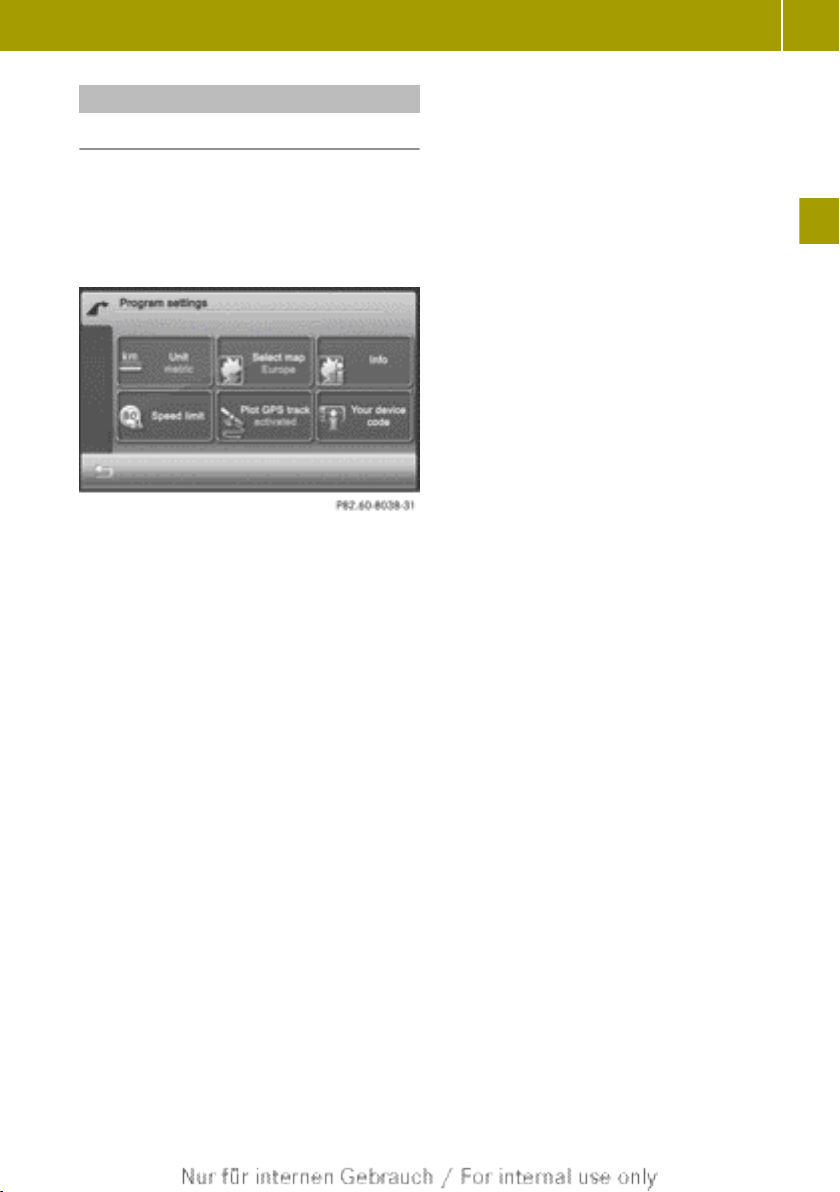

Press Program settings.
The programme settings menu appears.
X
Press Plot GPS track.
Depending on the previous setting, the
function is activated or deactivated.
GPS track recording is started after you
have activated the setting.
i
If you switch off the navigation system
and then turn it back on, the function is
deactivated.
>> Navigation.
Quick menu (Expert mode)
Calling up the Quick menu
The Quick menu enables fast access to six
frequently used functions during route
guidance. You can personalise these six
functions.
X
Press the symbol at the bottom right of
the map.
The Quick menu appears and shows the
functions that are currently available.
X
Press a button.
The change key menu appears.
X
Press one of the following functions:
R
Select destination
R
Points of interest
R
Route information
R
Settings
R
Other views
The keys available for the respective
selection are shown.
X
Select a key.
The Quick menu appears and shows the
new key assignment.
Last locations
Editing the Quick menu
X
Press the symbol at the bottom right of
the menu.
The quick menu settings appear with the
Which key would you like to
change? prompt.
Introduction
Audio system navigation/multimedia automatically stores the previous towns for
which route calculation has been started.
If the list is full, the device deletes the
oldest destination. You can also delete
destinations yourself.
Deleting all destinations
X
Press Last locations in the navigation
main menu (Y page 33).
The last locations list appears.
Page 57
X
Press 1 on the bottom right.
A query appears.
X
Press OK.
All destinations are deleted from the
last locations list.
Deleting a destination
X
Press 1 after an entry in the last locations list.
A query appears.
X
Press OK.
The destination is deleted from the last
locations list.
Favourites (destination memory)
Saving a destination to your favourites
Option 1: after destination entry
X
Enter the destination, e.g. as a town,
street and house number.
X
Before route calculation is started,
press Place as favourite in the
detailed information menu.
X
Enter a name for the new favourite. Proceed as described under "Character
entry" in the "At a glance" section
(Y page 15).
X
Press OK to save the destination to the
favourites.
55
>> Navigation.
Favourites (destination memory)
Storing your home address
X
Enter your home address as a destination,
e.g. as a town, street and house number
(Y page 36).
X
Before route calculation is started,
press as home address in the detailed
information menu and store the address
(Y page 39).
Option 2: creating a new favourite
X
Press Favourites in the navigation main
menu (Y page 33).
The "Favourites" list appears.
:
Home address symbol
X
Press New favourite.
X
Select an option from the menu.
Z
Page 58
Map operation and settings
56
Selection Step
X
Enter
address
Enter the destination
address, e.g. as a
town, street and house
number (Y page 36).
X
Last loca‐
tions
Select a destination
from "Last locations"
(Y page 42).
X
Current
position
Points of
>> Navigation.
interest
X
Continue as described under "Option 1:
Select the current
position.
X
Enter a special destination (Y page 43).
after destination entry".
Renaming a destination in favourites
X
Press a destination or the edit symbol to
the right while the "Favourites" list is
shown.
The detailed information menu appears.
X
Press Rename favourite or Rename
home address.
X
Enter a new name for the favourite. Proceed as described under "Character
entry" in the "At a glance" section
(Y page 15).
X
Press OK and save the destination to the
favourites with a new name.
Deleting a destination from the favourites
Deleting all destinations
X
Press 1 at the bottom right in the
"Favourites" list.
The Are you sure you want to delete
all favourites? message appears.
X
Press OK.
All destinations, including a home
address, are deleted from the favourites.
Deleting a destination
X
Press the edit symbol on the right-hand
side of the destination entry in the
"Favourites" list.
X
Press 1 on the bottom right of the input
menu.
The destination is deleted from the
favourites.
Map operation and settings
Note
Company logos displayed on the map are
trademarks of the respective companies
and used solely for the purpose of indicating the location of these companies. The
use of such logos on the map does not indicate approval of, support of or advertising
by these companies for the navigation system itself.
Setting the map scale
X
When the map is displayed (Y page 47),
press the W or X button.
The section of the map is then zoomed in
or zoomed out.
X
Press the % symbol to return to the
original auto zoom view.
Page 59
Moving the map
X
Press the map (Y page 47) and move the
map using your finger.
The map moves in the corresponding
direction.
Display
Calling up the display menu
X
Press d in the navigation main menu
(Y page 33).
The settings menu appears.
Map operation and settings
57
>> Navigation.
X
Press Display.
The display menu appears.
Z
Page 60
Map operation and settings
58
Explanation of functions
Function Explanation Step
Display type
Map view
>> Navigation.
Auto zoom (Expert
mode)
Map colours (Expert
mode)
Options for different
displays during route
guidance
Options for different
map orientations
Selects how much a map
section will be zoomed
in before a change in
direction.
Sets the display to day
or night display or
switches automatically.
X
Press Display type.
X
Select Map only, Turn Icons or
Compass.
X
Press Map view.
X
Select Align map northwards,
Map in driving direction,
Dynamic map or 3D map.
North up: the map is displayed so that
north is at the top, with the north
arrow always pointing up.
Map in driving direction: the map is
displayed so that the heading is
always up. The north arrow turns. The
point of the current vehicle position
always points up.
Dynamic map: when a smaller map
scale is used (e.g. when driving on the
motorway), the map is displayed so
that north is always up in order to
make orientation easier.
3D map: the map is shown in bird'seye view.
X
Press Auto zoom.
X
Select nearby, Middle or far.
X
Press Map colours.
X
Press Automatic, Day design or
Night design in the list.
Automatic: the display design
changes depending on the brightness
determined by the light sensor.
Day design: the display is always set
to day design.
Night design: the display is always
set to night design.
Page 61
Programme settings
Calling up the programme settings menu
X
Press d in the navigation main menu
(Y page 33).
The settings menu appears.
X
Press Programme settings.
The programme settings menu appears.
Map operation and settings
59
>> Navigation.
Z
Page 62
Map operation and settings
60
Explanation of functions
Function Explanation Step
Unit
Info
Speed limit
(Expert mode)
>> Navigation.
Your device code
Selects km-display (metric) or mi-display (imperial) for the map
mi = miles
Shows the respective map
data version for all countries contained in the map
The maximum permissible
speed is shown if the corresponding map data is
available and the Speed
limit function is not
deactivated.
A warning tone sounds if
the maximum permissible
speed is exceeded and one
of the Warning at x
km/h settings is activa-
ted.
i
The maximum permissible speed display may
differ from the actual
traffic situation, e.g.
as a result of incorrect
map data.
The device code is
required for map updates.
X
Press Unit.
The setting switches between metric and imperial.
X
Press Info.
X
Press the 9 or : button to
scroll through the list.
X
Press Speed limit.
X
Press Warning at x km/h (several
settings possible), Show with‐
out warning or Do not show in
the list.
X
Press Your device code.
The device code is shown.
i
The Plot GPS track function (Expert mode) is described in the "Route guidance"
section (Y page 53).
Special destination on the map (Expert mode)
Displaying special destination symbols
on the map
corresponding symbols can be displayed on
the map.
i
The symbols are not shown on all map
scales.
Special destinations are, for example,
Restaurant/Nightlife, Shopping
centre, Cinema or Petrol station. The
Page 63
X
Press d in the navigation main menu
(Y page 33).
The settings menu appears.
X
Press Points of interest in the
map.
The points of interest in the map menu
appears. It shows the available categories.
X
To scroll through the list, press the
9 or : button.
X
Switching the category display on/off:
press a symbol.
Depending on the previous setting, the
display is switched on or off.
Voice control system
Voice control system
At a glance
Overview
You can operate navigation mode using the
voice control system. Available commands
are shown in the individual displays and
are announced in some menus.
The voice control system confirms important commands and gives instructions when
entries are unsuccessful.
If you speak the command unclearly or speak
a non-existent or incorrect command, the
device responds with "Please repeat your
comment".
The following languages are available:
R
German
R
English
R
French
R
Italian
R
Dutch
R
Portuguese
R
Spanish
61
>> Navigation.
Blue tick All sub-entries are
shown.
White tick Some of the sub-
entries are shown.
X
To call up a sub-category: press a category name.
Depending on the category, sub-categories are shown for selection.
i
Changes within a category may also have
an impact on other categories.
Switching the voice control system on
X
Switch on navigation mode (Y page 32)
and call up the navigation main menu.
X
Press the display for longer than 2 seconds.
The voice control system is switched on.
The available commands are shown as
Z
Page 64
Voice control system
62
light blue speech bubbles. An active
audio source is muted.
You can start the voice control system in
>> Navigation.
this way from any navigation display.
The commands depend on the respective
navigation mode submenu. Almost all the
functions available for manual input are
also available with the voice control system.
Switching the voice control system off
X
Say "Cancel".
The voice control system is switched off.
or
X
Press a menu option.
The voice control system is switched off
and the selected function is carried out.
i
The voice control system is switched off
automatically at the end of an input
sequence (e.g. when starting route guidance).
Adjusting the volume
X
Start the dialogue.
X
Say a command, e.g. "Main menu".
X
Set the volume by turning cVd the control knob.
The volume increases or decreases during the voice output.
Controls
Please bear the following in mind
WARNING
G
The navigation system cannot take the prevailing traffic situation into account or
recognise any dangers or obstacles. You
must therefore be constantly aware of the
prevailing road and traffic conditions so
that you can recognise any dangers and
react to them.
The route guidance only provides recommendations. You must always comply with
the national road traffic regulations and
adapt your driving style to the prevailing
conditions. You could otherwise become
involved in an accident in which you or
others could be injured.
General commands
Voice commands are marked by ? in this
manual. The following voice controls are
always available.
R
? Back
The previous menu is shown.
R
? Cancel
The voice control system is switched off.
R
? Help
The voice control system starts the help
function. You can use the "Help" command
to have all of the basic commands read
out.
R
? Main menu
The navigation main menu is displayed.
Announcement of the available commands
In some menus, e.g. the navigation main
menu (Y page 33), the voice control system
informs you of the available commands.
Voice control system voice outputs have the
^ symbol in this manual.
Page 65
Voice control system
63
Example announcement in the navigation
main menu (Expert mode)
^
Here you can say: enter address,
recent locations, favourites, route
manager, route information, points
of interest, start navigation, stop
navigation, settings, back or last
destination.
Dialogue example
Displays have the _ symbol in this manual.
Entering the address and calculating the
route
?
Enter address
_
The enter new destination menu
appears.
^
Please select.
?
Enter location
_
The enter town menu appears.
^
Name the city or say change country,
enter postcode, enter coordinates or
back.
?
Berlin
_
The system shows a numbered list of
town names in the display.
^
Please select an entry number from
the list.
?
Say the number.
^
Name the street or say change postcode, city centre, point of interest,
cancel or back.
?
Unter den Linden.
_
The system shows a numbered list of
street names in the display.
^
Please select an entry number from
the list.
?
Say the number.
^
Name the house number or say change
street, middle of street, crossroads,
cancel or back.
?
Say a house number.
_
The system shows a numbered list of
house numbers in the display.
^
Please select an entry number from
the list.
?
Say the number.
_
The address is now complete and the
detailed information menu appears.
^
Would you like a route to this destination be calculated?
?
Yes.
^
Route calculation completed.
?
Start route guidance.
>> Navigation.
Z
Page 66
64
Page 67
General notes ................................... 66
Telephony via the Bluetooth® interface .. 67
Telephone operation .......................... 70
Using the phone book ......................... 72
Using call lists ................................ 74
Telephone settings ............................ 76
>> Telephone.
Page 68
General notes
66
General notes
Introduction
Telephony via the Bluetooth® interface is
available in conjunction with a Bluetooth®-capable phone. With a suitable
mobile phone, you can use the hands-free
system via the Bluetooth® interface and
download contacts from the mobile phone,
e.g. via PBAP (Phone Book Access Profile).
For more information on suitable mobile
phones and on connecting Bluetooth®capable mobile phones to audio system
navigation/multimedia, contact your
smart Centre.
>> Telephone.
Safety notes
WARNING
G
You must observe the legal requirements
for the country in which you are currently
driving when operating mobile communications equipment in the vehicle.
If it is permitted to operate communications equipment while the vehicle is in
motion, you may only operate such equipment when road and traffic conditions permit. You may otherwise be distracted from
the traffic conditions, cause an accident
and injure yourself and others.
Two-way radios or fax machines without
low-reflection exterior aerials may interfere with the vehicle electronics and
thereby compromise the operational safety
of the vehicle and your safety. Therefore,
only use these if they are properly connected to a separate, low-reflection exterior
aerial.
WARNING
G
Excessive electromagnetic radiation may
constitute a health hazard to yourself and
others. Use of an exterior aerial gives consideration to the current scientific dis-
cussion surrounding the possible health
risk posed by electromagnetic fields.
General notes
Call disconnection while the vehicle is
in motion
A call may be disconnected if:
R
the mobile phone battery is not sufficiently charged.
R
there is insufficient GSM network coverage in certain areas.
R
you move from one GSM transmitter/
receiver area (GSM cell) into another and
no channels are free.
R
you use a SIM card which is not compatible with the available network.
R
you are using a mobile phone with "Twincard" and the mobile phone with the second SIM card is logged into the network
at the same time.
Function restrictions
You will not be able to use the telephone,
will no longer be able to use the telephone,
or you may have to wait before using it, in
the following situations:
R
if the mobile phone is not switched on
R
when the "Bluetooth®" function is
switched off in the mobile phone
R
if the mobile phone is not logged into a
mobile phone network
The telephone automatically tries to log
on to a network. If no network is available, you will not be able to make a "999"
or "112" emergency call.
R
if you switch off audio system navigation/multimedia during a call in handsfree mode, the call is transferred to the
mobile phone.
Page 69
Telephony via the Bluetooth
®
interface
67
"999" or "112" emergency call
Making emergency calls without entering a
PIN is only possible using the mobile
phone.
The following conditions must be fulfilled
in order to make a 999 or 112 emergency call:
R
the mobile phone must be switched on.
R
a network must be available.
R
a valid and operational SIM card must be
inserted in the mobile phone.
R
the PIN must have been entered.
If you cannot make an emergency call, you
must arrange rescue measures yourself.
The 999 or 112 emergency call number is a
public service. Any misuse is punishable
by law.
Telephony via the Bluetooth® interface
Conditions
To use Bluetooth® interface telephony in
conjunction with audio system navigation/
multimedia, you need a Bluetooth®-capable
mobile phone.
Not all mobile phones available on the
market are equally suitable. For more
information on suitable mobile phones and
on connecting Bluetooth®-capable mobile
phones to audio system navigation/multimedia, contact your smart Centre.
The battery of the mobile phone should
always be kept sufficiently charged in
order to prevent malfunctions.
In preparation for telephoning via the
Bluetooth® interface, you should check the
following items on your mobile phone (see
the mobile phone operating instructions):
X
Hands-Free Profile
The mobile phone must support HandsFree Profile 1.0 or above.
i
Some displays depend on the supported
version of the Hands-Free Profile.
X
Bluetooth® visibility
On certain mobile phones, the device
itself must be made "visible" for other
devices, as well as activating the Bluetooth® function (see the mobile phone
operating instructions).
X
Bluetooth® device name
Every Bluetooth® device has its own Bluetooth® device name. This device name is
freely definable, but can be identical
for all devices from the same manufacturer. It is therefore recommended that
you change this name so that you can easily recognise your mobile phone (see the
mobile phone operating instructions).
Registering and connecting the mobile phone
General information
You will need to register your mobile phone
before using it with the audio system navigation/multimedia operating system for
the first time. The mobile phone is then
entered in the audio system navigation/
multimedia Bluetooth® phone list.
This process includes:
R
the Bluetooth® mobile phone searching
R
its subsequent registration
If you want to reconnect a phone that has
already been registered, it is connected
automatically.
The Bluetooth® device name for audio system navigation/multimedia is smart
Radio.
You can register a maximum of five Bluetooth® devices (mobile phones and Bluetooth® audio devices).
i
If the smart Radio Bluetooth® device
name is already in the Bluetooth® device
list, it may not be possible to connect a
mobile phone.
>> Telephone.
Z
Page 70
68
Telephony via the Bluetooth® interface
Searching for and registering a mobile
phone
X

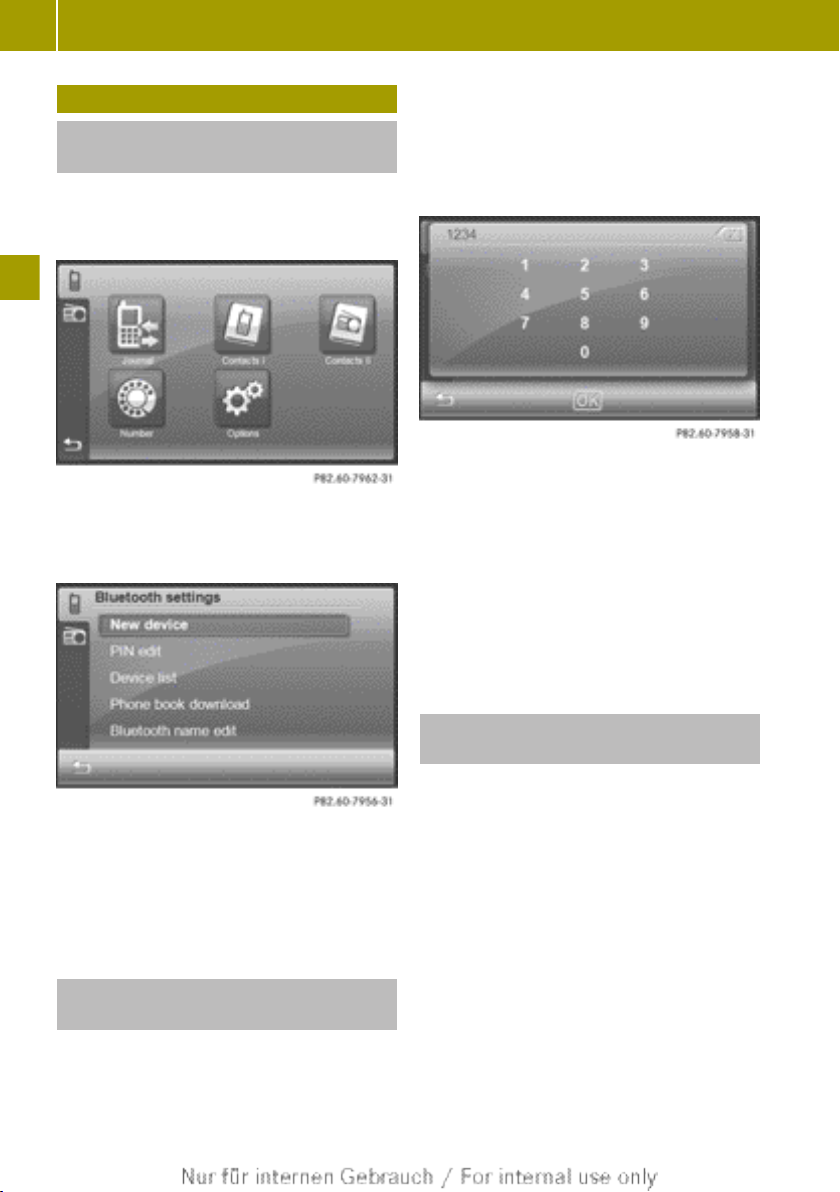

Press Mobile phone in the main menu
(Y page 10).
The telephone menu appears.
X
Press Options in the telephone menu.
The "Bluetooth® settings" menu appears.
X
Press New device in the menu.
>> Telephone.

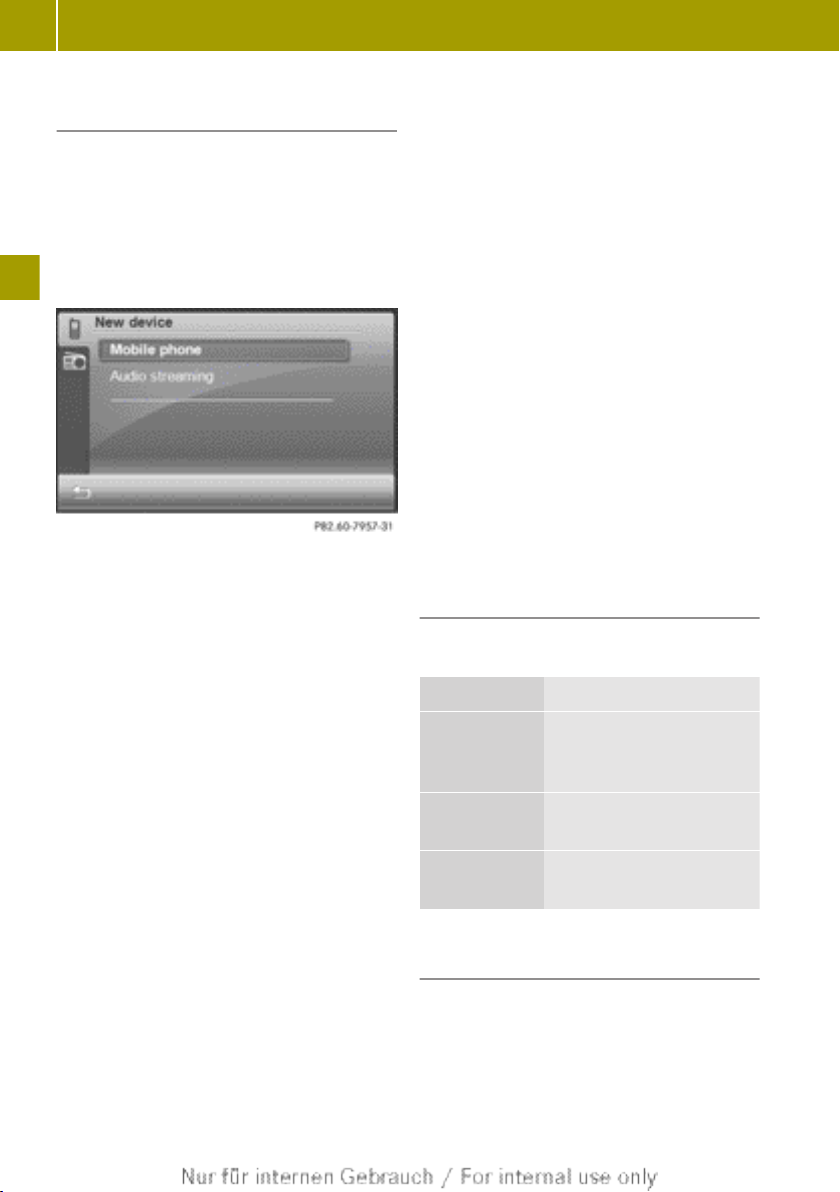

New device menu (for Bluetooth® connection)
X
Press Mobile phone.
The Please start searching from
mobile device !PIN xxxx message
appears.
X
To start a search: start the Bluetooth
search on the mobile phone (see mobile
phone operating instructions).
Example input: select the "New device"
entry in the mobile phone's Bluetooth
device list.
The mobile phone starts the search for
Bluetooth® devices within range. If
audio system navigation/multimedia is
found, the Bluetooth® device name smart
Radio appears in the mobile phone's
Bluetooth® device list.
X
Select the audio system navigation/multimedia operating system in the mobile
phone.
X
To register a mobile phone: enter the PIN
that is shown in the audio system navigation/multimedia display into the
mobile phone and connect the mobile
phone.
The following messages are shown one
after another in the audio system navigation/multimedia display when registering:
R
Calling...
R
Phone connected <Device name>
The LED lights up blue.
R
Call history downloading...
R
Downloading phonebook...
The Bluetooth® device name for the
mobile phone is entered in the audio
system navigation/multimedia telephone device list. The mobile phone is
registered on audio system navigation/
multimedia.
i
If you connect a mobile phone with the
Bluetooth® audio function, the Stream‐
ing connected message also appears.
LED display for Bluetooth® connection
The LED shows whether a Bluetooth® device
is connected or not (Y page 8).
®
LED display Explanation
Blue
Bluetooth® device
(mobile phone, audio
®
Flashes blue
equipment) is connected
Bluetooth® connection is
being established
Unlit
No Bluetooth® device is
connected
Selecting a mobile phone from the telephone device list
If you have registered multiple mobile
phones, you can select a mobile phone from
the Bluetooth® telephone list and connect
it to audio system navigation/multimedia.
Page 71
Telephony via the Bluetooth
®
interface
69
i
You can only switch to another registered mobile phone if no phone call is
active.
X
Press Mobile phone in the main menu
(Y page 10).
The telephone menu appears.
X
Press Options in the telephone menu.
The "Bluetooth® settings" menu appears.
X
Press Device list in the menu.
X
Select an entry.
Depending on the connection status, one
of the following displays is shown (example 1 and 2).

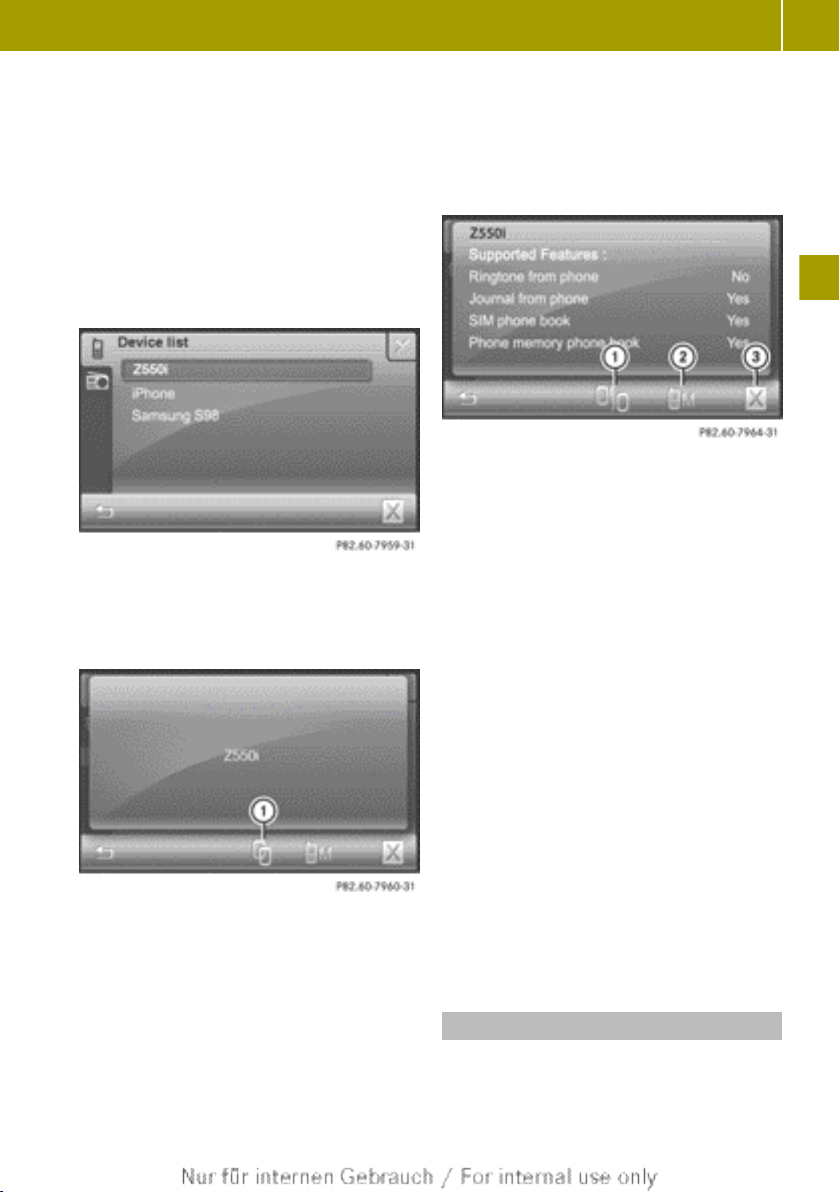

Example 1: mobile phone not connected
:
To connect a mobile phone
In this display, the mobile phone can be:
R
connected to audio system navigation/
multimedia
R
determined as a master device
(Y page 69)
R
de-registered (Y page 70)
X
To connect: press symbol :.
The Calling... message appears.
When the mobile phone is connected, the
Phone connected <Device name> mes-
sage appears.
Example 2: the mobile phone is connected and
supported Bluetooth® features are displayed
:
To disconnect the mobile phone
;
To determine a master device
=
To de-register a mobile phone
i
The supported Bluetooth® features are
displayed after a Bluetooth® audio
device is connected.
In this display, the mobile phone can be:
R
determined as a master device
(Y page 69)
R
de-registered (Y page 70)
R
disconnected from audio system navigation/multimedia
X
To disconnect a mobile phone: press symbol :.
The mobile phone is no longer connected
to audio system navigation/multimedia
but is still entered in the telephone
device list and can be connected again
later.
Determining a master device
You can determine a mobile phone as a master device, but not a Bluetooth® audio
device. A master device is given priority
when reconnecting automatically.
>> Telephone.
Z
Page 72
Telephone operation
70
X
Press symbol ; in example 2.
The selected mobile phone is entered in
the telephone device list as a master
device.
>> Telephone.
Reconnecting automatically
Audio system navigation/multimedia
searches for a master device automatically
when it is switched on. If no master device
has been determined, the telephone list is
searched for a mobile phone and then the
Bluetooth® device list is searched for an
audio device.
X
To de-register all mobile phones: press
1 in the telephone device list.
Please confirm to delete all.
X
Press OK.
The Deleted message appears.
Telephone operation
Incoming calls
Rejecting or accepting a call
When a call is being received, the Incom‐
ing call... message is shown. Either the
phone number, the name or Unknown is
shown in the display (phone number is not
sent).
De-registering a mobile phone
You can either de-register an individual
mobile phone or delete all mobile phones
from the telephone device list. Bluetooth® audio devices can be deleted from
the corresponding display in the same way.
X
To de-register a mobile phone: press
= in example 2.
The Please confirm to delete message
appears.
X
Press OK.
The Deleted message appears.
The mobile phone display shows a message that connection with audio system
navigation/multimedia has been terminated.
X
To reject: press 1.
X
To accept: press OK.
Once you have accepted the call, you can
use hands-free mode.
X
Set the call volume by turning
cVd the control knob.
For more information, see the "Functions
available during a call" section
(Y page 71).
After the call is finished, the previous
display is shown again.
Making a call
X
Press Telephone in the main menu
(Y page 10).
The telephone menu appears.
Page 73
X
Press Number.
An input menu appears.
X
Type in the phone number. Press and hold
0 to enter "+".
The phone number is shown at the top left.
Telephone operation
Functions available during a call
Transferring a hands-free call to the
mobile phone
The display shows either the phone number
or the name.
The following information is shown in the
display during a call:
R
type of connection (hands-free, mobile
phone)
R
name or phone number of the caller
R
call duration
71
>> Telephone.
X
To delete a number: press 1.
X
To delete a phone number: press and hold
1 until the whole phone number has
been deleted.
X
To store a phone number in the radio:
press the memory card symbol.
X
Enter a name and then press OK.
The contact is stored in "Radio phone
book" (Contacts II) (Y page 73).
X
To make a call: press ;.
The Calling....<Name> message
appears.
X
Press the symbol on the bottom right.
You are now conducting the call using the
mobile phone. Call active: Mobile
phone is shown in the display.
X
To return to the call using the handsfree system: press the symbol again.
Adjusting the call volume
Option 1
X
Turn cVd the control knob.
Option 2
X
Call up the volume settings menu and set
the volume for telephone calls
(Y page 22).
Ending a call
X
Press 1.
The call is ended and the previous display appears.
Z
Page 74
Using the phone book
72
Using the phone book
Introduction
Audio system navigation/multimedia
shows the mobile phone's phone book (Contacts I) and the audio system navigation/
multimedia phone book (Contacts II). The
contacts in the phone book in the mobile
phone are automatically downloaded when
the mobile phone is connected (Y page 67).
They are updated after every call and after
the mobile phone is connected again. You
can also download the contacts from the
mobile phone yourself (Y page 76).
Mobile phone contacts can be stored permanently in the audio system navigation/
>> Telephone.
multimedia phone book. These are then
available independently of the mobile
phone connected.
Phone book in the mobile phone (Contacts I)
Searching for a contact
X
Press the keyboard symbol (see the illustration below option 1).
An input menu appears.
X
Enter up to three letters of the entry to
be searched for. Instructions for entering characters can be found in the
"Entering characters in the phone book"
section (Y page 15).
Opening the phone book
Option 1: the phone book in the mobile
phone is shown as soon as downloading is
complete.
X
Option 2: press Contacts I in the tele-
phone menu.
X
Press OK in the phone book in the mobile
phone.
The phone book is opened at the corresponding place.
Showing the contact's phone number(s)
and making a call
X
Press a contact in the mobile phone's
phone book.
The available phone numbers are displayed.
Page 75
X
Press a phone number and then
press ;.
The Calling...<Name> message
appears.
Storing a contact in the audio system
navigation/multimedia phone book
(Contacts II)
X
Press the memory card symbol when the
available phone numbers are displayed.
An input menu appears.
Using the phone book
Audio system navigation/multimedia phone book (Contacts II)
Opening the phone book
X
Press Contacts II in the phone book.
The radio phone book appears.
73
>> Telephone.
X
Change the contact names if desired.
Instructions for entering characters can
be found in the "Entering characters in
the phone book" section (Y page 15).
X
Press OK.
The Saved message appears.
Calling and editing a contact
X
Press a contact in the phone book.
The contact is shown.
:
To call a contact
;
To edit the contact
=
To delete the contact
Z
Page 76
Using call lists
74
X
To call the contact: press :.
The Calling...<Name> message
appears.
X
To edit the contact: press ;.
The input menu for the name appears.
>> Telephone.
X
Change the contact name. Instructions
for entering characters can be found in
the "Entering characters in the phone
book" section (Y page 15).
X
Press OK.
The input menu for the phone number
appears.
X
Change the phone number.
X
Press OK.
The Saved message appears.
X
To delete a contact: press =.
The Please confirm to delete message
appears.
X
Press OK.
The Deleted message appears.
X
Press OK.
The Deleted message appears.
Using call lists
Introduction
The audio system navigation/multimedia
stores calls received, dialled or missed
while the telephone is in operation in separate lists.

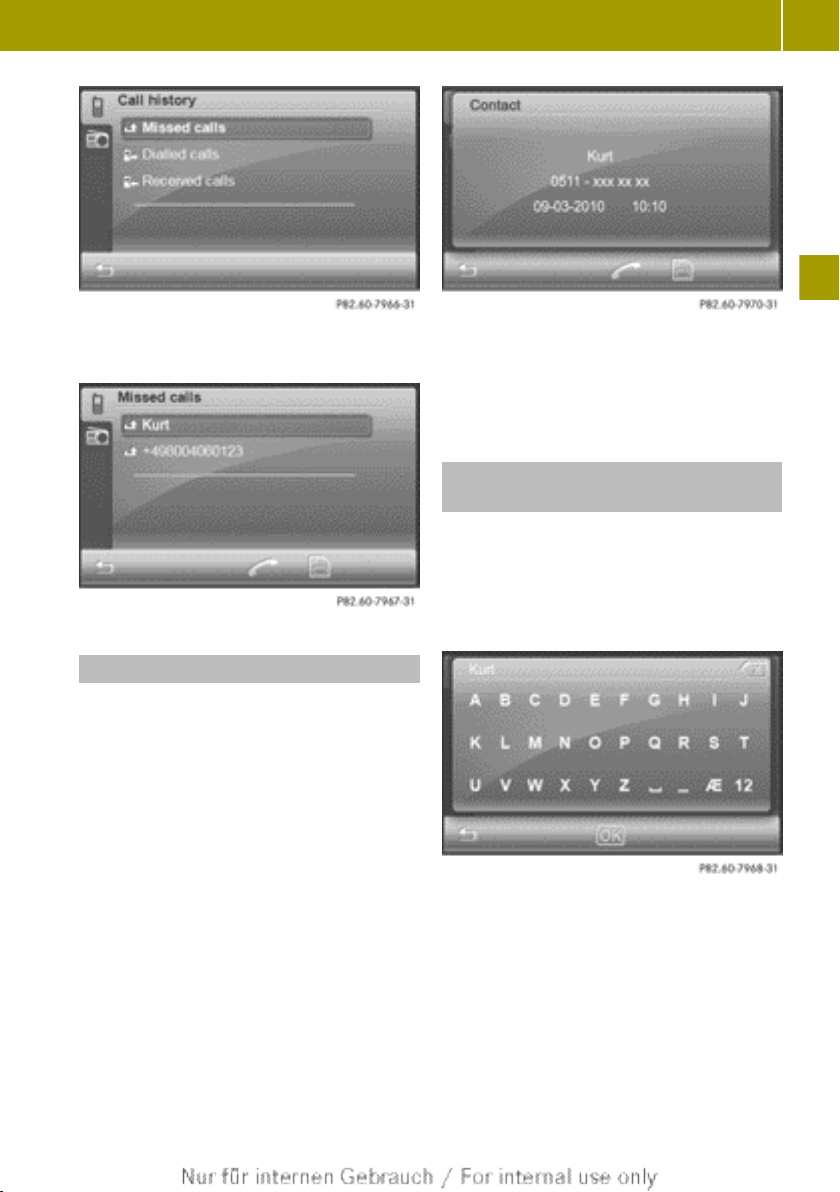

Opening call lists
Deleting all contacts
X
Press 1 in the phone book.
X
Press Journal in the telephone menu.
The call lists are displayed.
Page 77
Using call lists
75
X
Select a call list, e.g. Missed calls.
The calls are displayed.
Calling a contact
Option 1
X
Press ; briefly to select the highlighted entry.
The Calling...<Name> message
appears.
Option 2
X
Select an entry.
The contact details (name, phone number,
date, time) are shown.
Example: contact details
X
Press ;.
The Calling...<Name> message
appears.
Storing a contact in the audio system navigation/multimedia phone book
X
Select an entry in the call list and then
press the memory card symbol.
or
X
Press the memory card symbol in the contact details display.
X
Change the name if desired. Instructions
for entering characters can be found in
the "Entering characters in the phone
book" section (Y page 15).
X
Press OK.
The Saved message appears.
>> Telephone.
Z
Page 78
Telephone settings
76
Telephone settings
Calling up the "Bluetooth® settings" menu
X
Press Telephone in the main menu
(Y page 10).
The telephone menu appears.
>> Telephone.
Telephone menu
X
Press Options in the telephone menu.
The "Bluetooth® settings" menu appears.
You can change the PIN. The PIN is a fourdigit number sequence.
X
Press PIN edit in the "Bluetooth® settings" menu.
An input menu appears.
X
Select the numbers one by one by pressing briefly.
The numbers are entered at the top right.
X
To delete: briefly press 1 to delete the
last number.
Press and hold 1 to delete the entry.
X
Press OK to confirm the entry.
The input menu is closed and the "Bluetooth® settings" menu appears.
"Bluetooth® settings" menu
The New device and Device list functions
are described in the "Telephony via the
Bluetooth® interface" section under "Connecting a mobile phone" (Y page 67).
Editing the PIN for connection with Bluetooth® devices
The PIN is required to connect audio system
navigation/multimedia with Bluetooth
®
mobile phones and Bluetooth® audio equipment. The default PIN is 1234.
Downloading the mobile phone's phone book
The mobile phone is connected to audio
system navigation/multimedia (Y page 67).
i
The phone book is automatically downloaded to audio system navigation/multimedia after connection.
X
Press Phone book download in the
"Bluetooth® settings" menu.
The Downloading phonebook... message appears. When the download is complete, the Phone book downloaded mes-
sage and the number of entries downloaded are shown.
Page 79
Editing Bluetooth® device names
The Bluetooth® device name enables Bluetooth® connection to Bluetooth® mobile
phones and Bluetooth® audio devices. The
Bluetooth® device name for audio system
navigation/multimedia is smart Radio.
You can change this device name.
X
Press Bluetooth name in the "Bluetooth® settings" menu.
An input menu appears.
X
Enter a name. Instructions for entering
characters can be found in the "Entering
characters in the phone book" section
(Y page 15).
The name is shown at the top left.
X
To delete: briefly press 1 to delete the
last letter.
Press and hold 1 to delete the entry.
X
Press OK to confirm the entry.
The input menu is closed and the "Bluetooth® settings" menu appears.
Telephone settings
77
>> Telephone.
Z
Page 80
78
Page 81
Radio mode ...................................... 80
Music mode ...................................... 86
Audio settings .................................. 98
>> Audio.
Page 82
Radio mode
80
Radio mode
Introduction
i
Portable electronic devices in the
vehicle may seriously impair radio
reception.
Switching radio mode on/off
Switching to radio mode
X
Press Radio in the main menu
(Y page 10).
The radio display appears. You will hear
the station currently selected.
>> Audio.
Example: radio display
:
Status bar showing the current wave-
band, clock and additional displays
;
To switch radio mode off
=
Display/selection window with station
name and station frequency (line 1),
radio text display (line 2), waveband
(line 3) and assignment of the first four
presets (line 4)
?
To call up the settings menu
A
Station search, forwards/backwards
B
To call up a station preset
Switching radio mode off
X
Press ; in the radio display.
The main function active last is shown.
Switching wavebands
X
Press symbol ? in the radio display.
The settings menu appears.
X
Press Band in the menu. The entry on the
right beside Band shows the current set-
ting.
A list of available wavebands is shown.
The frequencies that can be selected are
FM, FMT, FM dynamic, MW, LW and SW.
FMT: the waveband contains 32 stations
sorted by their reception quality, stored
automatically by the travel store function .
The station with the best reception quality
is stored as preset position 1. When you
next use this function, the current preset
stations are overwritten.
FM dynamic: while the vehicle is in motion,
the tuner scans regularly and stores the 32
stations with the best reception quality. It
is not possible to store a station manually.
Dynamic updating can cause a stored station to change preset position in the list.
i
Audio system navigation/multimedia
shows the station frequencies instead of
the station names in the MW, SW and LW
wavebands.
X
Press the 9 or : button to scroll
through the list.
X
Press the desired waveband.
Page 83

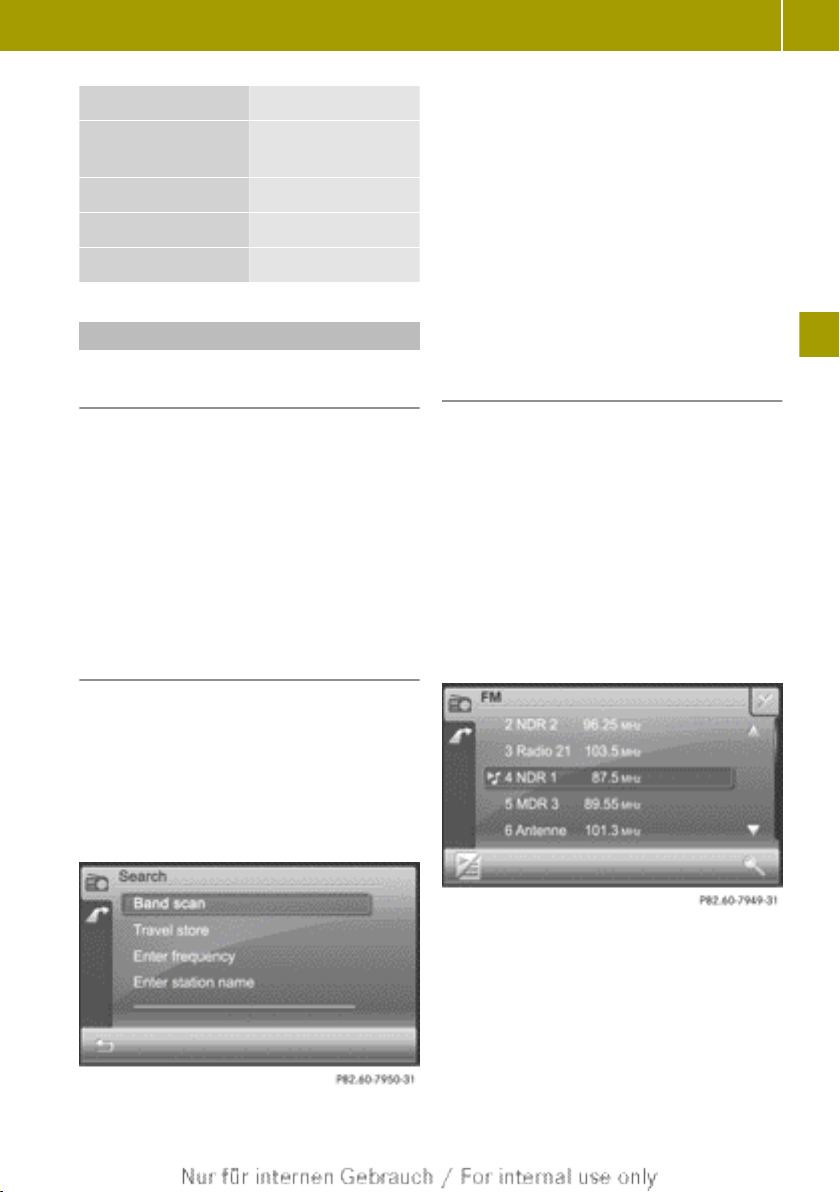

Waveband Frequency
FM (VHF), FMT, FM
87.5 – 108.0 MHz
dynamic
MW (medium wave) 531 – 1602 kHz
SW (short wave) 3900 – 9990 kHz
LW (long wave) 153 – 279 kHz
Selecting a station
Selecting a station using the station
search function
X
Press the û or ü button in the
radio display (Y page 80).
The needle jumps left or right in the
waveband and stops at the next station
with adequate reception.
i
If you have activated traffic announcements (TA) (Y page 85), only RDS stations
are searched for.
Selecting a station using the waveband
scan
X
Press symbol B in the radio display
(Y page 80).
The station preset memory appears
(Y page 81).
X
Press the magnifying glass symbol in the
station preset memory.
The "Station search" menu appears.
Radio mode
X
Press Band scanning.
The Band scanning... message appears.
All available stations are played
briefly.
When the smart radio finds a station, the
display shows Playing 98.3 MHz, for
example.
X
To select the station being played: press
1.
The band scan is stopped.
Selecting stations via the station presets
Option 1
The station assignment of preset positions
1 to 4 appears in the radio display under
the waveband.
X
Press one of preset positions 1 to 4.
The selected station is played.
Option 2
X
Press symbol B in the radio display
(Y page 80).
The station preset memory appears.
81
>> Audio.
"Station search" menu
Station presets
An arrow and a note indicate under which
preset the currently selected station is
stored.
Page 84
Radio mode
82
X
Press the 9 or : button to scroll
through the list.
X
Press the desired station.
The selected station is played.
X
Press the symbol on the bottom left to call
up the radio display.
Selecting stations by entering the frequency manually
You can use this function for FM wavebands.
X
Press symbol B in the radio display
(Y page 80).
The station preset memory appears.
X
Press the magnifying glass symbol in the
station preset memory.
>> Audio.
X
Press Enter frequency.
An input menu appears.
X
Enter the desired frequency by pressing
the numbers.
The frequency is shown at the top right;
the dot is entered automatically.
X
Press OK and confirm the frequency
entered.
If the smart radio finds the respective
station, the display shows Playing
98.3 MHz, for example. The radio dis-
play then appears.
i
You can only enter currently permitted
numbers.
If you enter a frequency that is outside
the frequency range, audio system navigation/multimedia sets the next lower
frequency.
Selecting a station by entering the station name
You can use this function for FM wavebands.
X
Press symbol B in the radio display
(Y page 80).
The station preset memory appears.
X
Press the magnifying glass symbol in the
station preset memory.
X
Press Enter station name.
An input menu appears.
:
Entry line
;
To delete an entry
=
To enter numbers and special characters
?
To enter umlauts
X
Enter a station name. Instructions for
entering characters can be found in the
"At a glance" section (Y page 15).
X
To confirm the entry: press OK.
The Searching... display appears. You
then see a list of stations that can be
received.
X
Press the 9 or : button to scroll
through the list.
X
Press the desired station.
X
Press the & button to exit the list.
The selected station is played.
If no station is found for an entry, G not
found is shown, for example.
Page 85
Storing stations
Storing stations manually
There are 32 preset positions available
each for the FM and FMT wavebands. You
cannot store stations manually in the FM
dynamic waveband. Up to 12 stations can be
stored in the MW, LW and SW wavebands.
X
Quick save: in the radio display, press
and hold one of preset positions 1 to 4
until you hear a confirmation tone.
The currently set station is stored to the
preset position selected.
X
In the preset memory: press the 9
or : button to scroll through the list.
X
Press and hold a preset position until
you hear a confirmation tone.
The currently set station is stored to the
preset position selected.
Storing stations automatically (travel
store)
This function automatically assigns stations that can be received to the preset
memory for the FMT waveband. The entire
waveband is searched, starting at the lowest frequency. The 32 stations with the best
reception quality are stored to the preset
positions according to their reception
quality. The station with the best reception is stored at preset position 1.
X
Press B in the radio display
(Y page 80).
The station preset memory appears.
X
Press the magnifying glass symbol in the
station preset memory.
X
Press Travel store in the "Station
search" menu.
X
The Travel store... message appears.
Audio system navigation/multimedia
searches for stations that can be
received. The available stations are
automatically stored in the preset positions.
Radio mode
X
To cancel the function: press 1.
Radio Data System (RDS)
General notes
The Radio Data System (RDS) provides
inaudible additional information in the
FM wavebands (FM, FMT, FM dynamic). The
system consists of a listening receiver and
a monitoring receiver.
The monitoring receiver constantly scans
the FM waveband and collects data from all
the stations that can be received, e.g.
reception quality and RDS data such as programme names and alternative frequencies. Audio system navigation/multimedia
stores the data and constantly updates the
presets. The listening receiver is therefore able to switch instantaneously to an
alternative frequency with a better signal.
i
RDS only functions for stations which
transmit RDS data.
Switching RDS on/off
X
Press d in the radio display
(Y page 80).
The settings menu appears.
X
Press RDS in the menu.
Depending on the previous status, the
function is switched on O or off ª.
X
Press the & button and return to the
radio display.
83
>> Audio.
Page 86
Radio mode
84
Switching regional mode on/off
Some RDS programmes broadcast regional
programmes with local content. Switching
on regional mode prevents the station from
switching to an alternative frequency.
X
Press d in the radio display
(Y page 80).
The settings menu appears.
X
Press Regional in the menu.
Depending on the previous status, the
function is switched on O or off ª.
X
Press the & button and return to the
radio display.
Program type category (PTY)
>> Audio.
PTY is a service offered by several stations
in RDS. You can use it to select stations
with a certain programme type.
X
Press d in the radio display
(Y page 80).
The settings menu appears.
After PTY, the display either shows the
current programme type selected or NO
PTY.
X

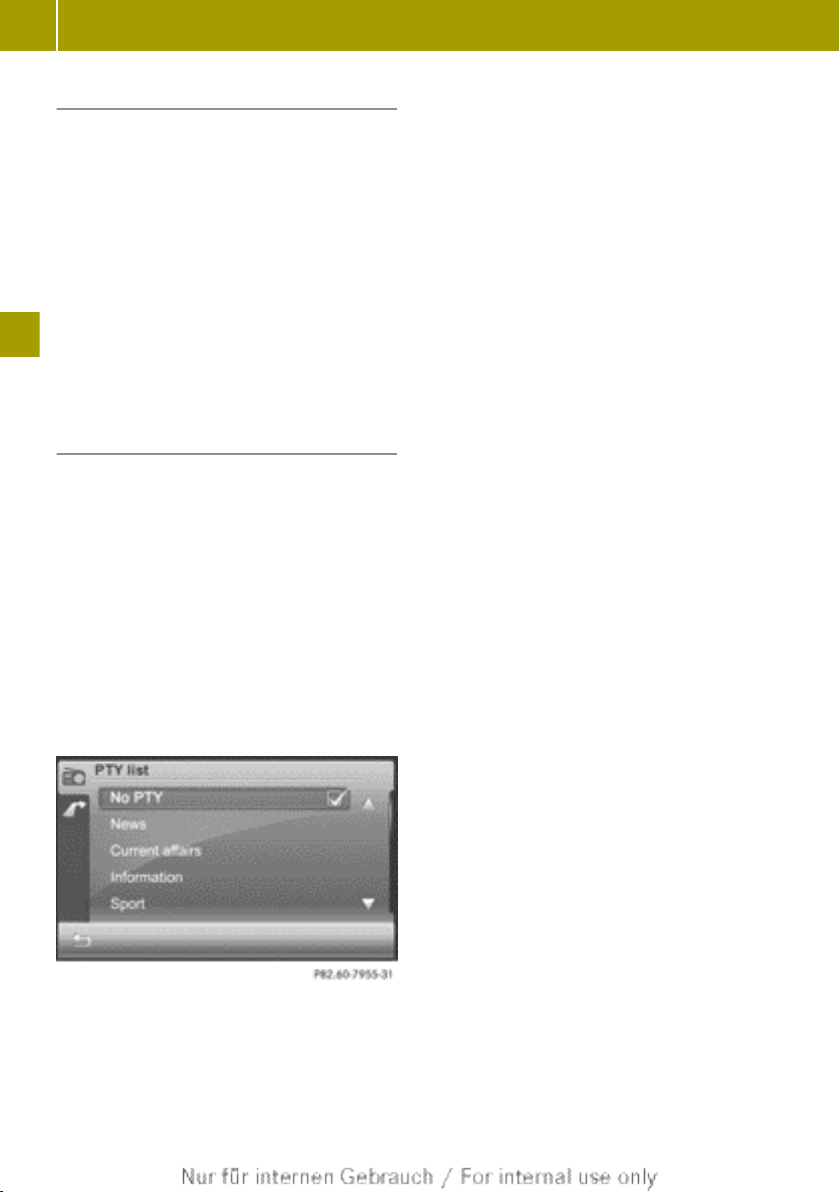

Press PTY in the menu.
The list of available programme types
appears.
X
To switch off PTY: press NO PTY.
The O symbol indicates that the function is switched off. The setting is
accepted and the list closes.
X
To select a programme type: press the
9 or : button to scroll through the
list.
Press the desired programme type.
X
Press the & button and close the list.
Available programme types:
R
News
R
Current affairs
R
Information
R
Sport
R
Education
R
Drama
R
Culture
R
Science
R
Varied
R
Pop Music
R
Rock Music
R
Easy Listening Music
R
Light Classical Music
R
Serious Classical Music
R
Other Music
R
Weather
R
Finance
R
Children's programmes
R
Social affairs
R
Religion
R
Phone-in
R
Travel
R
Leisure
R
Jazz Music
R
Country Music
R
National Music
R
Oldies Music
R
Folk Music
R
Documentary
Page 87
Radio mode
85
Traffic Programme
Note
Many FM stations transmit traffic
announcements (TA).
Switching traffic announcements on/off
X
Press d in the radio display
(Y page 80).
The settings menu appears.
X
Press Traffic announcement.
Depending on the previous status, the
function is switched on O or off ª.
i
It is also possible to switch traffic
announcements off when a traffic
announcement is being received
(Y page 85).
X
Press the & button and return to the
radio display.
The car symbol at the top of the display
indicates that announcements are switched
on. If the selected station does not broadcast traffic announcements, this symbol is
crossed out in red.
Once traffic announcements have been
switched on, audio system navigation/multimedia selects an RDS station.
Traffic Programme is retrieved from:
R
the currently selected FM station
R
an RDS station from the network of the
currently selected FM station
R
the RDS station with the best reception
quality
When traffic announcements are switched
on, a traffic announcement will interrupt
the audio signal from the currently activated audio or video source.
i
Telephone conversations and naviga-
tion announcements are not interrupted.
Incoming traffic announcements
An incoming traffic announcement is indicated by a message.
X
To interrupt a traffic announcement:
press 1 in the message displayed.
Audio system navigation/multimedia
switches back to the audio source that
was selected before the announcement.
Subsequent traffic announcements will
interrupt the audio source again.
X
To switch off traffic announcements:
press O in the message displayed.
No more traffic announcements are made.
Radio text
Notes
This function is available in FM radio
mode.
Radio text is additional information that
is shown in the radio display, e.g. information about the current programme.
The radio text is switched off in the standard setting.
>> Audio.
Page 88
Music mode
86
Switching radio text on/off
X
Press d in the radio display
(Y page 80).
The settings menu appears.
X
Press Radio text in the menu.
Depending on the previous status, the
function is switched on O or off ª.
X
Press the & button and return to the
radio display.
If the station supports radio text and
information is available, this is shown
when the function is switched on. Longer
text information is shown as scrolling
text.
>> Audio.
Reception settings
Switching stereo reception on/off
X
Press d in the radio display
(Y page 80).
The settings menu appears.
X
Press Stereo in the menu.
Depending on the previous status, the
function is switched on O or off ª.
X
Press the & button and return to the
radio display.
Noise suppression
This function suppresses interference
noises, e.g. as a result of poor reception,
by reducing the treble.
X
Press d in the radio display
(Y page 80).
The settings menu appears.
X
Press Hicut in the menu.
A settings menu appears.
X
Press the = or Ì button to select a
value between 0 (no reduction) and 7 (high
reduction).
X
Press OK and confirm the entry.
X
Press the & button and return to the
radio display.
Setting the sensitivity
By setting the sensitivity, you affect the
range of available stations when you use
the following functions:
R
station search (Y page 81)
R
band scan (Y page 81)
R
travel store
At high sensitivity, you only receive stations with high reception quality. At low
sensitivity, you also receive stations with
low reception quality.
X
Press d in the radio display
(Y page 80).
The settings menu appears.
X
Press Sensitivity in the menu.
A settings menu appears.
X
Press the = or Ì button to select a
value between 1 (low) and 6 (high).
X
Press OK and confirm the entry.
X
Press the & button and return to the
radio display.
Music mode
Safety note
WARNING
G
Only when the vehicle is stationary should
you:
R
load a disc
R
eject a disc
There is a risk of being distracted from the
road and traffic conditions if this is done
while the vehicle is in motion.
General notes
A maximum of 20,000 media files (audio,
video, pictures) are played.
If a data medium is divided into several
partitions, only the first partition found
is played.
Page 89
Inserting and removing a CD/DVD
Notes
If the CD/DVD has a printed side, this must
face upwards when the CD/DVD is inserted.
If neither side is printed, the side to be
played should face downwards. CDs/DVDs
with copy protection may not be able to be
played by the system.
i
If a medium contains other files in
addition to music files, the loading time
before the first track starts to play may
be longer.
Inserting a CD/DVD
X
Press the 8 button on the front panel.
The front panel is folded down and uncovers the disc slot.
If the eject button, item F(Y page 8), is
lit up in orange, a CD/DVD has already
been inserted. If this is the case, remove
the CD/DVD first.
X
Insert a CD/DVD into the disc slot.
Audio system navigation/multimedia
draws in the CD/DVD.
The Disc reading... message appears.
If the CD/DVD is a permissible data
medium and was inserted correctly,
playback starts.
X
Press the 8 button on the front panel.
The front panel raises and closes the
disc slot.
i
The front panel moves up automatically
after one minute.
Removing a CD/DVD
X
Press the 8 button on the front panel.
The front panel is folded down and uncovers the disc slot.
The eject button lights up orange if there
is a CD/DVD in the disc slot.
X
Press the eject button: item
F (Y page 10).
Music mode
X
Remove the CD/DVD from the disc slot.
X
Press the 8 button on the front panel.
The front panel raises and closes the
disc slot.
i
The front panel moves up automatically
after one minute.
Inserting and ejecting an SD/MMC memory card
General notes
Audio system navigation/multimedia supports SDHC memory cards, SD memory cards
and MMC memory cards.
R
SDHC (SanDisk High Capacity)
R
SD (SanDisk)
R
MMC (Multimedia Card)
SD memory cards feature the following
logo:
This logo is a registered trademark of SanDisk Corporation. The logo is shown on the
left beside the SD/MMC memory card slot
(visible when you fold the display down).
i
Do not insert any SD-WLAN cards or partitioned SD cards, since these either
obstruct the opening/closing of the front
panel or do not fit in the slot.
i
Not all SD/MMC memory cards are
designed for the temperatures which may
be reached in the vehicle.
Due to the wide range of SD/MMC memory
cards available on the market, playback
cannot be guaranteed for all brands of
SD/MMC memory card.
A maximum of 20,000 media files (audio,
video, pictures) are played. If the SD/
87
>> Audio.
Z
Page 90
Music mode
88
MMC memory card is divided into several
partitions, only the first partition
found is played.
A partition must not be larger than 32 GB.
Inserting an SD/MMC memory card
X
Press the 8 button on the front panel.
The front panel is folded down and uncovers the slot for the SD/MMC memory card
(on the right beside the SD logo).
X
Insert an SD/MMC memory card into the
slot. The side with the contacts must face
downwards and point towards the slot.
X
Press the 8 button on the front panel.
The front panel moves up and closes the
SD/MMC memory card slot.
>> Audio.
Removing the SD/MMC memory card
X
Press the 8 button on the front panel.
The front panel is folded down and uncovers the slot for the SD/MMC memory card
(on the right beside the SD logo).
X
Press the SD/MMC memory card.
The SD/MMC memory card is ejected.
X
Remove the SD/MMC memory card.
X
Press the 8 button on the front panel
again.
The front panel moves up and closes the
SD/MMC memory card slot.
R
iPod® nano 3G
R
iPod® nano 2G
R
iPod® touch 3G
R
iPod® touch 2G
R
iPod® touch
R
iPod® 5G
The following iPhone® variants are supported:
R
iPhone® 3G
R
iPhone® 3GS
Connecting an iPod®/iPhone
X
Connect the device to the USB port.
i
Connecting an iPod which has been
®
excessively discharged can result in an
extended initialisation period.
i
Never leave an iPod®/iPhone® in the
vehicle, as extreme temperatures (e.g. if
subjected to direct sunlight or to
extremely low outside temperatures) may
prevent it from functioning correctly
(see the separate operating instructions
of the respective device). smart does not
take responsibility for any damage to
external devices.
Operation via a USB/AUX port
iPod®/iPhone® mode
Supported variants
i
iPod® and iPhone® are registered
trademarks of Apple Inc., Cupertino,
California, USA.
The following iPod® variants are supported:
R
iPod® classic 120 GB
R
iPod® classic
R
iPod® nano 5G
R
iPod® nano 4G

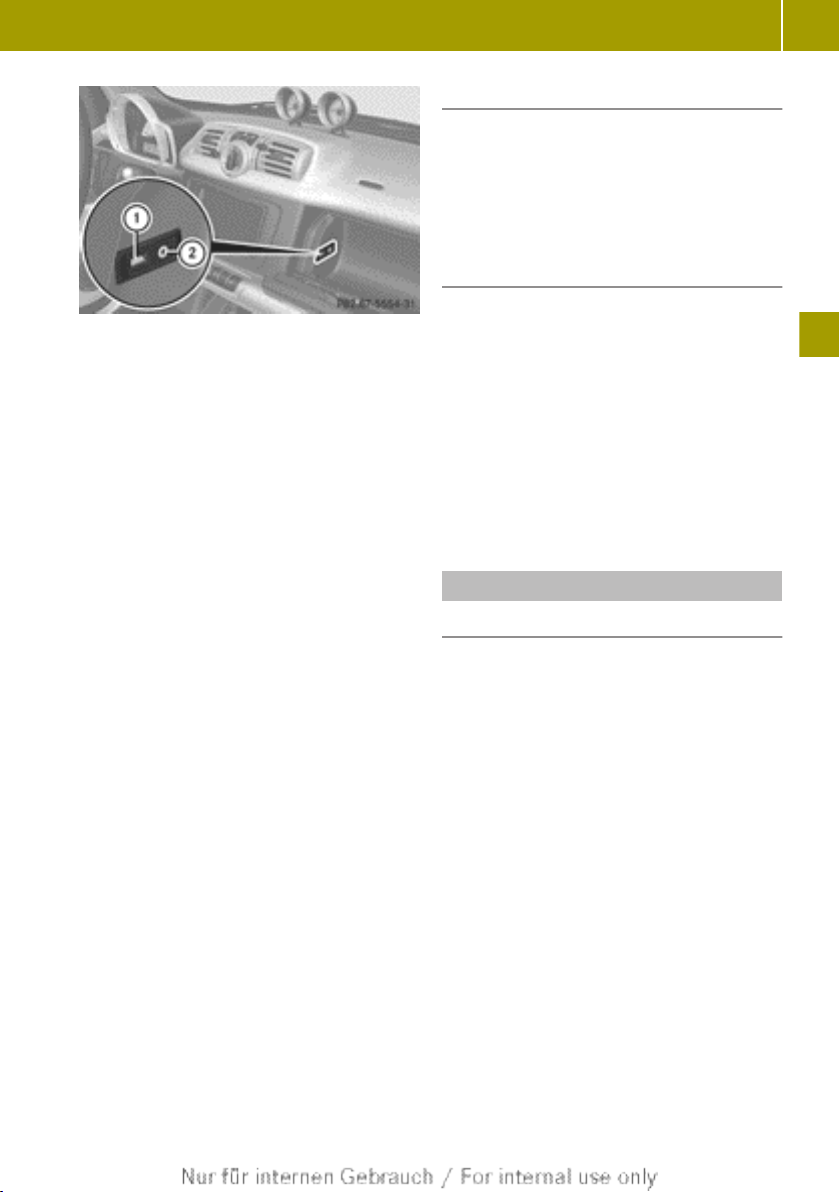

USB/AUX port
The ports are in the glove compartment on
the left-hand side.
Page 91
:
USB port
;
AUX port
You can connect an external audio source
(AUX) to audio system navigation/multimedia.
The USB port supports the following USB
devices:
R
USB sticks (flash memory)
R
USB hard discs requiring a permanent
current of up to 500 mA (it may be necessary to connect a separate power supply)
i
Audio system navigation/multimedia
supports USB storage medium of "USB
Device Subclass 6". Information concerning USB Device Subclass 6 is available from the equipment manufacturer.
A maximum of 20,000 media files (audio,
video, pictures) are played. If the USB
storage medium is divided into several
partitions, only the first partition
found is played.
Size specifications for a partition:
R
USB sticks < 64 GB
R
USB hard discs < 1,000 GB
Partitions of over 256 GB result in an
extended initialisation period. It
could therefore take a long time before
playback starts.
Media files must be smaller than
256 GB.
For more details and a comprehensive list
of supported devices, please contact a
smart Centre.
Music mode
Connecting an audio device to AUX
X
Connect the audio device using a 3.5 mm
stereo jack plug with AUX port ;.
X
Please see the respective operating
instructions for how to operate the
external audio source.
Connecting a USB device
i
Do not leave external devices in the
vehicle as their correct function cannot
be guaranteed if they are subjected to
extreme temperatures, e.g. if subjected
to direct sunlight or very low outside
temperatures (see the operating
instructions of the respective device).
smart does not take responsibility for
any damage to external devices.
X
Connect the USB device to USB port :.
Bluetooth® audio mode
Conditions
Bluetooth® audio device
Bluetooth® audio mode requires a Bluetooth®-capable audio device.
Not all Bluetooth® audio devices available
on the market are equally suitable. You can
obtain more detailed information about
suitable Bluetooth® audio devices and
about connecting Bluetooth® audio devices
to audio system navigation/multimedia
from your smart Centre.
89
>> Audio.
Z
Page 92
Music mode
90
Before using Bluetooth® audio mode, you
should check your Bluetooth® audio device
for the following (see the Bluetooth® audio
device's operating instructions):
X
Bluetooth® audio profile
The Bluetooth® audio device must support the A2DP and AVRCP Bluetooth® audio
profiles.
i
A2DP (Advanced Audio Distribution
Profile): Bluetooth® audio profile for
audio data transmission
AVRCP (Audio Video Remote Control Profile): Bluetooth® audio profile for audio
data control
X
Bluetooth® visibility
>> Audio.
On certain Bluetooth® audio devices, in
addition to activating the Bluetooth
function, the device itself must also be
made "visible" to other devices (see the
Bluetooth® audio device's operating
instructions).
X
Bluetooth® device name
Every Bluetooth® device has its own Bluetooth® device name. This device name is
freely definable, but can be identical
for all devices from the same manufacturer. You should therefore change the
name of the device so that you can correctly identify your Bluetooth® audio
device (see the Bluetooth® audio device's operating instructions).
X
Activate Bluetooth® and Bluetooth® visibility on the Bluetooth® audio device.
General information
You will need to register your Bluetooth
audio device before using it with audio
system navigation/multimedia for the
first time.
This process includes:
R
the Bluetooth® audio device searching as
well as
R
its subsequent connection
You can connect up to five Bluetooth
ces.
i
If you register a mobile phone that supports Bluetooth® audio and transmits the
A2DP and AVRCP Bluetooth® audio profiles, these profiles are connected automatically. The mobile phone is then
entered in both the Bluetooth® telephones list (Y page 67) and in the Bluetooth® audio device list.
i
The functions supported depend on the
Bluetooth® audio device or the mobile
phone.
Connecting Bluetooth® audio devices
X
®
Proceed as described under "Registering and connecting a mobile phone" in
the Telephone section (Y page 67). Press
Audio streaming instead of Mobile
phone in the new device menu.
Activating music mode
Option 1: inserting or connecting a data
medium
X
Insert a CD/DVD (Y page 87) or a SD/MMC
memory card (Y page 88).
or
X
Connect a USB device (Y page 89), an
iPod®/iPhone ®(Y page 88) or an audio
device (Y page 89).
or
X
Connect a Bluetooth® audio device to
audio system navigation/multimedia
(Y page 90).
®
X
To start playback: playback starts automatically for CDs/DVDs. For all other
data mediums, press the ; button in
the basic display.
®
devi-
Page 93
Option 2: selecting a data medium from
the music main menu
A CD/DVD or an SD/MMC memory card is
inserted or a data medium is connected to
audio system navigation/multimedia.
X
Press Music in the main menu
(Y page 10).
The music main menu appears.
Music main menu
X
Press a data medium symbol.
The data medium is read. Playback then
starts.
Music mode
Example: SD memory card mode
i
For USB mode and SD/MMC memory card
mode, the cover is shown on the display
if the corresponding data is contained
in the ID3 tag.
Switching off music mode
X
Press 1 in the respective basic display.
The main function active last is shown.
Pause function
X
Press the Ë button in the respective
basic display.
Playback is interrupted. The Ì button
is shown instead of the Ë button.
X
To continue playback: press the Ì
button.
Playback continues from the point where
it was interrupted.
91
>> Audio.
Example: CD/DVD mode
:
Status bar showing the current mode and
the current playback options
;
Display with track, artist, album name
and genre (if supplied), with the playback bar underneath
=
Menu bar
Selecting a track
By skipping
X
Press the û or ü button in the
respective basic display.
The skip forward function skips to the
next track.
Skipping backwards restarts the current
track (if it has been playing for more
than eight seconds) or starts the previ-
Z
Page 94
Music mode
92
ous track (if the current track has been
playing for a shorter time).
If you have activated the Mix playback
option, the tracks are played in a random
order. Depending on the data medium, all
the tracks on the medium, the tracks with
certain playback criteria or the tracks
in a folder are played.

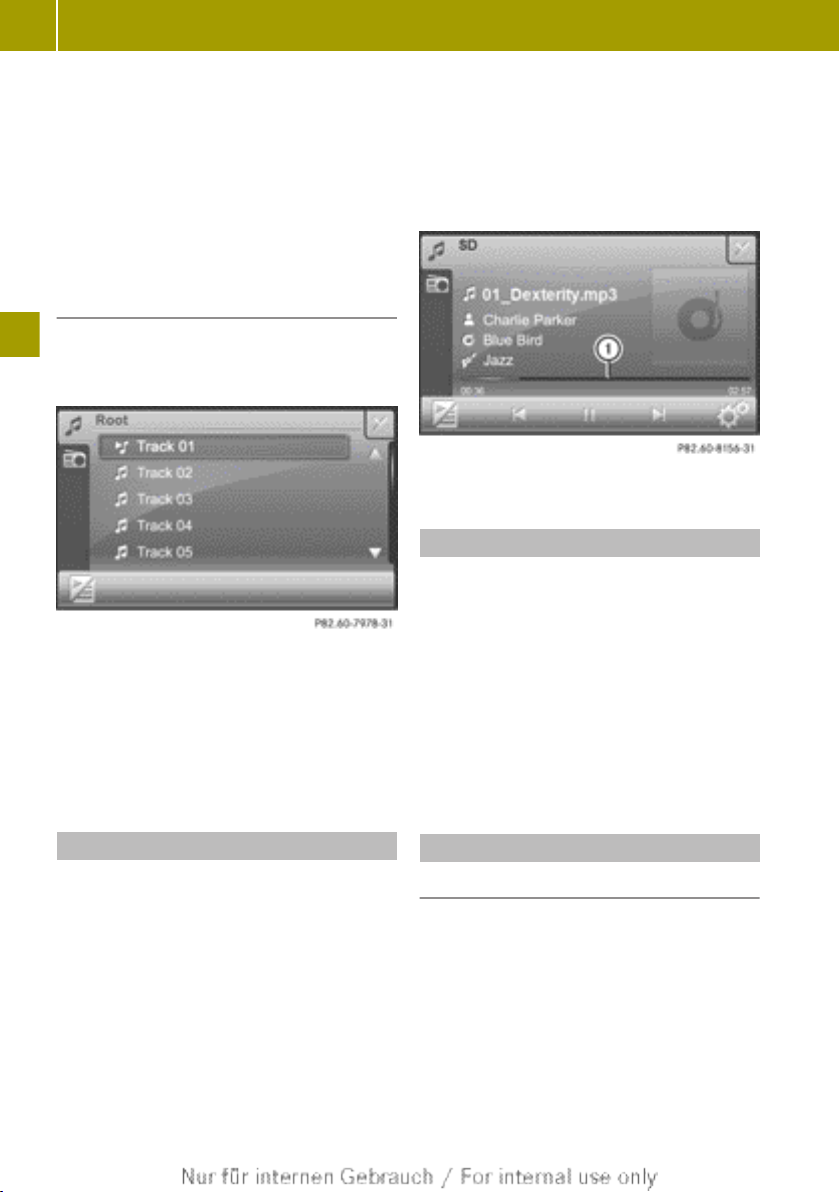

By track list
X
Press the symbol at the bottom left in the
respective basic display.
The track list appears.
>> Audio.
X
Press the 9 or : button to scroll
through the track list.
X
Select a title.
The track is played.
X
To return to the basic display: press the
symbol at the bottom left.
Option 2
X
Press somewhere on playback bar : in
the following picture.
i
This function is not available for the
iPod®.
:
Playback bar
Selecting a folder
This function is available in MP3 mode.
X
Press the symbol at the bottom left in the
respective basic display.
The track list appears.
X
To call up the next higher folder level:
press the folder symbol on the bottom
right.
X
To open a folder: press a folder symbol.
The folder content is shown.
Fast forward/rewind
There are two options for this function. The
second option can be used when playing a
CD/DVD, an SD/MMC memory card or a USB
device.
Option 1
X
Press and hold the û or ü button
until the desired position has been
reached.
i
On an iPod®, fast rewind only functions
within the current track.
Playback criteria
General information
You can select playback criteria for
iPods®, USB devices and SD/MMC memory
cards. Playback criteria include, for
example, playlists, artists or genres. After
selecting a criterion and a sub-entry, you
will then hear the corresponding tracks.
The folder structure can be displayed
using the Media data selection criterion.
Page 95
i
The Media data selection criterion is
not available for the iPod®.
Selecting playback criteria
X
Press the symbol at the bottom left in the
respective basic display.
The track list appears.
X
Press magnifying glass symbol ;.
X
Press one of the playback criteria.
If you press Artists, for example, a list
of available artists appears.
X
Select an artist.
A list of available tracks is shown.
X
Press a track to start playback.
Music mode
:
Alphabetical track search
;
To search by playback criteria
=
To select the next highest folder level
X
Press folder symbol =.
The folder structure appears.
93
>> Audio.
Displaying metadata
X
Press Media data in the criteria display.
A folder structure or a track list
appears.
Folder structure (highest level)
X
When the highest folder level is shown,
press the folder symbol at the bottom
right again.
The Criteria message appears again.
Track search
This function is available within the displayed list for USB mode and SD/MMC memory card mode.
X
Press symbol : in the track list or after
selecting a playback criterion (e.g.
Artists).
An input menu appears.
Z
Page 96
Music mode
94
X
Enter characters. Instructions for entering characters can be found in the "At a
glance" section (Y page 15).
The search entry is entered in the upper
line.
X
Press OK and confirm the entry.
A list shows the entries found.
X
Press the 9 or : button to scroll
through the track list.
X
Select a title.
The track is played.
>> Audio.
Page 97
Playback options
Available playback options
i
This function is not available for Bluetooth® audio devices.
Music mode
95
Playback
Data medium Playback
options
R
Mix
Repeat
Preselec‐
tion play‐
Audio CD, audio DVD
R
MP3/WMA-CD, MP3/WMA-DVD
R
iPod®/iPhone
R
USB device
R
SD/MMC memory card
R
Audio CD, audio DVD
R
MP3/WMA-CD, MP3/WMA-DVD
R
iPod®/iPhone
R
USB device
R
SD/MMC memory card
R
USB device
R
SD/MMC memory card
®
®
back
Selecting playback options
X
Press the d symbol in the respective
basic display.
The settings menu appears.
You hear the tracks in random order.
Depending on the data medium, the
tracks in the folder, the tracks that
match the current criteria or all the
tracks on the entire medium are
played.
The track that is currently being
played is repeated for as long as the
function is activated.
Depending on the data medium, the
current track, all the tracks that
match the current criteria or all the
tracks in the folder are repeated.
When this function is activated, the
next track to be played can be preselected in the track list.
If you have selected Repeat, you switch
between the Off, Track and Folder settings.
If you have selected Preselection
playback, you either switch the function
on O or off ª, depending on the previous status.
X
Preselection playback: when the function
is activated, press the 9 or : button in a track list and set the selection
marker to the next track to be played.
The preselected track is played after the
current track has been played.
>> Audio.

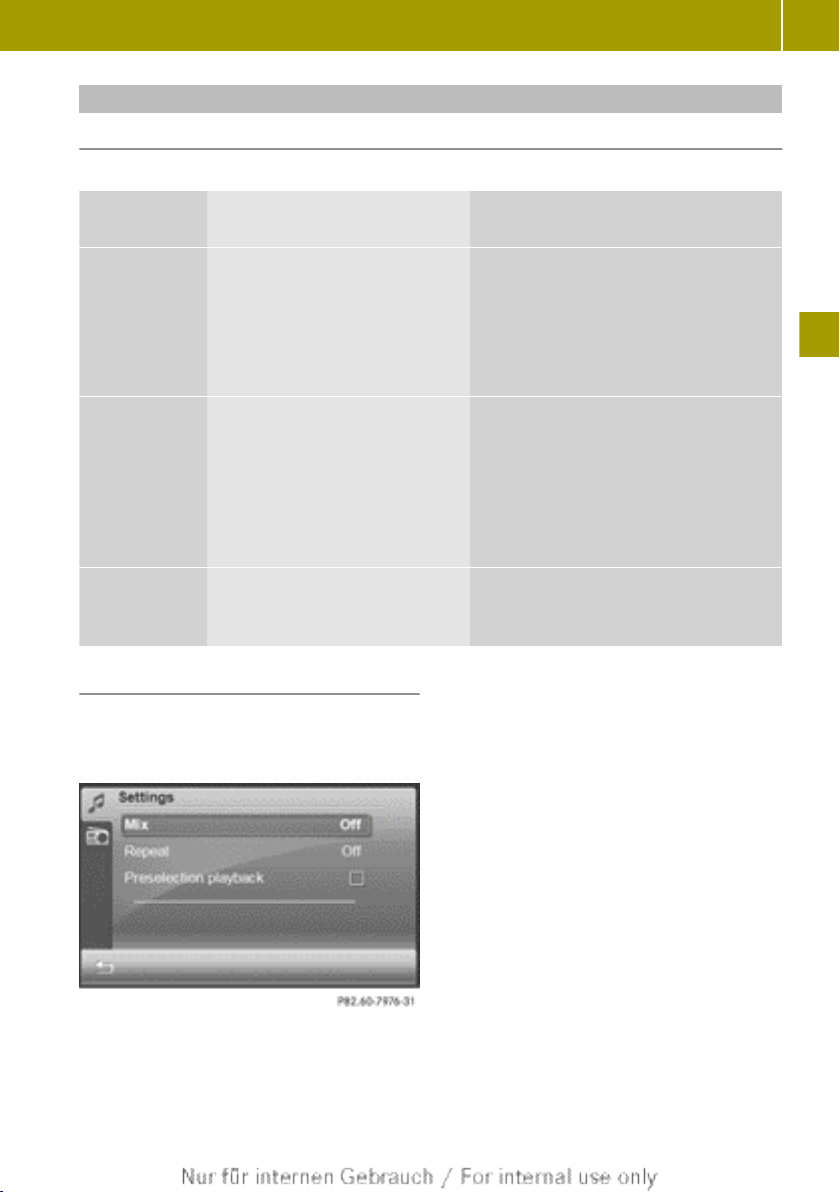

Example: playback options for SD memory cards
X
Press a playback option.
If you have selected Mix, you switch
between the Off, Folder and Medium set-
tings.
i
If you switch to the track list, the settings for Mix and Repeat are reset to
Off.
Z
Page 98
Music mode
96
Notes on music mode
Data medium and supported audio formats
CD/DVD with music
mp2, mp3, wma
files
USB devices (sticks,
hard drives)
SD/MMC memory card
Bluetooth® audio
aac, m3u, mp3,
ogg, pls, wav,
wma, wpl
mp3, wma
device with
Bluetooth® audio profile A2DP
Explanation of the most important audio
>> Audio.
formats:
R
aac – lossy compressed data format for
digital audio data
R
mp2 – lossy compressed data format for
digital audio data, standard for digital
radio
R
mp3 – lossy compressed format (MPEG1
Audio Layer 3), standard for transfer and
playback of music on digital audio players
R
m3u – file format for saving multimedia
playlists
R
ogg – free-of-charge, lossless
compressed format for digital audio
R
pls – file format for saving multimedia
playlists, contains additional track
information not contained in the "m3u"
format
R
wma - audio file compression technology
developed by Microsoft
i
The MPEG1 Audio Layer 3 (MP3) audio
®
encoding method is under licence from
Fraunhofer IIS (Institut Integrierte
Schaltungen – Institute for Integrated
Circuits) and Thomson.
Permissible file systems
R
ISO9660/Joliet standard for CDs
R
UDF for audio DVDs
R
FAT16 for SD memory cards, FAT32 for
SDHC memory cards
R
FAT32 for USB storage media (USB sticks,
USB hard discs)
Page 99
Music mode
Permissible bit and sampling rates
Audio format Bit rate Sampling rate
MP3 32 kbit/s to 320 kbit/s 32 kHz, 44.1 kHz,
48 kHz
97
MPEG-1, Audio Layer 2
(mono sound)
MPEG-1, Audio Layer 2
(stereo sound)
MPEG-2, Audio Layer 2
(mono sound)
MPEG-2, Audio Layer 2
(multichannel contents)
32 kbit/s to 192 kbit/s 32 kHz, 44.1 kHz,
48 kHz
64 kbit/s, 96 kbit/s to 384 kbit/s 32 kHz, 44.1 kHz,
48 kHz
8 kbit/s to 192 kbit/s 32 kHz, 44.1 kHz,
48 kHz
32 kbit/s, 48 kbit/s to 192 kbit/s 32 kHz, 44.1 kHz,
48 kHz
WMA 64 kbit/s to 192 kbit/s 32 kHz, 44.1 kHz,
48 kHz
Audio system navigation/multimedia does not support WMA files with the following
properties:
R
DRM (Digital Rights Management) encrypted files
R
variable bit rate
R
WMA Pro
R
5.1 (downmixed to stereo)
i
The downmixing process converts multichannel sound into stereo sound.
i
Only use tracks with a bit rate of at least 128 kbit/s and a sampling rate of at least
44.1 kHz. Lower rates can cause a noticeable deterioration in quality.
Notes for SD/MMC memory cards and USB
devices
Observe the following notes for fast access
to your music data or playback within a
category:
R
limit the number of tracks within a
folder to a maximum of 255. This recommendation also applies to the highest
directory (root).
R
the maximum directory depth must not be
more than ten levels.
R
avoid very large music files.
Notes on copyright
MP3 or WMA tracks that you create or play
back are generally subject to copyright
protection in accordance with the applicable international and national regulations.
In many countries, reproductions, even for
private use, are not permitted without the
prior consent of the copyright holder.
Make sure that you know about the applicable copyright regulations and that you
comply with these.
If you own these rights yourself, e.g. for
your own compositions and recordings,
or if the copyright holder has granted you
>> Audio.
Z
Page 100
Audio settings
98
permission, these restrictions do not
apply.
Notes on CDs/DVDs
Discs with copy protection are not compatible with the audio CD standard and therefore may not be able to be played by audio
system navigation/multimedia.
You may encounter playback problems when
playing copied discs. There is a wide
range of data carriers, disc-writing software and writers available. This variety
means that there is no guarantee that the
system will be able to play discs that you
have copied yourself.
There may be playback problems if you play
>> Audio.
CDs that you have copied yourself with a
storage capacity of more than 700 MB. CDs
of this type do not conform to the currently
applicable standards.
!
Do not affix stickers or labels to the
discs. They could peel off and damage the
drive.
The drive is designed to hold discs which
comply with the EN60908 standard. Therefore, you can only use discs with a maximum thickness of 1.3 mm.
If you insert thicker discs, e.g. those
that contain data on both sides (DVD on
one side and audio data on the other),
they cannot be ejected and can damage
the drive.
Do not use discs with a diameter of 8 cm,
even with an adapter. Only use round
discs with a diameter of 12 cm.
i
The device can play audio CDs with
high-resolution multichannel audio
format. Super audio CDs are played back
at CD quality.
Audio settings
Calling up the audio settings menu
Option 1
X
Select Extras from the main menu
(Y page 10).
X
Select Options from the menu.
The general settings menu appears.
X
Select Audio settings.
Option 2
X
Press the t button for longer than two
seconds.
You can make the following audio settings:
R
balance
R
bass/treble
R
X-bass
R
sound profile
R
equaliser
R
Dynamic Noise Covering
i
The settings for balance, bass/treble
and X-bass can be found in the "At a
glance" section (Y page 19).
