SMARTAUDIO 400

Introduction

The SMARTAudio 400 classroom amplification system provides high-quality audio amplification
for classrooms. SMARTAudio is the control center for the wireless microphone and speakers. The
system comes with a teacher microphone and optional student microphone. The receiver receives
audio signals and translates them into crystal-clear sound through the speakers. A variety speaker
options are available, including wall mounted speakers (SBA-150) and ceiling mounted speakers
(SBA-150c).

Using the teacher microphone

Control the input device’s volume directly from the teacher microphone. The teacher microphone
is ideal for large spaces. For more information see Acoustics in the SMART installation standards
(smarttech.com/kb/171035).

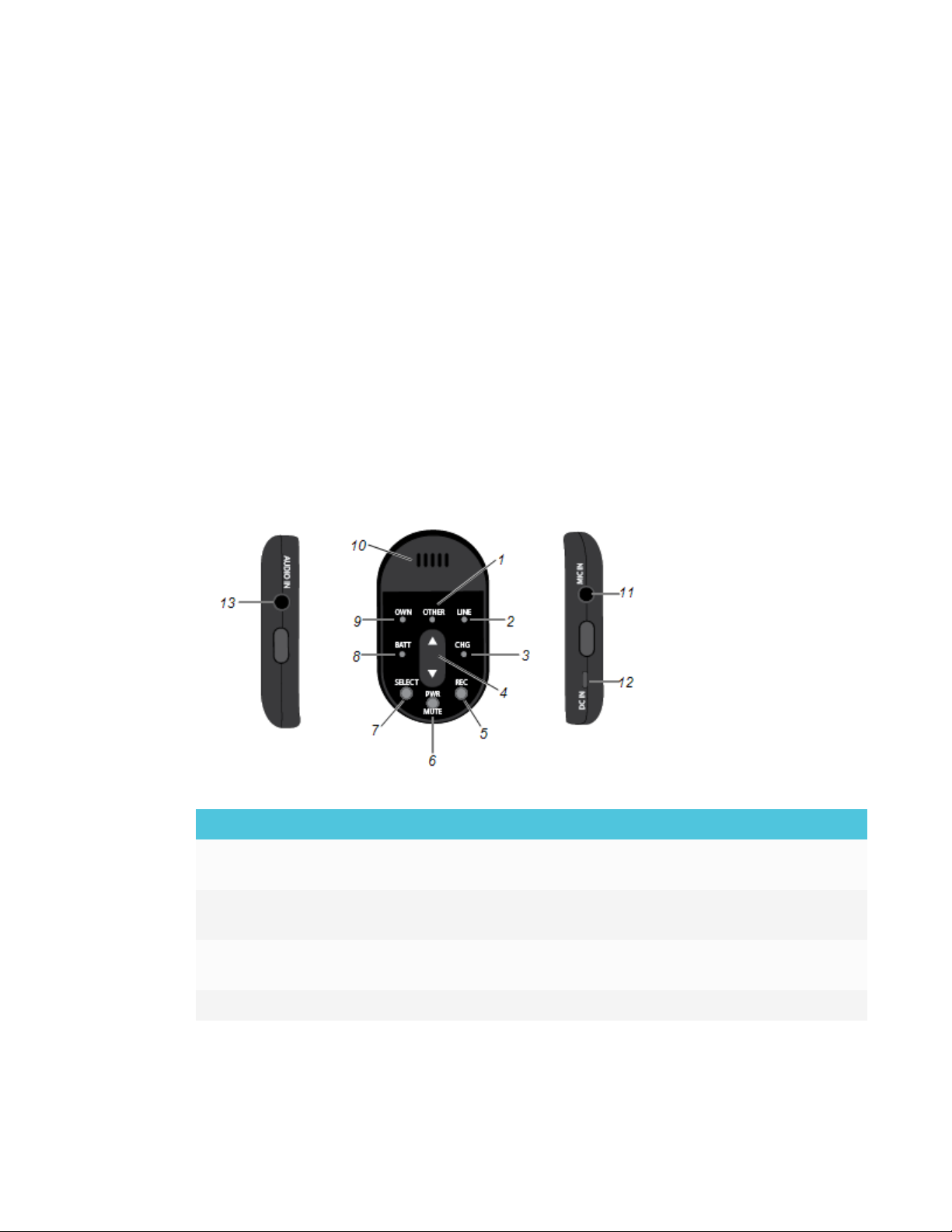

About the Teacher microphone

No. Function Description
1 OTHER LEDindicates that the volume buttons control the student
microphone.
2 LINE LEDindicates that the volume buttons control the auxiliary
audio source.
3 CHG LEDindicates charging status. See Charging the microphone
on page12.
4 UP and DOWN buttons Controls volume for the selected audio source.
4 smar ttech.com/kb/171144
Page 5
SMARTAUDIO 400
No. Function Description
5 REC LEDindicates that the microphone is paired with the receiver.
6 PWR/ MUTE button
Turns on microphone
l
Mutes microphone
l
7 SELECTbutton Selects an audio source.
8 BATT LEDindicates battery charge level. See About the teacher
microphone LEDs below.
9 OWN LED indicates that the volume buttons control the teacher’s
microphone.
10 Microphone [N/A]
11 MICIN Connect an external microphone (for example, a lapel or
headset microphone). This mutes the internal microphone on the teacher microphone.
12 Mini USBA receptacle Connects the USB power cable to charge the microphone.
13 AUDIOIN Connects an external audio device using a a 3.5 mm audio
cable.

About the teacher microphone LEDs

The BATT and CHG LEDs provide status and troubleshooting information for the teacher
microphone.
BATT LED status Description
Solid green Microphone is on.
Flashing green or flashing
Pairing with receiver or microphone is muted.
orange
Solid yellow Battery is low.
Flashing yellow Microphone is out of range of the receiver.
Solid red Battery is depleted.
Flashing red Pairing error. See Resolving issues with the microphones on
page13.
CHG LED status Description
Solid
Flashing
Flashing rapidly
Battery has finished charging.
Battery is charging.
There has been a charging error.
5 smarttech.com/kb/171144
Page 6
SMARTAUDIO 400

Using the teacher microphone

TIP
l Wear the microphone 4–6" (10–15 cm) below your chin.
l Charge the microphone every night.
l Speak at a normal conversational volume.
l Don’t turn up the speaker volume too high. If you can hear your voice, it’s too loud. Have
another adult in the room help you set the volume.
To turn the teacher microphone on
NOTE
l The power on sequence occurs within 5 seconds
l There isn’t an audible beep when you turn on the microphone.
1. Press and hold the PWR/MUTE button for at least three seconds.
2. BATT LED briefly lights green.
3. BATT LED flashes orange while the microphone pairs.
4. TheBATT LED lights solid green.
To turn the teacher microphone off
Press and hold the PWR/MUTE button for at least three seconds.
To mute the teacher microphone
Press the PWR/MUTE button.
If the microphone is muted for more than five minutes, the microphone turns off to conserve
battery.
To adjust the volume of the teacher microphone
1. Press the SELECT button until the OWNLED is lit.
2. Use the UP or DOWN buttons to adjust the volume.
6 smarttech.com/kb/171144
Page 7
SMARTAUDIO 400
To adjust the volume of the student microphone from the teacher microphone
1. On the teacher microphone, press the SELECT button until the OTHERLED is lit.
2. Use the UP or DOWN buttons to adjust the volume.

Using the student microphone

The student microphone encourages student participation and facilitates communication between
students and between students and the teacher.

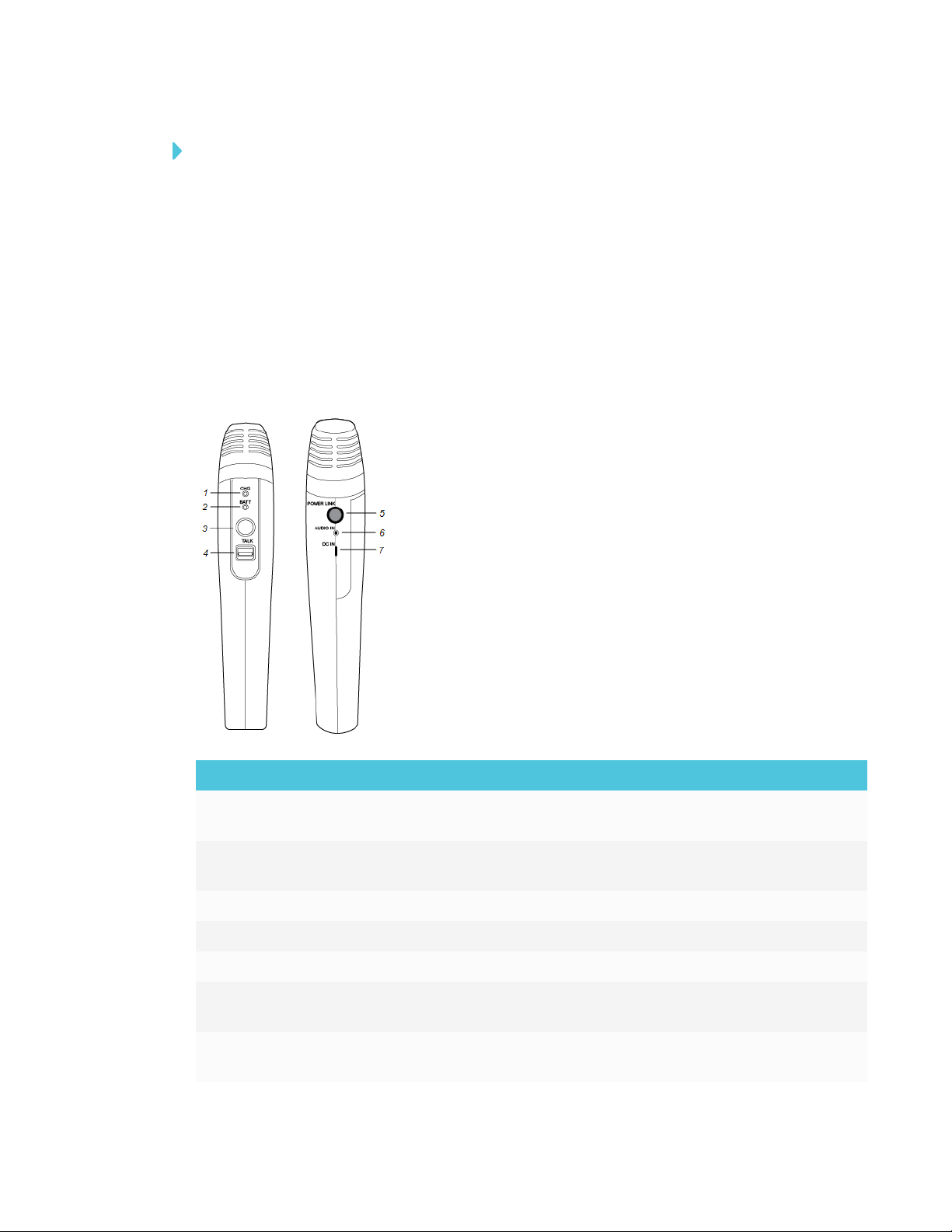

About the student microphone

No. Function Description
1 CHG LEDindicates charging status. See About the student
microphone LEDs on the next page.
2 BATT LED indicates the battery charge level. See About the
student microphone LEDs on the next page.
3 TALK button Turns the microphone on while the button is pressed.
4 TALK switch Turns the microphone on.
5 PWR/LINK button Press this button to initiate pairing with the receiver.
6 3.5 mm receptacle Connects an external audio device using a a 3.5 mm
audio cable.
7 Mini USBA receptacle Connects the USB power cable to charge the
microphone.
7 sma rttech.com/kb/171144
Page 8
SMARTAUDIO 400

About the student microphone LEDs

The BATTand CHGLEDs provide status and troubleshooting information for the student
microphone.
BATT LED status Description
Solid green Microphone is on.
Flashing green or flashing orange
Solid yellow Battery is low.
Flashing yellow Microphone is out of range of the receiver.
Solid red Battery is depleted.
Flashing red Pairing error. See Resolving issues with the microphones on
CHG LED status Description
Solid
Flashing
Flashing rapidly
Pairing with receiver or microphone is muted.
page13.
Battery has finished charging.
Battery is charging.
There has been a charging error.

Using the student microphone

To turn the student microphone on or off
1. Press and hold the TALK button or slide the switch until the BATT LED briefly lights green.
2. BATT LED flashes orange while the microphone pairs.
3. TheBATT LED lights solid green.
To turn the student microphone off
Slide the switch down.
To use the microphone
Press and hold the TALK button while talking.
OR
Slide the switch up to keep the microphone on.
8 smarttech.com/kb/171144
Page 9
SMARTAUDIO 400
To adjust the volume of the student microphone
1. On the teacher microphone, press the SELECT button until the OTHERLED is lit.
2. Use the UP or DOWN buttons to adjust the volume.
Using the SMARTAudio 400 receiver
The receiver for the SMARTAudio 400 classroom amplification system receives an audio signal
and transmits it to the speakers. Pairing the microphones and the receiver is easy, and the receiver
doesn’t allow unpaired microphone audio to bleed into the speaker system. The LEDs make it
easy to tell at a glance if microphones are properly connected.

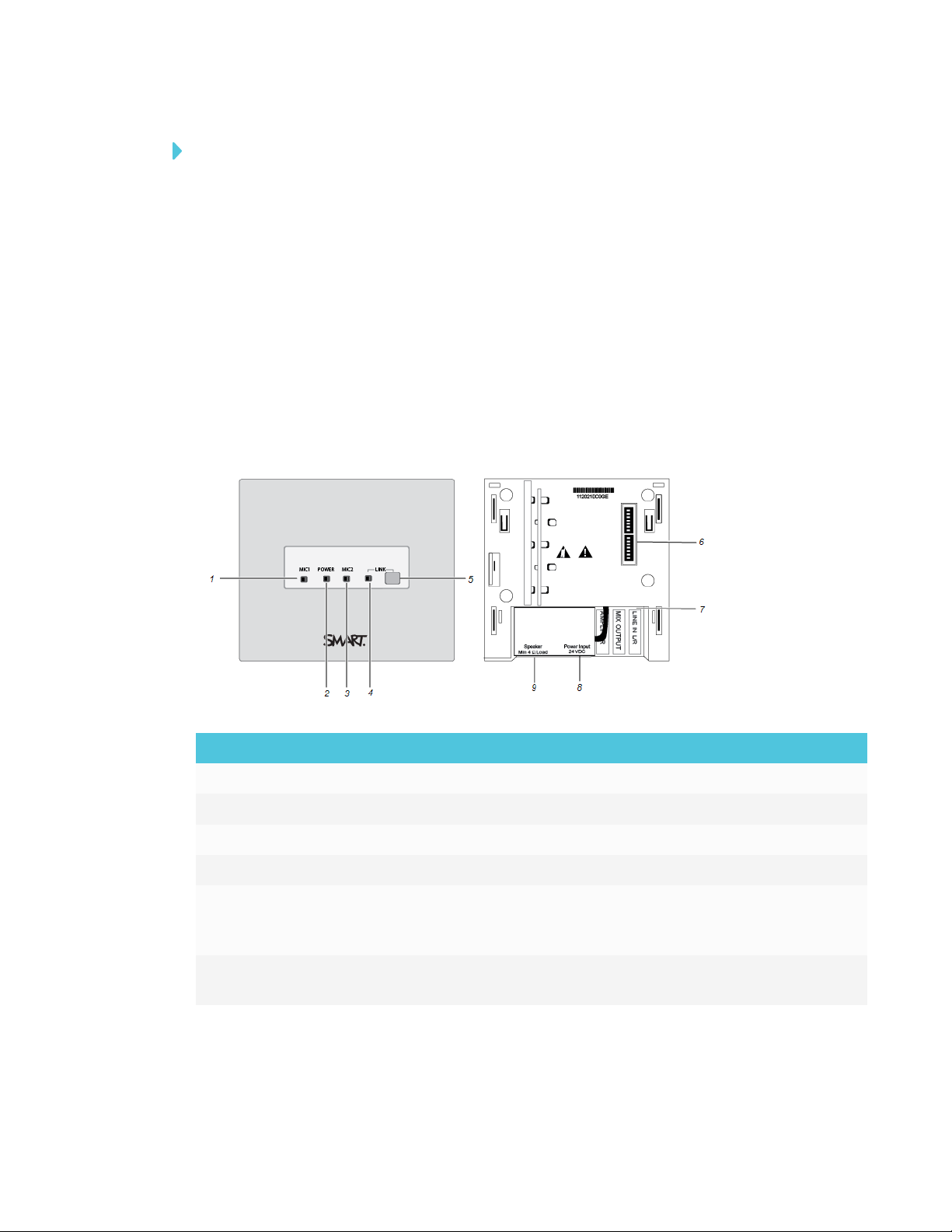

About the receiver

No. Function Description
1 MIC1 LED indicates that a microphone is paired.
2 POWER LED indicates the power status.
3 MIC2 LEDindicates that another microphone is paired.
4 LINK LED indicates the pairing status.
5 Link button Press the Link button to pair the receiver with the
microphones. See Pairing the microphones on page12 for more information.
6 Dip switches See Troubleshooting SMARTAudio 400 on page13 for
more information.
9 smarttech.com/kb/171144
Page 10
SMARTAUDIO 400
No. Function Description
7 LINEIN L/R Connects an interactive display or interactive flat panel
using a stereo 3.5 mm cable. See Connecting a
SMARTBoard interactive display or SMARTBoard interactive flat panel to the receiver on the facing page
for more information.
8 Power Connects the power cable.
9 Speaker Connects the wall speaker or ceiling speakers to the
receiver.

Receiver LED status

MIC 1 LED status Description
Solid green Microphone is activated on that channel.
Solid orange Feedback blocker is on.
NOTE
To turn off the feedback blocker, turn dip switch 5 off and turn the receiver off and back on.
Solid red System error. Turn the microphone off and then back on to clear
the error.
POWER LED status Description
Solid green Receiver is on.
MIC 2 LED status Description
Solid green Microphone is activated on that channel.
Solid orange Feedback blocker is on.
Solid red System error. Turn the microphone off and then on to clear the
error.
LINK LED status Description
Solid green Microphone is paired with the receiver.
Flashing yellow Receiver is attempting to pair with a microphone.
10 smar ttech.com/kb/171144
Page 11
SMARTAUDIO 400
Connecting a SMARTBoard® interactive display or SMARTBoard interactive flat panel to the receiver
To connect a SMARTBoard interactive display or SMARTBoard interactive flat panel to the
receiver
1. Using a 3.5 mm stereo cable, connect the cable to the receiver’s LINE INL/R port.
2. Connect the cable to the display or board. See the display’s installation and maintenance
guide or the board’s administrator’s guide for more information.

Using input devices

You can connect a mobile device, MP3 player or computer to SMARTAudio 400. Using a 3.5 mm
audio cable, connect your device to the AUDIO INreceptacle on the microphone or receiver.

Connecting a device to the teacher or student microphone

To connect a device to the teacher or student microphone
NOTE
Set the device’s volume to 80–90% of its maximum volume. Then use the volume controls on
the teacher or student microphone.
1. Using an audio cable that with 3.5 mm stereo plugs on both ends, connect the cable to the
AUDIO INreceptacle on the microphone.
2. Connect the cable to the headphone receptacle on the mobile device, MP3 player or
computer.
3. Use the volume control on the mobile device, MP3 player or computer to set the playback
volume.
OR
If the LINELED is lit, use the microphone’s volume controls to adjust the volume.

Adjusting the volume of input devices

1. On the teacher microphone, press the SELECT button until the LINELED is lit.
2. Use the UP or DOWN buttons to adjust the volume.
11 smar ttech.com/kb/171144
Page 12
SMARTAUDIO 400

Maintaining the microphones

The teacher and student microphones contain a rechargeable lithium-ion battery. Charge the
microphones every night and during the weekend.

Charging the microphone

To charge the teacher or student microphone
1. Connect the wall charging adapter to a power outlet.
2. Connect the USB cable to the adapter.
3. Connect the USB cable to the microphone.
4. The CHG LED flashes red while the microphone charges.
5. The CHG LED lights solid red when the microphone is fully charged.

Cleaning the microphone

To clean the teacher or student microphone
Spray skin-safe disinfectant on a cloth and use the cloth to clean the microphone.
CAUTION
l Make sure no cleaning liquid enters the microphone.
l Take care when wiping the silk screened labels.

Pairing the microphones

To check if the microphone is paired to the receiver, press the PWR/MUTE button for 1 second on
the microphone. If the BATT LED flashes green, the microphone is paired. If the BATT LED flashes
in another color, turn off the microphone and use the following instructions to pair the microphone
to the receiver.
12 smarttech.com/kb/171144
Page 13
SMARTAUDIO 400

Pairing the teacher microphone

To pair the teacher microphone
1. If the teacher microphone is turned on, turn it off by pressing and holding the
PWR/MUTEbutton for three seconds.
2. On the receiver, press the LINK button. The LINK LED flashes yellow.
3. On the teacher microphone, press and hold the PWR/MUTE and REC buttons.
A beep is heard through the speakers.
The BATTLED on the microphone and the LINKLEDon the receiver light green.

Pairing the student microphone to the receiver

To pair the student microphone
1. If the student microphone is turned on, turn it off by sliding the TALK switch.
The BATT LED is unlit.
2. On the receiver, press the LINK button. The LINK LED flashes yellow.
3. On the student microphone, press and hold the PWR / LINK button and the TALK button.
A beep is heard through the speakers.
The BATTLED on the microphone and the LINKLEDon the receiver light green.
Troubleshooting SMARTAudio 400
Use the information below to troubleshoot your issues for the SMARTAudio 400 classroom
amplification system.

Resolving issues with the microphones

Issue Solutions
The microphone is turned on and paired to the receiver, but MIC1 or MIC2 LEDis not lit.
Check the pairing again. See Pairing the microphones on the previous page.
13 smarttech.com/kb/171144
Page 14
SMARTAUDIO 400
Issue Solutions
The BATTLED is flashing green or orange.
Microphone is muted.
l
Unmute the microphone.
The microphone is pairing to a receiver.
l
Wait for the microphone to finish pairing with the receiver.
The BATTLED is flashing yellow. Microphone is out of range of the receiver. Move
back into range.
The BATTLED is flashing red. There was a pairing error with the receiver. Try
pairing the microphone again. See Pairing the microphones on page12.

Resolving issues with audio

Issue Solutions
All components are turned on and the microphones are paired, but there is no audio.
Check for audio from audio port first, and then from
l
mic port.
If the audio is working from both ports and but not from the internal mic element, the microphone may be defective. Contact SMART for a replacement.
Check the connection from the receiver to the
l
speakers. If the speakers are firmly and properly connected and there is still no audio, contact SMART regarding the receiver.
The audio is distorted
14 smarttech.com/kb/171144
If a device is connected to the teacher or student
l
microphone using the AUDIOINport, set the device’s volume to 80–90% of its maximum volume. Then use the volume controls on the teacher microphone to adjust the volume.
Turn on dip switch 8 on the receiver.
l
Test the microphone from the malfunctioning system
l
with a properly functioning system. If the audio is still distorted, contact SMARTregarding the microphone.
Test a microphone from a properly functioning
l
system with the malfunctioning system. If the audio is still distorted, contact SMART regarding the receiver.
Page 15
SMARTAUDIO 400
Issue Solutions
There is audio feedback.
NOTE
Feedback occurs when the microphone picks up audio from the speakers and transmits it to the speaker again in a loop. Feedback sounds like an intermittent high­pitched squealing or burst of sound, and it can occur when you stand in a particular spot (especially if the microphone is very close to the speakers) or randomly in a room.
Feedback is distinct from a buzzing or humming, which is a constant low noise that doesn’t necessarily change when the microphone used or turned on or off.
There is an audible hum.
Volume is set incorrectly. Set the volume while
l
standing beneath the speaker with the microphone.
TIP
Have someone else in the room help determine if the volume is not loud enough.
Do not stand directly beneath the speakers. This can
l
cause feedback.
TIP
Have someone else in the room help determine if the volume is not loud enough.
Turn on dip switch 5 on the receiver. This will mute
l
your microphone if a feedback loop starts.
Verify that the cables are connected properly.
l
The speaker cables may be running parallel with
l
power lines.
Replace any input cables that might be too long or
l
are unshielded.
The speakers are making a crackling sound.
Audio is interrupted
15 smarttech.com/kb/171144
The speakers and the receiver aren’t connected properly.
o
If the crackling sound is coming from all the speakers, check the connection at the back of the receiver.
o
If the crackling sound is coming from only one speaker, check the connection at the back of the speaker.
Flip dip switch 8 on the receiver to boost the signal.
l
Remove metallic obstructions between the receiver
l
and the microphones.
Page 16
SMARTAUDIO 400

Resolving issues with power

Issue Solutions
The receiver isn’t receiving power. l Test the outlet with a device known to be working
correctly.
Try a different outlet.
l
If neither solution resolves the issue, contact SMART.
l

Resolving issues with battery charging

Issue Solutions
The microphone isn’t charging.
Make sure the charging cable is inserted correctly in
l
the AC adapter and in the microphone.
l Make sure the cable is oriented correctly in the
microphone. The arrow should face out towards the
microphone.
16 smarttech.com/kb/171144
Page 17
Page 18
SMARTTECHNOLOGIES
smar ttech.com/support
smar ttech.com/contactsupport
smar ttech.com/kb/171144
Loading...
