SMART AMC-K2001 User Manual

AMC 1080P/1080i HD

PTZ Color Video Cameras

User Manual V1.2

SAFETY NOTICE-IMPORTANT!!!

 The following important notes must be followed carefully to run the camera and respective

accessories in total safety. The camera and relative accessories are called video system in
this section.

 Before installing the camera, please read this manual carefully. Please follow installation

instructions indicated in this manual during installation. Please keep this manual for future
use.

 The installation should be performed by qualified service personnel or system installers in

accordance with all local rules.

 Before powering on the camera, please check the power voltage carefully. Make sure that

you are using the correct power source.

 Please put the power cable, video cable and control cable in safe place.

 Do not operate the camera beyond the specified temperature and humidity. Working

temperature range of the camera is between 0℃ and +40℃. The ambient humidity range is
less than 95﹪.

 During transporting, avoid violent shake or force to the camera.

 To prevent electric shock, do not remove screws or housing of the camera. There are no

self-serviceable parts inside. Refer to qualified service personnel for servicing.

 Video cable and RS485 cable should be kept far away from other cables. Shielded and

independent wiring is necessary for video and control cables.

 Never aim the lens of the camera at the sun or other extremely bright objects. Otherwise, it

may cause damage.

 When cleaning the camera, please use soft cloth. If the camera is very dirty, wipe it off

gently with a soft cloth moistened with a weak solution of water and a neutral kitchen
detergent. Wring all liquid from the cloth before wiping the camera, then wipe off all
remaining dirt with a soft, dry cloth. Use lens cleaning paper to clean the lens.

 Do not move the camera head manually. In doing so would result in malfunction of the

camera. Do not hold the camera head when carrying the video camera.

 This camera is for indoor use only. It is not designed for outdoor use.
 Make sure the camera is not directly exposed to rain and water.
 Make sure the camera is far away from area where radiation, X-rays, strong electric

waves, or magnetism is generated.

CONTENTS

ABOUT THE PRODUCT -------------------------------------------------------- 1

FEATURES -------------------------------------------------------------------------------- 1
LIST OF PARTS & ACCESSORIES ------------------------------------------------------------ 1
MAIN PARTS & INTERFACES ---------------------------------------------------------------- 2
DIP SWITCHES SETTINGS ------------------------------------------------------------------ 3
REMOTE CONTROLLER -------------------------------------------------------------------- 4

CABLE CONNECTING INSTRUCTIONS --------------------------------------- 6

DVI-I INTERFACE -------------------------------------------------------------------------- 6
CABLE PACKAGE -------------------------------------------------------------------------- 7
HD-SDI INTERFACE ----------------------------------------------------------------------- 7

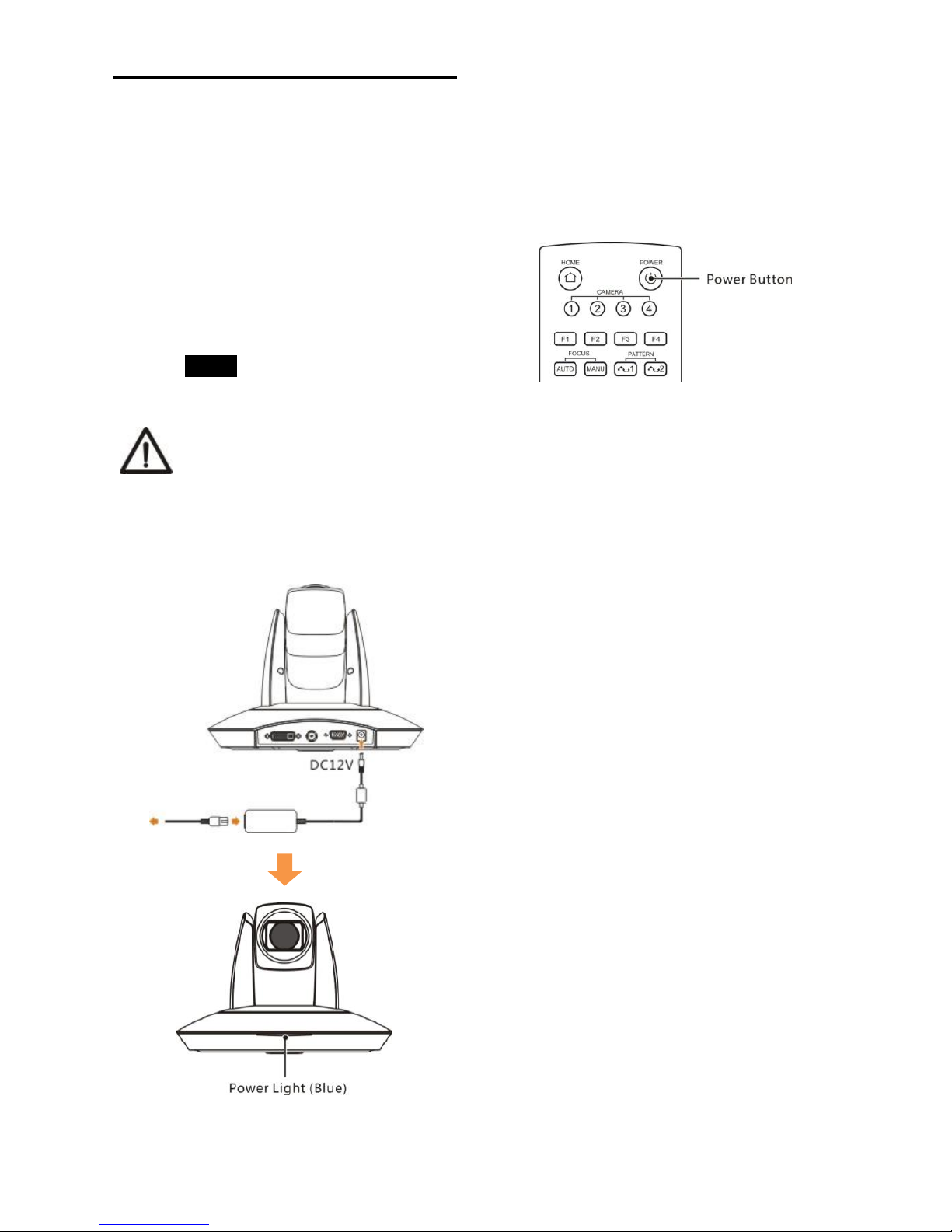

POWER CONNECTION ---------------------------------------------------------------------- 8

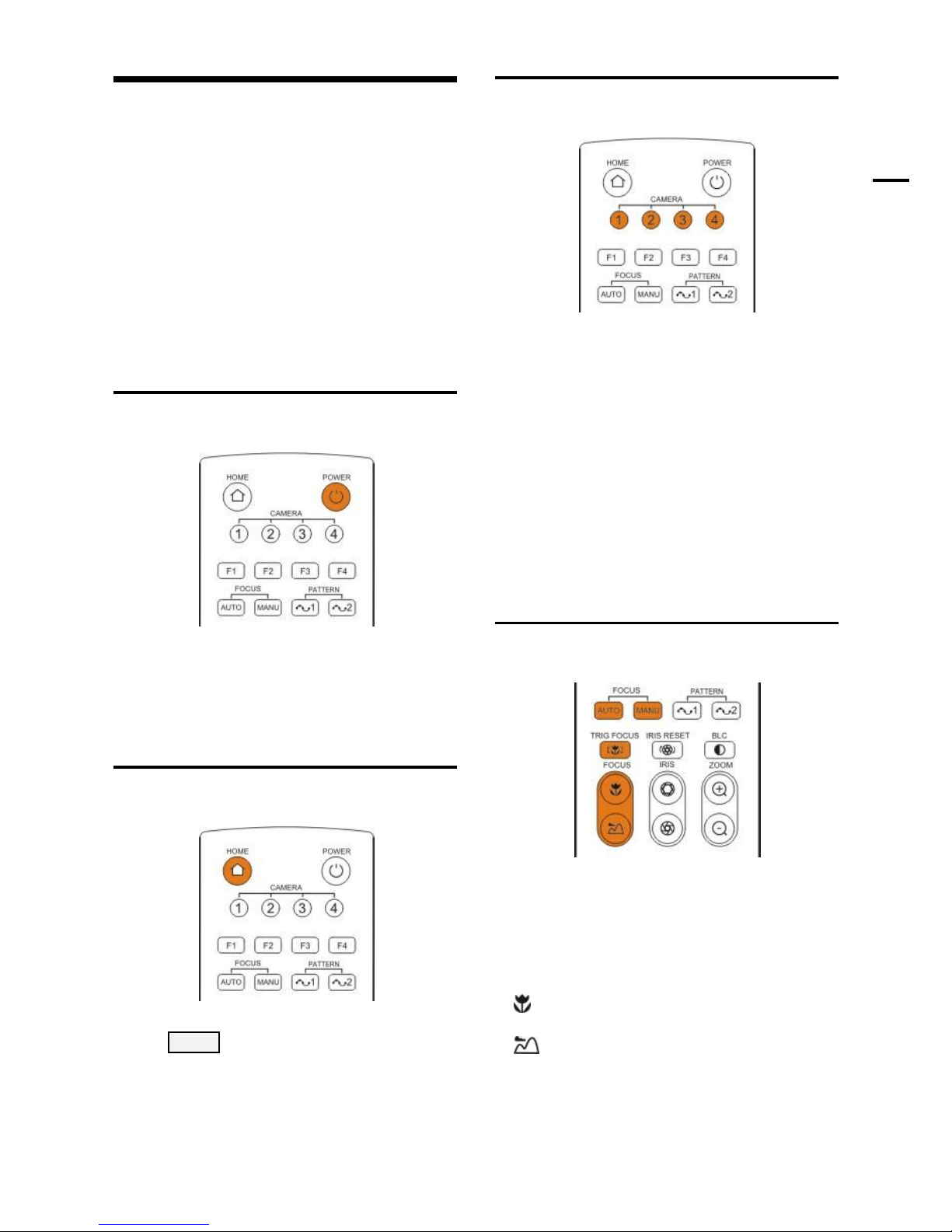

REMOTE CONTROLLER OPERATION ----------------------------------------- 9

POWER ----------------------------------------------------------------------------------- 9
HOME ------------------------------------------------------------------------------------ 9
CAMERA SELECTION ----------------------------------------------------------------------- 9
FOCUS ----------------------------------------------------------------------------------- 9
PATTERN -------------------------------------------------------------------------------- 10
IRIS-------------------------------------------------------------------------------------- 10
BLC ------------------------------------------------------------------------------------- 10
ZOOM ----------------------------------------------------------------------------------- 10
MENU ----------------------------------------------------------------------------------- 10
BACK ------------------------------------------------------------------------------------ 11
DIRECTION / MENU OPERATION ----------------------------------------------------------- 11
OK -------------------------------------------------------------------------------------- 11
DATA ------------------------------------------------------------------------------------ 11
PRESET SETTING ------------------------------------------------------------------------- 12
NUMBER KEYS --------------------------------------------------------------------------- 12
CANCEL --------------------------------------------------------------------------------- 12
ENTER ----------------------------------------------------------------------------------- 12
LIST OF SPECIAL PRESET COMMANDS ----------------------------------------------------- 12

INSTALLATION INSTRUCTIONS--------------------------------------------- 13

DESKTOP MOUNT INSTALLATION ---------------------------------------------------------- 13
WALL MOUNT INSTALLATION -------------------------------------------------------------- 13
CEILING MOUNT INSTALLATION ------------------------------------------------------------ 14

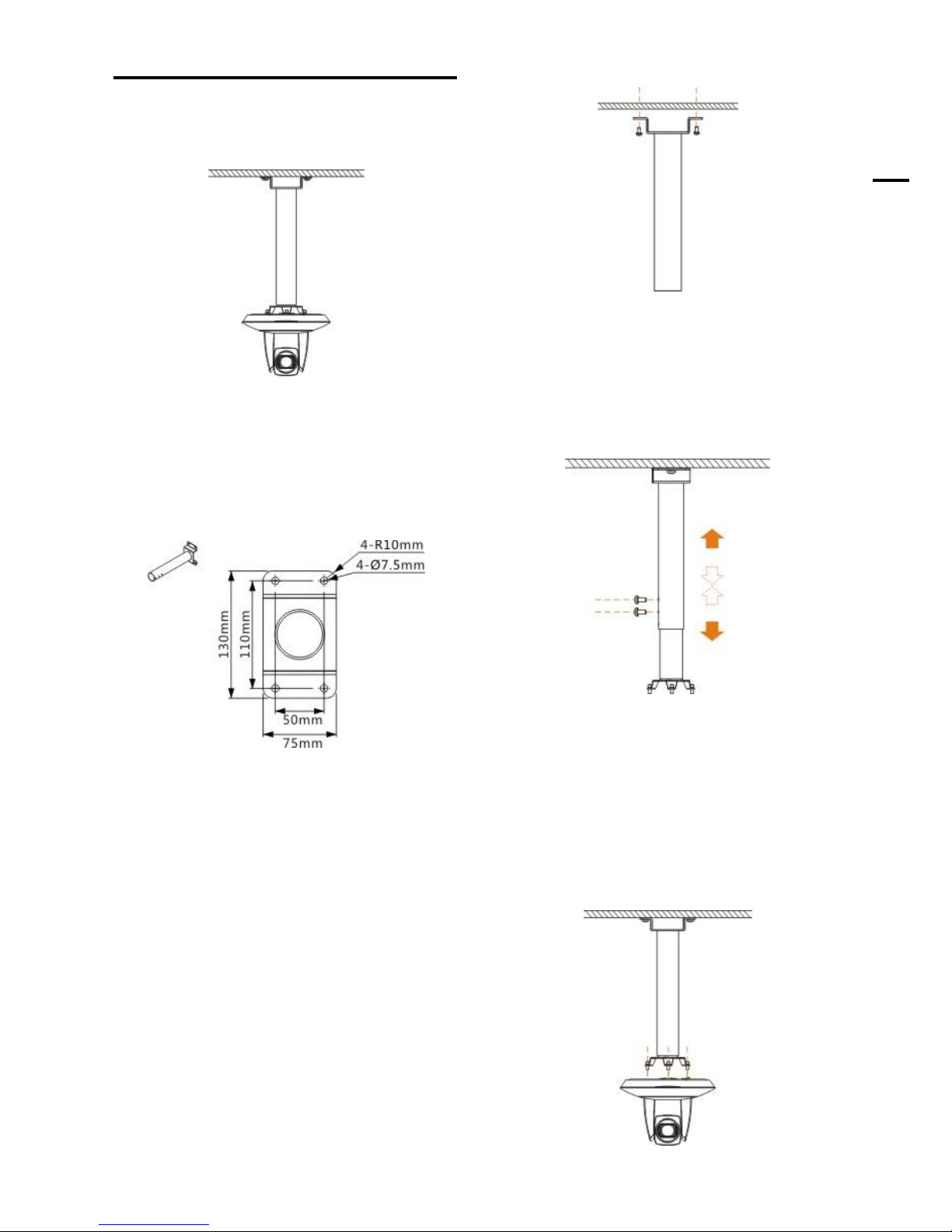

PENDANT MOUNT INSTALLATION ---------------------------------------------------------- 15

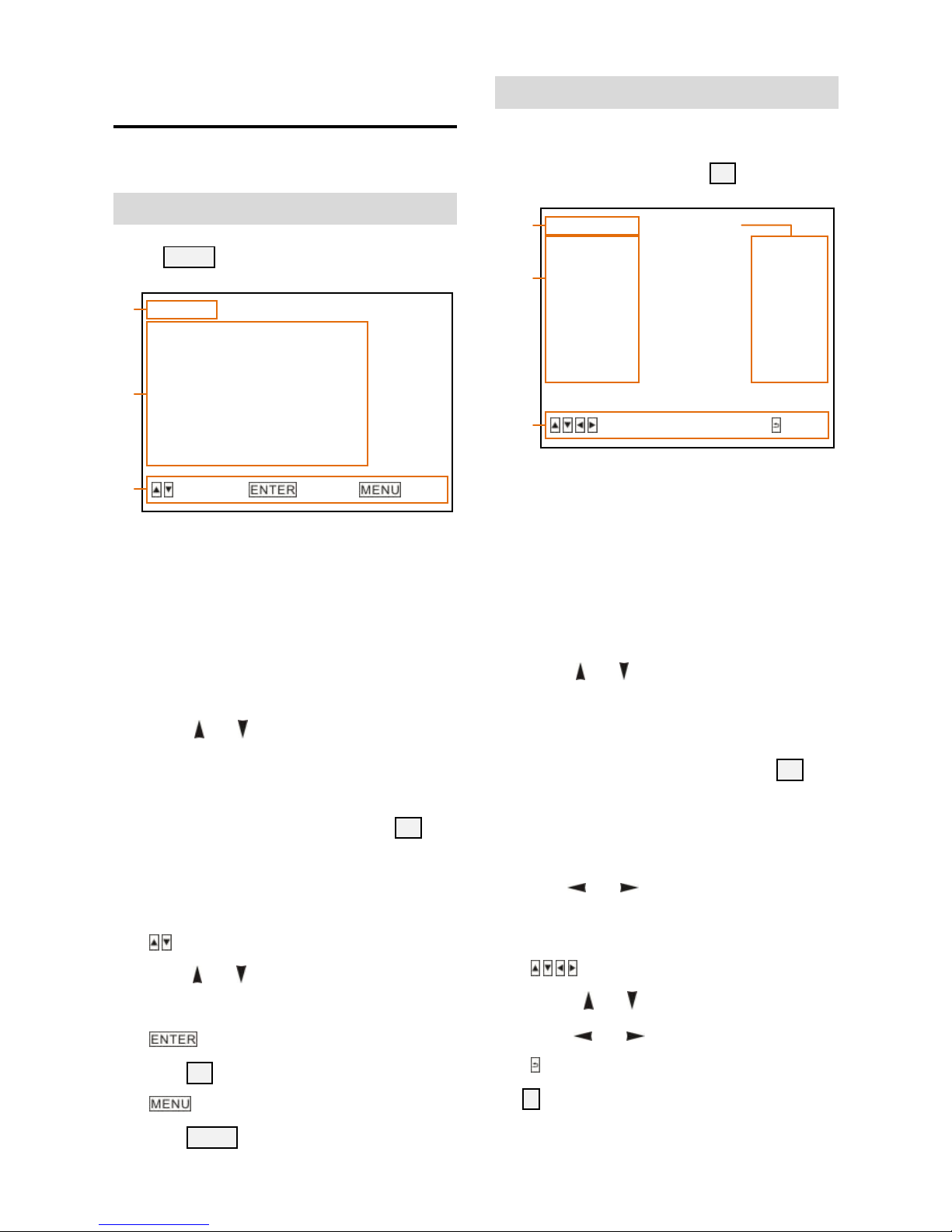

MENU SETTINGS ------------------------------------------------------------ 16

MENU CONFIGURATION ------------------------------------------------------------------- 16
MENU EXPLANATION---------------------------------------------------------------------- 20
VIDEO ---------------------------------------------------------------------------------- 21
EXPOSURE ---------------------------------------------------------------------------- 21
WHITE BALANCE ----------------------------------------------------------------------- 22
PAN/TILT/ZOOM ------------------------------------------------------------------------ 22
SYSTEM -------------------------------------------------------------------------------- 23
STATUS -------------------------------------------------------------------------------- 24
RESTORE DEFAULTS ------------------------------------------------------------------ 24

ANNEX 1 TECHNICAL SPECIFICATIONS ------------------------------------ 25

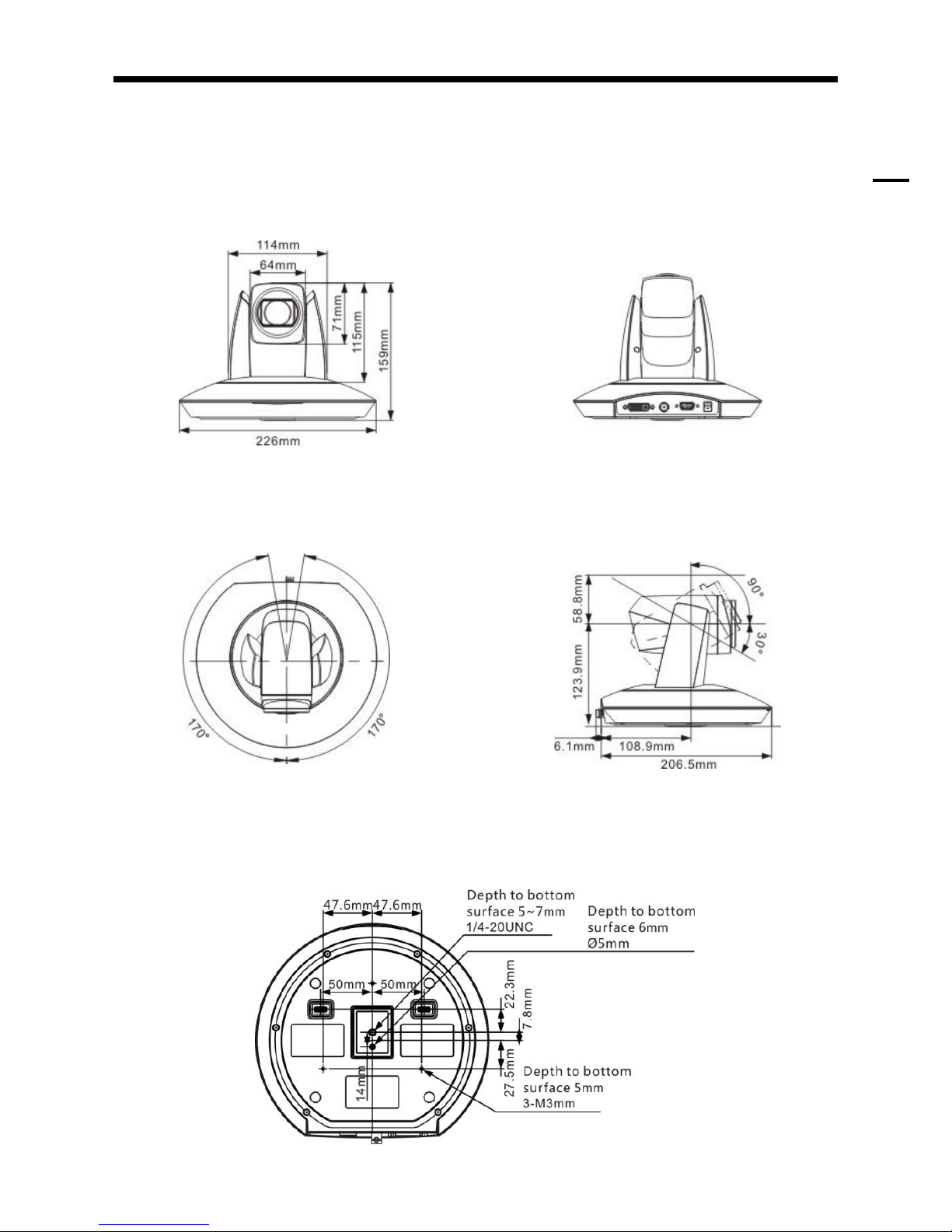

ANNEX 2 SIZE AND DIMENSION -------------------------------------------- 27
ANNEX 3 SW1 DEFINITION -------------------------------------------------- 28
TROUBLESHOOTING -------------------------------------------------------- 30

1

ABOUT THE PRODUCT

ABOUT THE PRODUCT

Features

 1/2.8 inch Exmor CMOS sensor, 2.2

megapixel；

 Supports full resolution up to1080/60P and

SD video formats；

 Simultaneous outputs of HD and SD videos；

 HD video interfaces: HD-SDI, DVI-I；

 OSD menu；
 20x optical zoom, 12x digital zoom；
 Precise driving system with high reliability

and precision；

 Support VISCA , Daisy chain and Pelco

protocols;

 With IR remote controller；
 Desktop/Ceiling/ Wall/Pendant mount

optional.

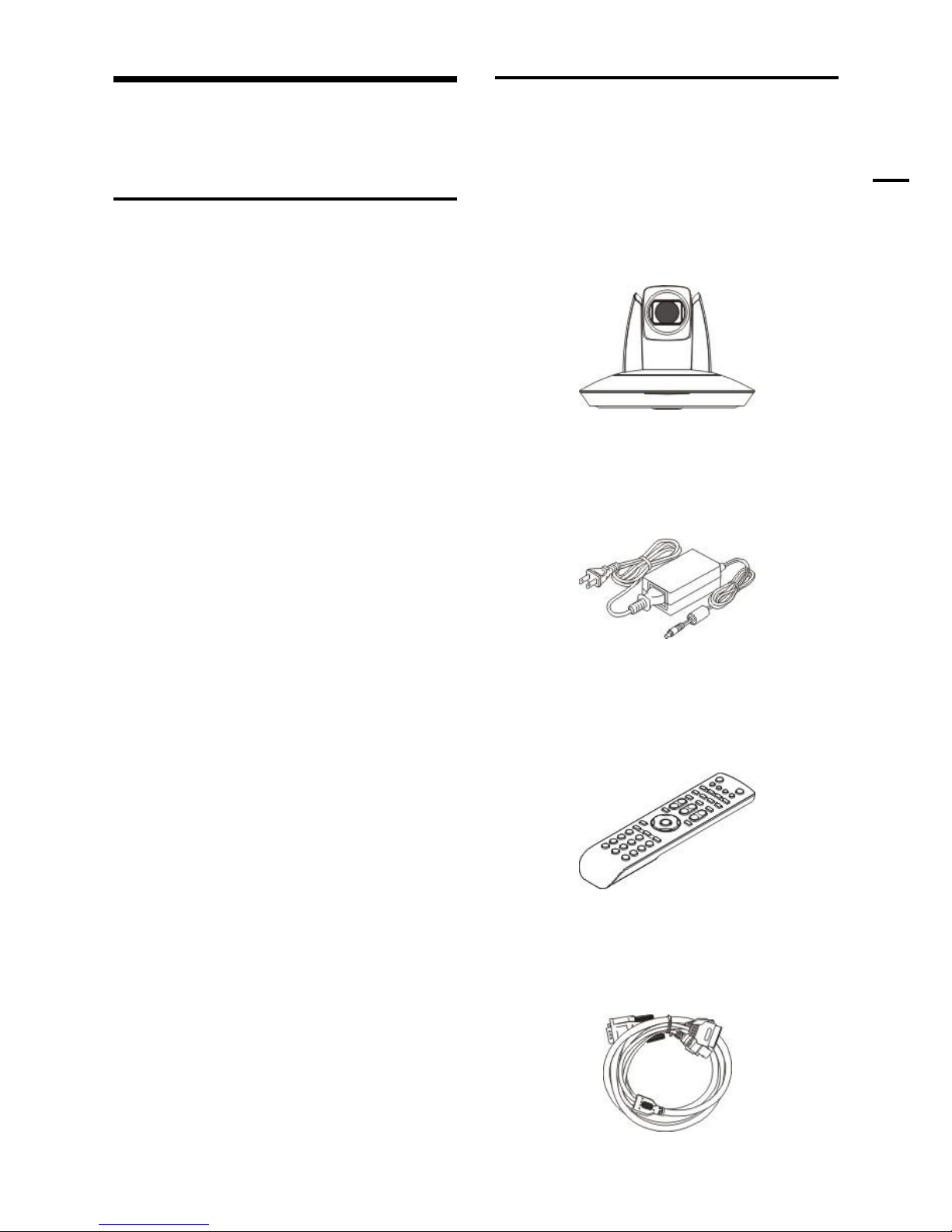

List of Parts & Accessories

When you open the box, check all accessories
according to the packing list.

Camera (1)

Power Adapter (1)

Remote Controller (1)

Cable Package (1)

2

Main Parts & Interfaces

Camera

Front View

1 Camera Module
2 Power Indicator
3 Remote Controller Indicator

Rear View

4 DVI-I interface
5 HD-SDI interface
6 Composite interfaces (CVBS output,

RS485/RS422, RS232 IN and RS232 OUT)

7 DC12V power input

Bottom View

8 DIP Switch

Set camera address, protocol, baud rate,
video format and mounting type.

9 Mounting Hole

1/4”inch screw thread for fixing camera.

10 Locating Hole

To define installation direction of camera.

11 Fixing Screw Hole (M3)

To connect the camera with pendant
mounting bracket.

3

ABOUT THE PRODUCT

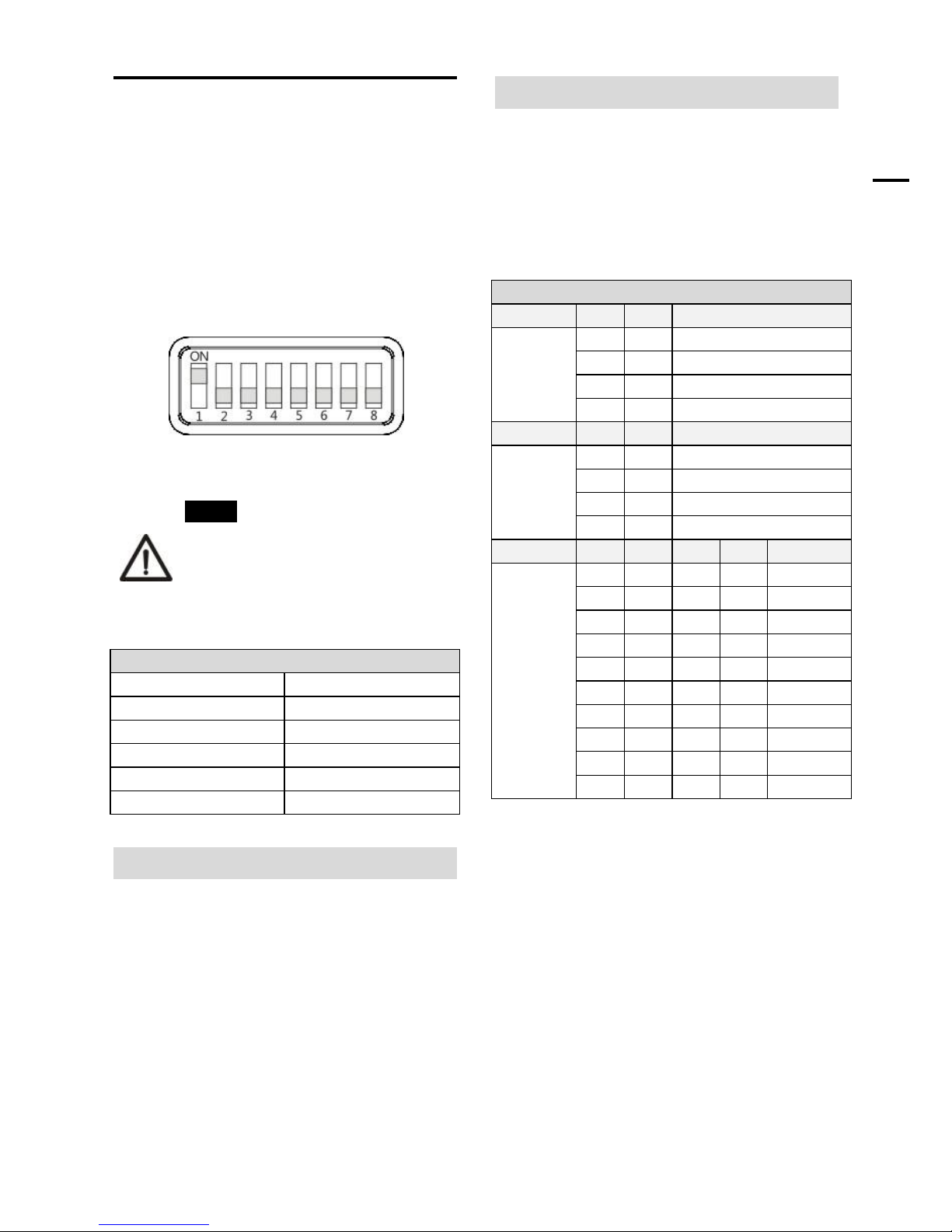

DIP Switches Settings

Before operating the camera, set the camera
address, DVI-I output signal format and video
format etc through DIP switches. The camera
has two DIP switches: SW1 and SW2 as
below:

Note

SW1 is used to set address, video
output and mounting type, SW2 is
used to set protocol, baud rate and
video format.

Default Settings

Address

1

Baud Rate

9600bps

Protocol

VISCA

Video Format

1080i50

Analog Video Format

YPbPr

Mounting Type

Desktop Installation

Sw1 settings

No. 1~6 are used to set address for camera,
the DIPs adopt binary system. No. 7 is used to
set analog video format. No. 8 is used to set
mounting type. Refer to page 27 for details.

Sw2 settings

No. 1 and 2 of SW2 is used to set protocol; no.
3 and 4 is used to set baud rate; no. 5, 6, 7, 8
is used to set video output format. Refer to
below chart for details:

SW2

DIP No.

1

2

Protocol

OFF

OFF

VISCA

ON

OFF

PELCO- D

OFF

ON

PELCO- P

ON

ON

Reserved

DIP No.

3

4

Baud

Rate(bps)

OFF

OFF

2400

ON

OFF

4800

OFF

ON

9600

ON

ON

38400

DIP No.

5 6 7 8

Video

Format

OFF

OFF

OFF

OFF

1080P60

ON

OFF

OFF

OFF

1080P50

OFF

ON

OFF

OFF

1080i60

ON

ON

OFF

OFF

1080i50

OFF

OFF

ON

OFF

720P60

ON

OFF

ON

OFF

720P50

OFF

ON

ON

OFF

1080P30

ON

ON

ON

OFF

1080P25

OFF

OFF

OFF

ON

720P30

ON

OFF

OFF

ON

720P25

When No.5~8 is all ON, video format can be
switched by calling preset, refer to page12.

When HD video output format is set as
1080p60,1080i60 or 720p60, relative SD
video format is NTSC; when HD video output
format is set as 1080p50, 1080i50 or 720p50,
relative SD video format is PAL.

4

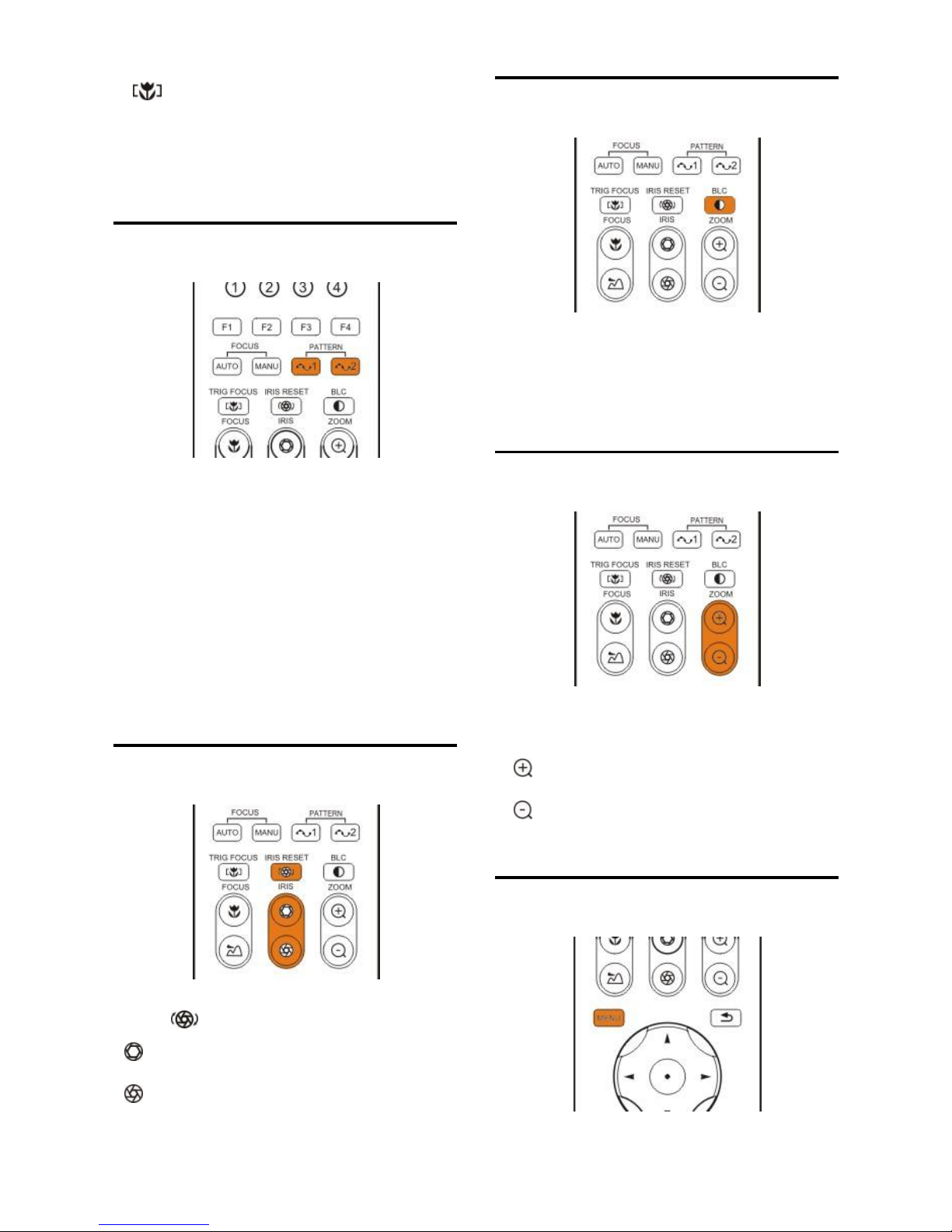

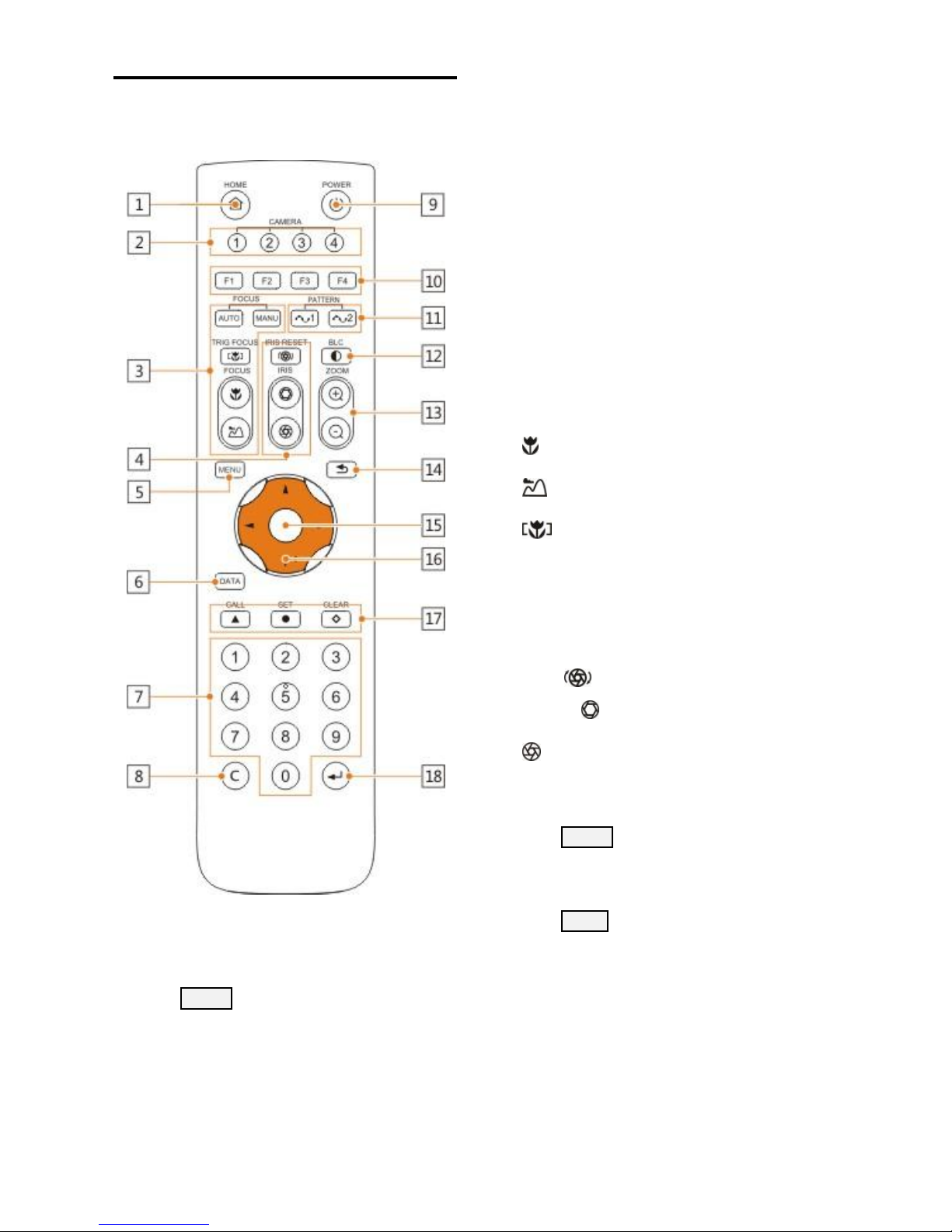

Remote Controller

1 HOME

Press HOME button, camera moves to
initial position where both pan and tilt angle
is zero.

2 Camera Selection Button

Used to switch among 4 cameras, press 1-4
number buttons to control cameras with 1-4
addresses respectively. For example, press
button 1 to control the camera with address

1.

3 Focus

Press“AUTO”button to switch to Auto Focus,

press “MANU” button to switch to Manual

Focus mode.

“ ”button to Focus Near

“ ”button to Focus Far

“ ”button to Auto Focus once every time

it is pressed, then switch back to Manual
Focus mode.

4 Iris

Press“ ”button to reset iris value to
default. “ ”button to Iris Open

“ ”button to Iris Close.

5 Menu

Press MENU button to enter / exit menu.

6 Data

Press DATA button to set on / off the
display of pan tilt angel, zoom times and
other prompt message.

7 Number Keys

Used to input numbers, for example, preset
number.

5

ABOUT THE PRODUCT

8 Cancel

To cancel numbers inputted.

9 Power

After the camera has been connected to
power source, in none-menu status, press
this button to turn on / off the camera.

10 Reserved buttons（F1, F2, F3, F4）

These buttons are reserved for future use.

11Pattern

Used to activate Pattern Scan1 and Pattern
Scan2.

12 BLC

Used to open / close back light
compensation.

13 Zoom

Used to adjust zooming times.

“ ”button to zoom in

“ ”button to zoom out.

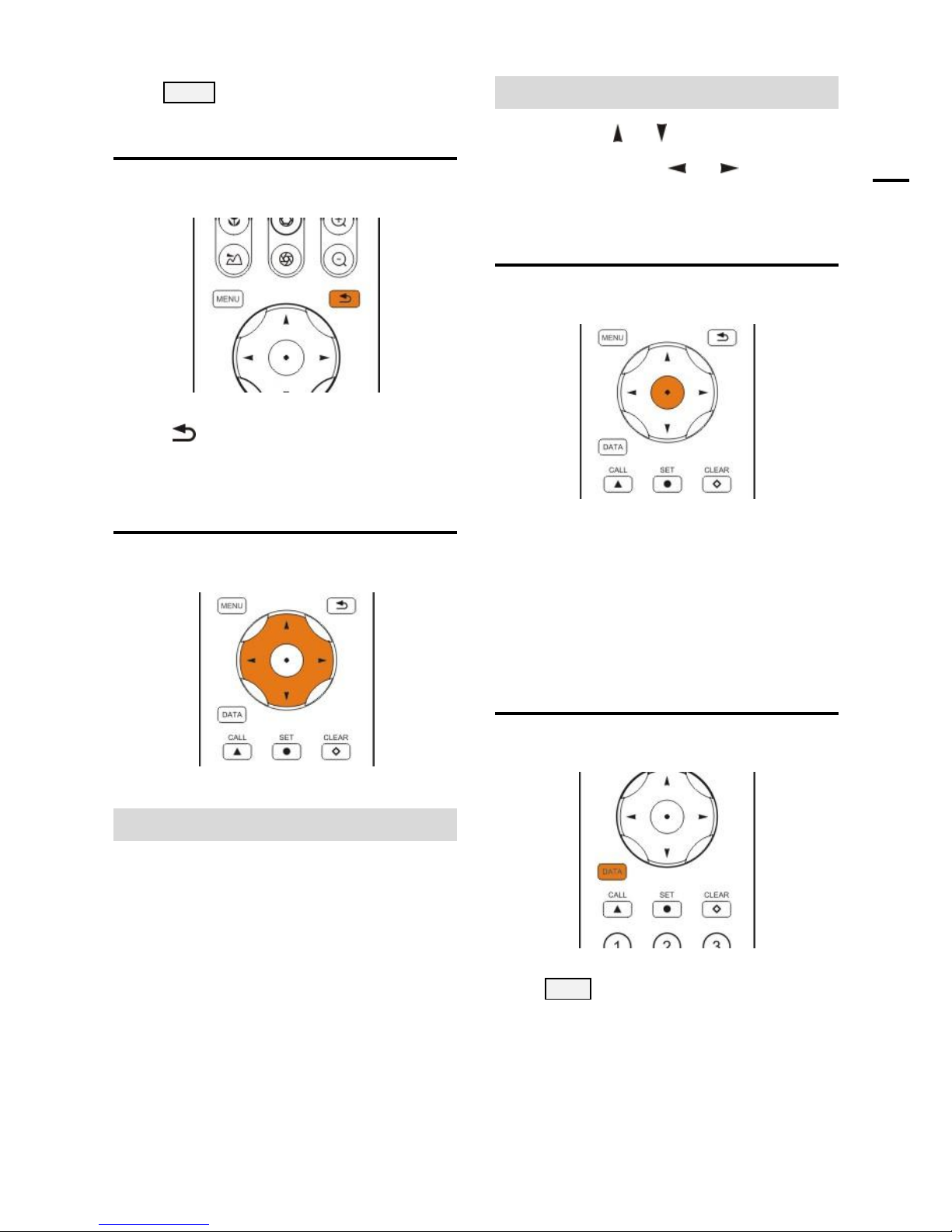

14 Back

Press“ ”button to go back to previous
menu.

15 OK

In None-menu status: press this button to
switch among pan / tilt control speeds.

In Menu status: get into relative menu
option after it has been selected.

16 Direction / Menu Operation

In None-menu status, press these four
buttons to pan left/right and tilt up/down.

In Menu status: or button to select
among menu options, or to
change option / value.

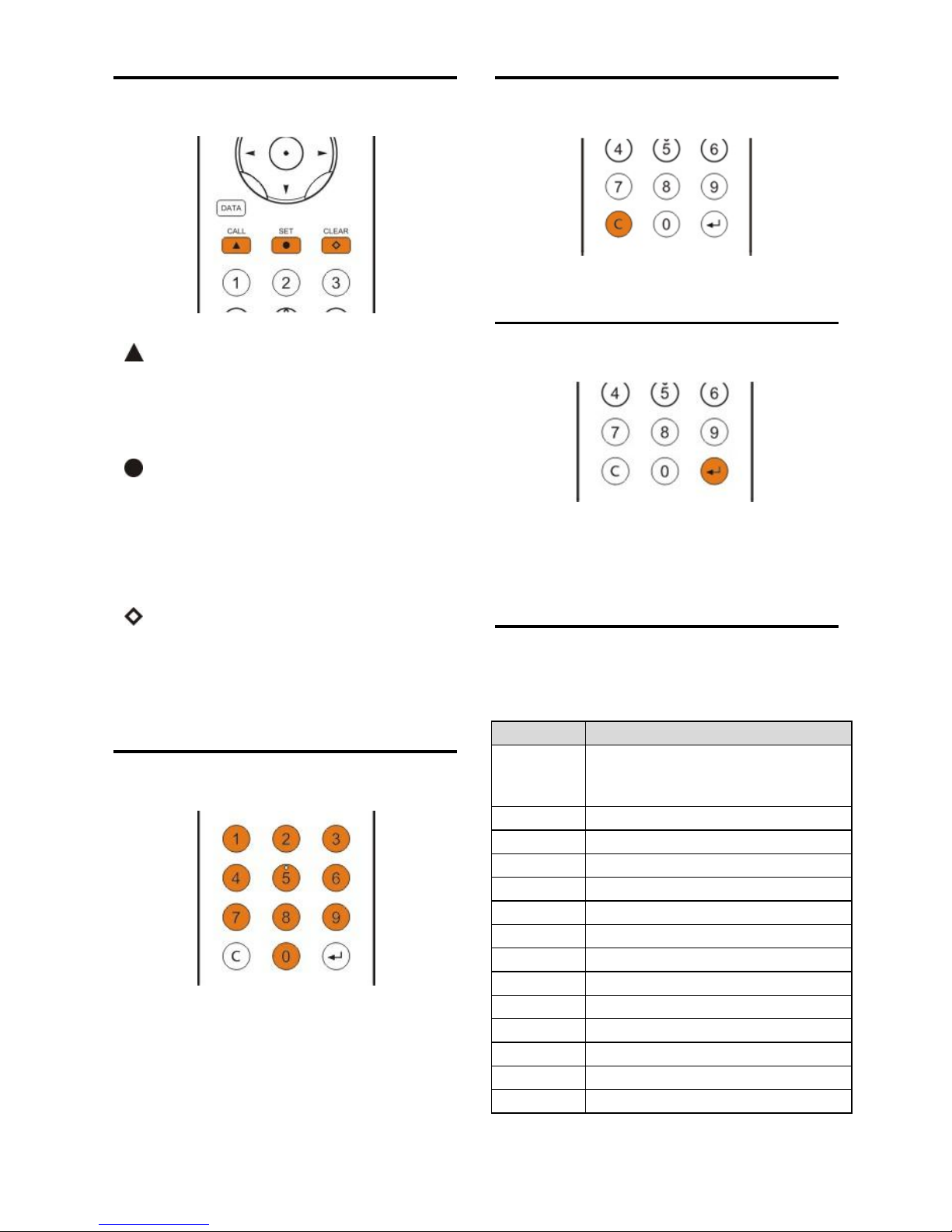

17 Preset Setting

“ ” button to call a preset.

Input number key(s), and then press this
button to call a preset.

“ ”button to set a preset.
Move the camera to a specific position,

adjust focus value and etc, and then press
this button to set a preset.

“ ”button to clear a preset.
Input number key(s), and then press this

button to clear a preset.

18 Enter

After inputting number(s), press this button
to confirm.

6

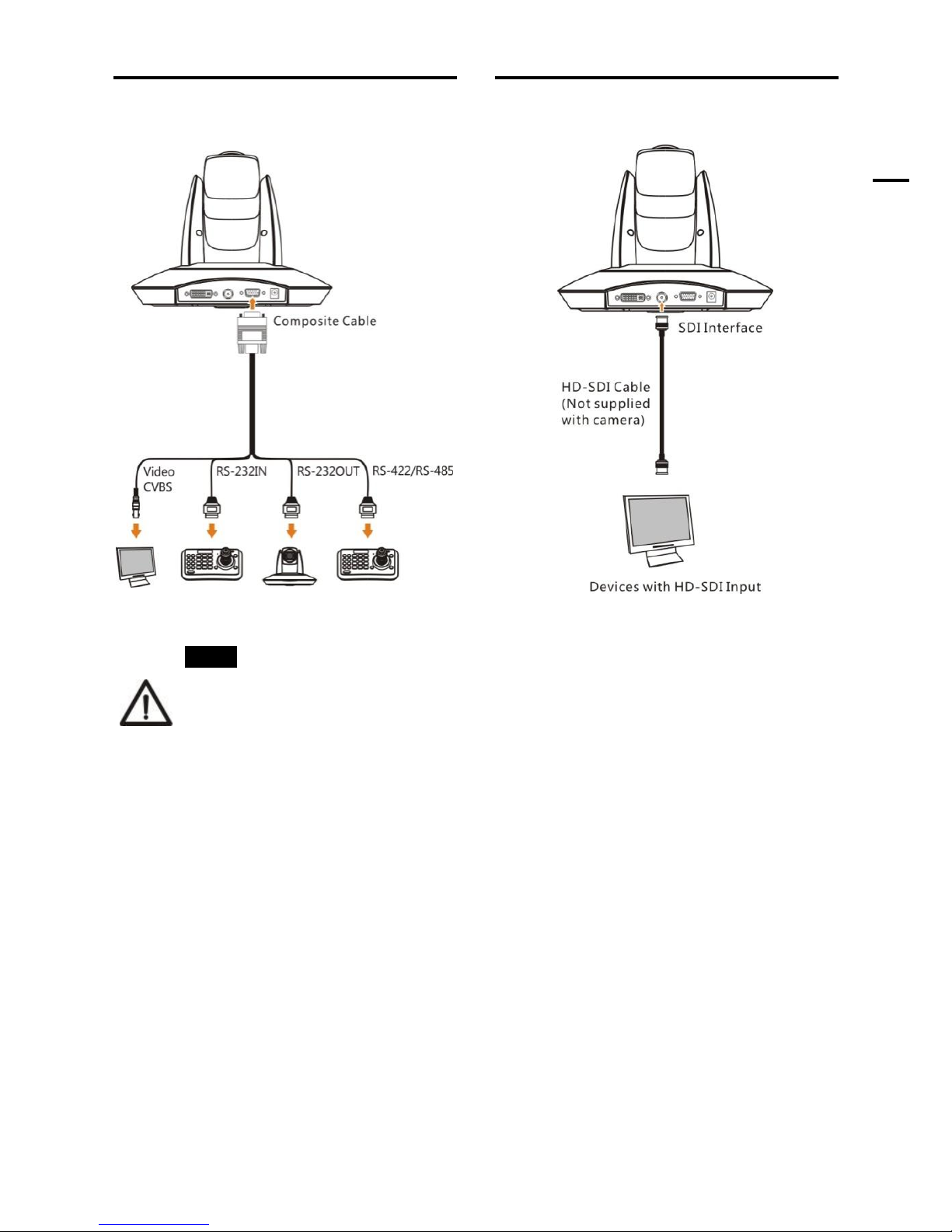

CABLE CONNECTING INSTRUCTIONS

Connect the camera to relative devices with the cables supplied with the camera.

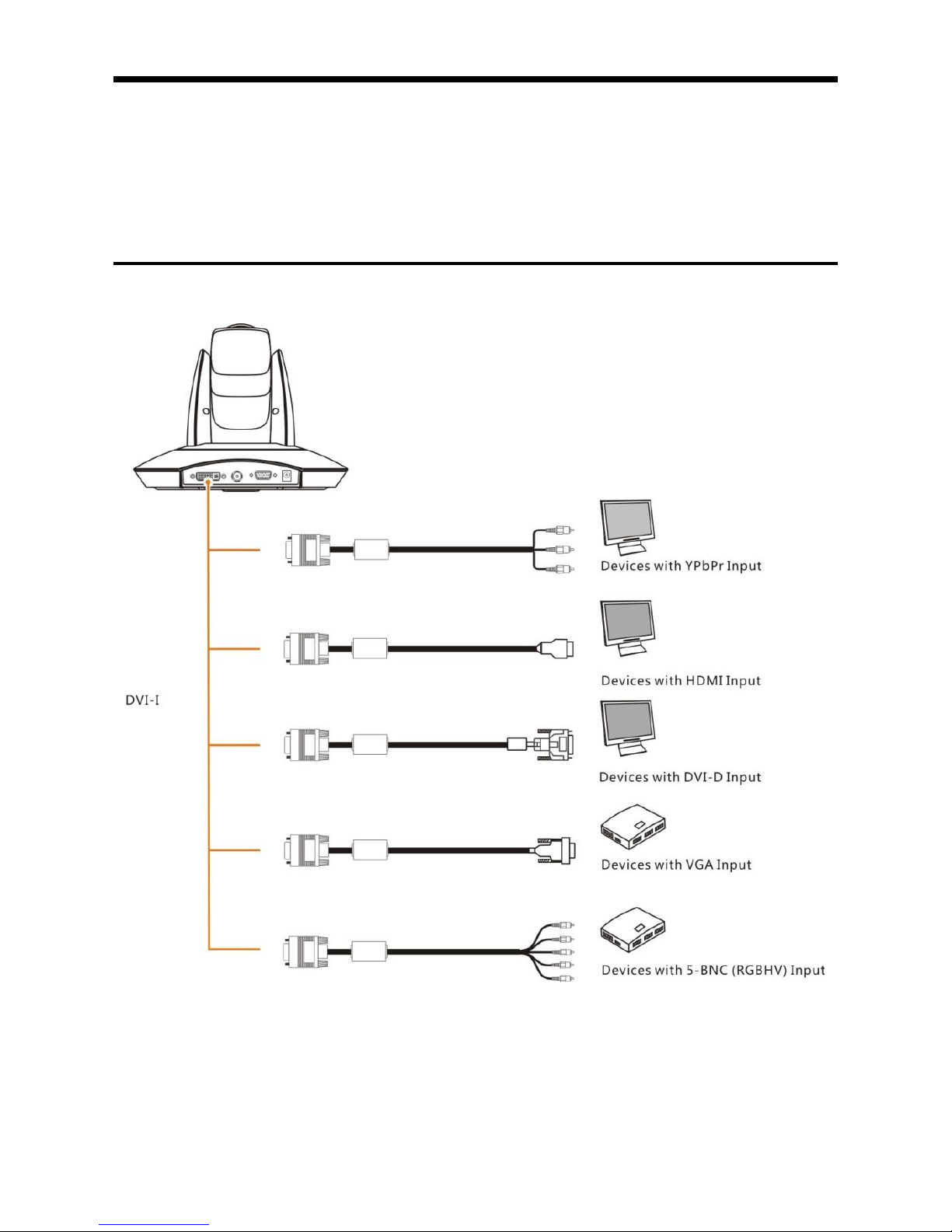

DVI-I Interface

7

REMOTE CONTROLLER OPERATION

Cable Package

Note

Once the RS-422/RS-485 interface
is used as RS485 control, simply
connect R+ & T+ as RS485+ and
R- & T- as RS485-.

HD-SDI Interface

8

Power Connection

1. Connect power adapter supplied together

with the camera to power source, after

powered on, camera’s power indicator

lights up, the camera will start self-testing,
after finished, camera moves to Home
position.

Note

If preset 0 has been saved, after
powered on, camera moves to
preset 0 automatically; if preset 0
has not been saved, after powered
on, camera moves to Home
position, where both pan and tilt
angle is zero and zooming time is
1x.

2. Use remote control to turn on / off camera

Once camera started successfully, in
None-menu status, the Power button
can be used to turn on /off the camera.

9

REMOTE CONTROLLER OPERATION

REMOTE CONTROLLER
OPERATION

Before operating the camera, check if power
and other devices have been correctly
connected.

Power

In none-menu status, press this button to turn
on / off the camera.。

Home

Press HOME button, camera moves to initial

position where both pan and tilt angle is zero。

Camera Selection

Used to switch among 4 cameras, press 1-4
number buttons to control cameras with 1-4
addresses respectively. For example, press
button 1 to control the camera with address 1.

Default address of camera is 1, the remote
controller supports to control camera with
address 0 or 5~63.

Focus

Press “AUTO” button to switch to Auto Focus,

press “MANU” button to switch to Manual

Focus mode.

“ ” button to Focus Near

“ ” button to Focus Far

10

“ ” button to Auto Focus once every time
it is pressed, then switch back to Manual
Focus mode.

Pattern

Used to activate Pattern Scan1 and Pattern
Scan2.

Pattern Scan 1: camera pans between±45°of
current position.

Pattern Scan 2: camera pans between ±90° of
current position.

Iris

Press “ ” button to reset iris value to default.

“ ” button to Iris Open

“ ” button to Iris Close.

BLC

Used to open / close back light
compensation.

Zoom

Used to adjust zooming times.

“ ”button to zoom in

“ ”button to zoom out.

Menu

11

REMOTE CONTROLLER OPERATION

Press MENU button to enter /exit menu.

Back

Press “ ” button to go back to previous
menu.

Direction / Menu Operation

Direction

In None-menu status, press these four
buttons to pan left/right and tilt up/down. Fast
and frequently press button to realize fast
control; press and hold the button to realize
slow control.

Menu operation

In Menu status: or button to select
among menu options, or to change
option / value.

OK

In None-menu status: press this button to
switch among pan / tilt control speeds.

In Menu status: get into relative menu option
after it has been selected.

Data

Press DATA button to set on / off the display
of pan tilt angel, zoom times and other prompt
message.

12

Preset Setting

“ ” button to call a preset.

Input number key(s), and then press this
button to call a preset.

“ ” button to set a preset.
Move the camera to a specific position, adjust

focus value and etc, and then press this
button to set a preset.

“ ” button to clear a preset.
Input number key(s), and then press this

button to clear a preset.

Number Keys

Used to input numbers.

Cancel

To cancel numbers inputted.

Enter

After inputting number(s), press this button to
confirm.

List of Special Preset
Commands

Preset No.

Function

93

Cruise, camera switches among

saved 0~29 presets repeatedly

and sequentially in fixed interval.

95

Get into menu

96

Delete all presets

99

System reboot

100

1920X1080P50

101

1920X1080P25

102

1920X1080I50

103

1280X720P50

104

1280X720P25

105

1920X1080P60

106

1920X1080P30

107

1920X1080I60

108

1280X720P60

109

1280X720P30

INSTALLATION INSTRUCTIONS

13

INSTALLATION
INSTRUCTIONS

The camera has 4 installation types: desktop,
ceiling, wall, pendant mount installations.

Note

Before installing, make sure there
is enough space to install the
camera and its parts.
Make sure the installed place is
strong and safe enough to hold the
camera and relative parts, it is
suggested that the installed place
can withstand 4 times the weight of
the camera and its relative parts.

Desktop Mount Installation

1. Put the camera on a flat surface. In case

the camera has to be placed on an
inclined surface, make sure the cline
angle is less than 15 degrees to ensure
proper pan /tilt operation.

Note

 Take effective measures to avoid

camera from dropping.

 Do not grab the camera head

when carrying.

 Do not rotate the camera head

with hand. It may cause
malfunction to the camera.

Wall Mount Installation

1. According to diameter and position of the

4 installation holes (As shown below) on
the bracket, drill 4 holes on the wall and fix
the bracket onto the wall by using 4
screws which should be prepared by you.

2. Before fixing the camera, set the DIP

switches of the camera correctly.

14

3. Use inch screws to fix the camera on the

bracket, fix the limit screw according to
actual requirement, and make sure the
camera is tightly fixed onto the bracket
before your hands leave the camera.

Ceiling Mount Installation

1. According to diameter and position of the

3 installation hole (as shown below), drill 3
holes on the ceiling or cement roof
correspondingly.

2. Fix the mounting plate onto the ceiling or

cement roof with 3 screws which should
be prepared by you.

3. Before fixing the camera, set the DIP

switches of the camera correctly.

4. Use 3 screws to fix the camera on the

ceiling mount plate.

5. Push forward camera's bottom slide

according to the mounting plate’s bottom

slide until they reach their limit. Fix the

ceiling mount plate and camera’s bottom

plate with M3×8 screws.

INSTALLATION INSTRUCTIONS

15

Pendant Mount Installation

1. According to diameter and position of the

4 holes on the pole (as shown below), drill
3 holes on the ceiling or cement roof.

2. Fix the upper pole brackets onto the wall

or cement roof tightly with 4 screws which
are prepared by you.

3. Use 2 screws to fix the upper pole and

lower pole. The length is adjustable
ranging from 350mm~600mm.

4. Use screws to fix camera on the lower

pole. Make sure the camera is tightly fixed
onto the bracket before your hands leave
the camera.

16

MENU SETTINGS

Menu Configuration

<VIDEO>

Refer to

SHARPNESS

0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15

Page 21

BRIGHTNESS

-7, -6, -5, -4, -3, -2, -1, 0, +1, +2, +3, +4, +5,

+6, +7

CONTRAST

-7, -6, -5, -4, -3, -2, -1, 0, +1, +2, +3, +4, +5,

+6, +7

SATURATION

-7, -6, -5, -4, -3, -2, -1, 0, +1, +2, +3, +4, +5,

+6, +7

HUE

-7, -6, -5, -4, -3, -2, -1, 0, +1, +2, +3, +4, +5,

+6, +7

2DNR LEVEL

OFF, LOW, MID, MAX

3DNR LEVEL

OFF, LOW, MID, MAX

WIDE DYNAMIC

ON, OFF

MENU SETTINGS

17

<EXPOSURE>

Refer to

Page 21

MODE

FULL AUTO

MANUAL

GAIN

-3, 0, +2, +4, +6, +8, +10,

+12, +14, +16, +18, +20,

+22, +24, +26, +28

SPEED

1/25, 1/50, 1/75, 1/100,

1/120, 1/150, 1/215,

1/300, 1/425, 1/600,

1/1000, 1/1250, 1/1750,

1/2500, 1/3500, 1/6000,

1/10000

IRIS

F14, F11, F9.6, F8, F6.8,

F5.6, F4.8, F4, F3.4, F2.8,

F2.4, F2, F1.6, CLOSE

SHUTTER

PRI

SPEED

1/25, 1/50, 1/75, 1/100,

1/120, 1/150, 1/215,

1/300, 1/425, 1/600,

1/1000, 1/1250, 1/1750,

1/2500, 1/3500, 1/6000,

1/10000

IRIS PRI

IRIS

F14, F11, F9.6, F8, F6.8,

F5.6, F4.8, F4, F3.4, F2.8,
F2.4, F2, F1.6, CLOSE

BRIGHT PRI

BRIGHT

0, 5, 6, 7, 8, 9, 10, 11, 12,

13, 14, 15, 16, 17, 18, 19,

20, 21, 22, 23, 24, 25, 26,
27, 28, 29, 30, 31

EXP-COMP

ON

LEVEL

-7, -6, -5, -4, -3, -2, -1, 0,

+1, +2, +3, +4, +5, +6, +7

OFF

BLC

ON, OFF

18

<WHITE BALANCE>

Refer to Page 22

MODE

AUTO

ATW

ONE PUSH

INDOOR

OUTDOOR

MANUAL

R.GAIN

0~255

B.GAIN

0~255

<PAN TILT ZOOM>

Refer to Page 22

PAN/TILT SPEED

1, 2, 3, 4, 5, 6, 7, 8

PAN/TILT LIMIT

ON, OFF

UP -30°~+90°

DOWN

-30°~+90°

LEFT

-170°~+170°

RIGHT

-170°~+170°

D-ZOOM LIMIT

X1, X2, X3, X4, X5, X6, X7,

X8, X9, X10, X11, X12

PTZ TRIG AF

ON, OFF

POWER UP ACTION

PRESET 1, PRESET 2,

PRESET 3, PRESET 4,

PRESET 5, PRESET 6,

PRESET 7, PRESET 8,

PRESET 9, HOME

MENU SETTINGS

19

<SYSTEM>

Refer to

Page 24
DISPLAY INFO

ON, OFF

RATIO SPEED

ON, OFF

PRESET FREEZE

ON, OFF

CVBS OUTPUT

SQUEEZE, CROP, LETTER BOX

RS422 PORT

HALF-DUPLEX-1,HALF-DUPLEX-2,

FULL-DUPLEX

<STATUS>

Refer to

Page 24
ADDRESS 1

PROTOCOL VISCA

BAUDRATE 2400

VIDEO FORMAT 720P50

DVI-I OUTPUT YPBPR

MOUNT MODE STAND

FIRMWARE VER V1.1.0

<RESTORE DEFAULTS> Refer to Page 24

20

Menu Explanation

Main Menu

Press MENU button to enter / exit menu.

❶ Menu Hint

It displays currently selected menu option.。

❷ Menu Options

It displays options under current menu
hint.
Press or button to select among
menu options, once font of options turned
from white color to yellow color, it indicates
the menu has been elected, press OK
button to get into this menu.

❸ Prompt Message

“ SELECT”indicates it is possible to
press or button to select menu

options.
“ NEXT”indicates it is possible to
press OK button to enter next level menu.
“ EXIT” indicates it is possible to
press MENU button to exit menu.

Submenus

From main menu, navigate to select
<EXPOSURE> menu, press OK to enter.

❶ Menu Hint

It displays currently selected menu option.。

❷ Menu Options

It displays options under current menu
hint.
Press or button to select among
menu options, once font of options turned
from white color to yellow color, it indicates
the menu has been elected, press OK
button to get into this menu.

❸ Manual Exposure

Press or button to change value.

❹ Prompt Message

“ SELECT” indicates it is possible
to press or to select menu options,

press or to change value
“ BACK”indicates it is possible to press

 to return to previous menu.

<EXPOSURE>

MODE MANUAL

GAIN 0
SPEED 1/25
IRIS F14

EXP-COMP ON

LEVEL 0

BLC ON

SELECT BACK

<MENU>

VIDEO

EXPOSURE
WHITE BALANCE
PAN TILT ZOOM
SYSTEM
STATUS
RESTORE DEFAULTS

SELECT NEXT EXIT

❶

❷

❸

❶ ❸

❷

❹

MENU SETTINGS

21

VIDEO

VIDEO menu is used to change video value.

Available Option:

SHARPNESS: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11,

12, 13, 14, 15.

BRIGHTNESS: -7, -6, -5, -4, -3, -2, -1, 0, +1,

+2, +3, +4, +5, +6, +7.

CONTRAST: -7, -6, -5, -4, -3, -2, -1, 0, +1,

+2, +3, +4, +5, +6, +7.

SATURATION: -7, -6, -5, -4, -3, -2, -1, 0, +1,

+2, +3, +4, +5, +6, +7.

HUE: -7, -6, -5, -4, -3, -2, -1, 0, +1, +2, +3,

+4, +5, +6, +7.

2DNR LEVEL: OFF, LOW, MID, MAX

If camera displays color image, it is
suggested to turn off the 2DNR level,
otherwise, the video trails will be generated.
The higher the level is, the better is the
noise reduction performance, but more
video trails will be generated.

3DNR LEVEL: OFF, LOW, MID, MAX.

WIDE DYNAMIC: ON, OFF

EXPOSURE

EXPOSURE menu is used to adjust exposure
value.

Available Options:

MODE:

FULL AUTO: Gain, Shutter Speed and Iris

value are adjusted automatically
accordingly to working environment.

MANUAL: manually adjust Gain, Shutter

Speed and Iris

GAIN: -3, 0, +2, +4, +6, +8, +10, +12, +14,
+16, +18, +20, +22, +24, +26, +28.

SPEED: 1/25, 1/50, 1/75, 1/100, 1/120,
1/150, 1/215, 1/300, 1/425, 1/600, 1/1000,
1/1250, 1/1750, 1/2500, 1/3500, 1/6000,
1/10000s

IRIS: F14, F11, F9.6, F8, F6.8, F5.6, F4.8,
F4, F3.4, F2.8, F2.4, F2, F1.6, CLOSE.

<EXPOSURE>

MODE MANUAL

GAIN 0
SPEED 1/25
IRIS F14

EXP-COMP ON

LEVEL 0

BLC ON

SELECT BACK

<VIDEO>

SHARPNESS 8

BRIGHTNESS +5
CONTRAST +2
SATURATION -5
HUE 0
2DNR LEVEL OFF
3DNR LEVEL OFF
WIDE DYNAMIC OFF

SELECT BACK

22

SHUTTER PRI: Gain and Iris value are

adjusted automatically according to working
environment; shutter speed value is
adjustable manually.

SPEED: 1/25, 1/50, 1/75, 1/100, 1/120,
1/150, 1/215, 1/300, 1/425, 1/600, 1/1000,
1/1250, 1/1750, 1/2500, 1/3500, 1/6000,
1/10000s.

IRIS PRI: Gain and shutter speed value are

adjusted automatically according to working
environment; Iris value is adjustable
manually.

IRIS: F14, F11, F9.6, F8, F6.8, F5.6, F4.8,
F4, F3.4, F2.8, F2.4, F2, F1.6, CLOSE.

BRIGHT PRI: manually adjust bright of image.

BRIGHT: 0, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14,

15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26,
27, 28, 29, 30, 31.

EXP-COMP:once EXP-COMP is set as On,

below level options become available -7, -6,

-5, -4, -3, -2, -1, 0, +1, +2, +3, +4, +5, +6,
+7,+7 is the maximum compensation value
for bright, -7 is the maximum compensation
value for dark.

BLC : ON, OFF

Backlight compensation(BLC) is video gain
done automatically to correct the exposure
of subjects that are in front of a bright light
source.

WHITE BALANCE

WHITE BALANCE menu is used to select
from white balance modes. Available options:

MODE: AUTO, ATW(auto tracking), ONE

PUSH, INDOOR, OUTDOOR, MANUAL.

“ONE PUSH”:when in “ONE PUSH

TRIGGER” mode, aim the camera at a pure

white object (say a white paper), then press
OK button.

“MANUAL”mode: R.GAIN and B. GAIN
value can be chosen from 0~255.

PAN/TILT/ZOOM

PAN/TILT/ZOOM is used to change
pan/tilt/zoom value, available options:

<PAN TILT ZOOM>

PAN/TILT SPEED 8

PAN/TILT LIMIT ON

UP +90
DOWN -30
LEFT +170

RIGHT -170
D-ZOOM LIMIT X4
PTZ TRIG AF ON/OFF
POWER UP ACTION HOME

SELECT BACK

< WHITE BALANCE>

MODE MANUAL

R.GAIN 1

B.GAIN 128

SELECT BACK

MENU SETTINGS

23

PAN/TILT SPEED: 1，2，3，4，5，6，7，8 the

bigger the number is, the faster the speed is.
The speed is the fastest when in 1x zoom
compared to other zooming times.

High speed: 15°~50°（increased by every 5°）
Low speed: 4°~11°（increased by every1°）

PAN/TILT LIMIT: ON/OFF, once it is set as

ON, below limit value can be set.

UP: -30°~+90°, adjustable every 1°；
DOWN: -30°~+90°, adjustable every 1°；
LEFT: -170°~+170°, adjustable every 1°;
LIGHT: -170°~+170°, adjustable every 1°.

D-ZOOM LIMIT: X1, X2, X3, X4, X5, X6, X7,

X8, X9, X10, X11, X12.

PTZ TRIG AF: Turn ON / OFF the auto focus

when the camera pans / tilts / zooms.

POWER UP ACTION: PRESET 1, PRESET 2,

PRESET 3, PRESET 4, PRESET 5,
PRESET 6, PRESET 7, PRESET 8,
PRESET 9, HOME.

SYSTEM

DISPLAY INFO: Turn ON / OFF display of

pan / tilt angle and prompt message.

RATIO SPEED: When RATIO SPEED is set as

ON, at telephoto zoom settings, the pan and
tilt speeds will be slower for a given amount
of joystick deflection then at wide zoom
settings. This keeps the image from moving
too fast on the monitor when there is a large
amount of zoom.

PRESET FREEZE: When it is on, during a

regular preset call, the video will be frozen at
point A till Point B. At Point B, the video will
be displayed normally.

CVBS OUTPUT：LETTER BOX, CROP,

SQUEEZE
LETTER BOX: add a blank area in the
upper and lower portion of the image to
display video in 16:9 ratio, so can show
without distortion in 4:3 ratio monitor.
CROP: cut the left and the right side of 16:9
ratio image to get 4:3 ratio image.
SQUEEZE: compress the video signal
horizontally to get 16:9 ratio image without
distortion.

RS422 PORT: FULL-DUPLEX,

HALF-DUPLEX-1, HALF-DUPLEX-2
FULL-DUPLEX:RS422 full duplex mode,
connecting R + , R-, T + , T- interface of the
camera to control devices.
HALF-DUPLEX-1:RS485 half duplex mode,
in VISCA protocol, after executing the
command message, the camera does not
return confirmation / completion / error

<SYSTEM>

DISPLAY INFO OFF

RATIO SPEED ON
PRESET FREEZE OFF
CVBS OUTPUT SQUEEZE
RS422 PORT HALF-DUPLEX-1

SELECT BACK

24

messages.
HALF-DUPLEX-2:RS485 half duplex mode,

in VISCA protocol, after executing the
command message, the camera return
confirmation / completion / error messages.

STATUS

It displays current camera’s address, protocol,

baud rate, video format, mount mode and
software version number.

RESTORE DEFAULTS

RESTORE DEFAULTS option is used to reset
all menus to default value. Press OK to

confirm or press  to cancel and return to
previous menu.

< RESTORE DEFAULTS>

PRESS OK CONFIRM
PRESS BACK CANCEL

BACK

< STATUS>

ADDRESS 1

PROTOCOL VISCA
BAUD RATE 2400
VIDEO FORMAT 1080P50
DVI-I OUTPUT YPBPR
MOUNT MODE STAND
FIRMWARE VER V1.0.4

SELECT BACK

ANNEX 1 TECHNICAL SPECIFICATIONS

25

ANNEX 1 TECHNICAL SPECIFICATIONS

Model

AMC-K2001

Image Sensor

1/2.8" Exmor CMOS,2.2 megapixel

Signal System (HD)

1080p/60, 1080p/30, 1080i/60, 720p/60, 720P/30
1080p/50, 1080p/25, 1080i/50, 720p/50, 720P/25

Signal System (SD )

NTSC, PAL

Focal Lens

f=4.7mm-94.0mm

Iris

F1.6-F3.5

Optical Zoom

20x

Digital Zoom

12x

Min. object distance

10mm-1,000mm

Horizontal Viewing
Angle

55.4°-2.9°(1080P mode)

Focus System

Auto, Manual, PTZ trigger, One push trigger

Min. Illumination

0.5lux(color), 0.1lux(B/W)

Shutter Speed

1/30 to 1/60,000s

Gain

Auto /Manual

White Balance

Auto, indoor, outdoor, one push, manual, auto tracking

Exposure Control

Auto, Manual, Shutter Priority, Iris Priority

S/N

≥50dB

Pan Angle

-170°~+170°

Tilt Angle

-30°~+90°

Pan Speed

0.1°~160°/S

Tilt Speed

0.1°~120°/S

Preset Number

256

OSD

Yes

Image Flip

Yes

Wide Angle Lens

Optional

HD video output

DVI-I(for DVI-D, HDMI, YPbPr, VGA, 5-BNC), HD-SDI

SD Video Output

CVBS

Control Interface

RS-232IN, RS-232OUT, RS-422, RS-485

Protocol

VISCA( daisy chain) / PELCO-P / PELCO-D

Address

0~63

Power

DC12V

26

Power Consumption

＜15W

Operating
Temperature

0°C~+40°C

Storage Temperature

-20°C~+60°C

Dimensions(W×H×D)

226mm×206mm×159mm

Weight

1.8KG

Body color

White / grey

27

ANNEX 2 SIZE AND DIMENSION

ANNEX 2 SIZE AND DIMENSION

Front

Top

Rear

Side

Bottom

28

ANNEX 3 SW1 DEFINITION

DIP No.

Address .

1 2 3 4 5

6

0

OFF

OFF

OFF

OFF

OFF

OFF

1

ON

OFF

OFF

OFF

OFF

OFF

2

OFF

ON

OFF

OFF

OFF

OFF

3

ON

ON

OFF

OFF

OFF

OFF

4

OFF

OFF

ON

OFF

OFF

OFF

5

ON

OFF

ON

OFF

OFF

OFF

6

OFF

ON

ON

OFF

OFF

OFF

7

ON

ON

ON

OFF

OFF

OFF

8

OFF

OFF

OFF

ON

OFF

OFF

9

ON

OFF

OFF

ON

OFF

OFF

10

OFF

ON

OFF

ON

OFF

OFF

11

ON

ON

OFF

ON

OFF

OFF

12

OFF

OFF

ON

ON

OFF

OFF

13

ON

OFF

ON

ON

OFF

OFF

14

OFF

ON

ON

ON

OFF

OFF

15

ON

ON

ON

ON

OFF

OFF

16

OFF

OFF

OFF

OFF

ON

OFF

17

ON

OFF

OFF

OFF

ON

OFF

18

OFF

ON

OFF

OFF

ON

OFF

19

ON

ON

OFF

OFF

ON

OFF

20

OFF

OFF

ON

OFF

ON

OFF

21

ON

OFF

ON

OFF

ON

OFF

22

OFF

ON

ON

OFF

ON

OFF

23

ON

ON

ON

OFF

ON

OFF

24

OFF

OFF

OFF

ON

ON

OFF

25

ON

OFF

OFF

ON

ON

OFF

26

OFF

ON

OFF

ON

ON

OFF

27

ON

ON

OFF

ON

ON

OFF

28

OFF

OFF

ON

ON

ON

OFF

29

ON

OFF

ON

ON

ON

OFF

30

OFF

ON

ON

ON

ON

OFF

31

ON

ON

ON

ON

ON

OFF

32

OFF

OFF

OFF

OFF

OFF

ON

33

ON

OFF

OFF

OFF

OFF

ON

34

OFF

ON

OFF

OFF

OFF

ON

35

ON

ON

OFF

OFF

OFF

ON

36

OFF

OFF

ON

OFF

OFF

ON

37

ON

OFF

ON

OFF

OFF

ON

38

OFF

ON

ON

OFF

OFF

ON

39

ON

ON

ON

OFF

OFF

ON

ANNEX 3 SW1 DEFINITION

29

40

OFF

OFF

OFF

ON

OFF

ON

41

ON

OFF

OFF

ON

OFF

ON

42

OFF

ON

OFF

ON

OFF

ON

43

ON

ON

OFF

ON

OFF

ON

44

OFF

OFF

ON

ON

OFF

ON

45

ON

OFF

ON

ON

OFF

ON

46

OFF

ON

ON

ON

OFF

ON

47

ON

ON

ON

ON

OFF

ON

48

OFF

OFF

OFF

OFF

ON

ON

49

ON

OFF

OFF

OFF

ON

ON

50

OFF

ON

OFF

OFF

ON

ON

51

ON

ON

OFF

OFF

ON

ON

52

OFF

OFF

ON

OFF

ON

ON

53

ON

OFF

ON

OFF

ON

ON

54

OFF

ON

ON

OFF

ON

ON

55

ON

ON

ON

OFF

ON

ON

56

OFF

OFF

OFF

ON

ON

ON

57

ON

OFF

OFF

ON

ON

ON

58

OFF

ON

OFF

ON

ON

ON

59

ON

ON

OFF

ON

ON

ON

60

OFF

OFF

ON

ON

ON

ON

61

ON

OFF

ON

ON

ON

ON

62

OFF

ON

ON

ON

ON

ON

63

ON

ON

ON

ON

ON

ON DIP No.

7

Analog Video Format
ON

VGA, 5-BNC
(HD-SDI or YPbPr output is not supported)

OFF

YPbPr

DIP No.

8

Mounting Type
ON

Ceiling

OFF

Desktop

30

TROUBLESHOOTING

Problem

Possible Cause

Solution

No action or image
after powered on

Power supply failure

Check power supply

Power adapter damaged

Replace power adapter

Power cable connection got loosen

Check & reconnect

No self-testing after
powered on, or with
motor noise

Not enough power supply

Check & reconnect power cable
connection

Mechanical failure

Repair

Not controllable from
remote controller

Low battery of remote controller

Change battery for remote controller

Exceed remote control distance

Control within distance of 8M

After power on,
self-test
successfully, but not
controllable

Wrong address / protocol / baud rate

Check & set again

Wrong connection or open circuit of
RS-485/RS422 or RS-232 cable

Check & reconnect

Video loss when
pans / tilts / zooms

Not enough power supply

Check & reconnect power cable

Video cable not properly connected

Replace with a good video cable

Video captured after
connected to digital
video interface of a
capture device is not
good as the video
captured after
connected directly
analog video
interface of the
capture device

Different video capture devices have
different video capturing
performance, image quality maybe
worse after it has been converted
from analog to digital

Consult video capture device

supplier for more information
