SMARK LINK 05020 Quick Start Manual

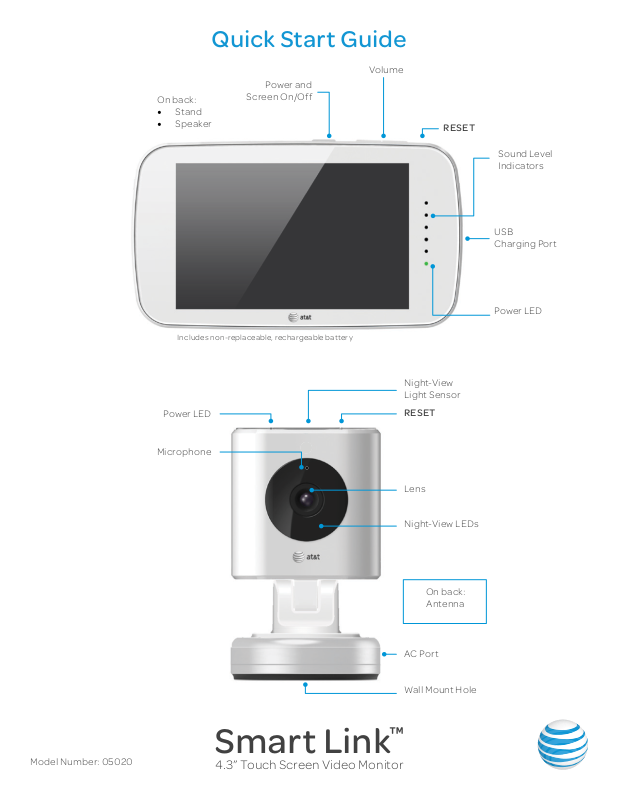

Quick Start Guide
Power and
On back:
Stand
Speaker
Includes non-replaceable, rechargeable battery
Screen On/Off
Volume
RESET
USB Charging Port
Power LED
Power LED
Microphone
Night-View Light Sensor
RESET
Lens
Night-View LEDs
On back: Antenna
AC Port
Model Number: 05020
Wall Mount Hole
Smart Link
4.3” Touch Screen Video Monitor
Welcome to your Smart Link Monitor
Your Smart Link 4.3” Touch Screen Video Monitor allows you to clearly see and hear baby from within your home. Our unique Baby Tracker lets you log and track baby’s important data such as feedings, weight, sleep, and more.
What’s mHealth?
mHealth, or mobile health, is the use of mobile devices to aid in health and wellness. Whether you want to keep track of feedings and diapers or monitor medicines and sleep patterns, you can quickly and easily keep all of the data in the palm of your hand.
AT&T’s line of mHealth monitors are designed to keep you and your baby connected and collect their key milestones and events.
To get started, you will need:
Monitor Camera Wi-Fi Internet
Getting Started
Power and Screen On/Off
Press and hold the Power button on the top edge for 3 seconds to turn the monitor On or Off; the power LED illuminates.
To conserve power while the monitor is in battery mode (unplugged), the screen will automatically turn off after a set period of time. The default setting is 5 minutes; change this time to 10 or 15 minutes in Settings > General > Screen Shutoff Time. The Screen Shutoff Time resets to default (5 minutes) each time that the monitor is turned off.
To turn the screen back on, simply press the Screen On/Off button for one second. If the monitor is plugged in and you do not want to see video, simply press the Screen On/Off button for one second.
Setup
Once the monitor has started up, follow the onscreen instructions to connect to your home Wi-Fi network*, select time zone, create a baby profile (you may skip this and create one later in Settings) and pair your camera.
* Note: If there are changes to your Wi-Fi network, refer to “Updating Your Home Network” in the User Guide available at
www.att.com/mhealthbabymonitors
For further assistance with the setup process, call our Consumer Care at 1-855-661-8333
Placing Your Camera
Placement
After you have successfully paired the camera with your monitor, place the camera on a flat surface or on a wall using the screw and wall anchor provided.
Be conscious of the ambient light and noise where you place the camera. Test the video and sound quality from a few locations before deciding on the final spot.
To prevent entanglement, always secure the cord using the cord clips provided. The cord must be more than 3 feet away from the reach of children.
3 ft.
Sound Level Indicators
Loudest Sound
Medium Sound
Quietest Sound
Power LED
The Sound Level Indicators on the monitor serve two purposes:
1. To show the level of sound coming into the monitor from the camera.
2. To show that the monitor is on. When the Power LED glows green, the monitor is on. The Power LED will remain on even when the screen is turned off using the Screen On/Off button, or when the screen turns off automatically in battery mode.
A quiet baby = green light. A medium loud baby = orange lights. A very loud baby = red lights.
WARNING!
Strangulation Hazard: Children have STRANGLED in cords. Keep this cord out of the reach of children (more than 3 ft. (0.9 m) away).
3 ft.
Monitor
Navigation
The status bar icons display Wi-Fi signal strength, battery, and time. Use the main menu on the right side of the screen to select Monitor, Journal and Data modes, or Settings. To return to Monitor mode from Journal, Data, or Settings, simply save any input or changes, then tap the Monitor icon in the Main Menu.
Important! Please note that the audio function is only available when you are viewing the live video feed.
Digital Pan, Scan, and Zoom
1. Pinch the video feed to use digital zoom.
2. When zoomed in, swipe the screen to pan and scan.
3. Pinch again to zoom out and return to normal view.
Select Camera
Video
Feed
View Photo
Header Status Bar
Photo Capture
Main Menu
Photos
Capture a photo
1. Take a still photo of the video by tapping the Photo Capture button.
2. View your photos by tapping the View Photo button in the lower left.
View and Share
1. While viewing an image: tap the Roll button to quickly scroll through all of
your photos. Tap a single image to view it full-screen.
2. Tap the Share button to post the image to Facebook, Twitter, or your Baby’s Journal. Tap the Trash button to delete the image.
3. Tap the Cancel button or the Monitor icon to go back to viewing live video.
View Photo Photo Capture
Journal
Create a fun keepsake of your child’s milestones with photos and text. Swipe to move through the journal pages when you have added more than 2 pages of entries. Tap an individual entry to read all of your notes.
Make a new entry
1. Make a new journal entry by selecting the Plus icon .
2. Select the Add Image button to add images from your Camera Roll.
3. Tap the title to add a title. Tap the body text to add a note.
4. To save the entry to the journal, tap Save; the screen then displays the main
journal view. You can edit or delete an entry by simply tapping on a journal entry.
Baby Tracker
Keep track of weight, length, sleep, feedings, diapers, temperature and medicines. Use the Navigation buttons across the bottom to view the different categories.
Log New Data
1. Select the category. Tap the Plus button to add a new data entry
for that category.
2. Enter the data and tap Save.
Navigation Button Key
3. You can add a note or make edits by tapping the arrows
in the summary.
4. Tap Save again to confirm the summary.
Tr a ck
1. Change your view of the saved data by tapping the toggle in the upper left.
2. List view allows you to select a past entry to view, edit, or delete it.
Length Feeding Te m p
Weight Sleep Diapers Medicine
Feeding
In Feeding, you can select your feeding type by tapping Breast or Bottle in the upper left.
1. When Breast is selected, you can start the timer to time a new feeding or
you can enter a previous feeding event.
2. To start the timer, tap the Left/Right button to indicate the feeding start side. Then, tap the Start button; the timer will count up.
3. Tap Stop to pause the timer. If you are switching feeding sides, tap the Left/ Right button to indicate that you have switched breasts. Tap Start to start the timer.
New Data
4. Tap Stop to pause the timer and tap Save to review the summary. Tap Save again to confirm the summary.
5. To record a previous event, tap the Enter Previous Event button, and edit the summary by tapping on a field and tap Save.
Note: In List view, Breastfeedings will display the start time, start side, and total feeding time.
Medicine
In Medicine, you can keep track of doses, as well as set alerts to remind you when to provide the next dose.
1. To record a medicine dose: add a medicine title and a note, then tap Save to review summary. Tap Save again to confirm the summary.
2. To set a dose reminder: add a medicine title and a note, then tap the Set a Medicine Alert button and select the date and time of when you want a reminder. Alerts can also be setup to reoccur daily. Tap Save.
3. You are returned to the medicine entry. Tap Save to save the information as a medicine dose or tap Cancel to exit.
Settings
Control device settings such as screen shutoff time, brightness, time zone, software updates, and restore to factory settings.
Access your Wi-Fi network and social media settings. Your camera and baby profile settings are also found here and can be easily edited.
Sound Activated
Another great feature of this monitor is that it is sound activated, enchancing the audio quality while saving energy.
The monitor is designed to filter out background noise, elimating hissing and white noise. When baby cries or there is a sound in the room, the monitor activates immediately and amplifies the sound in order to alert you of the noise. You may turn this off by tapping the Sound Activation button under Camera Settings.
Set an Alert
Set Alerts for any baby related event - from medicines to doctor’s appointments.
1. From the Settings menu, tap Alerts. A list view displays Alerts you have already saved. Tap an Alert to edit it.
2. Or tap the plus button to set a new alert.
3. Add a title, select the date and time of when you want a reminder, and add a note. Alerts can also be set up to recur daily.
4. Tap Save.
Find More Information
On the Web
To learn more about your Smart Link 4.3” Touch Screen Video Monitor or to view a detailed User Guide, visit:
www.att.com/mhealthbabymonitors
Give us a Call
For assistance with your monitor, call our Consumer Care at: 1-855-661-8333
Product Registration
Registering your Smart Link Monitor allows us to send important updates, service information, and help related to your baby monitor. Registering your product also allows us to notify you in the event of a safety notification. Register at:
www.mhealthbabymonitors.com/productregistration
AT&T Authorized Licensee. AT&T, the AT&T Globe Design and all othe r AT&T marks cont ained herein are trad emarks of AT&T Intellectual Pro perty and/or AT&T affiliated companies .
© 2015 AT&T Intellectu al Property. All rig hts reserved. I ssue 1.4 AT&T 4/30 Q
Manufactured and Distributed by: Baby’s Journey, Inc. 999 Main Street, Unit 703, Pawtucket, RI 02 860 Product an d design are TM and ©2015 B aby’s Journey, Inc. Ple ase retain information for fu ture reference. Colors and styles may var y. MADE IN C HINA
