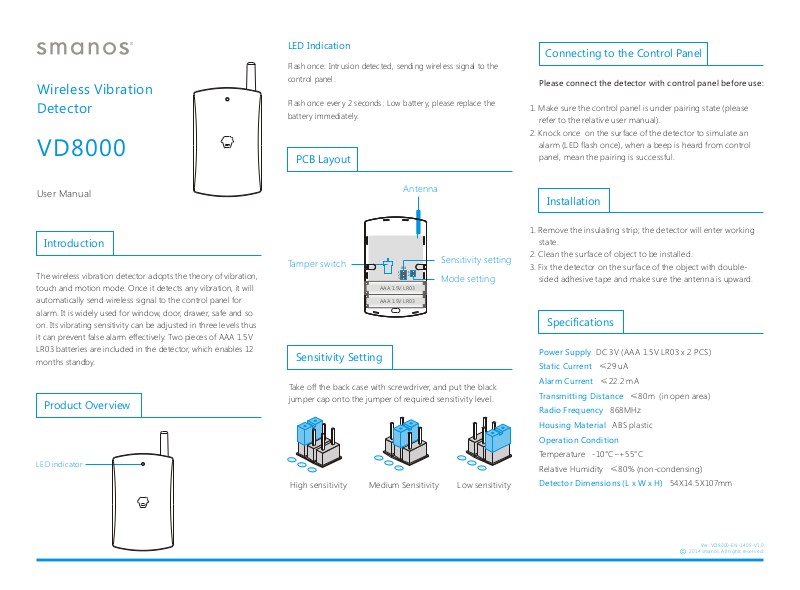

Wireless Vibration
Detector
VD8000
LED Indication
Flash once: Intr usi on detec ted, sendi ng wireless signal to the
control panel .
Flash once ever y 2 seconds : Low batt er y, please replace the
batter y immediately.
PCB Layout
Connecting to the Control Panel
Please connect the detector with control panel before use:
1. Make sure the control panel is under pairing state (please
refer to the relative user manual).
2. Knock once on the surface of the detector to simulate an
alarm (LED flash once), when a beep is heard from control
panel, mean the pairing is successful.
User Manual
Introduction
The wireless vibration detector adopts the theory of vibration,
touch and motion mode. Once it detects any vibration, it will
automatically send wireless signal to the control panel for
alarm. It is widely used for window, door, drawer, safe and so
on. Its vibrating sensitivity can be adjusted in three levels thus
it can prevent false alarm effectively. Two pieces of AAA 1.5V
LR03 batteries are included in the detector, which enables 12
months standby.
Product Overview
LED indicator
Antenna
Tamper switch
JP4
1
2
3
AAA 1.5V LR03
AAA 1.5V LR03
1
2
Sensitivity setting
Mode setting
Sensitivity Setting
Take off the back case with screwdriver, and put the black
jumper cap onto the jumper of required sensitivity level.
High sensitivity Medium Sensitivity
Low sensitivity
Installation
1. Remove the insulating strip; the detector will enter working
state.
2. Clean the sur face of object to be installed.
3. Fix the detector on the surface of the object with double sided adhesive tape and make sure the antenna is upward.
Specifications
Power Supply
Static Current
Alarm Current
Transmitting Distance
Radio Frequency
Housing Material
Operation Condition
Temperature -10°C~+55°C
Relative Humidity ≤80% (non-condensing)
Detector Dimensions (L x W x H)
DC 3V (AAA 1.5V LR03 x 2 PCS)
≤29 uA
≤22.2 mA
≤80m (in open area)
868MHz
ABS plastic
54X14.5X107mm
Ver: V D8000 -EN-1 405-V 1.0
201 4 smano s. All ri ghts re serv ed.
