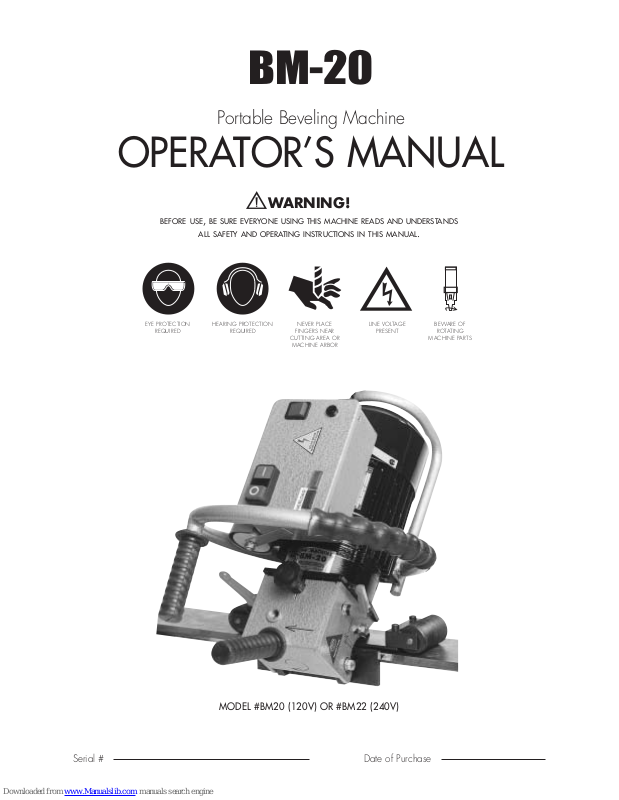

Slugger BM-20 Operator's Manual
BM-20
Portable Beveling Machine
OPERATOR’S MANUAL
EYE PROTECTION
REQUIRED
HEARING PROTECTION
REQUIRED
MODEL #BM20 (120V) OR #BM22 (240V)
Serial # Date of Purchase
WARNING!
BEFORE USE,
BE SURE EVERYONE USING THIS MACHINE READS AND UNDERSTANDS
ALL SAFETY AND OPERATING INSTRUCTIONS IN THIS MANUAL.
NEVER PLACE
FINGERS NEAR
CUTTING AREA OR
MACHINE ARBOR
LINE VOLTAGE
PRESENT
BEWARE OF
ROTATING
MACHINE PARTS
Portable Beveling Machine
Congratulations on your purchase of a Slugger portable magnetic drilling machine. Slugger drilling machines are
designed to deliver fast, efficient hole drilling performance in portable applications. Please take a moment to complete
and mail your product warranty registration card. Doing so will validate your machine’s warranty period and ensure
prompt service if needed. Thank you for selecting a Slugger product from Jancy Engineering Inc..
TABLE OF CONTENTS
Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 4
Special Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Grounding Instructions and Extension Cords . . . . . . . . . . . . . . . . . . . . . . . . .6
Contents of Package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Machine Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Beveling Pipes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Regular Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Machine Parts and List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Included and Optional Sets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Wiring Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
JANCY ENGINEERING RESERVES THE RIGHT TO MAKE
IMPROVEMENTS AND MODIFICATIONS TO DESIGN WITHOUT PRIOR NOTICE.
LIMITED WARRANTY
Jancy Engineering Inc. will, within one (1) year from the original date of purchase, repair or replace any goods found to be
defective in materials or workmanship, provided the product warranty registration card has been returned to Jancy
Engineering Inc. within thirty (30) days of purchase date. This warranty is void if the item has been damaged by accident, neglect, improper service or other causes not arising out of defects in materials or workmanship. This warranty does not
apply to machines and/or components which have been altered, changed, or modified in any way, or subjected to use
beyond recommended capacities and specifications. Electrical components are subject to respective manufacturers’ warranties. All goods returned defective shall be returned prepaid freight to Jancy, which shall be the buyer’s sole and exclusive remedy for defective goods. In no event shall Jancy Engineering be liable for loss or damage resulting directly or indirectly from the use of merchandise or from any other cause. Jancy Engineering is not liable for any costs incurred on such
goods or consequential damages. No officer, employee or agent of Jancy is authorized to make oral representations of fitness or to waive any of the foregoing terms of sale and none shall be binding on Jancy.
2
IMPORTANT SAFETY INSTRUCTIONS
WARNING!
WHEN USING ELECTRIC TOOLS, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED
TO REDUCE RISK OF FIRE, ELECTRIC SHOCK AND PERSONAL INJURY.
READ AND SAVE ALL INSTRUCTIONS FOR FUTURE REFERENCE.
1. Keep Work Area Clean
•
Cluttered areas and benches invite injuries.
2. Consider Work Area Environment
•
Do not expose power tools to rain.
•
Do not use power tools in damp or wet locations.
•
Keep work area well lit.
•
Do not use tool in presence of flammable liquids or gases.
3. Guard Against Electric Shock
•
Prevent body contact with grounded surfaces. For example: pipes, radiators, ranges and refrigerator enclosures.
4. Keep Children Away
•
Do not let visitors contact tool or extension cord.
•
All visitors should be kept away from work area.
5. Store Idle Tools
•
When not in use, tools should be stored in a dry, high and locked-up place, out of reach of children.
6. Do Not Force Tool
•
It will do the job better and safer at the rate for which it was intended.
7. Use Right Tool
•
Do not force a small tool or attachment to do the job of a heavy-duty tool.
•
Do not use tool for unintended purpose. For example: Do not use a circular saw for cutting tree limbs or logs.
8. Dress Properly
•
Do not wear loose clothing or jewelry. They can be caught in moving parts.
•
Non-skid footwear is recommended when working outdoors.
•
Wear protective hair covering to contain long hair.
9. Use Safety Glasses
•
Also use face or dust mask if cutting operation is dusty.
10. Do Not Abuse Electrical Cord
•
Never carry tool by cord or yank it to disconnect from receptacle.
•
Keep cord from heat, oil and sharp edges.
11. Secure Work
•
Use clamps or a vise to hold work. It’s safer than using your hand and it frees both hands to operate tool.
12. Do Not Overreach
•
Keep proper footing and balance at all times.
3
13. Maintain Tools With Care
•
Keep tools sharp and clean for better and safer performance.
•
Follow instructions for lubricating and changing accessories.
•
Inspect tool cords periodically and if damaged, have repaired by authorized service facility.
•
Inspect extension cords periodically and replace if damaged.
•
Keep handles dry, clean, and free from oil and grease.
14. Disconnect Tools
•
Unplug when not in use, before servicing, and when changing accessories, such as bits and cutters.
15. Remove Adjusting Keys And Wrenches
•
Form habit of checking to see that keys and adjusting wrenches are removed from tool before turning it on.
16. Avoid Unintentional Starting
•
Do not carry a plugged-in tool. Always disconnect from power source before moving.
•
Be sure switches are off before connecting to a power source.
17. Outdoor Use Extension Cords
•
When tool is used outdoors, use only extension cords intended for use outdoors and so marked.
18. Stay Alert
•
Watch what you are doing. Use common sense. Do not operate tool when you are tired.
•
Do not use when taking medications that may cause drowsiness.
19. Check Damaged Parts
•
Before further use of the tool, a guard or other part that is damaged should be carefully checked to determine
that it will operate properly and perform its intended function.
•
Check alignment of moving parts, binding of parts, breakage of parts, mounting, and any other conditions
that may affect its operation. A guard or other part that is damaged should be properly repaired or replaced
by an authorized service center.
•
Do not use this tool if switches do not turn it on and off. Have defective switches replaced by authorized
service center.
IMPORTANT SAFETY INSTRUCTIONS
4
