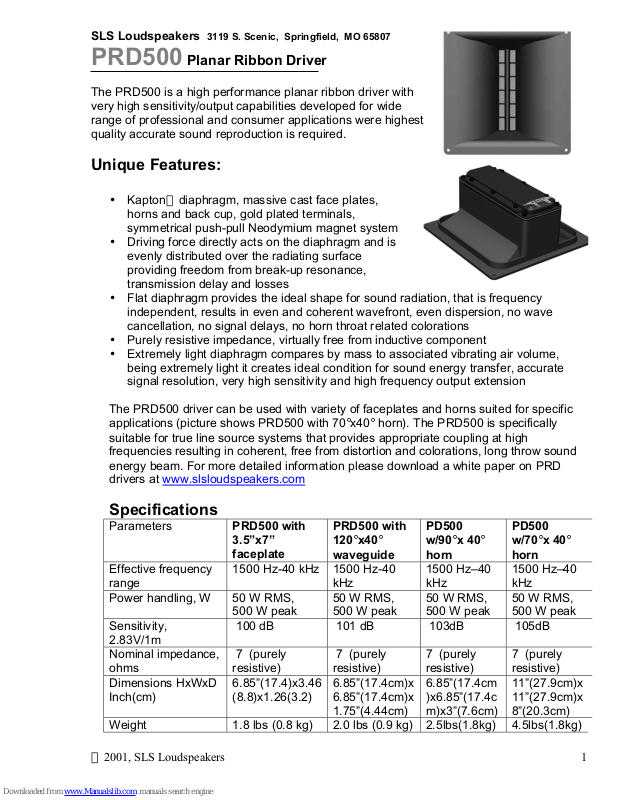

SLS Loud
speakers 3119 S. Scenic, Springfield, MO 65807
PRD500 Planar Ribbon Driver
The PRD500 is a high performance planar ribbon driver with
very high sensitivity/output capabilities developed for wide
range of professional and consumer applications were highest
quality accurate sound reproduction is required.
Unique Features:
• Kapton diaphragm, massive cast face plates,
• Driving force directly acts on the diaphragm and is
• Flat diaphragm provides the ideal shape for sound radiation, that is frequency
• Purely resistive impedance, virtually free from inductive component
• Extremely light diaphragm compares by mass to associated vibrating air volume,
horns and back cup, gold plated terminals,
symmetrical push-pull Neodymium magnet system
evenly distributed over the radiating surface
providing freedom from break-up resonance,
transmission delay and losses
independent, results in even and coherent wavefront, even dispersion, no wave
cancellation, no signal delays, no horn throat related colorations
being extremely light it creates ideal condition for sound energy transfer, accurate
signal resolution, very high sensitivity and high frequency output extension
The PRD500 driver can be used with variety of faceplates and horns suited for specific

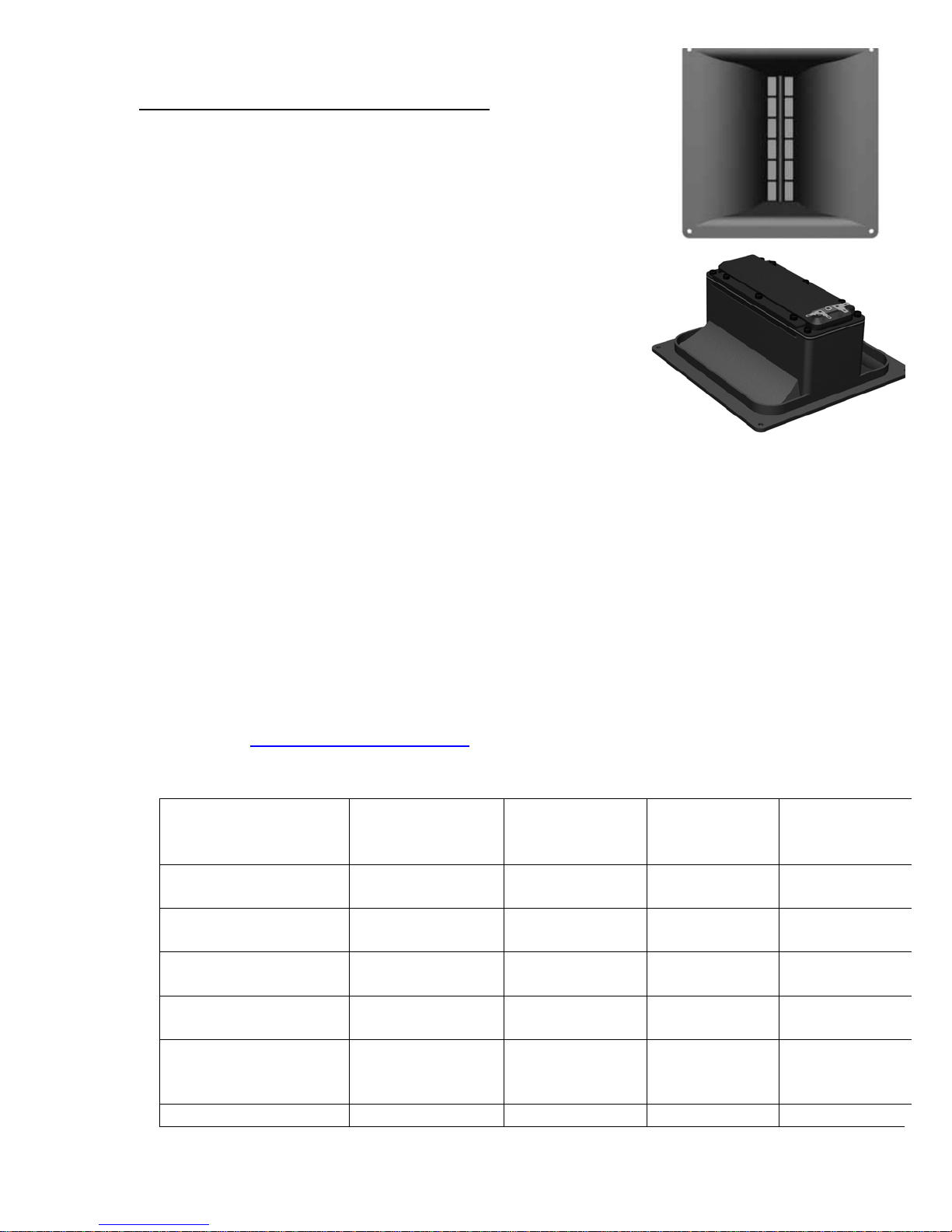

applications (picture shows PRD500 with 70°x40° horn). The PRD500 is specifically
suitable for true line source systems that provides appropriate coupling at high
frequencies resulting in coherent, free from distortion and colorations, long throw sound
energy beam. For more detailed information please download a white paper on PRD
drivers at www.slsloudspeakers.com
Specifications
Parameters PRD500 with
3.5”x7”
faceplate
Effective frequency
range
Power handling, W 50 W RMS,
Sensitivity,
2.83V/1m
Nominal impedance,
ohms
Dimensions HxWxD
Inch(cm)
Weight 1.8 lbs (0.8 kg) 2.0 lbs (0.9 kg) 2.5lbs(1.8kg) 4.5lbs(1.8kg)
1500 Hz-40 kHz 1500 Hz-40
500 W peak
100 dB 101 dB 103dB 105dB
7 (purely
resistive)
6.85”(17.4)x3.46
(8.8)x1.26(3.2)
PRD500 with
120°x40°
waveguide
kHz
50 W RMS,
500 W peak
7 (purely
resistive)
6.85”(17.4cm)x
6.85”(17.4cm)x
1.75”(4.44cm)
PD500
w/90°x 40°
horn
1500 Hz–40
kHz
50 W RMS,
500 W peak
7 (purely
resistive)
6.85”(17.4cm
)x6.85”(17.4c
m)x3”(7.6cm)
PD500
w/70°x 40°
horn
1500 Hz–40
kHz
50 W RMS,
500 W peak
7 (purely
resistive)
11”(27.9cm)x
11”(27.9cm)x
8”(20.3cm)
2001, SLS Loudspeakers 1
Page 2

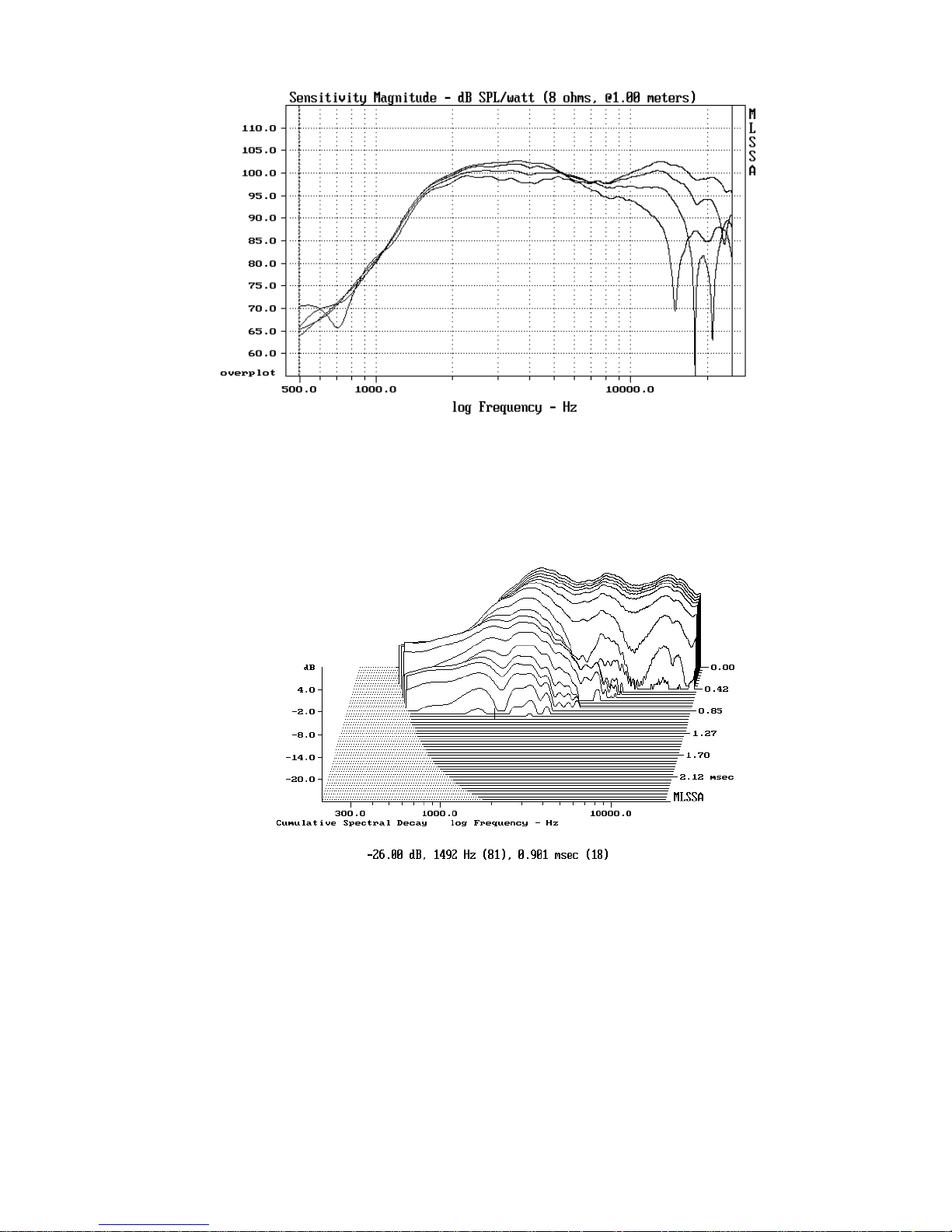

PRD500 frequency response, 2.83V/1m with 7”x7”waveguide
)
(
)
g
On-axis (upper curve
and 15°, 30°, 45°off-axis
lower curves
PRD500 cumulative decay spectrum (waterfall), 1m, 30dB
2001, SLS Loudspeakers 2
dynamic range, no smoothin
