SL POWER ELECTRONICS CORP.
6050 King Drive, Bldg. A
Ventura, CA 93003 + 805-486-4565
Internet: www.slpower.com
MODEL NUMBERS: GPC80X where X may be the letter A, B, C, D, E or P, and GPC80-X where X may be the number 5,
12, 15, 24, 28 or 48. Models may be followed by –PF, -L, -LC, -FB, -TB, -XXX and/or G. Suffix –PF indicates Power
Failure, -L indicates L bracket, -LC indicates L bracket and cover, -FB indicates flux band, -TB indicates terminal block,
-XXX indicates value added configurations that have no impact on safety which may be any number from 001 thru 999,
and/or G indicates compliance to RoHS.
RATINGS:
Input: 100-240 V ac, 3.2 A, 50/60 Hz
Output: Maximum Continuous Power, total of all outputs
at ambient of 50 °C.
Without Cover
26 CFM
With Cover
26 CFM
Without Cover
0 CFM
With Cover
0 CFM
110 Watts 90 Watts 80 Watts 40 Watts
Output #1 (Note 3) Output #2 (Note 3) Output #3 Output #4
MODEL
Note 1 Note 2 Note 1 Note 2 Note 1 Note 2 Note 1 Note 2
GPC80A +5 V 12 A 12 A +12 V 3.0 A 4.0 A -12 V 1.0 A 1.2 A +12 V 1.0 A 1.2 A
GPC80B +5 V 12 A 12 A +12 V 3.0 A 4.0 A -12 V 1.0 A 1.2 A -5 V 1.0 A 1.2 A
GPC80C +5 V 12 A 12 A +12 V 3.0 A 4.0 A -15 V 1.0 A 1.2 A +15 V 1.0 A 1.2 A
GPC80D +5 V 12 A 12 A +24 V 2.0 A 3.0 A -12 V 1.0 A 1.2 A +12 V 1.0 A 1.2 A
GPC80E +5 V 12 A 12 A +24 V 2.0 A 3.0 A -15 V 1.0 A 1.2 A +15 V 1.0 A 1.2 A
GPC80P +5 V 12 A 12 A +24 V 3.5 A 4.5 A -12 V 1.0 A 1.2 A +12 V 2.0 A 2.0 A
GPC80-5 +5 V 16 A 20 A
Notes: 1. Maximum ratings for 0 CFM airflow.
GPC80-12 +12 V 6.7 A 9.2 A
2. Maximum ratings for 26 CFM airflow.
GPC80-15 +15 V 5.3 A 7.3 A
3. Sum of outputs #1 & #2 not to exceed 14A with 0 CFM airflow.
GPC80-24 +24 V 3.4 A 4.6 A
4. Maximum Operating Relative Humidity 96%, no condensation.
GPC80-28 +28 V 2.9 A 3.9 A
5. Storage: -40 to +85 °C. Units should be allowed to warm-up
GPC80-48 +48 V 1.7 A 2.3 A
under non-condensing conditions before application of power.
SAFETY DECLARATION: SL Power Electronics Corp. declares under our sole responsibility that all
models listed above are in conformity with the applicable requirements of EN60950-1 following the provisions
of the Low Voltage Directive 73/23/EEC. All models are Certified to be in compliance with the applicable
requirements of UL 60950, CSA 22.2 No. 60950 (L3M1), and EN/IEC 60950-1 for Pollution Degree 2
environment and Class I TN-S power systems. The output(s) of these supplies meet the requirements for SELV and are not
an energy hazard.
GROUNDING: Protection Class I requires that J1, pin 1, and all of the pads around the mounting holes be bonded to
Protective Earth in the end application. Metallic spacers should be used to mount supply to metal surfaces. When mounting
to non-metallic surfaces, connect all mounting pads together and bond to earth. Using J1, pin 1, for the primary system
earthing terminal is not recommended.
SPACINGS: The required creepage and clearance distances from primary circuits to ground and secondary circuits must be
maintained after installation to preserve the intended safety.
WARNING! RISK OF FIRE! A blown fuse is an indication of catastrophic failure of circuit component(s). Repair must
be performed by SL Power Electronics Corp. authorized personnel. Refer to fuse marking on the supply for type and rating.
C O N N E C T I O N S
J1 AC Input J2 Multi-Output Models J2 Single Output Models Mating Connectors
1) Ground 1) Output 1 (+) 8) Output 2 (+) 1) Output 1 (+) 8) Common J1 Amp Housing 640250-5
3) Neutral 2) Output 1 (+) 9) Output 2 (+) 2) Output 1 (+) 9) Common J2 Amp Housing 1-640250-3
5) Line 3) Output 1 (+) 10) Power Fail 3) Output 1 (+) 10) Power Fail Amp Contact 770476-1
4) Common 11) Output 3 (-) 4) Output 1 (+) 11) +Sense
CAUTION:
5) Common 12) Key 5) Common 12) Key
Do not exceed
6) Common 13) Output 4 6) Common 13) -Sense
5 A per pin on J2.
7) Common (+ or -) 7) Common
SL Power Electronics Corp. will not be liable for the safety, reliability or performance of these power supplies if a) any changes, modifications or repairs are carried
out by other than authorized agents of SL Power Electronics Corp., or b) the installation of the supply is not in accordance with these installation instructions and the
applicable UL, CSA, and EN/IEC safety standards.
41-32413-0001 Rev. G 09/21/06

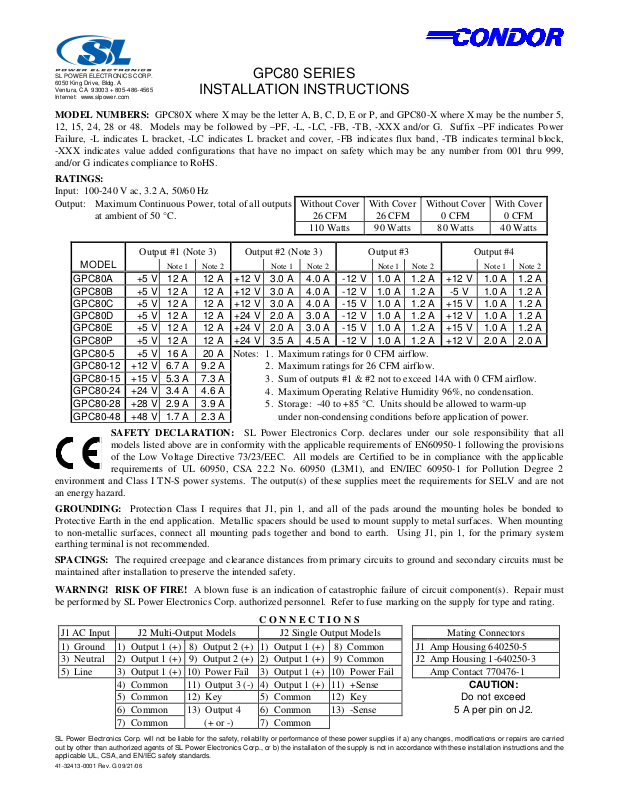

GPC80 SERIES
INSTALLATION INSTRUCTIONS
