SL Power Electronics, Corp.
6050 King Drive., Bldg A
Ventura, CA 93003
Internet: www.slpower..com

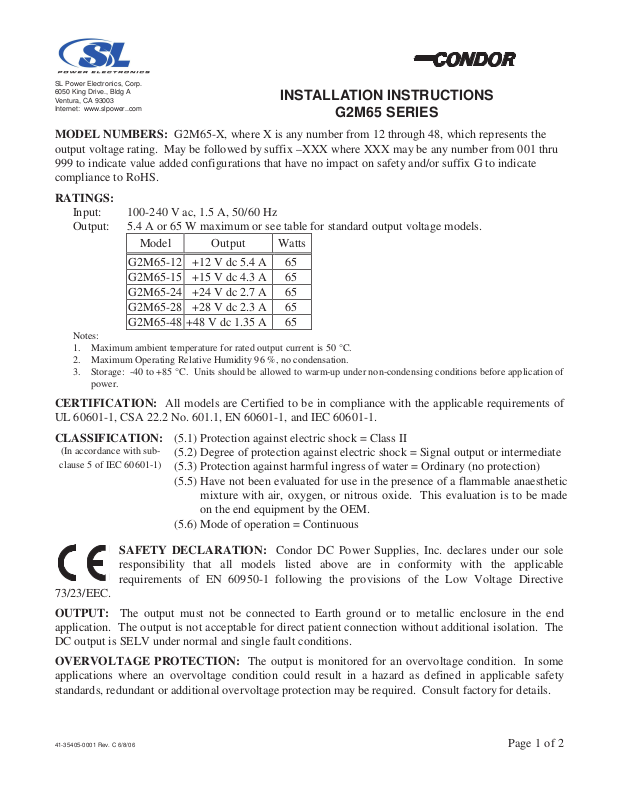

INSTALLATION INSTRUCTIONS
G2M65 SERIES
MODEL NUMBERS: G2M65-X, where X is any number from 12 through 48, which represents the
output voltage rating. May be followed by suffix –XXX where XXX may be any number from 001 thru
999 to indicate value added configurations that have no impact on safety and/or suffix G to indicate
compliance to RoHS.
RATINGS:
Input: 100-240 V ac, 1.5 A, 50/60 Hz
Output: 5.4 A or 65 W maximum or see table for standard output voltage models.
Model Output Watts
G2M65-12 +12 V dc 5.4 A 65
G2M65-15 +15 V dc 4.3 A 65
G2M65-24 +24 V dc 2.7 A 65
G2M65-28 +28 V dc 2.3 A 65
G2M65-48 +48 V dc 1.35 A 65
Notes:
1. Maximum ambient temperature for rated output current is 50 °C.
2. Maximum Operating Relative Humidity 96 %, no condensation.
3. Storage: -40 to +85 °C. Units should be allowed to warm-up under non-condensing conditions before application of
power.
CERTIFICATION: All models are Certified to be in compliance with the applicable requirements of
UL 60601-1, CSA 22.2 No. 601.1, EN 60601-1, and IEC 60601-1.
CLASSIFICATION:
(In accordance with sub-
clause 5 of IEC 60601-1)
(5.1) Protection against electric shock = Class II
(5.2) Degree of protection against electric shock = Signal output or intermediate
(5.3) Protection against harmful ingress of water = Ordinary (no protection)
(5.5) Have not been evaluated for use in the presence of a flammable anaesthetic
mixture with air, oxygen, or nitrous oxide. This evaluation is to be made
on the end equipment by the OEM.
(5.6) Mode of operation = Continuous
SAFETY DECLARATION: Condor DC Power Supplies, Inc. declares under our sole
responsibility that all models listed above are in conformity with the applicable
requirements of EN 60950-1 following the provisions of the Low Voltage Directive
73/23/EEC.
OUTPUT: The output must not be connected to Earth ground or to metallic enclosure in the end
application. The output is not acceptable for direct patient connection without additional isolation. The
DC output is SELV under normal and single fault conditions.
OVERVOLTAGE PROTECTION: The output is monitored for an overvoltage condition. In some
applications where an overvoltage condition could result in a hazard as defined in applicable safety
standards, redundant or additional overvoltage protection may be required. Consult factory for details.
41-35405-0001 Rev. C 6/8/06
Page 1 of 2
Page 2
ISOLATION: The creepage distance between primary and secondary circuits is 8 mm minimum. The
required creepage and clearance distances from primary circuits to secondary circuits must be
maintained after installation to preserve the intended safety.
TEMPERATURES: The maximum operating temperatures of certain safety components, as defined in
the applicable safety standards, must not be exceeded after installation to preserve the intended safety.
The output power, ambient air temperature and the availability, amount, direction and/or restriction of
airflow influence the temperatures of these components.
OVERCURRENT PROTECTION: The internal fuse for circuit protection is located in the phase lead
only. If a fuse is added to the neutral side or external dual fuses are provided, the fuse ratings must not
exceed that specified for the internal fuse, must meet the requirements of EN 60601-1, and be acceptable
for the country in which the host equipment is to be installed.
WARNING! RISK OF FIRE! A blown internal fuse is an indication of catastrophic failure of circuit
component(s). Refer to fuse marking on the supply for rating. Repair must be performed by Condor
authorized personnel.
WARNING! SHOCK HAZARD! Dangerous voltages are present on some components, printed wiring
traces and heatsinks.
EXPLA N A T ION O F SYM BO LS
Alte rna ting Curre n t
Dire c t Curre nt
Atte ntion , C onsu lt
Ac c om pany in g D o cuments
Atte ntion , D ange rou s V o ltages
C O N N E C T I O N S
J1 Pin AC Input
1 Line 1 Output (+)
3 Neutral 2 Output (+)
3 Output (+)
J3 Pin 4 Return
1 + Sense 5 Return
2 - Sense 6 Return
SL Power Electronics, Corp. Inc. will not be liable for the safety, reliability or performance of these power supplies if a) any changes, modifications or repairs are carried out by other
than authorized agents of SL Power Electronics Corp., or b) the installation of the supply is not in accordance with these installation instructions and the applicable UL, CSA, and
EN/IEC safety standards.
41-35405-0001 Rev. C 6/8/06
J2 Pin DC Output
MATING CONNECTORS
J1 Amp Housing 640250-3 Contact 770476-1
J2 Amp Housing 640250-6 Contact 770476-1
J3 Amp MTA-100 Receptacle
CAUTION: Do not exceed 5 A per pin on J2.
Page 2 of 2
