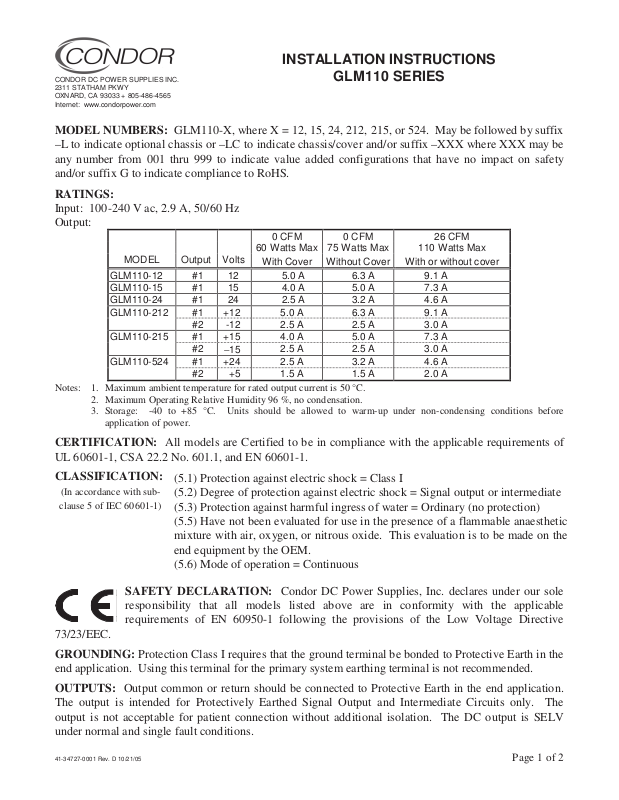

INSTALLATION INSTRUCTIONS
CONDOR DC POWER SUPPLIES INC.
2311 STATHAM PKWY
OXNARD, CA 93033 + 805-486-4565
Internet: www.condorpower.com
MODEL NUMBERS: GLM110-X, where X = 12, 15, 24, 212, 215, or 524. May be followed by suffix
–L to indicate optional chassis or –LC to indicate chassis/cover and/or suffix –XXX where XXX may be
any number from 001 thru 999 to indicate value added configurations that have no impact on safety
and/or suffix G to indicate compliance to RoHS.
RATINGS:
Input: 100-240 V ac, 2.9 A, 50/60 Hz
Output:
0 CFM 0 CFM 26 CFM
60 Watts Max 75 Watts Max
MODEL Output Volts
GLM110-12 #1 12 5.0 A 6.3 A 9.1 A
GLM110-15 #1 15 4.0 A 5.0 A 7.3 A
GLM110-24 #1 24 2.5 A 3.2 A 4.6 A
GLM110-212 #1 +12 5.0 A 6.3 A 9.1 A
#2 -12 2.5 A 2.5 A 3.0 A
GLM110-215 #1 +15 4.0 A 5.0 A 7.3 A
#2
GLM110-524 #1 +24 2.5 A 3.2 A 4.6 A
#2 +5 1.5 A 1.5 A 2.0 A
Notes: 1. Maximum ambient temperature for rated output current is 50 °C.
2. Maximum Operating Relative Humidity 96 %, no condensation.
3. Storage: -40 to +85 °C. Units should be allowed to warm-up under non-condensing conditions before
application of power.
−15
With Cover Without Cover With or without cover
2.5 A 2.5 A 3.0 A
GLM110 SERIES
110 Watts Max
CERTIFICATION: All models are Certified to be in compliance with the applicable requirements of
UL 60601-1, CSA 22.2 No. 601.1, and EN 60601-1.
CLASSIFICATION:
(In accordance with sub-
clause 5 of IEC 60601-1)
(5.1) Protection against electric shock = Class I
(5.2) Degree of protection against electric shock = Signal output or intermediate
(5.3) Protection against harmful ingress of water = Ordinary (no protection)
(5.5) Have not been evaluated for use in the presence of a flammable anaesthetic
mixture with air, oxygen, or nitrous oxide. This evaluation is to be made on the
end equipment by the OEM.
(5.6) Mode of operation = Continuous
SAFETY DECLARATION: Condor DC Power Supplies, Inc. declares under our sole
responsibility that all models listed above are in conformity with the applicable
requirements of EN 60950-1 following the provisions of the Low Voltage Directive
73/23/EEC.
GROUNDING: Protection Class I requires that the ground terminal be bonded to Protective Earth in the
end application. Using this terminal for the primary system earthing terminal is not recommended.
OUTPUTS: Output common or return should be connected to Protective Earth in the end application.
The output is intended for Protectively Earthed Signal Output and Intermediate Circuits only. The
output is not acceptable for patient connection without additional isolation. The DC output is SELV
under normal and single fault conditions.
41-34727-0001 Rev. D 10/21/05
Page 1 of 2
Page 2
OVERVOLTAGE PROTECTION: The output is monitored for an overvoltage condition. In some
applications where an overvoltage condition could result in a hazard as defined in applicable safety
standards, redundant or additional overvoltage protection may be required. Consult factory for details.
CAUTION: When performing Dielectric Strength Tests, catastrophic failure of the unit may result if a
Dielectric Strength test voltage greater than 1800 V ac is applied between primary and secondary
circuits. The components providing isolation from primary to secondary cannot be tested while installed
in the power supply without overstressing basic (primary to ground) insulation. All isolating
components are individually 100 % tested at 4800 V ac prior to installation.
ISOLATION: The creepage distance between primary and ground is 4 mm minimum; between primary
and secondary circuits is 8 mm minimum. Secondary to ground creepage is not defined or controlled.
The required creepage and clearance distances from primary circuits to ground and secondary circuits
must be maintained after installation to preserve the intended safety.
TEMPERATURES: The maximum operating temperatures of certain safety components, as defined in
the applicable safety standards, must not be exceeded after installation to preserve the intended safety.
The output power, ambient air temperature and the availability, amount, direction and/or restriction of
airflow influence the temperatures of these components.
OVERCURRENT PROTECTION: The internal fuse is located in the phase lead only. EN 60601-1
requires that both supply leads (phase and neutral) be protected against overcurrent. Complete
overcurrent protection must be provided in the host equipment. Fuse ratings must not exceed that
specified for the internal fuse, must meet the requirements of EN
60601-1, and be acceptable for the country in which the host
equipment is to be installed.
EXPLANATION OF SYMBOLS
Alternating Current
WARNING! RISK OF FIRE! A blown internal fuse is an
indication of catastrophic failure of circuit component(s). Refer to
fuse marking on the supply for rating. Repair must be performed
by Condor authorized personnel.
WARNING! SHOCK HAZARD! Dangerous voltages are present
on some components, printed wiring traces and heatsinks.
Direct Current
Attention, Consult
Accompanying Documents
Attention, Dangerous Voltages
Earth (Ground)
C O N N E C T I O N S
Single Output Models Multi-Output Models
J1 Pin AC Input J2 Pin DC Output J2 Pin DC Output J2 Pin DC Output J2 Pin DC Output
1 Ground 1 + Output 8 Return 1 Output #1 8 Common
3 Neutral 2 + Output 9 Return 2 Output #1 9 Common
5 Line 3 + Output 10 Power Fail 3 Output #1 10 Power Fail
4 + Output 11 N/C 4 Output #1 11 N/C
5 Return 12 N/C 5 Common 12 Output #2 (-)
6 Return 13 N/C 6 Common 13 Output #2 (+)
7 Return 7 Common
MATING CONNECTORS
J1 Amp/Tyco Housing 640250-5
Contact 640706-1
J2 Amp/Tyco Housing 1-640250-3
Contact 640706-1
Condor DC Power Supplies Inc. will not be liable for the safety, reliability or performance of these power supplies if a) any changes, modifications or repairs are carried out by other
than authorized agents of Condor DC Power Supplies Inc., or b) the installation of the supply is not in accordance with these installation instructions and the applicable UL, CSA,
and EN/IEC safety standards.
41-34727-0001 Rev. D 10/21/05
Do not exceed 5 A per contact.
CAUTION:
Page 2 of 2
