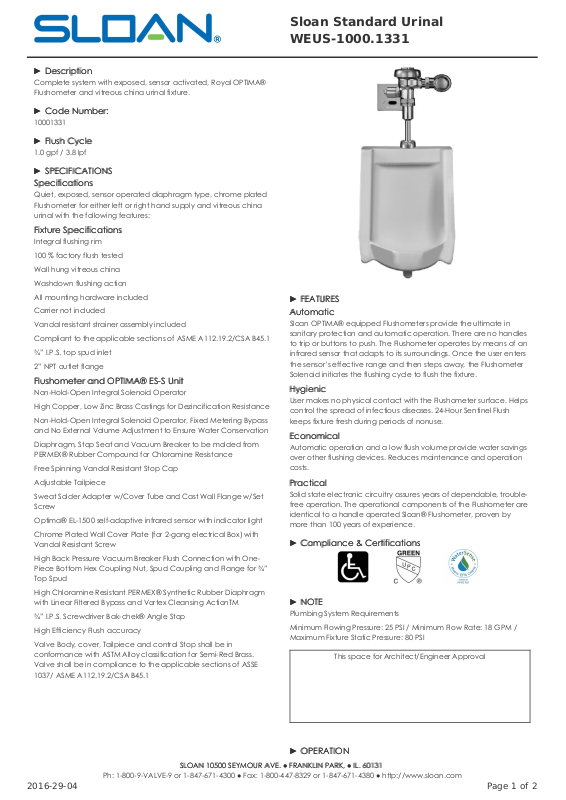

►► FEATURESFEATURES

AutomaticAutomatic

Sloan OPTIMA® equipped Flushometers provide the ultimate in
sanitary protection and automatic operation. There are no handles
to trip or buttons to push. The Flushometer operates by means of an
infrared sensor that adapts to its surroundings. Once the user enters
the sensor’s effective range and then steps away, the Flushometer
Solenoid initiates the flushing cycle to flush the fixture.

HygienicHygienic

User makes no physical contact with the Flushometer surface. Helps
control the spread of infectious diseases. 24-Hour Sentinel Flush
keeps fixture fresh during periods of nonuse.

EconomicalEconomical

Automatic operation and a low flush volume provide water savings
over other flushing devices. Reduces maintenance and operation
costs.

PracticalPractical

Solid state electronic circuitry assures years of dependable, trouble­free operation. The operational components of the Flushometer are
identical to a handle operated Sloan® Flushometer, proven by
more than 100 years of experience.

►► Compliance & CertificationsCompliance & Certifications

►► NOTENOTE

Plumbing System Requirements

Minimum Flowing Pressure: 25 PSI / Minimum Flow Rate: 18 GPM /
Maximum Fixture Static Pressure: 80 PSI

This space for Architect/Engineer Approval

►► OPERATIONOPERATION

►► DescriptionDescription

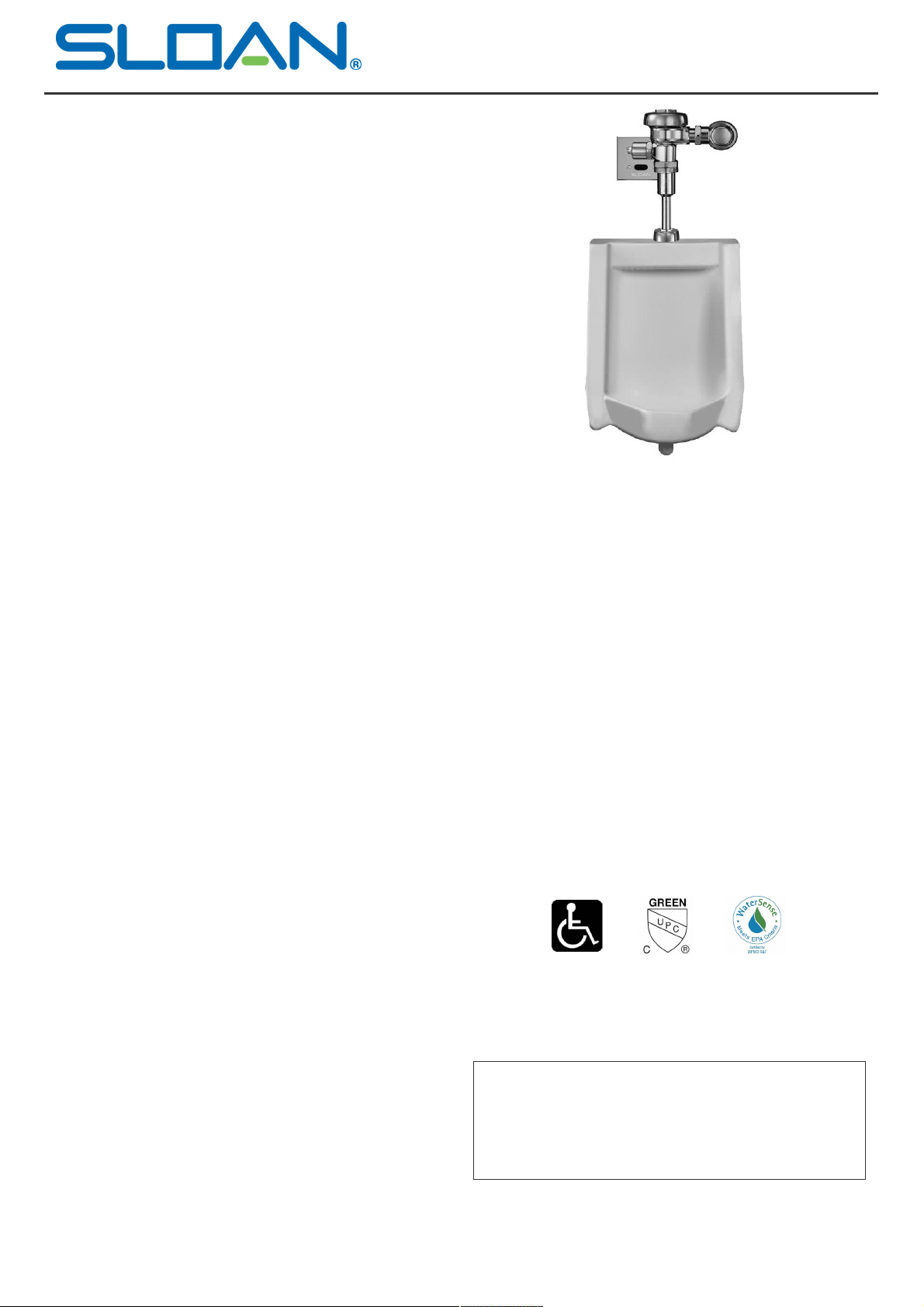

Complete system with exposed, sensor activated, Royal OPTIMA®
Flushometer and vitreous china urinal fixture.

►► Code Number:Code Number:

10001331

►► Flush CycleFlush Cycle

1.0 gpf / 3.8 lpf

►► SPECIFICATIONSSPECIFICATIONS

SpecificationsSpecifications

Quiet, exposed, sensor operated diaphragm type, chrome plated
Flushometer for either left or right hand supply and vitreous china
urinal with the following features:

Fixture SpecificationsFixture Specifications

Integral flushing rim

100 % factory flush tested

Wall hung vitreous china

Washdown flushing action

All mounting hardware included

Carrier not included

Vandal resistant strainer assembly included

Compliant to the applicable sections of ASME A112.19.2/CSA B45.1

¾” I.P.S. top spud inlet

2” NPT outlet flange

Flushometer and OPTIMA® ES-S UnitFlushometer and OPTIMA® ES-S Unit

Non-Hold-Open Integral Solenoid Operator

High Copper, Low Zinc Brass Castings for Dezincification Resistance

Non-Hold-Open Integral Solenoid Operator, Fixed Metering Bypass
and No External Volume Adjustment to Ensure Water Conservation

Diaphragm, Stop Seat and Vacuum Breaker to be molded from
PERMEX® Rubber Compound for Chloramine Resistance

Free Spinning Vandal Resistant Stop Cap

Adjustable Tailpiece

Sweat Solder Adapter w/Cover Tube and Cast Wall Flange w/Set
Screw

Optima® EL-1500 self-adaptive infrared sensor with indicator light

Chrome Plated Wall Cover Plate (for 2-gang electrical Box) with
Vandal Resistant Screw

High Back Pressure Vacuum Breaker Flush Connection with One­Piece Bottom Hex Coupling Nut, Spud Coupling and Flange for ¾”
Top Spud

High Chloramine Resistant PERMEX® Synthetic Rubber Diaphragm
with Linear Filtered Bypass and Vortex Cleansing ActionTM

¾” I.P.S. Screwdriver Bak-chek® Angle Stop

High Efficiency Flush accuracy

Valve Body, cover, Tailpiece and control Stop shall be in
conformance with ASTM Alloy classification for Semi-Red Brass.
Valve shall be in compliance to the applicable sections of ASSE
1037/ ASME A112.19.2/CSA B45.1

Sloan Standard Urinal
WEUS-1000.1331

2016-29-04 Page 1 of 2

SLOAN 10500 SEYMOUR AVE. ● FRANKLIN PARK, ● IL. SLOAN 10500 SEYMOUR AVE. ● FRANKLIN PARK, ● IL. 60131 60131

Ph: 1-800-9-VALVE-9 or 1-847-671-4300 ● Fax: [phone] or 1-847-671-4380 ● http://www.sloan.com

1. A

continuous,

invisible light

beam is
emitted from
the OPTIMA®

Sensor.

2. As the user
enters the

beam’s

effective range

(15” to 30”) the

beam is
reflected into
the OPTIMA®

Scanner

Window and

transformed

into a low

voltage

electrical

circuit. Once
activated, the
Output Circuit

continues in a

“hold” mode

for as long as

the user

remains within

the effective

range of the

Sensor.

3. When the
user steps

away from the

OPTIMA®

Sensor, the

circuit

immediately

initiates an

electrical “one-

time” signal

that operates

the Solenoid.

This initiates the

flushing cycle

to flush the
fixture. The

circuit then

automatically

resetsandisread

yfor the next

user

►► ELECTRICAL SPECIFICATIONSELECTRICAL SPECIFICATIONS

Control CircuitControl Circuit

Solid State

8 Second Arming Delay

24 VAC Input

24 VAC Output

24 Hour Sentinel Flush

Sensor RangeSensor Range

Nominal 15” – 30” (381 mm – 762 mm)

Self-adaptive Window ± 8”(203 mm)

Solenoid OperatorSolenoid Operator

24 VAC, 50/60 Hz

Transformer AccessoriesTransformer Accessories

EL-154 Transformer (120 VAC/24 VAC 50 VA)

EL-342 Transformer (240 VAC/24 VAC 50 VA)

►► DisclaimerDisclaimer

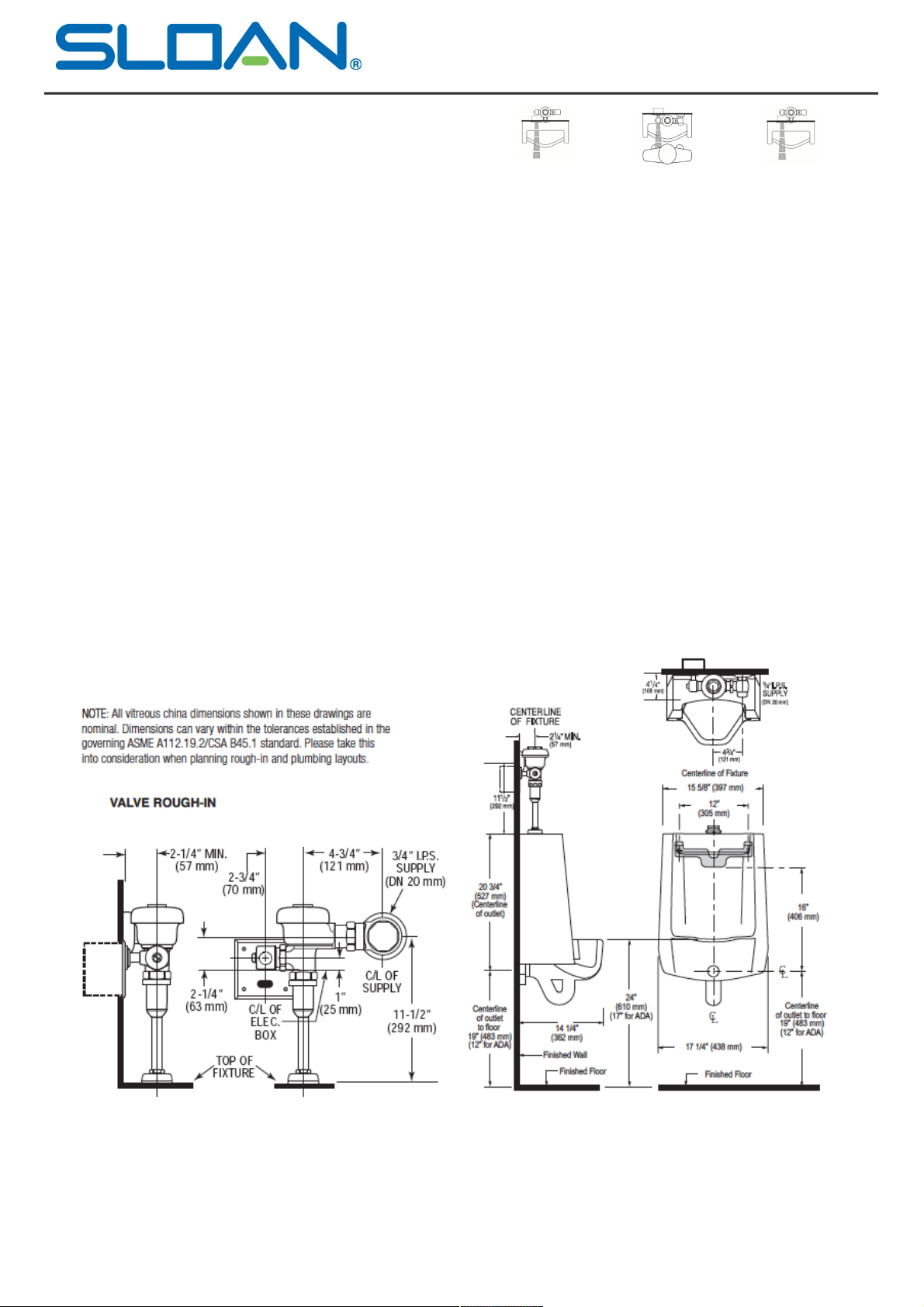

NOTE: All vitreous china dimensions shown in these drawings are
nominal and not to scale. Dimensions can vary within the
tolerances established in the governing ASME A112.19.2/CSA B45.1
standard. It is important to considers this when planning rough-in
and plumbing layouts.

All information contained within this document subject to change
without notice.
