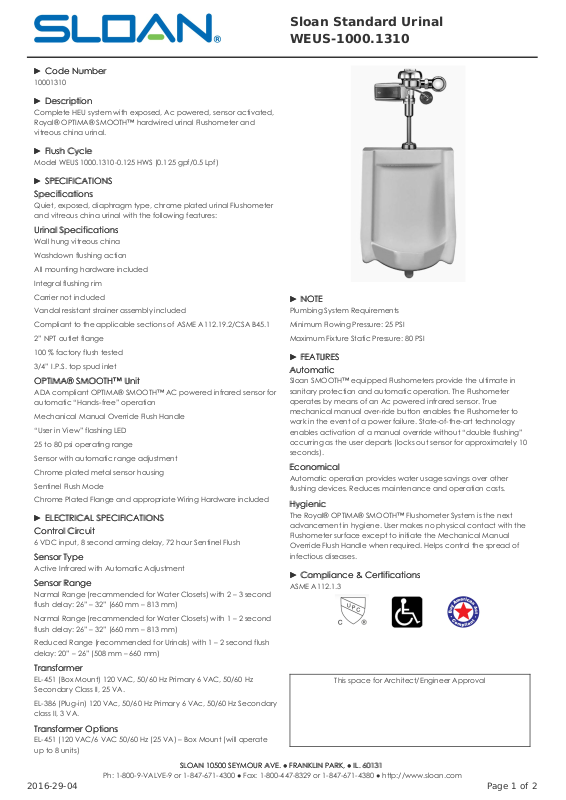

10001310
►► DescriptionDescription

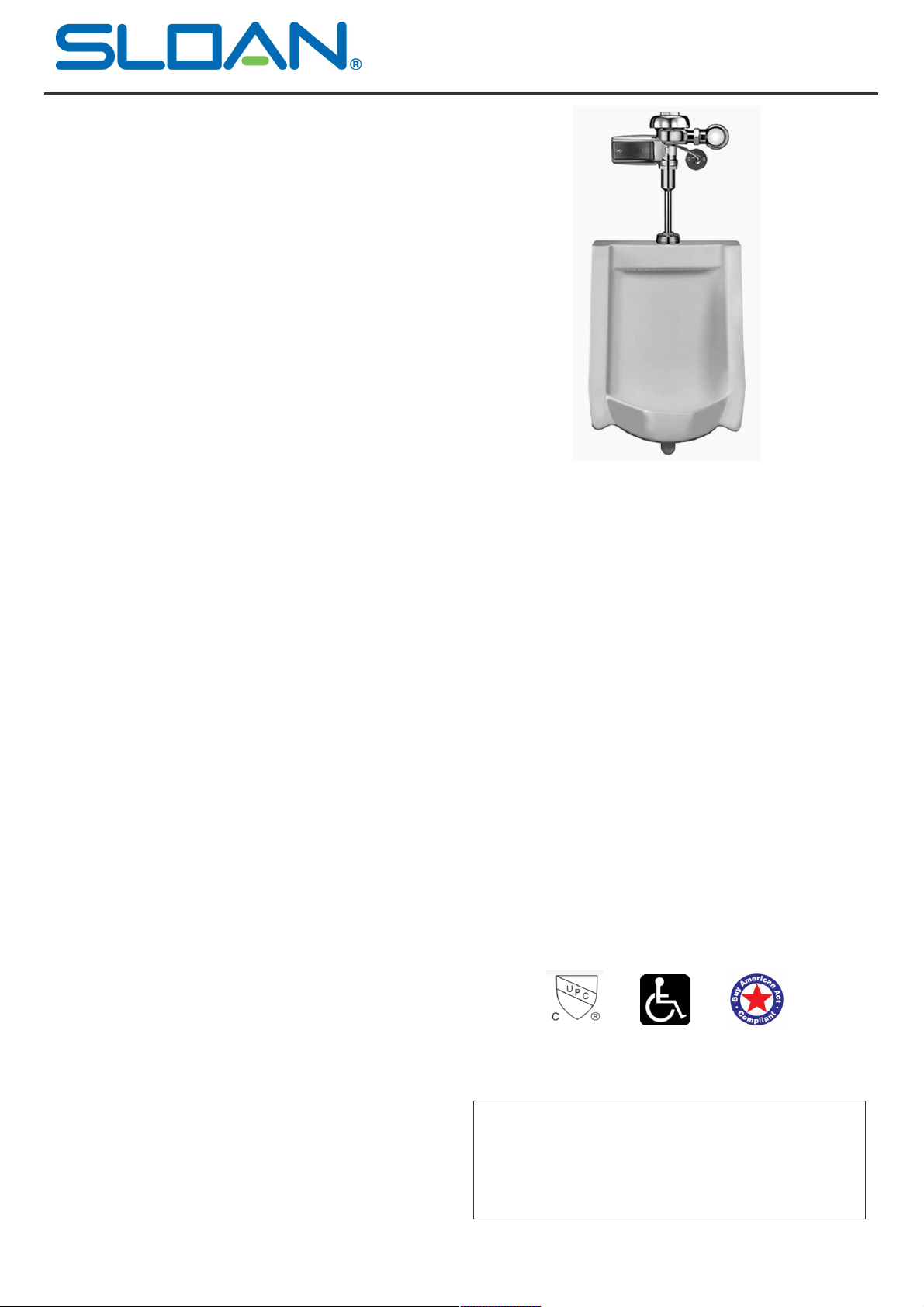

Complete HEU system with exposed, Ac powered, sensor activated,
Royal® OPTIMA® SMOOTH™ hardwired urinal Flushometer and
vitreous china urinal.
►► Flush CycleFlush Cycle
Model WEUS 1000.1310-0.125 HWS (0.125 gpf/0.5 Lpf)
►► SPECIFICATIONSSPECIFICATIONS
SpecificationsSpecifications
Quiet, exposed, diaphragm type, chrome plated urinal Flushometer
and vitreous china urinal with the following features:
Urinal SpecificationsUrinal Specifications
Wall hung vitreous china
Washdown flushing action
All mounting hardware included
Integral flushing rim
Carrier not included
Vandal resistant strainer assembly included
Compliant to the applicable sections of ASME A112.19.2/CSA B45.1
2” NPT outlet flange
100 % factory flush tested
3/4” I.P.S. top spud inlet
OPTIMA® SMOOTH™ UnitOPTIMA® SMOOTH™ Unit
ADA compliant OPTIMA® SMOOTH™ AC powered infrared sensor for
automatic “Hands-free” operation
Mechanical Manual Override Flush Handle
“User in View” flashing LED
25 to 80 psi operating range
Sensor with automatic range adjustment
Chrome plated metal sensor housing
Sentinel Flush Mode
Chrome Plated Flange and appropriate Wiring Hardware included
►► ELECTRICAL SPECIFICATIONSELECTRICAL SPECIFICATIONS
Control CircuitControl Circuit
6 VDC input, 8 second arming delay, 72 hour Sentinel Flush
Sensor TypeSensor Type
Active Infrared with Automatic Adjustment
Sensor RangeSensor Range
Normal Range (recommended for Water Closets) with 2 – 3 second
flush delay: 26” – 32” (660 mm – 813 mm)
Normal Range (recommended for Water Closets) with 1 – 2 second
flush delay: 26” – 32” (660 mm – 813 mm)
Reduced Range (recommended for Urinals) with 1 – 2 second flush
delay: 20” – 26” (508 mm – 660 mm)
TransformerTransformer
EL-451 (Box Mount) 120 VAC, 50/60 Hz Primary 6 VAC, 50/60 Hz
Secondary Class II, 25 VA.
EL-386 (Plug-in) 120 VAc, 50/60 Hz Primary 6 VAc, 50/60 Hz Secondary
class II, 3 VA.
Transformer OptionsTransformer Options
EL-451 (120 VAC/6 VAC 50/60 Hz (25 VA) – Box Mount (will operate
up to 8 units)
►► NOTENOTE
Plumbing System Requirements
Minimum Flowing Pressure: 25 PSI
Maximum Fixture Static Pressure: 80 PSI
►► FEATURESFEATURES
AutomaticAutomatic
Sloan SMOOTH™ equipped Flushometers provide the ultimate in
sanitary protection and automatic operation. The Flushometer
operates by means of an Ac powered infrared sensor. True
mechanical manual over-ride button enables the Flushometer to
work in the event of a power failure. State-of-the-art technology
enables activation of a manual override without “double flushing”
occurring as the user departs (locks out sensor for approximately 10
seconds).
EconomicalEconomical
Automatic operation provides water usage savings over other
flushing devices. Reduces maintenance and operation costs.
HygienicHygienic
The Royal® OPTIMA® SMOOTH™ Flushometer System is the next
advancement in hygiene. User makes no physical contact with the
Flushometer surface except to initiate the Mechanical Manual
Override Flush Handle when required. Helps control the spread of
infectious diseases.
►► Compliance & CertificationsCompliance & Certifications
ASME A112.1.3
This space for Architect/Engineer Approval
Sloan Standard Urinal
WEUS-1000.1310
2016-29-04 Page 1 of 2
SLOAN 10500 SEYMOUR AVE. ● FRANKLIN PARK, ● IL. SLOAN 10500 SEYMOUR AVE. ● FRANKLIN PARK, ● IL. 60131 60131
Ph: 1-800-9-VALVE-9 or 1-847-671-4300 ● Fax: 1-800-447-8329 or 1-847-671-4380 ● http://www.sloan.com
Page 2
EL-386 (120 VAC/6 VAC 50/60 Hz (3 VA) – Plug-in (will operate one
unit)

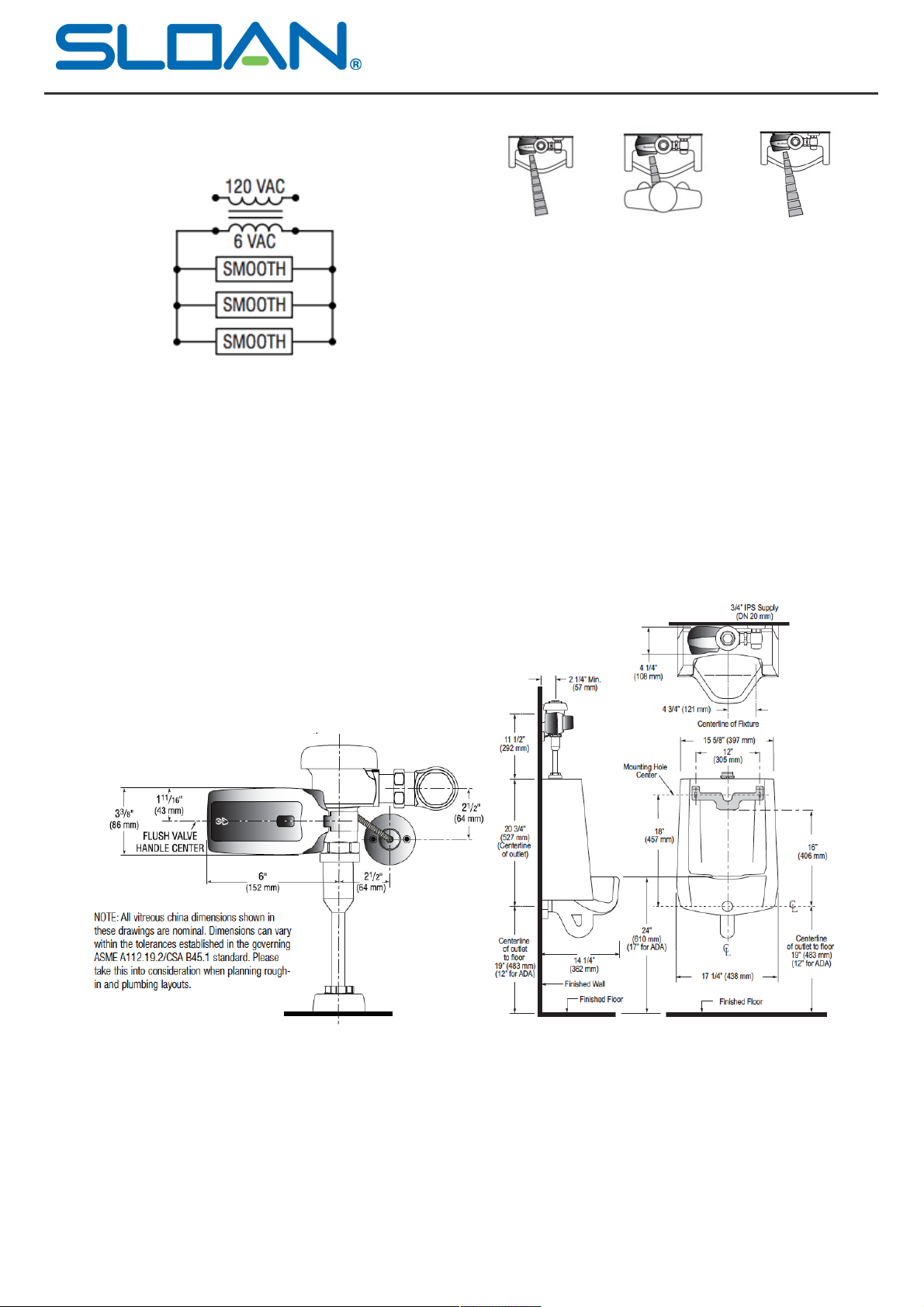

►► WIRING DIAGRAMWIRING DIAGRAM
One EL-386 Transformer serves one (1) OPTIMA® Closet/Urinal
Flushometer.
One EL-451 Transformer serves up to eight (8) Optima® closet/urinal
Flushometers. Specify part number and number of transformers
required accordingly.
►► OPERATIONOPERATION
1. A
continuous,
invisible light
beam is
emitted from
the SMOOTH™
unit’s Infrared
Sensor.
2. When the
user enters the
sensor's
effective
range, the Red
LED light in the
sensor window
flashes for eight
seconds. After
eight seconds
of sensing the
user, the light
will stop
flashing and
the unit waits
for the user to
step away
before initiating
a flush cycle.
3. When the
user steps
away, the unit
initiates a flush
cycle. The unit
then
automatically
resets and is
ready for the
next user.
►► ROUGH-INROUGH-IN
►► DisclaimerDisclaimer
NOTE: All vitreous china dimensions shown in these drawings are nominal and not to scale. Dimensions can vary within the tolerances
established in the governing ASME A112.19.2/CSA B45.1 standard. It is important to consider this when planning rough-in and plumbing
layouts.
All information contained within this document subject to change without notice.
Sloan Standard Urinal
WEUS-1000.1310
2016-29-04 Page 2 of 2
