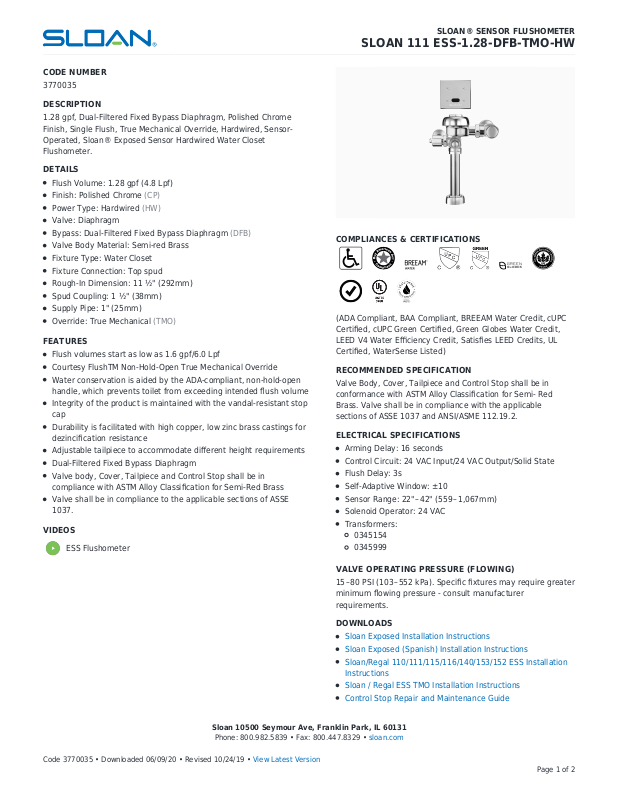

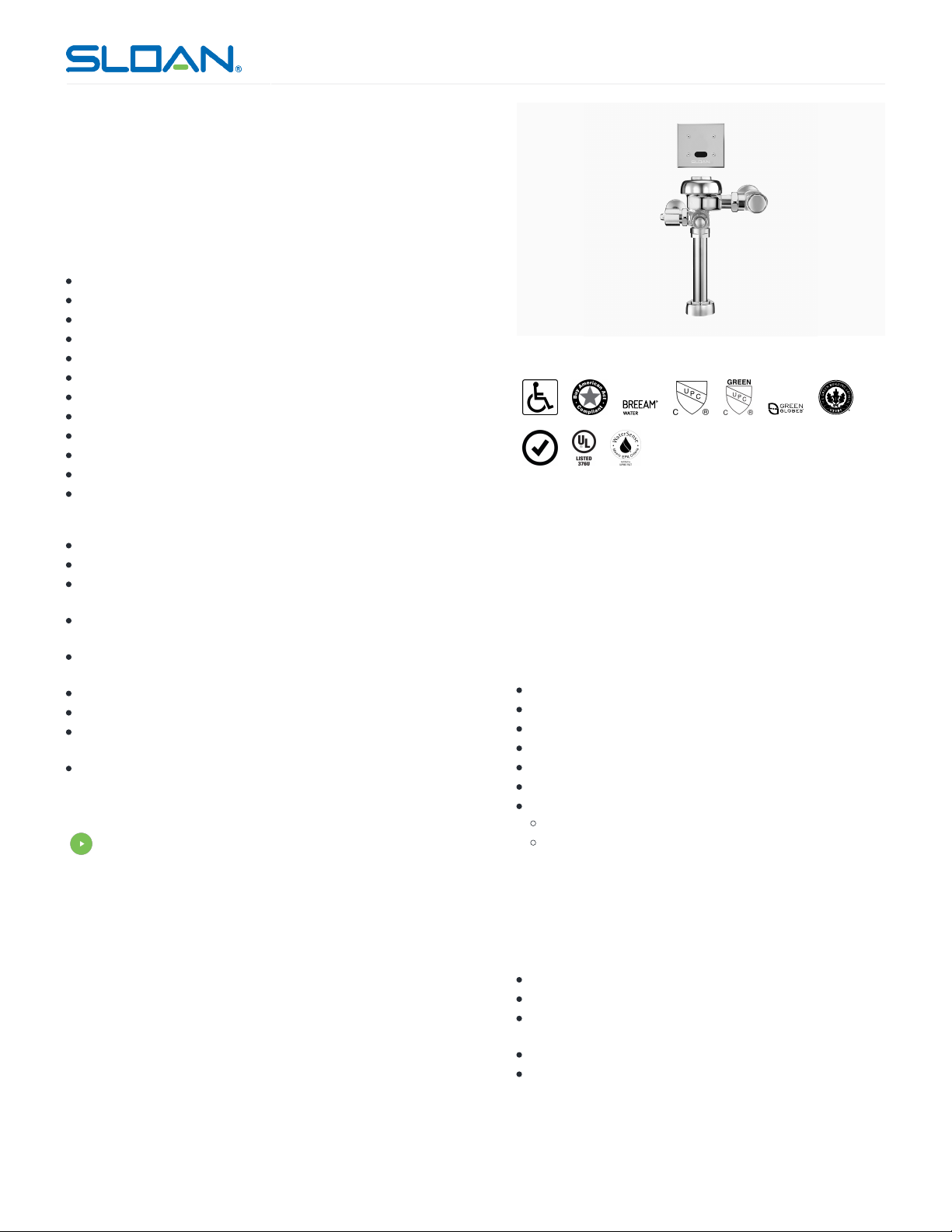

CODE NUMBER
3770035
DESCRIPTION
1.28 gpf, Dual-Filtered Fixed Bypass Diaphragm, Polished Chrome
Finish, Single Flush, True Mechanical Override, Hardwired, SensorOperated, Sloan® Exposed Sensor Hardwired Water Closet
Flushometer.
DETAILS
Flush Volume: 1.28 gpf (4.8 Lpf)
Finish: Polished Chrome (CP)
Power Type: Hardwired (HW)
Valve: Diaphragm
Bypass: Dual-Filtered Fixed Bypass Diaphragm (DFB)
Valve Body Material: Semi-red Brass
Fixture Type: Water Closet
Fixture Connection: Top spud
Rough-In Dimension: 11 ½" (292mm)
Spud Coupling: 1 ½" (38mm)
Supply Pipe: 1" (25mm)
Override: True Mechanical (TMO)
FEATURES
Flush volumes start as low as 1.6 gpf/6.0 Lpf
Courtesy FlushTM Non-Hold-Open True Mechanical Override
Water conservation is aided by the ADA-compliant, non-hold-open
handle, which prevents toilet from exceeding intended flush volume
Integrity of the product is maintained with the vandal-resistant stop
cap
Durability is facilitated with high copper, low zinc brass castings for
dezincification resistance
Adjustable tailpiece to accommodate different height requirements
Dual-Filtered Fixed Bypass Diaphragm
Valve body, Cover, Tailpiece and Control Stop shall be in
compliance with ASTM Alloy Classification for Semi-Red Brass
Valve shall be in compliance to the applicable sections of ASSE
1037.
VIDEOS
ESS Flushometer
SLOAN® SENSOR FLUSHOMETER
SLOAN 111 ESS-1.28-DFB-TMO-HW
COMPLIANCES & CERTIFICATIONS
(ADA Compliant, BAA Compliant, BREEAM Water Credit, cUPC
Certified, cUPC Green Certified, Green Globes Water Credit,
LEED V4 Water Efficiency Credit, Satisfies LEED Credits, UL
Certified, WaterSense Listed)
RECOMMENDED SPECIFICATION
Valve Body, Cover, Tailpiece and Control Stop shall be in
conformance with ASTM Alloy Classification for Semi- Red
Brass. Valve shall be in compliance with the applicable
sections of ASSE 1037 and ANSI/ASME 112.19.2.
ELECTRICAL SPECIFICATIONS
Arming Delay: 16 seconds
Control Circuit: 24 VAC Input/24 VAC Output/Solid State
Flush Delay: 3s
Self-Adaptive Window: ±10
Sensor Range: 22" – 42" (559 – 1,067mm)
Solenoid Operator: 24 VAC
Transformers:
0345154
0345999
Sloan 10500 Seymour Ave, Franklin Park, IL 60131
Phone: 800.982.5839 • Fax: 800.447.8329 • sloan.com
Code 3770035 • Downloaded 06/09/20 • Revised 10/24/19 • View Latest Version
VALVE OPERATING PRESSURE (FLOWING)
15 – 80 PSI (103 – 552 kPa). Specific fixtures may require greater
minimum flowing pressure - consult manufacturer
requirements.
DOWNLOADS
Sloan Exposed Installation Instructions
Sloan Exposed (Spanish) Installation Instructions
Sloan/Regal 110/111/115/116/140/153/152 ESS Installation
Instructions
Sloan / Regal ESS TMO Installation Instructions
Control Stop Repair and Maintenance Guide
Page 1 of 2
Page 2

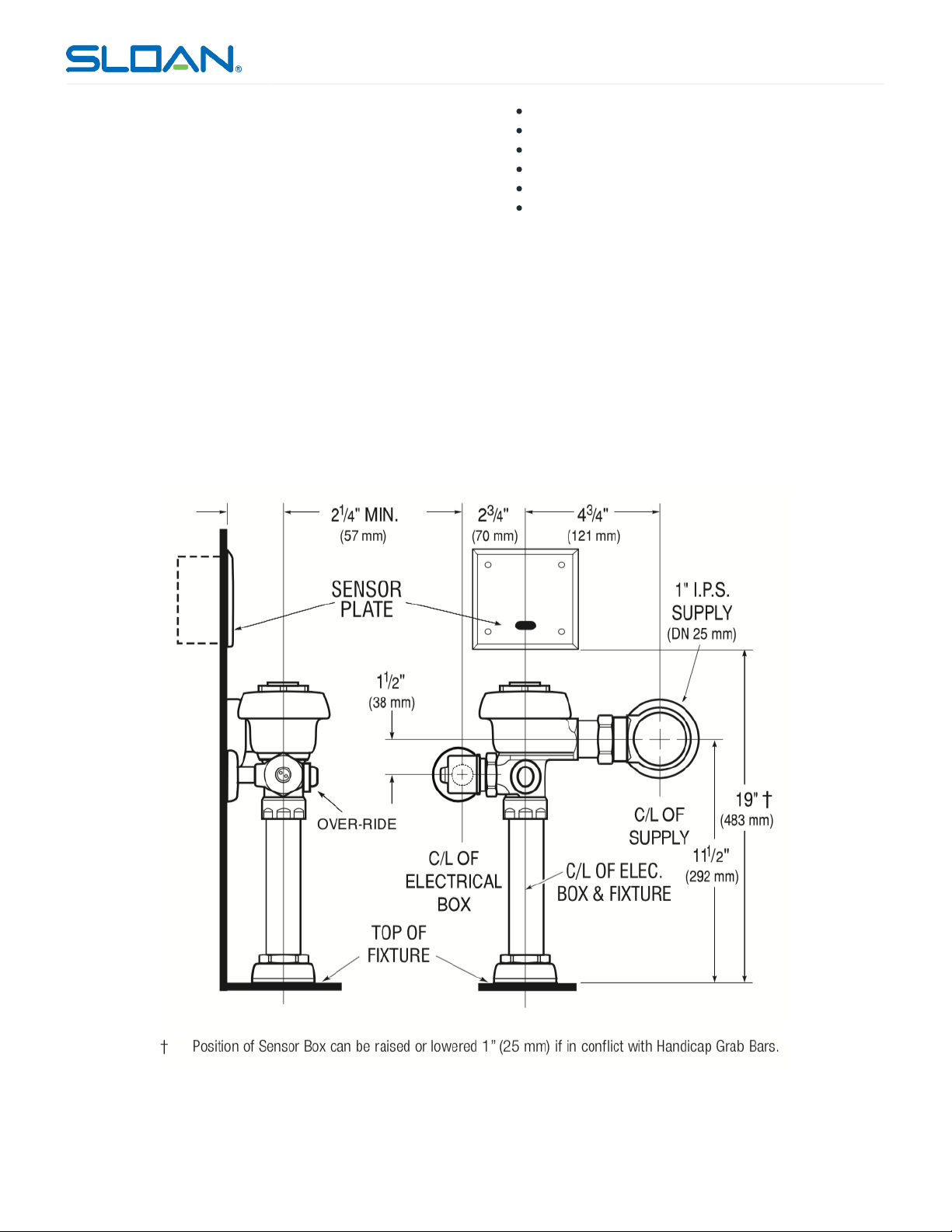

ROUGH-IN
SLOAN® SENSOR FLUSHOMETER
SLOAN 111 ESS-1.28-DFB-TMO-HW
Flush Connections Flanges Repair and Maintenance Guide
Tail Piece Repair and Maintenance Guide
Sloan Flushometer Repair and Maintenance Guide
Optima ESS Repair and Maintenance Guide
Sloan/Regal ESS Repair and Maintenance Guide
Additional Downloads
NOTES
All information contained within this document subject to
change without notice.
Looking for other variations of the SLOAN 111 ESS product?
View the general spec sheet with all options.
Find a compatible urinal for this flushometer.
Find a compatible water closet for this flushometer.
WaterSense compliant when used with a WaterSense
compliant fixture
