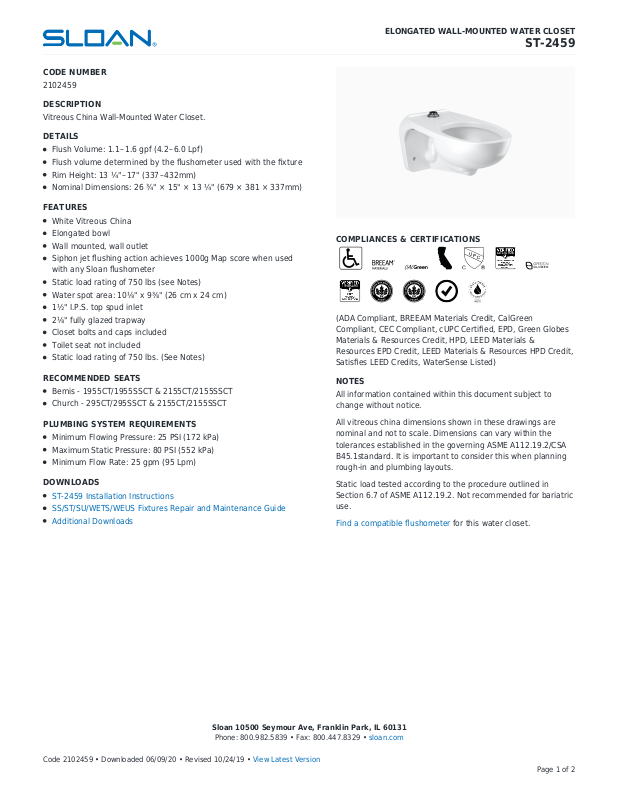

Page 1
CODE NUMBER
2102459
DESCRIPTION
Vitreous China Wall-Mounted Water Closet.
DETAILS
Flush Volume: 1.1 – 1.6 gpf (4.2 – 6.0 Lpf)
Flush volume determined by the flushometer used with the fixture
Rim Height: 13 ¼" – 17" (337 – 432mm)
Nominal Dimensions: 26 ¾" × 15" × 13 ¼" (679 × 381 × 337mm)
FEATURES
White Vitreous China
Elongated bowl
Wall mounted, wall outlet
Siphon jet flushing action achieves 1000g Map score when used
with any Sloan flushometer
Static load rating of 750 lbs (see Notes)
Water spot area: 10⅛" x 9⅜" (26 cm x 24 cm)
1½" I.P.S. top spud inlet
2⅛" fully glazed trapway
Closet bolts and caps included
Toilet seat not included
Static load rating of 750 lbs. (See Notes)
RECOMMENDED SEATS
Bemis - 1955CT/1955SSCT & 2155CT/2155SSCT
Church - 295CT/295SSCT & 2155CT/2155SSCT
PLUMBING SYSTEM REQUIREMENTS
Minimum Flowing Pressure: 25 PSI (172 kPa)
Maximum Static Pressure: 80 PSI (552 kPa)
Minimum Flow Rate: 25 gpm (95 Lpm)
DOWNLOADS
ST-2459 Installation Instructions
SS/ST/SU/WETS/WEUS Fixtures Repair and Maintenance Guide
Additional Downloads
ELONGATED WALL-MOUNTED WATER CLOSET
ST-2459
COMPLIANCES & CERTIFICATIONS
(ADA Compliant, BREEAM Materials Credit, CalGreen
Compliant, CEC Compliant, cUPC Certified, EPD, Green Globes
Materials & Resources Credit, HPD, LEED Materials &
Resources EPD Credit, LEED Materials & Resources HPD Credit,
Satisfies LEED Credits, WaterSense Listed)
NOTES
All information contained within this document subject to
change without notice.
All vitreous china dimensions shown in these drawings are
nominal and not to scale. Dimensions can vary within the
tolerances established in the governing ASME A112.19.2/CSA
B45.1standard. It is important to consider this when planning
rough-in and plumbing layouts.
Static load tested according to the procedure outlined in
Section 6.7 of ASME A112.19.2. Not recommended for bariatric
use.
Find a compatible flushometer for this water closet.
Sloan 10500 Seymour Ave, Franklin Park, IL 60131
Phone: 800.982.5839 • Fax: 800.447.8329 • sloan.com
Code 2102459 • Downloaded 06/09/20 • Revised 10/24/19 • View Latest Version
Page 1 of 2
Page 2

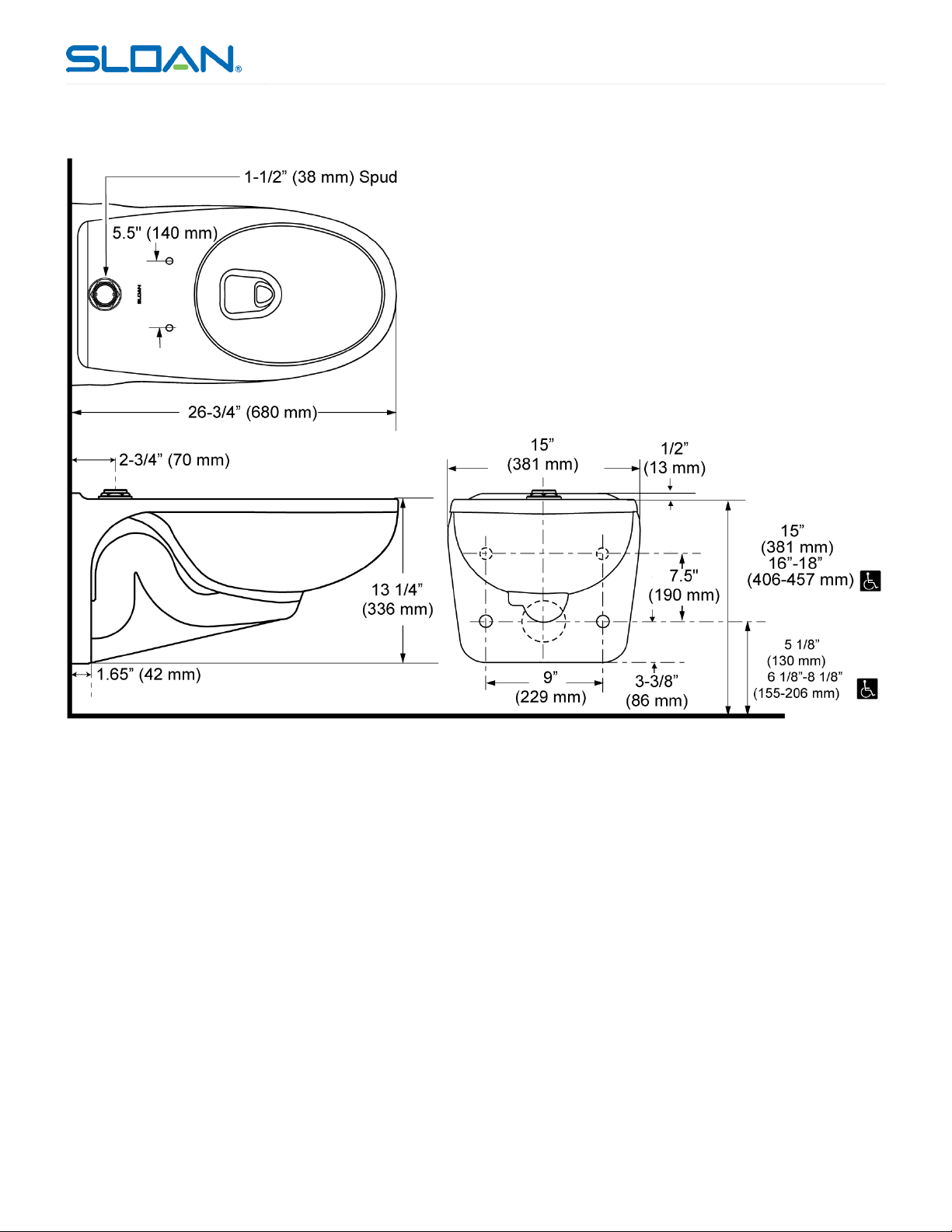

ROUGH-IN
ELONGATED WALL-MOUNTED WATER CLOSET
ST-2459
Sloan 10500 Seymour Ave, Franklin Park, IL 60131
Phone: 800.982.5839 • Fax: 800.447.8329 • sloan.com
Code 2102459 • Downloaded 06/09/20 • Revised 10/24/19 • View Latest Version
Page 2 of 2
