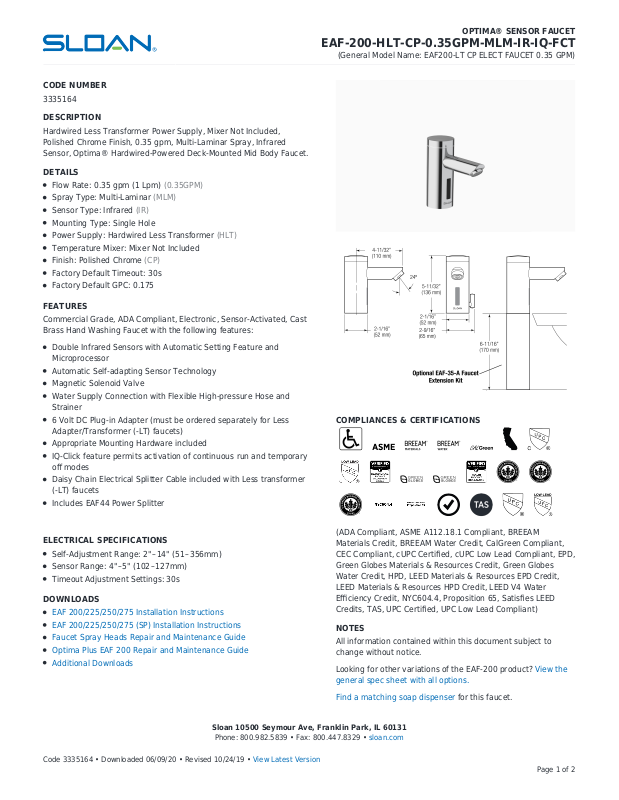

Page 1
CODE NUMBER
3335164
DESCRIPTION
Hardwired Less Transformer Power Supply, Mixer Not Included,
Polished Chrome Finish, 0.35 gpm, Multi-Laminar Spray, Infrared
Sensor, Optima® Hardwired-Powered Deck-Mounted Mid Body Faucet.
DETAILS
Flow Rate: 0.35 gpm (1 Lpm) (0.35GPM)
Spray Type: Multi-Laminar (MLM)
Sensor Type: Infrared (IR)
Mounting Type: Single Hole
Power Supply: Hardwired Less Transformer (HLT)
Temperature Mixer: Mixer Not Included
Finish: Polished Chrome (CP)
Factory Default Timeout: 30s
Factory Default GPC: 0.175
FEATURES
Commercial Grade, ADA Compliant, Electronic, Sensor-Activated, Cast
Brass Hand Washing Faucet with the following features:
Double Infrared Sensors with Automatic Setting Feature and
Microprocessor
Automatic Self-adapting Sensor Technology
Magnetic Solenoid Valve
Water Supply Connection with Flexible High-pressure Hose and
Strainer
6 Volt DC Plug-in Adapter (must be ordered separately for Less
Adapter/Transformer (-LT) faucets)
Appropriate Mounting Hardware included
IQ-Click feature permits activation of continuous run and temporary
off modes
Daisy Chain Electrical Splitter Cable included with Less transformer
(-LT) faucets
Includes EAF44 Power Splitter
ELECTRICAL SPECIFICATIONS
Self-Adjustment Range: 2" – 14" (51 – 356mm)
Sensor Range: 4" – 5" (102 – 127mm)
Timeout Adjustment Settings: 30s
DOWNLOADS
EAF 200/225/250/275 Installation Instructions
EAF 200/225/250/275 (SP) Installation Instructions
Faucet Spray Heads Repair and Maintenance Guide
Optima Plus EAF 200 Repair and Maintenance Guide
Additional Downloads
OPTIMA® SENSOR FAUCET
EAF-200-HLT-CP-0.35GPM-MLM-IR-IQ-FCT
(General Model Name: EAF200-LT CP ELECT FAUCET 0.35 GPM)
COMPLIANCES & CERTIFICATIONS
(ADA Compliant, ASME A112.18.1 Compliant, BREEAM
Materials Credit, BREEAM Water Credit, CalGreen Compliant,
CEC Compliant, cUPC Certified, cUPC Low Lead Compliant, EPD,
Green Globes Materials & Resources Credit, Green Globes
Water Credit, HPD, LEED Materials & Resources EPD Credit,
LEED Materials & Resources HPD Credit, LEED V4 Water
Efficiency Credit, NYC604.4, Proposition 65, Satisfies LEED
Credits, TAS, UPC Certified, UPC Low Lead Compliant)
NOTES
All information contained within this document subject to
change without notice.
Looking for other variations of the EAF-200 product? View the
general spec sheet with all options.
Find a matching soap dispenser for this faucet.
Sloan 10500 Seymour Ave, Franklin Park, IL 60131
Phone: 800.982.5839 • Fax: 800.447.8329 • sloan.com
Code 3335164 • Downloaded 06/09/20 • Revised 10/24/19 • View Latest Version
Page 1 of 2
Page 2

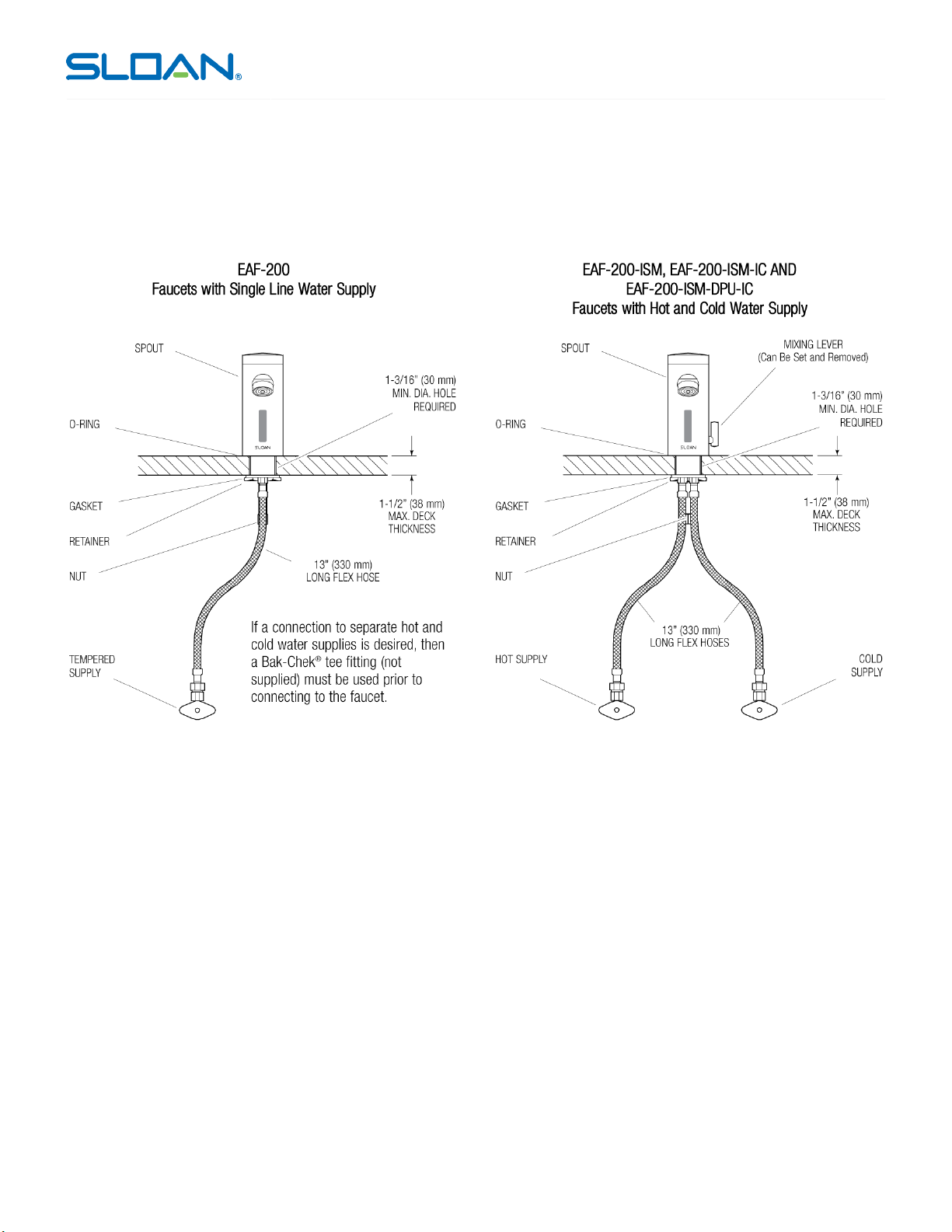

ROUGH-IN
OPTIMA® SENSOR FAUCET
EAF-200-HLT-CP-0.35GPM-MLM-IR-IQ-FCT
(General Model Name: EAF200-LT CP ELECT FAUCET 0.35 GPM)
Find a compatible sink for this faucet.
WARRANTY
3 Year
Sloan 10500 Seymour Ave, Franklin Park, IL 60131
Phone: 800.982.5839 • Fax: 800.447.8329 • sloan.com
Code 3335164 • Downloaded 06/09/20 • Revised 10/24/19 • View Latest Version
Page 2 of 2
