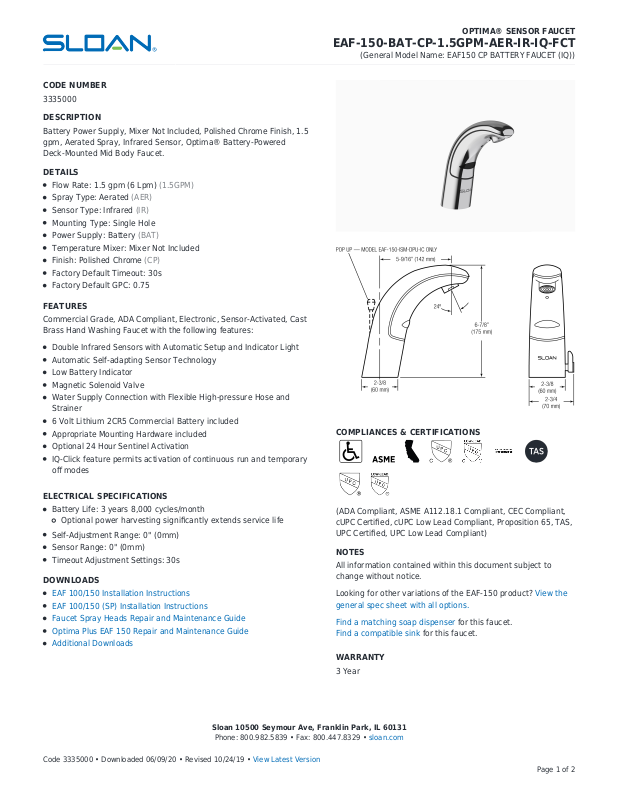

Page 1
CODE NUMBER
3335000
DESCRIPTION
Battery Power Supply, Mixer Not Included, Polished Chrome Finish, 1.5
gpm, Aerated Spray, Infrared Sensor, Optima® Battery-Powered
Deck-Mounted Mid Body Faucet.
DETAILS
Flow Rate: 1.5 gpm (6 Lpm) (1.5GPM)
Spray Type: Aerated (AER)
Sensor Type: Infrared (IR)
Mounting Type: Single Hole
Power Supply: Battery (BAT)
Temperature Mixer: Mixer Not Included
Finish: Polished Chrome (CP)
Factory Default Timeout: 30s
Factory Default GPC: 0.75
FEATURES
Commercial Grade, ADA Compliant, Electronic, Sensor-Activated, Cast
Brass Hand Washing Faucet with the following features:
Double Infrared Sensors with Automatic Setup and Indicator Light
Automatic Self-adapting Sensor Technology
Low Battery Indicator
Magnetic Solenoid Valve
Water Supply Connection with Flexible High-pressure Hose and
Strainer
6 Volt Lithium 2CR5 Commercial Battery included
Appropriate Mounting Hardware included
Optional 24 Hour Sentinel Activation
IQ-Click feature permits activation of continuous run and temporary
off modes
OPTIMA® SENSOR FAUCET
EAF-150-BAT-CP-1.5GPM-AER-IR-IQ-FCT
(General Model Name: EAF150 CP BATTERY FAUCET (IQ))
COMPLIANCES & CERTIFICATIONS
ELECTRICAL SPECIFICATIONS
Battery Life: 3 years 8,000 cycles/month
Optional power harvesting significantly extends service life
Self-Adjustment Range: 0" (0mm)
Sensor Range: 0" (0mm)
Timeout Adjustment Settings: 30s
DOWNLOADS
EAF 100/150 Installation Instructions
EAF 100/150 (SP) Installation Instructions
Faucet Spray Heads Repair and Maintenance Guide
Optima Plus EAF 150 Repair and Maintenance Guide
Additional Downloads
Sloan 10500 Seymour Ave, Franklin Park, IL 60131
Phone: 800.982.5839 • Fax: 800.447.8329 • sloan.com
Code 3335000 • Downloaded 06/09/20 • Revised 10/24/19 • View Latest Version
(ADA Compliant, ASME A112.18.1 Compliant, CEC Compliant,
cUPC Certified, cUPC Low Lead Compliant, Proposition 65, TAS,
UPC Certified, UPC Low Lead Compliant)
NOTES
All information contained within this document subject to
change without notice.
Looking for other variations of the EAF-150 product? View the
general spec sheet with all options.
Find a matching soap dispenser for this faucet.
Find a compatible sink for this faucet.
WARRANTY
3 Year
Page 1 of 2
Page 2

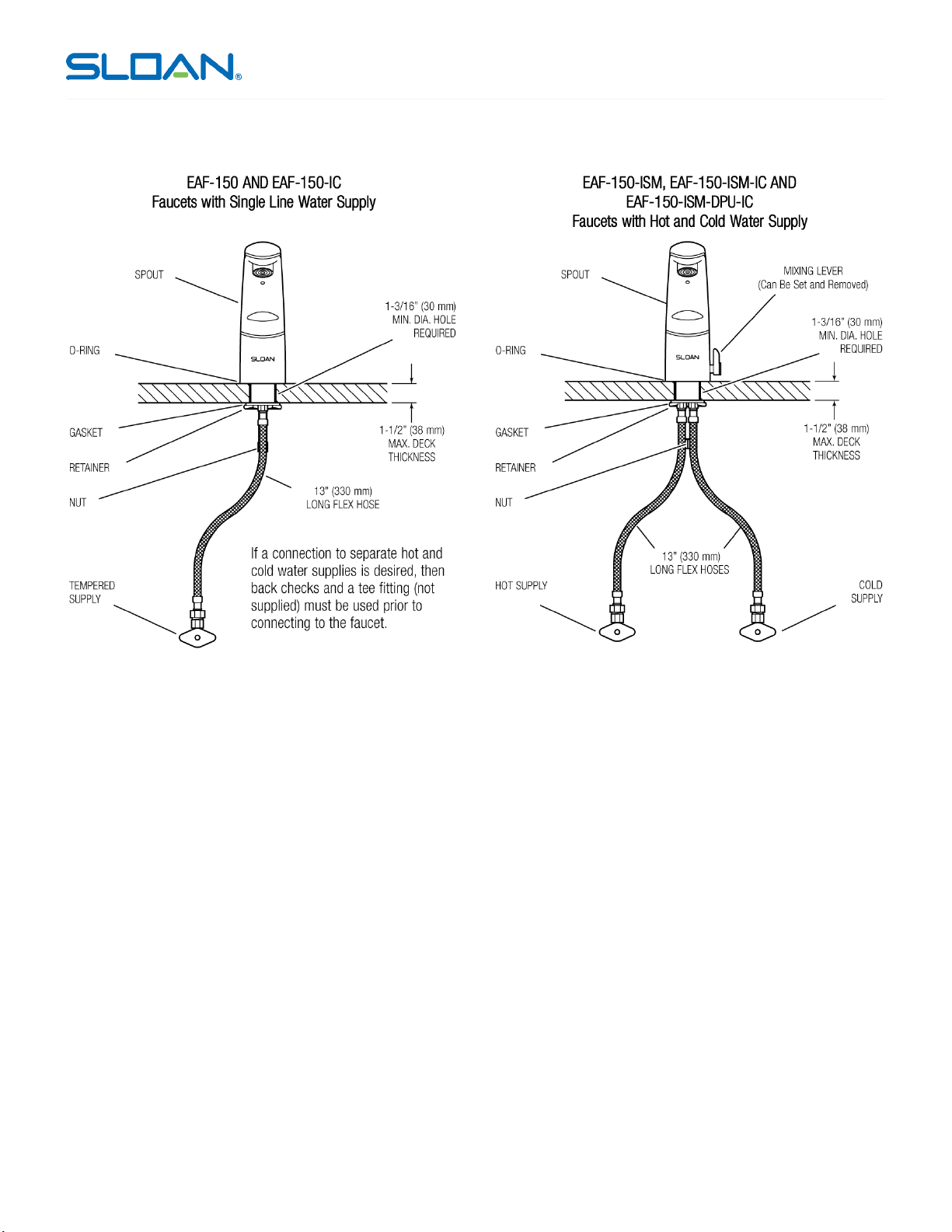

ROUGH-IN
OPTIMA® SENSOR FAUCET
EAF-150-BAT-CP-1.5GPM-AER-IR-IQ-FCT
(General Model Name: EAF150 CP BATTERY FAUCET (IQ))
Sloan 10500 Seymour Ave, Franklin Park, IL 60131
Phone: 800.982.5839 • Fax: 800.447.8329 • sloan.com
Code 3335000 • Downloaded 06/09/20 • Revised 10/24/19 • View Latest Version
Page 2 of 2
