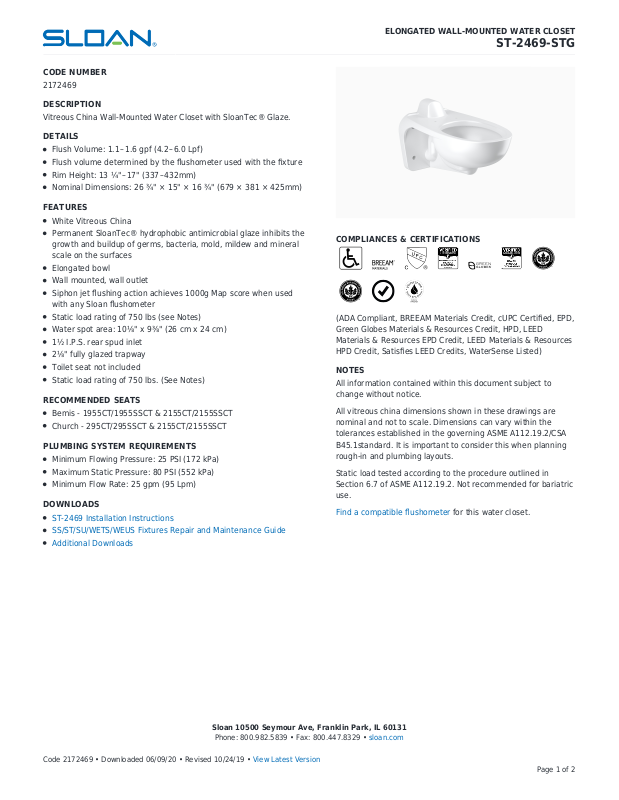

Page 1
CODE NUMBER
2172469
DESCRIPTION
Vitreous China Wall-Mounted Water Closet with SloanTec® Glaze.
DETAILS
Flush Volume: 1.1 – 1.6 gpf (4.2 – 6.0 Lpf)
Flush volume determined by the flushometer used with the fixture
Rim Height: 13 ¼" – 17" (337 – 432mm)
Nominal Dimensions: 26 ¾" × 15" × 16 ¾" (679 × 381 × 425mm)
FEATURES
White Vitreous China
Permanent SloanTec® hydrophobic antimicrobial glaze inhibits the
growth and buildup of germs, bacteria, mold, mildew and mineral
scale on the surfaces
Elongated bowl
Wall mounted, wall outlet
Siphon jet flushing action achieves 1000g Map score when used
with any Sloan flushometer
Static load rating of 750 lbs (see Notes)
Water spot area: 10⅛" x 9⅜" (26 cm x 24 cm)
1½ I.P.S. rear spud inlet
2⅛" fully glazed trapway
Toilet seat not included
Static load rating of 750 lbs. (See Notes)
RECOMMENDED SEATS
Bemis - 1955CT/1955SSCT & 2155CT/2155SSCT
Church - 295CT/295SSCT & 2155CT/2155SSCT
PLUMBING SYSTEM REQUIREMENTS
Minimum Flowing Pressure: 25 PSI (172 kPa)
Maximum Static Pressure: 80 PSI (552 kPa)
Minimum Flow Rate: 25 gpm (95 Lpm)
DOWNLOADS
ST-2469 Installation Instructions
SS/ST/SU/WETS/WEUS Fixtures Repair and Maintenance Guide
Additional Downloads
ELONGATED WALL-MOUNTED WATER CLOSET
ST-2469-STG
COMPLIANCES & CERTIFICATIONS
(ADA Compliant, BREEAM Materials Credit, cUPC Certified, EPD,
Green Globes Materials & Resources Credit, HPD, LEED
Materials & Resources EPD Credit, LEED Materials & Resources
HPD Credit, Satisfies LEED Credits, WaterSense Listed)
NOTES
All information contained within this document subject to
change without notice.
All vitreous china dimensions shown in these drawings are
nominal and not to scale. Dimensions can vary within the
tolerances established in the governing ASME A112.19.2/CSA
B45.1standard. It is important to consider this when planning
rough-in and plumbing layouts.
Static load tested according to the procedure outlined in
Section 6.7 of ASME A112.19.2. Not recommended for bariatric
use.
Find a compatible flushometer for this water closet.
Sloan 10500 Seymour Ave, Franklin Park, IL 60131
Phone: 800.982.5839 • Fax: 800.447.8329 • sloan.com
Code 2172469 • Downloaded 06/09/20 • Revised 10/24/19 • View Latest Version
Page 1 of 2
Page 2

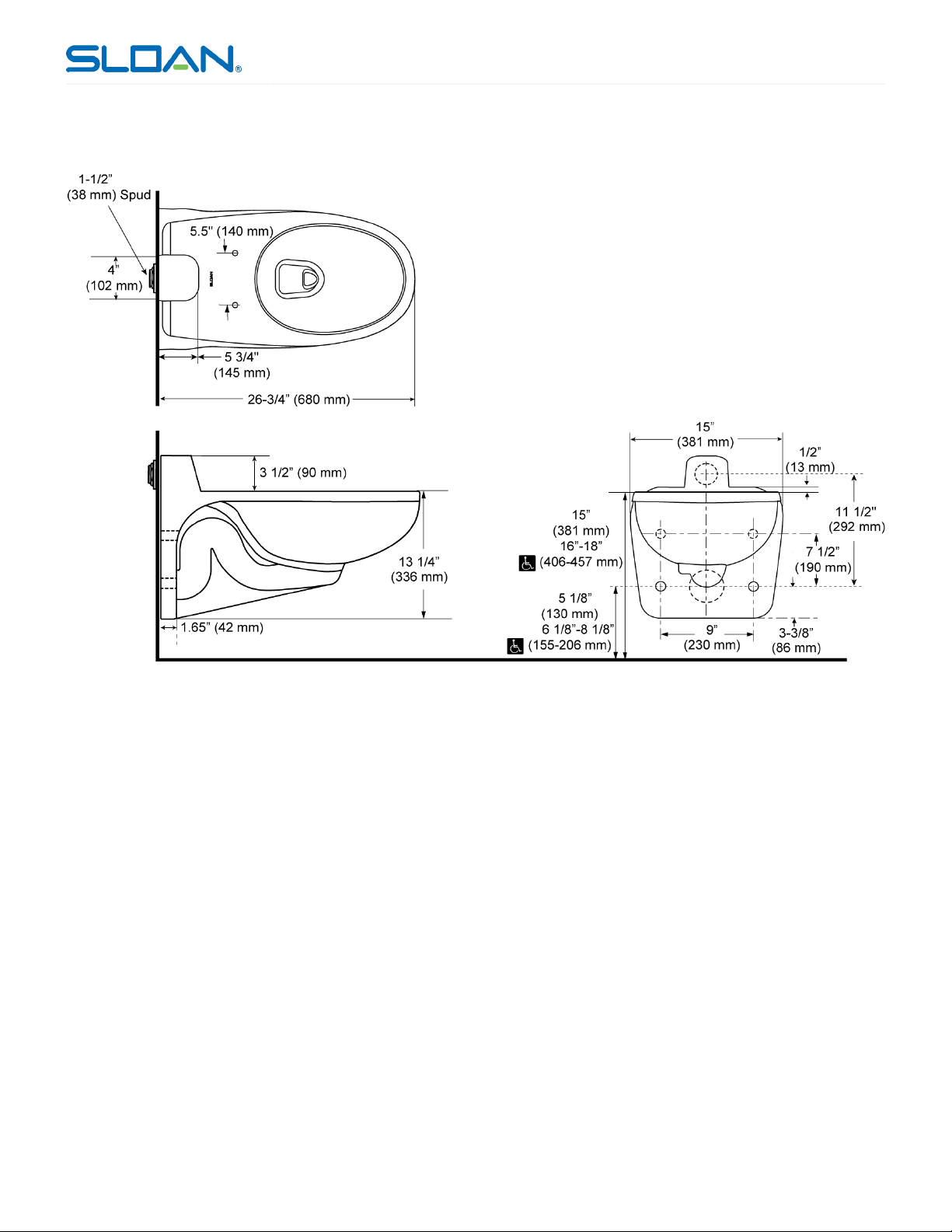

ROUGH-IN
ELONGATED WALL-MOUNTED WATER CLOSET
ST-2469-STG
Sloan 10500 Seymour Ave, Franklin Park, IL 60131
Phone: 800.982.5839 • Fax: 800.447.8329 • sloan.com
Code 2172469 • Downloaded 06/09/20 • Revised 10/24/19 • View Latest Version
Page 2 of 2
