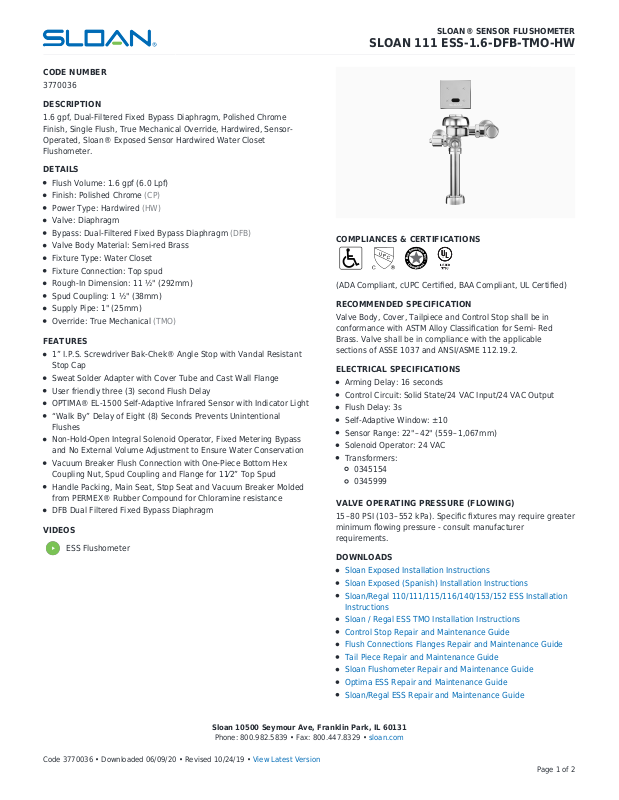

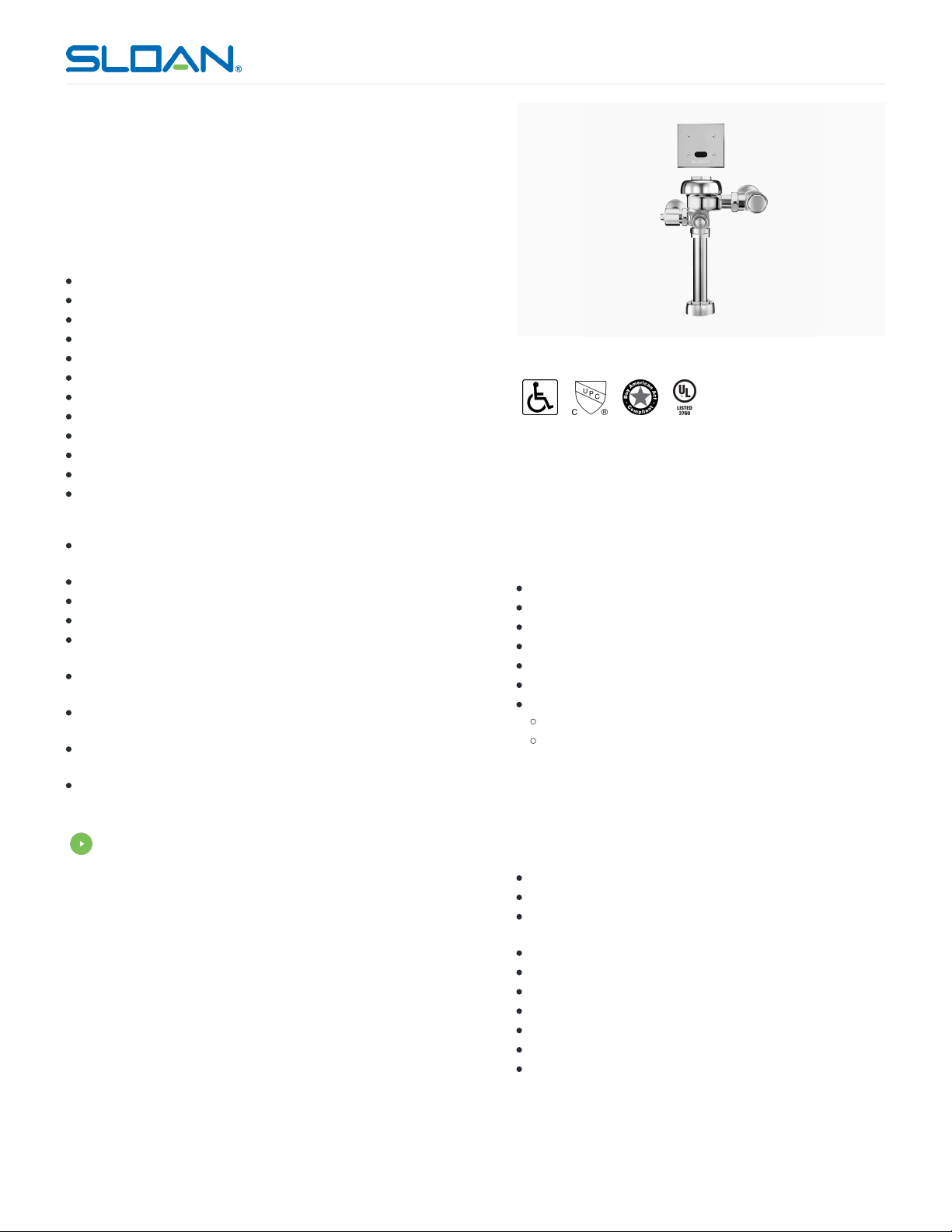

CODE NUMBER
3770036
DESCRIPTION
1.6 gpf, Dual-Filtered Fixed Bypass Diaphragm, Polished Chrome
Finish, Single Flush, True Mechanical Override, Hardwired, SensorOperated, Sloan® Exposed Sensor Hardwired Water Closet
Flushometer.
DETAILS
Flush Volume: 1.6 gpf (6.0 Lpf)
Finish: Polished Chrome (CP)
Power Type: Hardwired (HW)
Valve: Diaphragm
Bypass: Dual-Filtered Fixed Bypass Diaphragm (DFB)
Valve Body Material: Semi-red Brass
Fixture Type: Water Closet
Fixture Connection: Top spud
Rough-In Dimension: 11 ½" (292mm)
Spud Coupling: 1 ½" (38mm)
Supply Pipe: 1" (25mm)
Override: True Mechanical (TMO)
FEATURES
1” I.P.S. Screwdriver Bak-Chek® Angle Stop with Vandal Resistant
Stop Cap
Sweat Solder Adapter with Cover Tube and Cast Wall Flange
User friendly three (3) second Flush Delay
OPTIMA® EL-1500 Self-Adaptive Infrared Sensor with Indicator Light
“Walk By” Delay of Eight (8) Seconds Prevents Unintentional
Flushes
Non-Hold-Open Integral Solenoid Operator, Fixed Metering Bypass
and No External Volume Adjustment to Ensure Water Conservation
Vacuum Breaker Flush Connection with One-Piece Bottom Hex
Coupling Nut, Spud Coupling and Flange for 11⁄2” Top Spud
Handle Packing, Main Seat, Stop Seat and Vacuum Breaker Molded
from PERMEX® Rubber Compound for Chloramine resistance
DFB Dual Filtered Fixed Bypass Diaphragm
VIDEOS
ESS Flushometer
SLOAN® SENSOR FLUSHOMETER
SLOAN 111 ESS-1.6-DFB-TMO-HW
COMPLIANCES & CERTIFICATIONS
(ADA Compliant, cUPC Certified, BAA Compliant, UL Certified)
RECOMMENDED SPECIFICATION
Valve Body, Cover, Tailpiece and Control Stop shall be in
conformance with ASTM Alloy Classification for Semi- Red
Brass. Valve shall be in compliance with the applicable
sections of ASSE 1037 and ANSI/ASME 112.19.2.
ELECTRICAL SPECIFICATIONS
Arming Delay: 16 seconds
Control Circuit: Solid State/24 VAC Input/24 VAC Output
Flush Delay: 3s
Self-Adaptive Window: ±10
Sensor Range: 22" – 42" (559 – 1,067mm)
Solenoid Operator: 24 VAC
Transformers:
0345154
0345999
VALVE OPERATING PRESSURE (FLOWING)
15 – 80 PSI (103 – 552 kPa). Specific fixtures may require greater
minimum flowing pressure - consult manufacturer
requirements.
DOWNLOADS
Sloan Exposed Installation Instructions
Sloan Exposed (Spanish) Installation Instructions
Sloan/Regal 110/111/115/116/140/153/152 ESS Installation
Instructions
Sloan / Regal ESS TMO Installation Instructions
Control Stop Repair and Maintenance Guide
Flush Connections Flanges Repair and Maintenance Guide
Tail Piece Repair and Maintenance Guide
Sloan Flushometer Repair and Maintenance Guide
Optima ESS Repair and Maintenance Guide
Sloan/Regal ESS Repair and Maintenance Guide
Sloan 10500 Seymour Ave, Franklin Park, IL 60131
Phone: 800.982.5839 • Fax: 800.447.8329 • sloan.com
Code 3770036 • Downloaded 06/09/20 • Revised 10/24/19 • View Latest Version
Page 1 of 2
Page 2
ROUGH-IN
SLOAN® SENSOR FLUSHOMETER
SLOAN 111 ESS-1.6-DFB-TMO-HW
Additional Downloads
NOTES
All information contained within this document subject to
change without notice.
Looking for other variations of the SLOAN 111 ESS product?
View the general spec sheet with all options.
Find a compatible urinal for this flushometer.
Find a compatible water closet for this flushometer.
