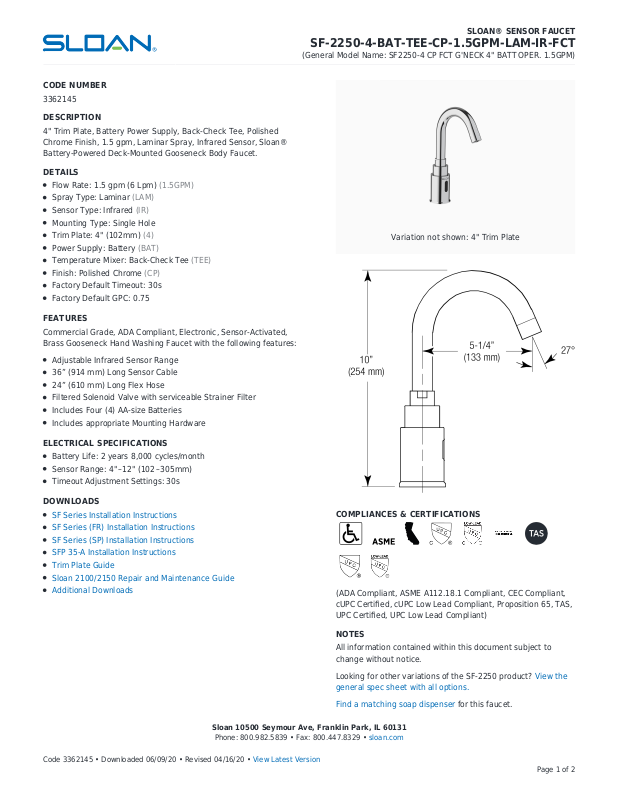

Page 1
CODE NUMBER
3362145
DESCRIPTION
4" Trim Plate, Battery Power Supply, Back-Check Tee, Polished
Chrome Finish, 1.5 gpm, Laminar Spray, Infrared Sensor, Sloan®
Battery-Powered Deck-Mounted Gooseneck Body Faucet.
DETAILS
Flow Rate: 1.5 gpm (6 Lpm) (1.5GPM)
Spray Type: Laminar (LAM)
Sensor Type: Infrared (IR)
Mounting Type: Single Hole
Trim Plate: 4" (102mm) (4)
Power Supply: Battery (BAT)
Temperature Mixer: Back-Check Tee (TEE)
Finish: Polished Chrome (CP)
Factory Default Timeout: 30s
Factory Default GPC: 0.75
FEATURES
Commercial Grade, ADA Compliant, Electronic, Sensor-Activated,
Brass Gooseneck Hand Washing Faucet with the following features:
Adjustable Infrared Sensor Range
36” (914 mm) Long Sensor Cable
24” (610 mm) Long Flex Hose
Filtered Solenoid Valve with serviceable Strainer Filter
Includes Four (4) AA-size Batteries
Includes appropriate Mounting Hardware
SLOAN® SENSOR FAUCET
SF-2250-4-BAT-TEE-CP-1.5GPM-LAM-IR-FCT
(General Model Name: SF2250-4 CP FCT G'NECK 4" BATT OPER. 1.5GPM)
Variation not shown: 4" Trim Plate
ELECTRICAL SPECIFICATIONS
Battery Life: 2 years 8,000 cycles/month
Sensor Range: 4" – 12" (102 – 305mm)
Timeout Adjustment Settings: 30s
DOWNLOADS
SF Series Installation Instructions
SF Series (FR) Installation Instructions
SF Series (SP) Installation Instructions
SFP 35-A Installation Instructions
Trim Plate Guide
Sloan 2100/2150 Repair and Maintenance Guide
Additional Downloads
COMPLIANCES & CERTIFICATIONS
(ADA Compliant, ASME A112.18.1 Compliant, CEC Compliant,
cUPC Certified, cUPC Low Lead Compliant, Proposition 65, TAS,
UPC Certified, UPC Low Lead Compliant)
NOTES
All information contained within this document subject to
change without notice.
Looking for other variations of the SF-2250 product? View the
general spec sheet with all options.
Find a matching soap dispenser for this faucet.
Sloan 10500 Seymour Ave, Franklin Park, IL 60131
Phone: 800.982.5839 • Fax: 800.447.8329 • sloan.com
Code 3362145 • Downloaded 06/09/20 • Revised 04/16/20 • View Latest Version
Page 1 of 2
Page 2

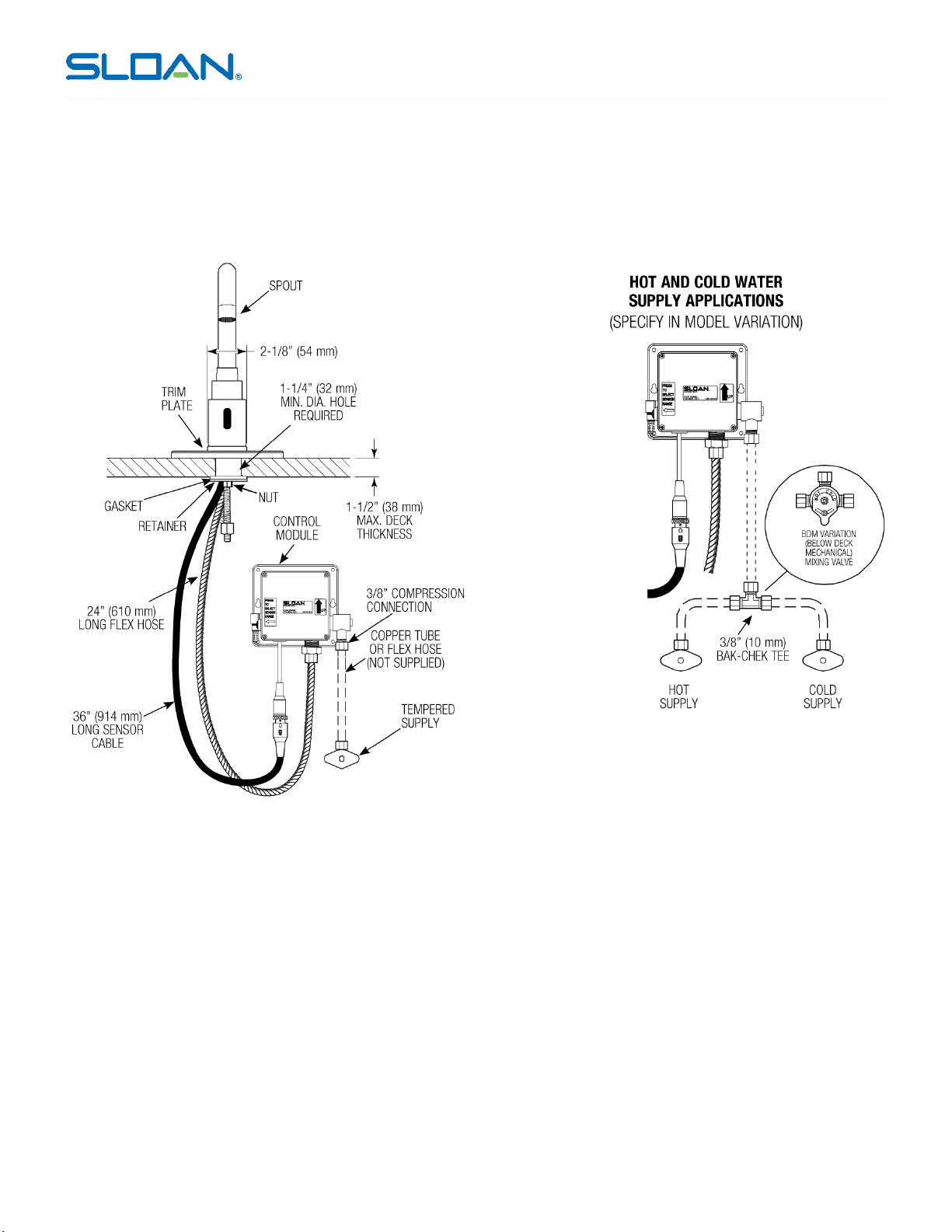

ROUGH-IN
SLOAN® SENSOR FAUCET
SF-2250-4-BAT-TEE-CP-1.5GPM-LAM-IR-FCT
(General Model Name: SF2250-4 CP FCT G'NECK 4" BATT OPER. 1.5GPM)
Find a compatible sink for this faucet.
WARRANTY
1 Year
Sloan 10500 Seymour Ave, Franklin Park, IL 60131
Phone: 800.982.5839 • Fax: 800.447.8329 • sloan.com
Code 3362145 • Downloaded 06/09/20 • Revised 04/16/20 • View Latest Version
Page 2 of 2
