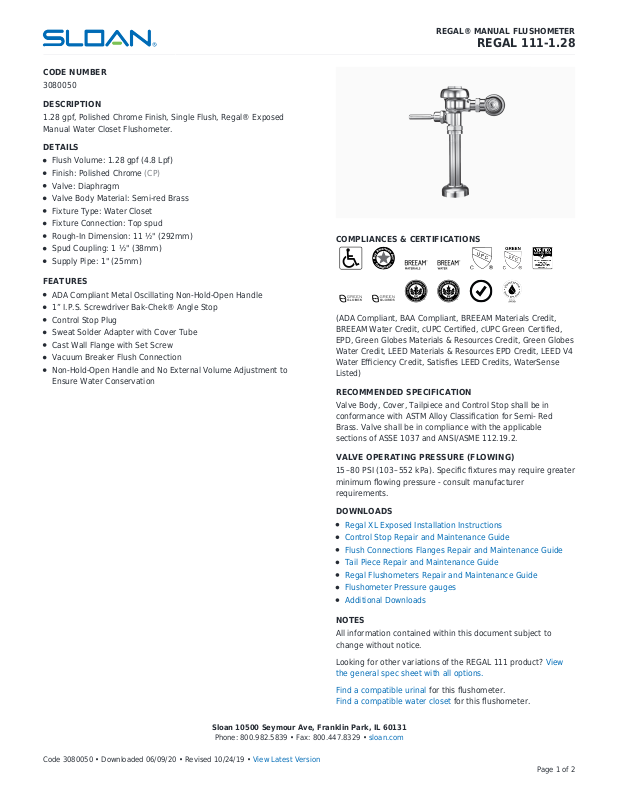

Page 1
CODE NUMBER
3080050
DESCRIPTION
1.28 gpf, Polished Chrome Finish, Single Flush, Regal® Exposed
Manual Water Closet Flushometer.
DETAILS
Flush Volume: 1.28 gpf (4.8 Lpf)
Finish: Polished Chrome (CP)
Valve: Diaphragm
Valve Body Material: Semi-red Brass
Fixture Type: Water Closet
Fixture Connection: Top spud
Rough-In Dimension: 11 ½" (292mm)
Spud Coupling: 1 ½" (38mm)
Supply Pipe: 1" (25mm)
FEATURES
ADA Compliant Metal Oscillating Non-Hold-Open Handle
1” I.P.S. Screwdriver Bak-Chek® Angle Stop
Control Stop Plug
Sweat Solder Adapter with Cover Tube
Cast Wall Flange with Set Screw
Vacuum Breaker Flush Connection
Non-Hold-Open Handle and No External Volume Adjustment to
Ensure Water Conservation
REGAL® MANUAL FLUSHOMETER
REGAL 111-1.28
COMPLIANCES & CERTIFICATIONS
(ADA Compliant, BAA Compliant, BREEAM Materials Credit,
BREEAM Water Credit, cUPC Certified, cUPC Green Certified,
EPD, Green Globes Materials & Resources Credit, Green Globes
Water Credit, LEED Materials & Resources EPD Credit, LEED V4
Water Efficiency Credit, Satisfies LEED Credits, WaterSense
Listed)
RECOMMENDED SPECIFICATION
Valve Body, Cover, Tailpiece and Control Stop shall be in
conformance with ASTM Alloy Classification for Semi- Red
Brass. Valve shall be in compliance with the applicable
sections of ASSE 1037 and ANSI/ASME 112.19.2.
VALVE OPERATING PRESSURE (FLOWING)
15 – 80 PSI (103 – 552 kPa). Specific fixtures may require greater
minimum flowing pressure - consult manufacturer
requirements.
DOWNLOADS
Regal XL Exposed Installation Instructions
Control Stop Repair and Maintenance Guide
Flush Connections Flanges Repair and Maintenance Guide
Tail Piece Repair and Maintenance Guide
Regal Flushometers Repair and Maintenance Guide
Flushometer Pressure gauges
Additional Downloads
NOTES
All information contained within this document subject to
change without notice.
Looking for other variations of the REGAL 111 product? View
the general spec sheet with all options.
Find a compatible urinal for this flushometer.
Find a compatible water closet for this flushometer.
Sloan 10500 Seymour Ave, Franklin Park, IL 60131
Phone: 800.982.5839 • Fax: 800.447.8329 • sloan.com
Code 3080050 • Downloaded 06/09/20 • Revised 10/24/19 • View Latest Version
Page 1 of 2
Page 2
ROUGH-IN
REGAL® MANUAL FLUSHOMETER
REGAL 111-1.28
WaterSense compliant when used with a WaterSense
compliant fixture
