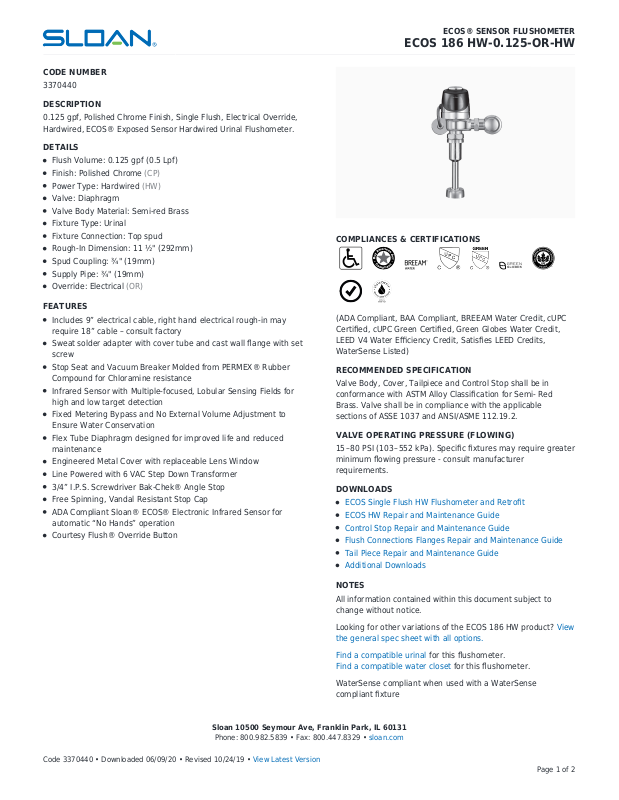

Page 1
CODE NUMBER
3370440
DESCRIPTION
0.125 gpf, Polished Chrome Finish, Single Flush, Electrical Override,
Hardwired, ECOS® Exposed Sensor Hardwired Urinal Flushometer.
DETAILS
Flush Volume: 0.125 gpf (0.5 Lpf)
Finish: Polished Chrome (CP)
Power Type: Hardwired (HW)
Valve: Diaphragm
Valve Body Material: Semi-red Brass
Fixture Type: Urinal
Fixture Connection: Top spud
Rough-In Dimension: 11 ½" (292mm)
Spud Coupling: ¾" (19mm)
Supply Pipe: ¾" (19mm)
Override: Electrical (OR)
ECOS® SENSOR FLUSHOMETER
ECOS 186 HW-0.125-OR-HW
COMPLIANCES & CERTIFICATIONS
FEATURES
Includes 9” electrical cable, right hand electrical rough-in may
require 18” cable – consult factory
Sweat solder adapter with cover tube and cast wall flange with set
screw
Stop Seat and Vacuum Breaker Molded from PERMEX® Rubber
Compound for Chloramine resistance
Infrared Sensor with Multiple-focused, Lobular Sensing Fields for
high and low target detection
Fixed Metering Bypass and No External Volume Adjustment to
Ensure Water Conservation
Flex Tube Diaphragm designed for improved life and reduced
maintenance
Engineered Metal Cover with replaceable Lens Window
Line Powered with 6 VAC Step Down Transformer
3/4” I.P.S. Screwdriver Bak-Chek® Angle Stop
Free Spinning, Vandal Resistant Stop Cap
ADA Compliant Sloan® ECOS® Electronic Infrared Sensor for
automatic “No Hands” operation
Courtesy Flush® Override Button
(ADA Compliant, BAA Compliant, BREEAM Water Credit, cUPC
Certified, cUPC Green Certified, Green Globes Water Credit,
LEED V4 Water Efficiency Credit, Satisfies LEED Credits,
WaterSense Listed)
RECOMMENDED SPECIFICATION
Valve Body, Cover, Tailpiece and Control Stop shall be in
conformance with ASTM Alloy Classification for Semi- Red
Brass. Valve shall be in compliance with the applicable
sections of ASSE 1037 and ANSI/ASME 112.19.2.
VALVE OPERATING PRESSURE (FLOWING)
15 – 80 PSI (103 – 552 kPa). Specific fixtures may require greater
minimum flowing pressure - consult manufacturer
requirements.
DOWNLOADS
ECOS Single Flush HW Flushometer and Retrofit
ECOS HW Repair and Maintenance Guide
Control Stop Repair and Maintenance Guide
Flush Connections Flanges Repair and Maintenance Guide
Tail Piece Repair and Maintenance Guide
Additional Downloads
NOTES
All information contained within this document subject to
change without notice.
Looking for other variations of the ECOS 186 HW product? View
the general spec sheet with all options.
Find a compatible urinal for this flushometer.
Find a compatible water closet for this flushometer.
WaterSense compliant when used with a WaterSense
compliant fixture
Sloan 10500 Seymour Ave, Franklin Park, IL 60131
Phone: 800.982.5839 • Fax: 800.447.8329 • sloan.com
Code 3370440 • Downloaded 06/09/20 • Revised 10/24/19 • View Latest Version
Page 1 of 2
Page 2

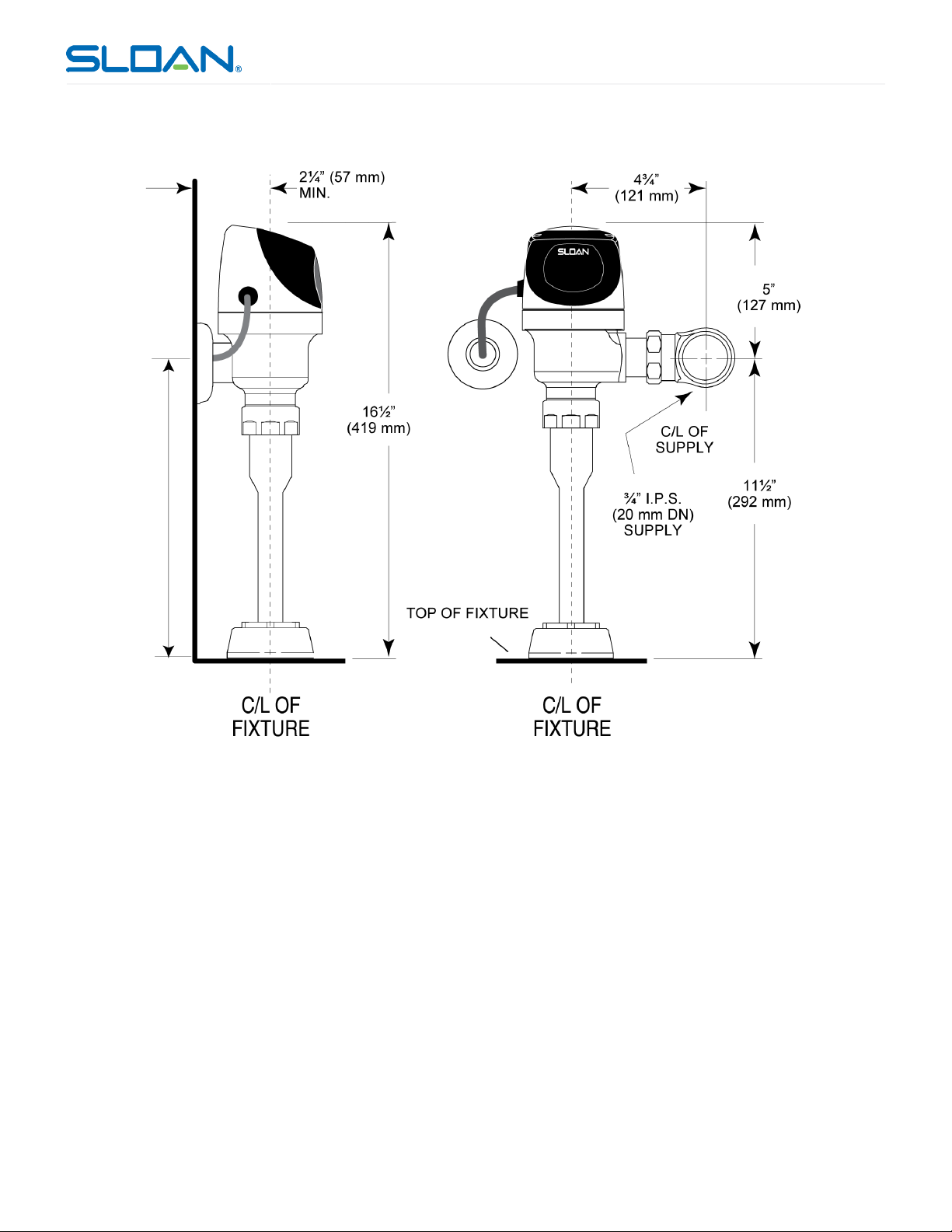

ROUGH-IN
ECOS® SENSOR FLUSHOMETER
ECOS 186 HW-0.125-OR-HW
Sloan 10500 Seymour Ave, Franklin Park, IL 60131
Phone: 800.982.5839 • Fax: 800.447.8329 • sloan.com
Code 3370440 • Downloaded 06/09/20 • Revised 10/24/19 • View Latest Version
Page 2 of 2
