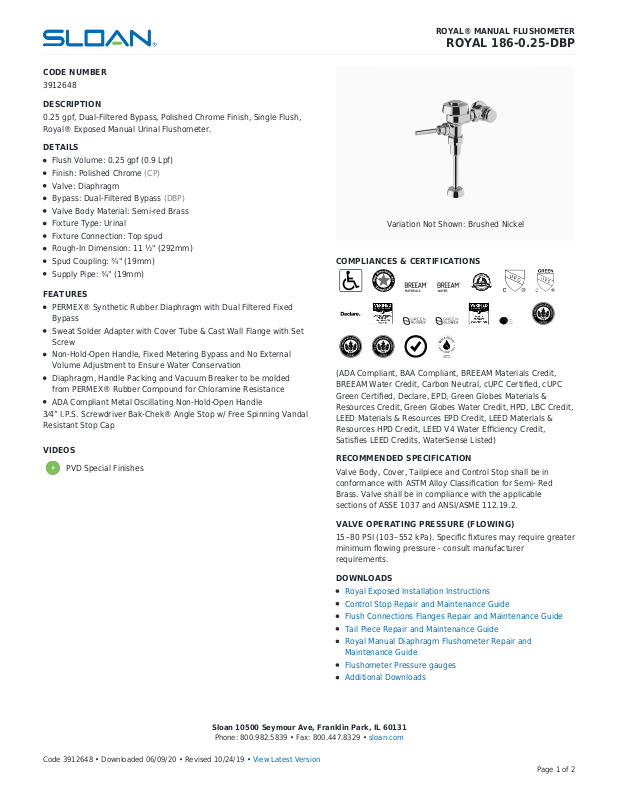

DESCRIPTION
0.25 gpf, Dual-Filtered Bypass, Polished Chrome Finish, Single Flush,
Royal® Exposed Manual Urinal Flushometer.
DETAILS
Flush Volume: 0.25 gpf (0.9 Lpf)
Finish: Polished Chrome (CP)
Valve: Diaphragm
Bypass: Dual-Filtered Bypass (DBP)
Valve Body Material: Semi-red Brass
Fixture Type: Urinal
Fixture Connection: Top spud
Rough-In Dimension: 11 ½" (292mm)
Spud Coupling: ¾" (19mm)
Supply Pipe: ¾" (19mm)
ROYAL® MANUAL FLUSHOMETER
ROYAL 186-0.25-DBP

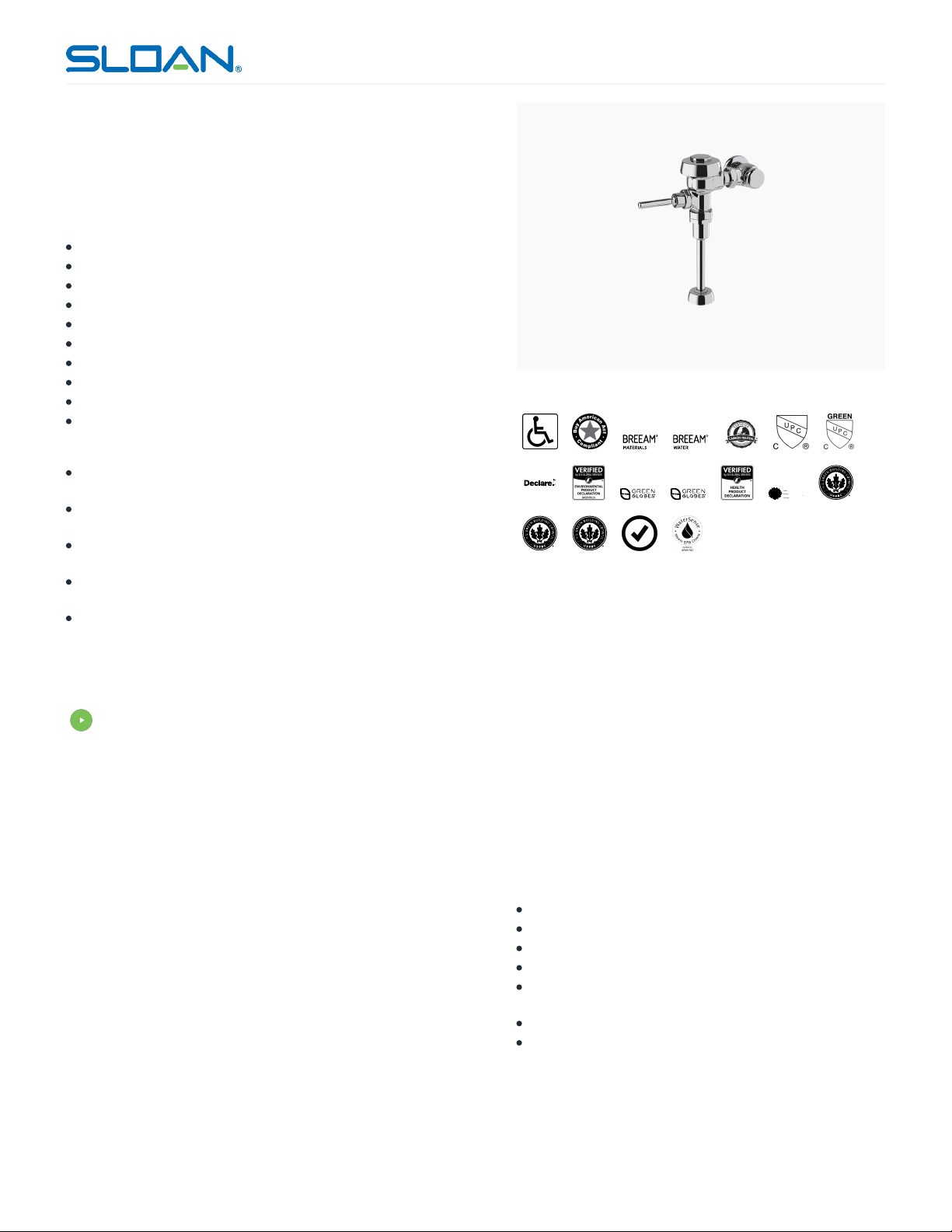

Variation Not Shown: Brushed Nickel
COMPLIANCES & CERTIFICATIONS
FEATURES
PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed
Bypass
Sweat Solder Adapter with Cover Tube & Cast Wall Flange with Set
Screw
Non-Hold-Open Handle, Fixed Metering Bypass and No External
Volume Adjustment to Ensure Water Conservation
Diaphragm, Handle Packing and Vacuum Breaker to be molded
from PERMEX® Rubber Compound for Chloramine Resistance
ADA Compliant Metal Oscillating Non-Hold-Open Handle
3⁄4” I.P.S. Screwdriver Bak-Chek® Angle Stop w/ Free Spinning Vandal
Resistant Stop Cap
VIDEOS
PVD Special Finishes
(ADA Compliant, BAA Compliant, BREEAM Materials Credit,
BREEAM Water Credit, Carbon Neutral, cUPC Certified, cUPC
Green Certified, Declare, EPD, Green Globes Materials &
Resources Credit, Green Globes Water Credit, HPD, LBC Credit,
LEED Materials & Resources EPD Credit, LEED Materials &
Resources HPD Credit, LEED V4 Water Efficiency Credit,
Satisfies LEED Credits, WaterSense Listed)
RECOMMENDED SPECIFICATION
Valve Body, Cover, Tailpiece and Control Stop shall be in
conformance with ASTM Alloy Classification for Semi- Red
Brass. Valve shall be in compliance with the applicable
sections of ASSE 1037 and ANSI/ASME 112.19.2.
VALVE OPERATING PRESSURE (FLOWING)
15 – 80 PSI (103 – 552 kPa). Specific fixtures may require greater
minimum flowing pressure - consult manufacturer
requirements.
DOWNLOADS
Royal Exposed Installation Instructions
Control Stop Repair and Maintenance Guide
Flush Connections Flanges Repair and Maintenance Guide
Tail Piece Repair and Maintenance Guide
Royal Manual Diaphragm Flushometer Repair and
Maintenance Guide
Flushometer Pressure gauges
Additional Downloads
Sloan 10500 Seymour Ave, Franklin Park, IL 60131
Phone: 800.982.5839 • Fax: 800.447.8329 • sloan.com
Code 3912648 • Downloaded 06/09/20 • Revised 10/24/19 • View Latest Version
Page 1 of 2
Page 2

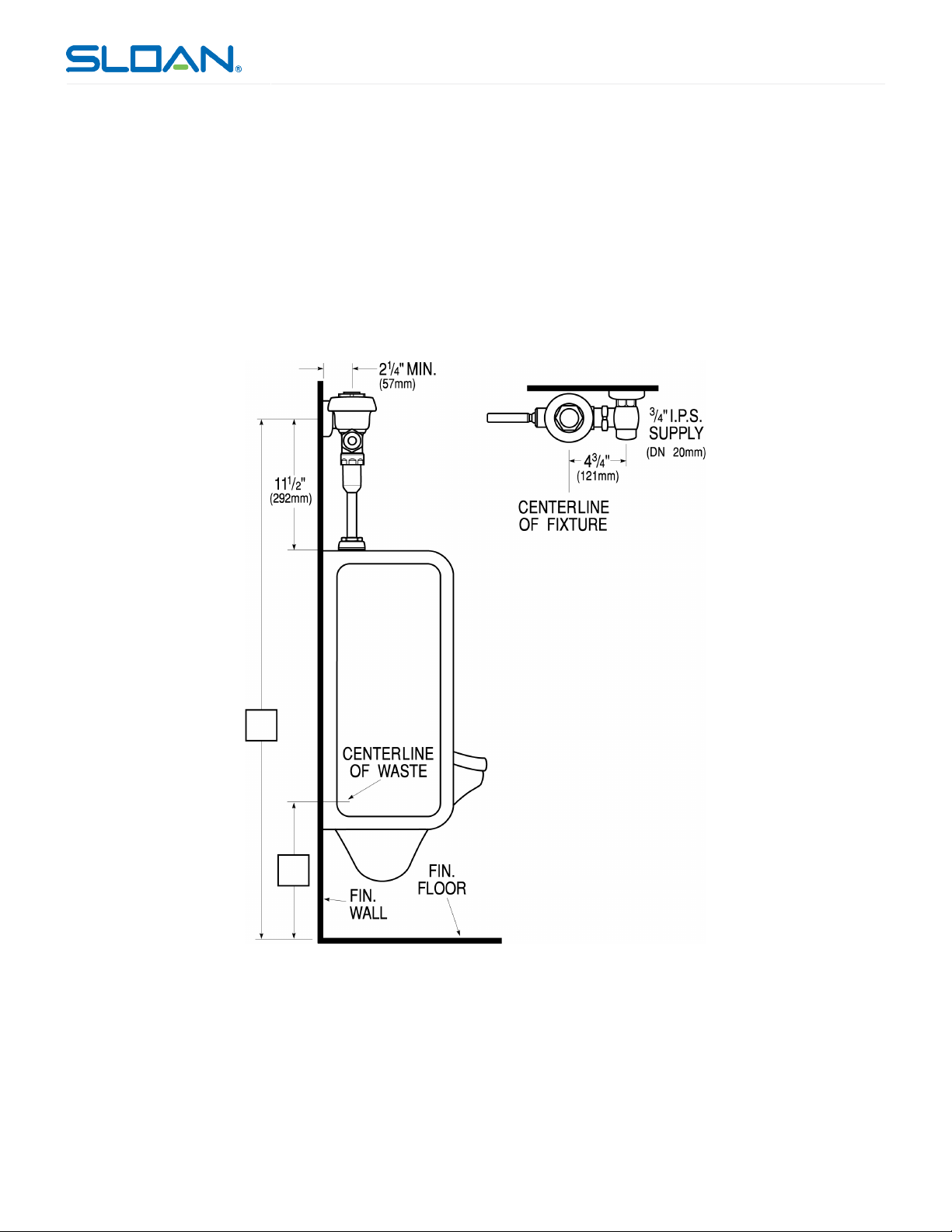

ROUGH-IN
ROYAL® MANUAL FLUSHOMETER
ROYAL 186-0.25-DBP
NOTES
All information contained within this document subject to
change without notice.
Looking for other variations of the ROYAL 186 product? View
the general spec sheet with all options.
Find a compatible urinal for this flushometer.
Find a compatible water closet for this flushometer.
WaterSense compliant when used with a WaterSense
compliant fixture
