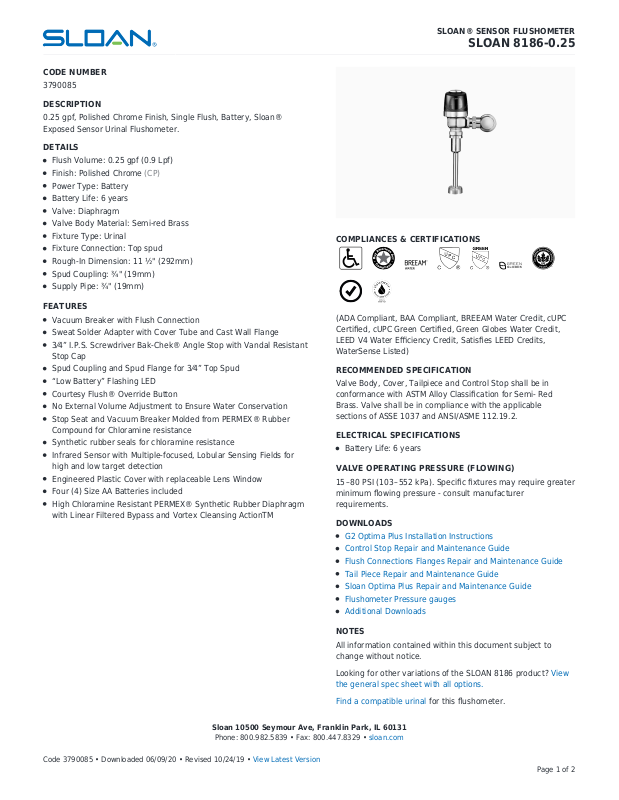

Page 1
CODE NUMBER
3790085
DESCRIPTION
0.25 gpf, Polished Chrome Finish, Single Flush, Battery, Sloan®
Exposed Sensor Urinal Flushometer.
DETAILS
Flush Volume: 0.25 gpf (0.9 Lpf)
Finish: Polished Chrome (CP)
Power Type: Battery
Battery Life: 6 years
Valve: Diaphragm
Valve Body Material: Semi-red Brass
Fixture Type: Urinal
Fixture Connection: Top spud
Rough-In Dimension: 11 ½" (292mm)
Spud Coupling: ¾" (19mm)
Supply Pipe: ¾" (19mm)
SLOAN® SENSOR FLUSHOMETER
SLOAN 8186-0.25
COMPLIANCES & CERTIFICATIONS
FEATURES
Vacuum Breaker with Flush Connection
Sweat Solder Adapter with Cover Tube and Cast Wall Flange
3⁄4” I.P.S. Screwdriver Bak-Chek® Angle Stop with Vandal Resistant
Stop Cap
Spud Coupling and Spud Flange for 3⁄4” Top Spud
“Low Battery” Flashing LED
Courtesy Flush® Override Button
No External Volume Adjustment to Ensure Water Conservation
Stop Seat and Vacuum Breaker Molded from PERMEX® Rubber
Compound for Chloramine resistance
Synthetic rubber seals for chloramine resistance
Infrared Sensor with Multiple-focused, Lobular Sensing Fields for
high and low target detection
Engineered Plastic Cover with replaceable Lens Window
Four (4) Size AA Batteries included
High Chloramine Resistant PERMEX® Synthetic Rubber Diaphragm
with Linear Filtered Bypass and Vortex Cleansing ActionTM
(ADA Compliant, BAA Compliant, BREEAM Water Credit, cUPC
Certified, cUPC Green Certified, Green Globes Water Credit,
LEED V4 Water Efficiency Credit, Satisfies LEED Credits,
WaterSense Listed)
RECOMMENDED SPECIFICATION
Valve Body, Cover, Tailpiece and Control Stop shall be in
conformance with ASTM Alloy Classification for Semi- Red
Brass. Valve shall be in compliance with the applicable
sections of ASSE 1037 and ANSI/ASME 112.19.2.
ELECTRICAL SPECIFICATIONS
Battery Life: 6 years
VALVE OPERATING PRESSURE (FLOWING)
15 – 80 PSI (103 – 552 kPa). Specific fixtures may require greater
minimum flowing pressure - consult manufacturer
requirements.
DOWNLOADS
G2 Optima Plus Installation Instructions
Control Stop Repair and Maintenance Guide
Flush Connections Flanges Repair and Maintenance Guide
Tail Piece Repair and Maintenance Guide
Sloan Optima Plus Repair and Maintenance Guide
Flushometer Pressure gauges
Additional Downloads
Sloan 10500 Seymour Ave, Franklin Park, IL 60131
Phone: 800.982.5839 • Fax: 800.447.8329 • sloan.com
Code 3790085 • Downloaded 06/09/20 • Revised 10/24/19 • View Latest Version
NOTES
All information contained within this document subject to
change without notice.
Looking for other variations of the SLOAN 8186 product? View
the general spec sheet with all options.
Find a compatible urinal for this flushometer.
Page 1 of 2
Page 2

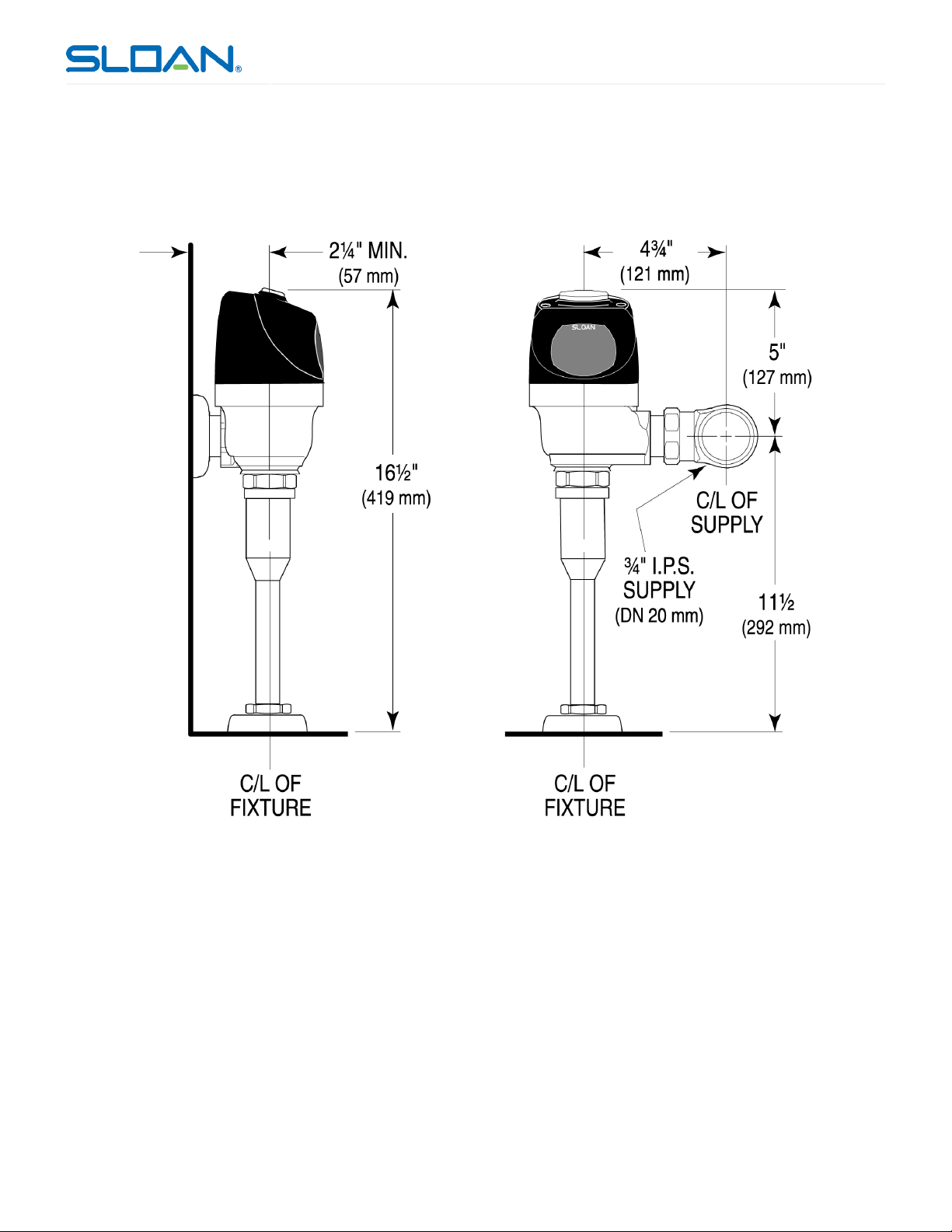

ROUGH-IN
SLOAN® SENSOR FLUSHOMETER
SLOAN 8186-0.25
Find a compatible water closet for this flushometer.
WaterSense compliant when used with a WaterSense
compliant fixture
Sloan 10500 Seymour Ave, Franklin Park, IL 60131
Phone: 800.982.5839 • Fax: 800.447.8329 • sloan.com
Code 3790085 • Downloaded 06/09/20 • Revised 10/24/19 • View Latest Version
Page 2 of 2
