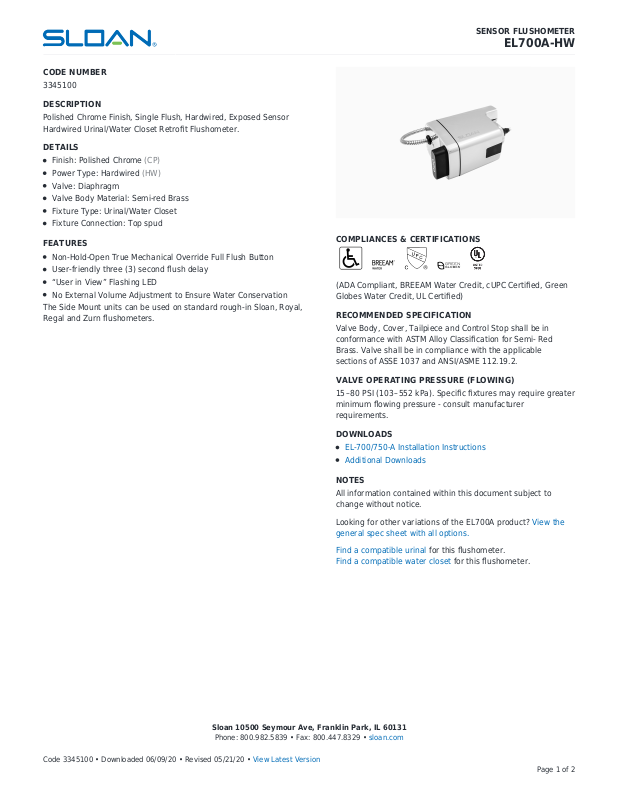

Page 1
CODE NUMBER
3345100
DESCRIPTION
Polished Chrome Finish, Single Flush, Hardwired, Exposed Sensor
Hardwired Urinal/Water Closet Retrofit Flushometer.
DETAILS
Finish: Polished Chrome (CP)
Power Type: Hardwired (HW)
Valve: Diaphragm
Valve Body Material: Semi-red Brass
Fixture Type: Urinal/Water Closet
Fixture Connection: Top spud
FEATURES
Non-Hold-Open True Mechanical Override Full Flush Button
User-friendly three (3) second flush delay
“User in View” Flashing LED
No External Volume Adjustment to Ensure Water Conservation
The Side Mount units can be used on standard rough-in Sloan, Royal,
Regal and Zurn flushometers.
SENSOR FLUSHOMETER
EL700A-HW
COMPLIANCES & CERTIFICATIONS
(ADA Compliant, BREEAM Water Credit, cUPC Certified, Green
Globes Water Credit, UL Certified)
RECOMMENDED SPECIFICATION
Valve Body, Cover, Tailpiece and Control Stop shall be in
conformance with ASTM Alloy Classification for Semi- Red
Brass. Valve shall be in compliance with the applicable
sections of ASSE 1037 and ANSI/ASME 112.19.2.
VALVE OPERATING PRESSURE (FLOWING)
15 – 80 PSI (103 – 552 kPa). Specific fixtures may require greater
minimum flowing pressure - consult manufacturer
requirements.
DOWNLOADS
EL-700/750-A Installation Instructions
Additional Downloads
NOTES
All information contained within this document subject to
change without notice.
Looking for other variations of the EL700A product? View the
general spec sheet with all options.
Find a compatible urinal for this flushometer.
Find a compatible water closet for this flushometer.
Sloan 10500 Seymour Ave, Franklin Park, IL 60131
Phone: 800.982.5839 • Fax: 800.447.8329 • sloan.com
Code 3345100 • Downloaded 06/09/20 • Revised 05/21/20 • View Latest Version
Page 1 of 2
Page 2

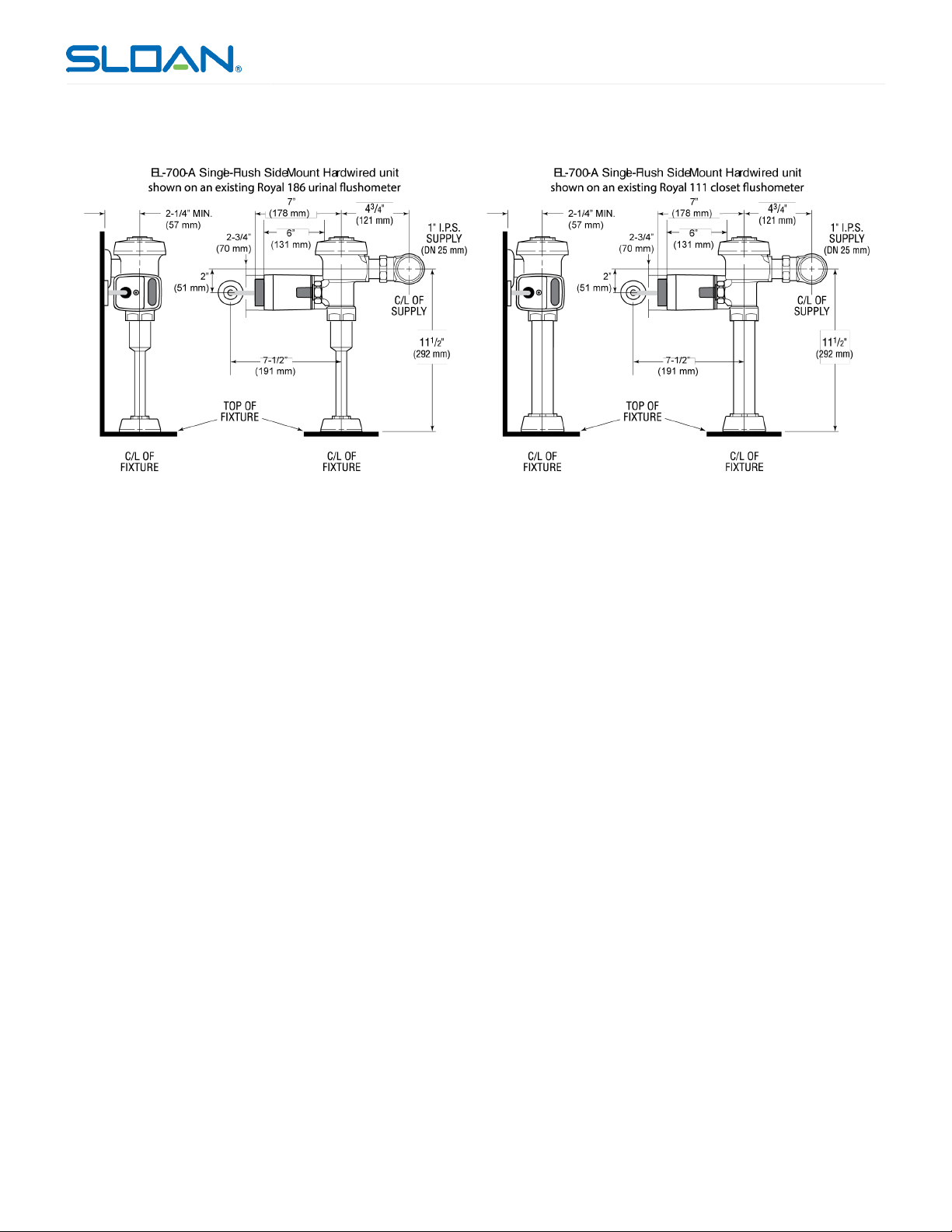

ROUGH-IN
SENSOR FLUSHOMETER
EL700A-HW
Sloan 10500 Seymour Ave, Franklin Park, IL 60131
Phone: 800.982.5839 • Fax: 800.447.8329 • sloan.com
Code 3345100 • Downloaded 06/09/20 • Revised 05/21/20 • View Latest Version
Page 2 of 2
