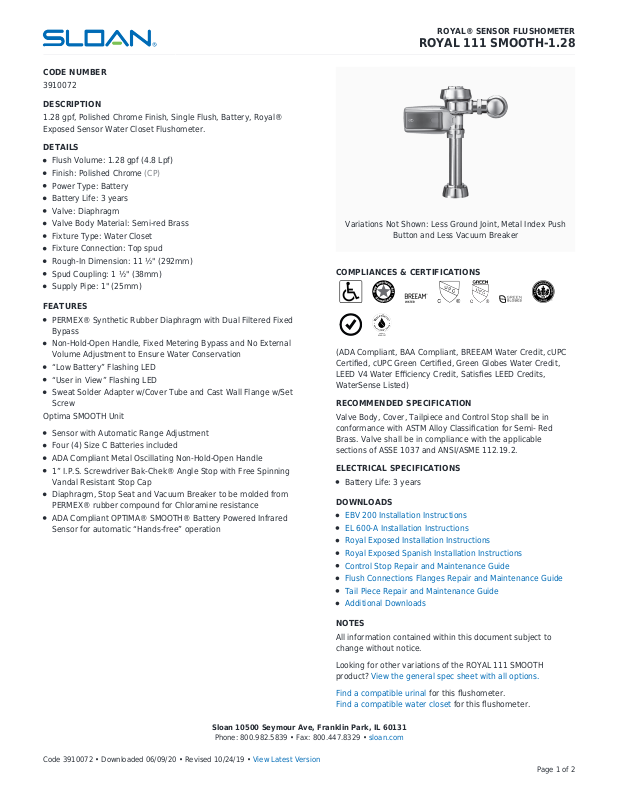

Page 1
CODE NUMBER
3910072
DESCRIPTION
1.28 gpf, Polished Chrome Finish, Single Flush, Battery, Royal®
Exposed Sensor Water Closet Flushometer.
DETAILS
Flush Volume: 1.28 gpf (4.8 Lpf)
Finish: Polished Chrome (CP)
Power Type: Battery
Battery Life: 3 years
Valve: Diaphragm
Valve Body Material: Semi-red Brass
Fixture Type: Water Closet
Fixture Connection: Top spud
Rough-In Dimension: 11 ½" (292mm)
Spud Coupling: 1 ½" (38mm)
Supply Pipe: 1" (25mm)
ROYAL® SENSOR FLUSHOMETER
ROYAL 111 SMOOTH-1.28
Variations Not Shown: Less Ground Joint, Metal Index Push
Button and Less Vacuum Breaker
COMPLIANCES & CERTIFICATIONS
FEATURES
PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed
Bypass
Non-Hold-Open Handle, Fixed Metering Bypass and No External
Volume Adjustment to Ensure Water Conservation
“Low Battery” Flashing LED
“User in View” Flashing LED
Sweat Solder Adapter w/Cover Tube and Cast Wall Flange w/Set
Screw
Optima SMOOTH Unit
Sensor with Automatic Range Adjustment
Four (4) Size C Batteries included
ADA Compliant Metal Oscillating Non-Hold-Open Handle
1” I.P.S. Screwdriver Bak-Chek® Angle Stop with Free Spinning
Vandal Resistant Stop Cap
Diaphragm, Stop Seat and Vacuum Breaker to be molded from
PERMEX® rubber compound for Chloramine resistance
ADA Compliant OPTIMA® SMOOTH® Battery Powered Infrared
Sensor for automatic “Hands-free” operation
(ADA Compliant, BAA Compliant, BREEAM Water Credit, cUPC
Certified, cUPC Green Certified, Green Globes Water Credit,
LEED V4 Water Efficiency Credit, Satisfies LEED Credits,
WaterSense Listed)
RECOMMENDED SPECIFICATION
Valve Body, Cover, Tailpiece and Control Stop shall be in
conformance with ASTM Alloy Classification for Semi- Red
Brass. Valve shall be in compliance with the applicable
sections of ASSE 1037 and ANSI/ASME 112.19.2.
ELECTRICAL SPECIFICATIONS
Battery Life: 3 years
DOWNLOADS
EBV 200 Installation Instructions
EL 600-A Installation Instructions
Royal Exposed Installation Instructions
Royal Exposed Spanish Installation Instructions
Control Stop Repair and Maintenance Guide
Flush Connections Flanges Repair and Maintenance Guide
Tail Piece Repair and Maintenance Guide
Additional Downloads
Sloan 10500 Seymour Ave, Franklin Park, IL 60131
Phone: 800.982.5839 • Fax: 800.447.8329 • sloan.com
Code 3910072 • Downloaded 06/09/20 • Revised 10/24/19 • View Latest Version
NOTES
All information contained within this document subject to
change without notice.
Looking for other variations of the ROYAL 111 SMOOTH
product? View the general spec sheet with all options.
Find a compatible urinal for this flushometer.
Find a compatible water closet for this flushometer.
Page 1 of 2
Page 2
ROUGH-IN
ROYAL® SENSOR FLUSHOMETER
ROYAL 111 SMOOTH-1.28
WaterSense compliant when used with a WaterSense
compliant fixture
Sloan 10500 Seymour Ave, Franklin Park, IL 60131
Phone: 800.982.5839 • Fax: 800.447.8329 • sloan.com
Code 3910072 • Downloaded 06/09/20 • Revised 10/24/19 • View Latest Version
Page 2 of 2
