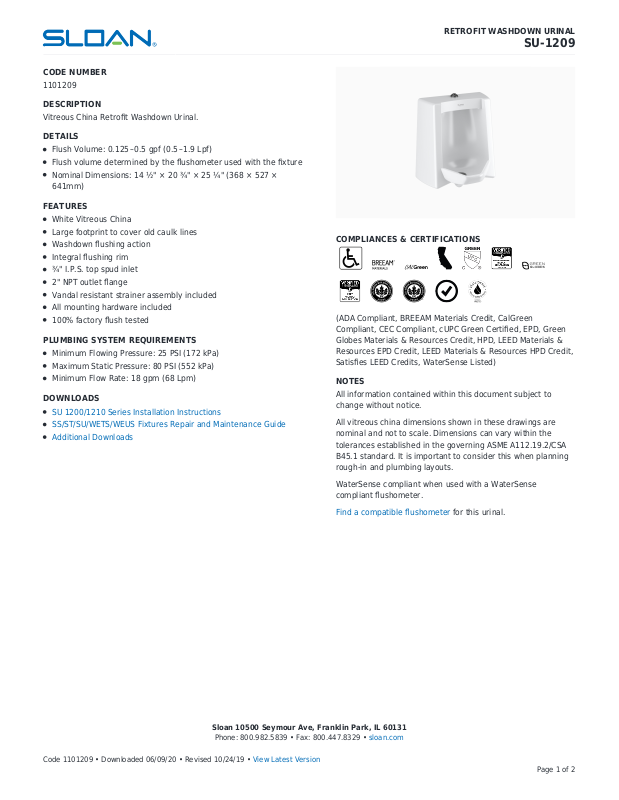

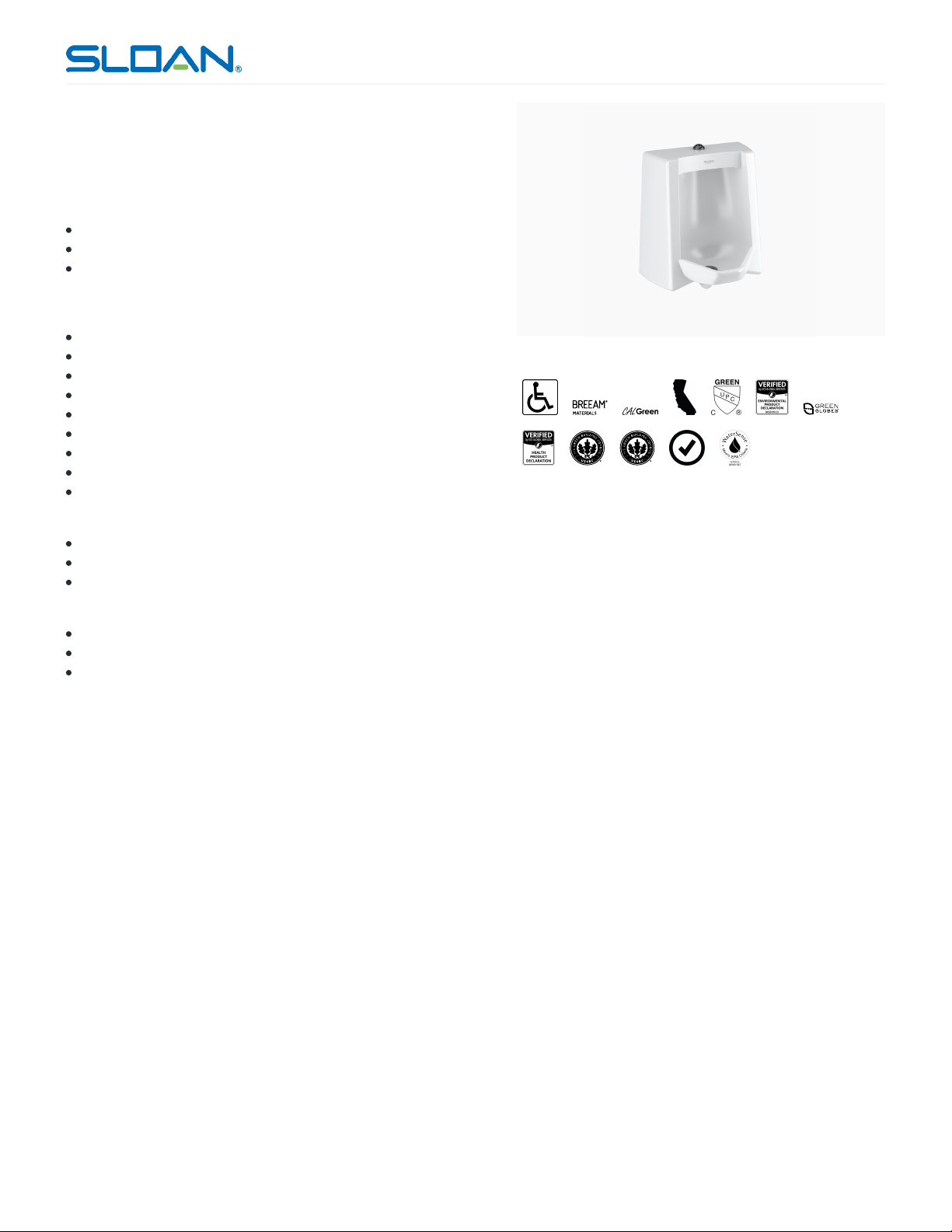

CODE NUMBER
1101209
DESCRIPTION
Vitreous China Retrofit Washdown Urinal.
DETAILS
Flush Volume: 0.125 – 0.5 gpf (0.5 – 1.9 Lpf)
Flush volume determined by the flushometer used with the fixture
Nominal Dimensions: 14 ½" × 20 ¾" × 25 ¼" (368 × 527 ×
641mm)
FEATURES
White Vitreous China
Large footprint to cover old caulk lines
Washdown flushing action
Integral flushing rim
¾" I.P.S. top spud inlet
2" NPT outlet flange
Vandal resistant strainer assembly included
All mounting hardware included
100% factory flush tested
PLUMBING SYSTEM REQUIREMENTS
Minimum Flowing Pressure: 25 PSI (172 kPa)
Maximum Static Pressure: 80 PSI (552 kPa)
Minimum Flow Rate: 18 gpm (68 Lpm)
DOWNLOADS
SU 1200/1210 Series Installation Instructions
SS/ST/SU/WETS/WEUS Fixtures Repair and Maintenance Guide
Additional Downloads
RETROFIT WASHDOWN URINAL
SU-1209
COMPLIANCES & CERTIFICATIONS
(ADA Compliant, BREEAM Materials Credit, CalGreen
Compliant, CEC Compliant, cUPC Green Certified, EPD, Green
Globes Materials & Resources Credit, HPD, LEED Materials &
Resources EPD Credit, LEED Materials & Resources HPD Credit,
Satisfies LEED Credits, WaterSense Listed)
NOTES
All information contained within this document subject to
change without notice.
All vitreous china dimensions shown in these drawings are
nominal and not to scale. Dimensions can vary within the
tolerances established in the governing ASME A112.19.2/CSA
B45.1 standard. It is important to consider this when planning
rough-in and plumbing layouts.
WaterSense compliant when used with a WaterSense
compliant flushometer.
Find a compatible flushometer for this urinal.
Sloan 10500 Seymour Ave, Franklin Park, IL 60131
Phone: 800.982.5839 • Fax: 800.447.8329 • sloan.com
Code 1101209 • Downloaded 06/09/20 • Revised 10/24/19 • View Latest Version
Page 1 of 2
Page 2

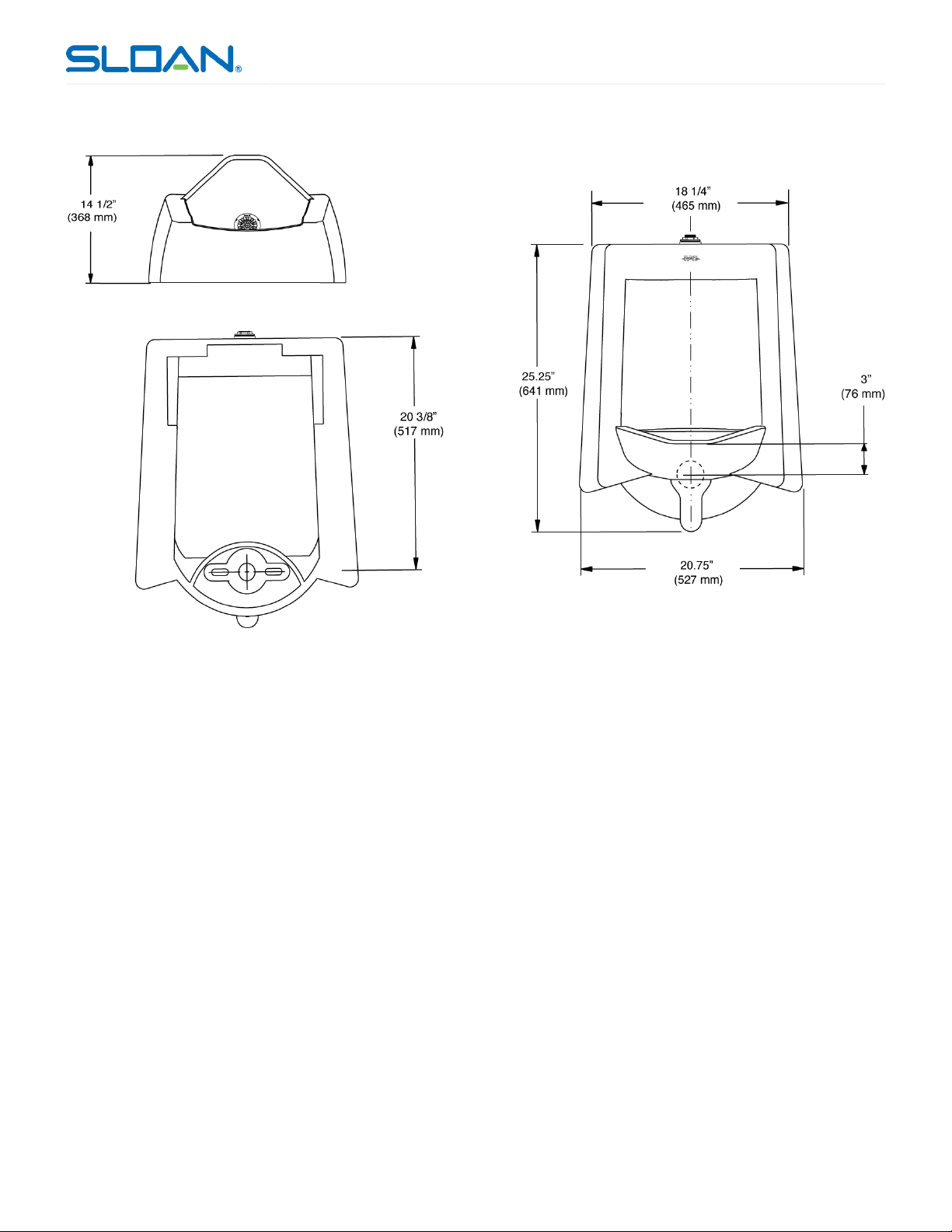

ROUGH-IN
RETROFIT WASHDOWN URINAL
SU-1209
NOTE: ADA urinal rim height requirements allow all heights 17" and below. Sloan strongly recommends roughing in the drain to achieve a
16½" rim height or less to ensure compliance.
