Page 1
CODE NUMBER
3915513
DESCRIPTION
0.5 gpf, Rough Brass Finish, Single Flush, 2-10.75 L Dimension,
Royal® Concealed Manual Specialty Urinal Hydraulic Flushometer.
DETAILS
Flush Volume: 0.5 gpf (1.9 Lpf)
Finish: Rough Brass (RB)
Valve: Diaphragm
Valve Body Material: Semi-red Brass
Fixture Type: Urinal
Fixture Connection: Rear spud
Rough-In Dimension: 13 ½" (343mm)
Spud Coupling: ¾" (19mm)
Supply Pipe: ¾" (19mm)
L Dimension: 2" – 10 ¾" (51 – 273mm) (2-10-3/4-LDIM)
FEATURES
Quiet, Concealed, Diaphragm Type, Rough Brass Urinal Flushometer
for either
ADA Compliant Non-Hold-Open feature type Actuator (not included,
order separately-specify Actuator type listed below)
Elbow Flush Connection and Spud Coupling for 3⁄4” Concealed Back
Spud
ADA Compliant Non-Hold-Open Actuator
PERMEX® Synthetic Rubber Diaphragm with Dual Linear Filtered
Bypass
3/4” I.P.S. Wheel Handle Bak-Chek® Angle Stop
Diaphragm, Stop Seat and Vacuum Breaker to be molded from
PERMEX® rubber compound for Chloramine resistance
ROYAL® MANUAL SPECIALTY FLUSHOMETER
ROYAL 995-0.5-2-10-3/4-LDIM
Variations Not Shown: Ground Joint and Less Vacuum
Breaker
COMPLIANCES & CERTIFICATIONS
(ADA Compliant, BAA Compliant, BREEAM Water Credit, cUPC
Certified, cUPC Green Certified, Green Globes Water Credit,
LEED V4 Water Efficiency Credit, Satisfies LEED Credits,
WaterSense Listed)
RECOMMENDED SPECIFICATION
Valve Body, Cover, Tailpiece and Control Stop shall be in
conformance with ASTM Alloy Classification for Semi- Red
Brass. Valve shall be in compliance with the applicable
sections of ASSE 1037 and ANSI/ASME 112.19.2.
Sloan 10500 Seymour Ave, Franklin Park, IL 60131
Phone: 800.982.5839 • Fax: 800.447.8329 • sloan.com
Code 3915513 • Downloaded 06/09/20 • Revised 10/24/19 • View Latest Version
VALVE OPERATING PRESSURE (FLOWING)
15 – 80 PSI (103 – 552 kPa). Specific fixtures may require greater
minimum flowing pressure - consult manufacturer
requirements.
DOWNLOADS
Sloan 900 Hydraulic Concealed Installation Instructions
Control Stop Repair and Maintenance Guide
Flush Connections Flanges Repair and Maintenance Guide
Tail Piece Repair and Maintenance Guide
Series 900 Flushometers Repair and Maintenance Guide
Hydraulic Push Button Options
Additional Downloads
NOTES
All information contained within this document subject to
change without notice.
Looking for other variations of the ROYAL 995 product? View
the general spec sheet with all options.
Find a compatible urinal for this flushometer.
Page 1 of 2
Page 2

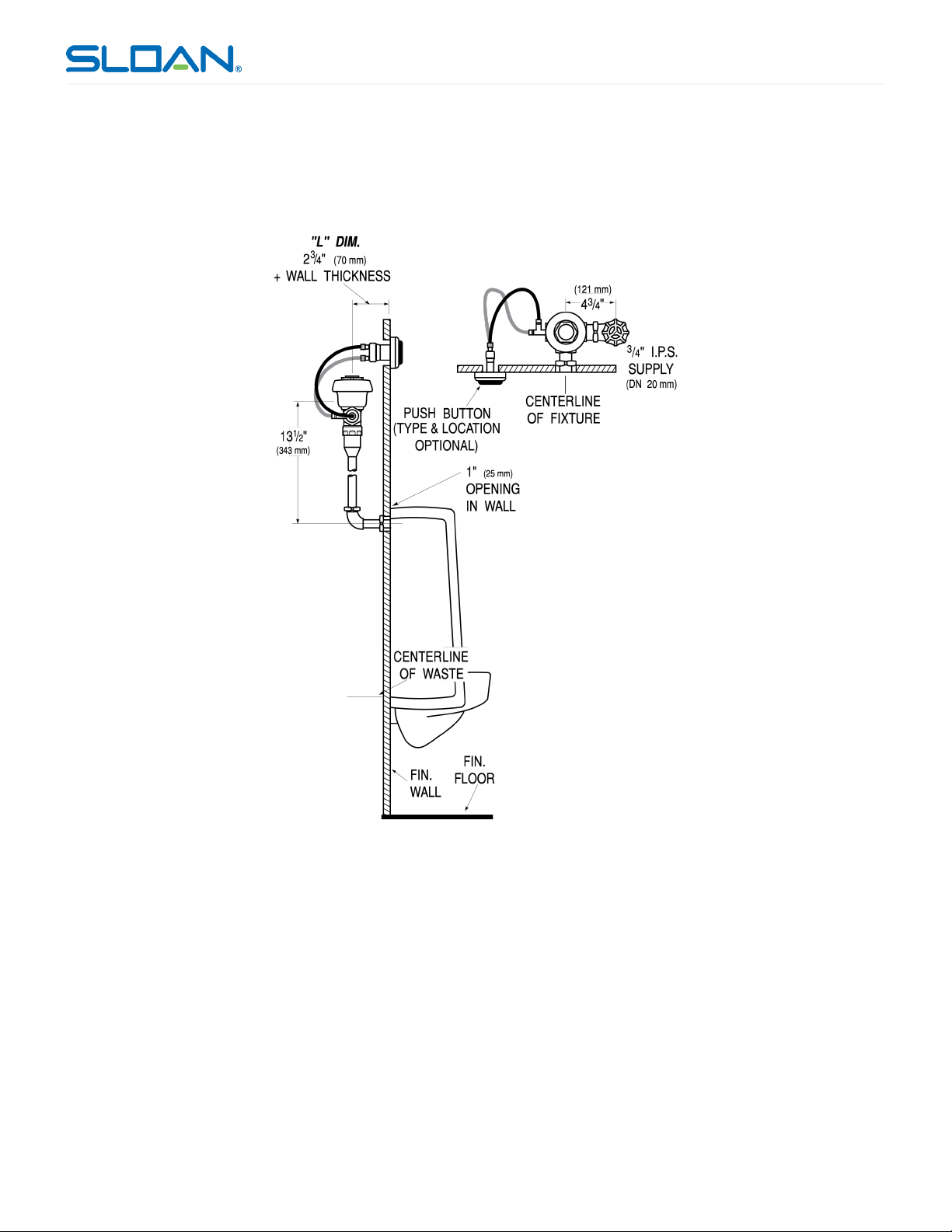

ROUGH-IN
ROYAL® MANUAL SPECIALTY FLUSHOMETER
ROYAL 995-0.5-2-10-3/4-LDIM
Find a compatible water closet for this flushometer.
WaterSense compliant when used with a WaterSense
compliant fixture
Sloan 10500 Seymour Ave, Franklin Park, IL 60131
Phone: 800.982.5839 • Fax: 800.447.8329 • sloan.com
Code 3915513 • Downloaded 06/09/20 • Revised 10/24/19 • View Latest Version
Page 2 of 2
