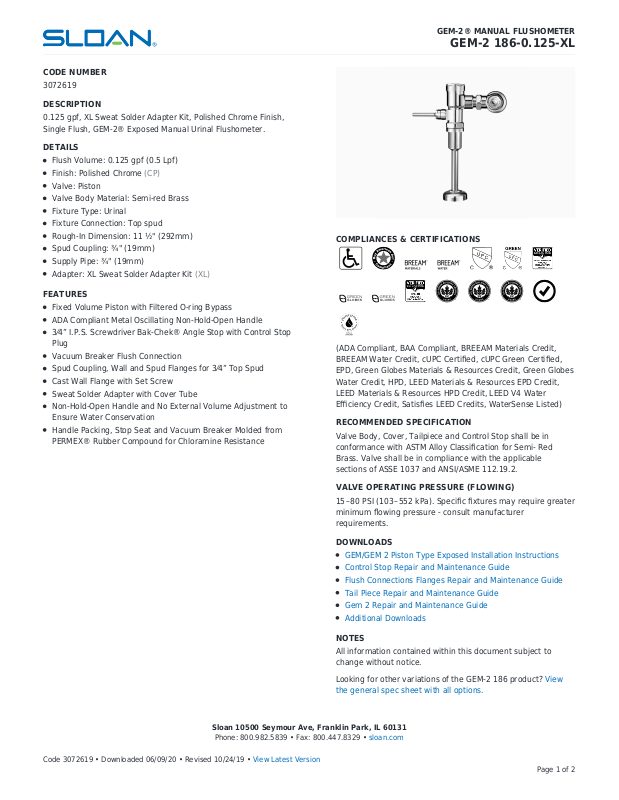

Page 1
CODE NUMBER
3072619
DESCRIPTION
0.125 gpf, XL Sweat Solder Adapter Kit, Polished Chrome Finish,
Single Flush, GEM-2® Exposed Manual Urinal Flushometer.
DETAILS
Flush Volume: 0.125 gpf (0.5 Lpf)
Finish: Polished Chrome (CP)
Valve: Piston
Valve Body Material: Semi-red Brass
Fixture Type: Urinal
Fixture Connection: Top spud
Rough-In Dimension: 11 ½" (292mm)
Spud Coupling: ¾" (19mm)
Supply Pipe: ¾" (19mm)
Adapter: XL Sweat Solder Adapter Kit (XL)
FEATURES
Fixed Volume Piston with Filtered O-ring Bypass
ADA Compliant Metal Oscillating Non-Hold-Open Handle
3⁄4” I.P.S. Screwdriver Bak-Chek® Angle Stop with Control Stop
Plug
Vacuum Breaker Flush Connection
Spud Coupling, Wall and Spud Flanges for 3⁄4” Top Spud
Cast Wall Flange with Set Screw
Sweat Solder Adapter with Cover Tube
Non-Hold-Open Handle and No External Volume Adjustment to
Ensure Water Conservation
Handle Packing, Stop Seat and Vacuum Breaker Molded from
PERMEX® Rubber Compound for Chloramine Resistance
GEM-2® MANUAL FLUSHOMETER
GEM-2 186-0.125-XL
COMPLIANCES & CERTIFICATIONS
(ADA Compliant, BAA Compliant, BREEAM Materials Credit,
BREEAM Water Credit, cUPC Certified, cUPC Green Certified,
EPD, Green Globes Materials & Resources Credit, Green Globes
Water Credit, HPD, LEED Materials & Resources EPD Credit,
LEED Materials & Resources HPD Credit, LEED V4 Water
Efficiency Credit, Satisfies LEED Credits, WaterSense Listed)
RECOMMENDED SPECIFICATION
Valve Body, Cover, Tailpiece and Control Stop shall be in
conformance with ASTM Alloy Classification for Semi- Red
Brass. Valve shall be in compliance with the applicable
sections of ASSE 1037 and ANSI/ASME 112.19.2.
Sloan 10500 Seymour Ave, Franklin Park, IL 60131
Phone: 800.982.5839 • Fax: 800.447.8329 • sloan.com
Code 3072619 • Downloaded 06/09/20 • Revised 10/24/19 • View Latest Version
VALVE OPERATING PRESSURE (FLOWING)
15 – 80 PSI (103 – 552 kPa). Specific fixtures may require greater
minimum flowing pressure - consult manufacturer
requirements.
DOWNLOADS
GEM/GEM 2 Piston Type Exposed Installation Instructions
Control Stop Repair and Maintenance Guide
Flush Connections Flanges Repair and Maintenance Guide
Tail Piece Repair and Maintenance Guide
Gem 2 Repair and Maintenance Guide
Additional Downloads
NOTES
All information contained within this document subject to
change without notice.
Looking for other variations of the GEM-2 186 product? View
the general spec sheet with all options.
Page 1 of 2
Page 2

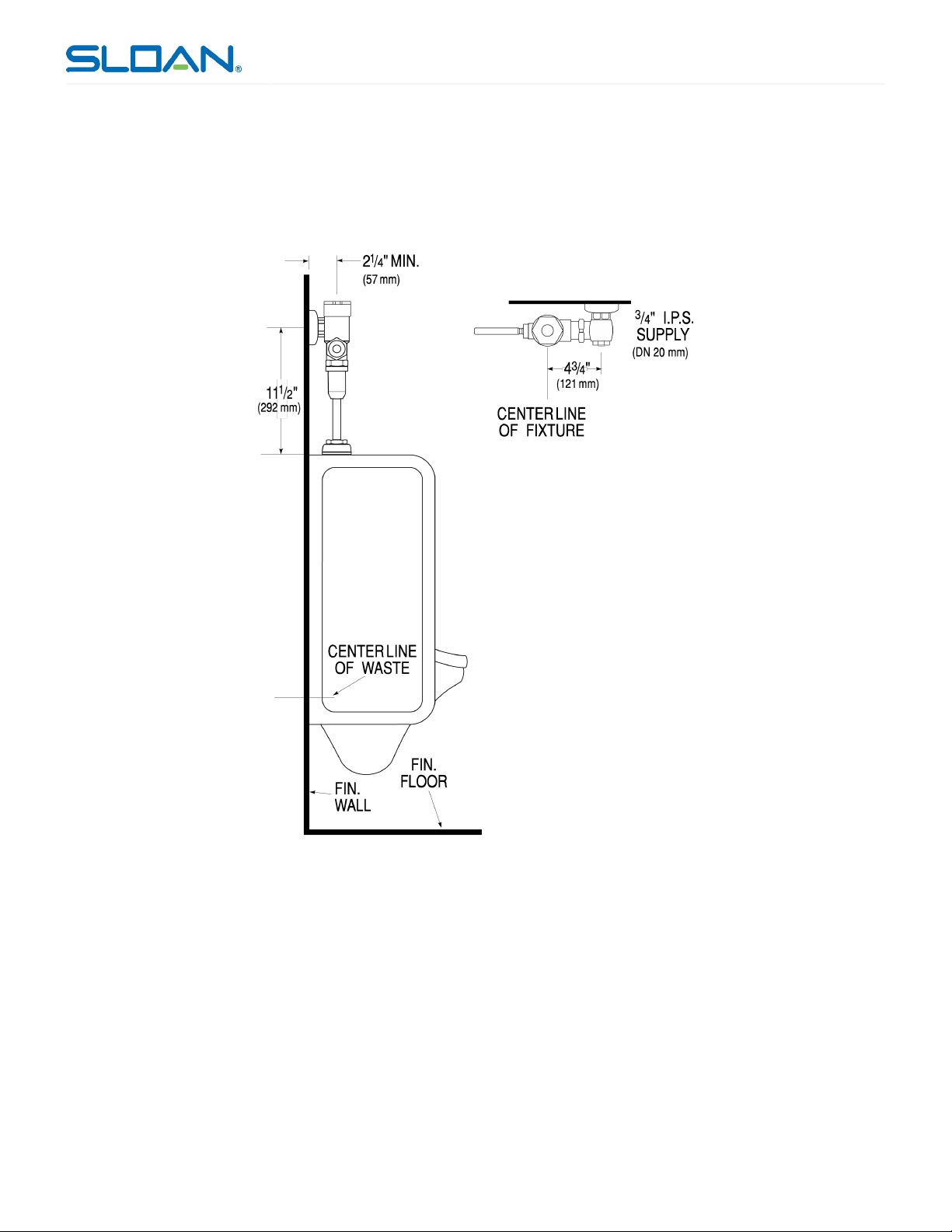

ROUGH-IN
GEM-2® MANUAL FLUSHOMETER
GEM-2 186-0.125-XL
Find a compatible urinal for this flushometer.
Find a compatible water closet for this flushometer.
WaterSense compliant when used with a WaterSense
compliant fixture
Sloan 10500 Seymour Ave, Franklin Park, IL 60131
Phone: 800.982.5839 • Fax: 800.447.8329 • sloan.com
Code 3072619 • Downloaded 06/09/20 • Revised 10/24/19 • View Latest Version
Page 2 of 2
