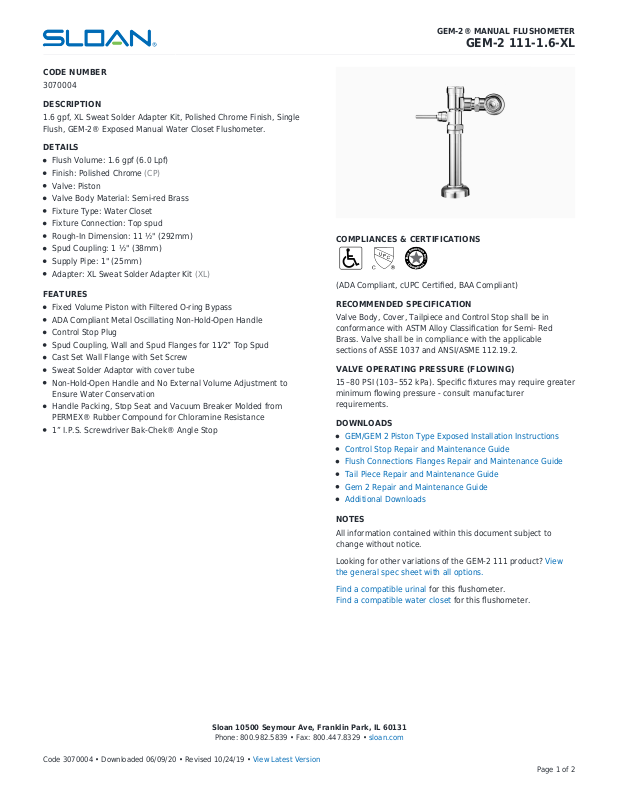

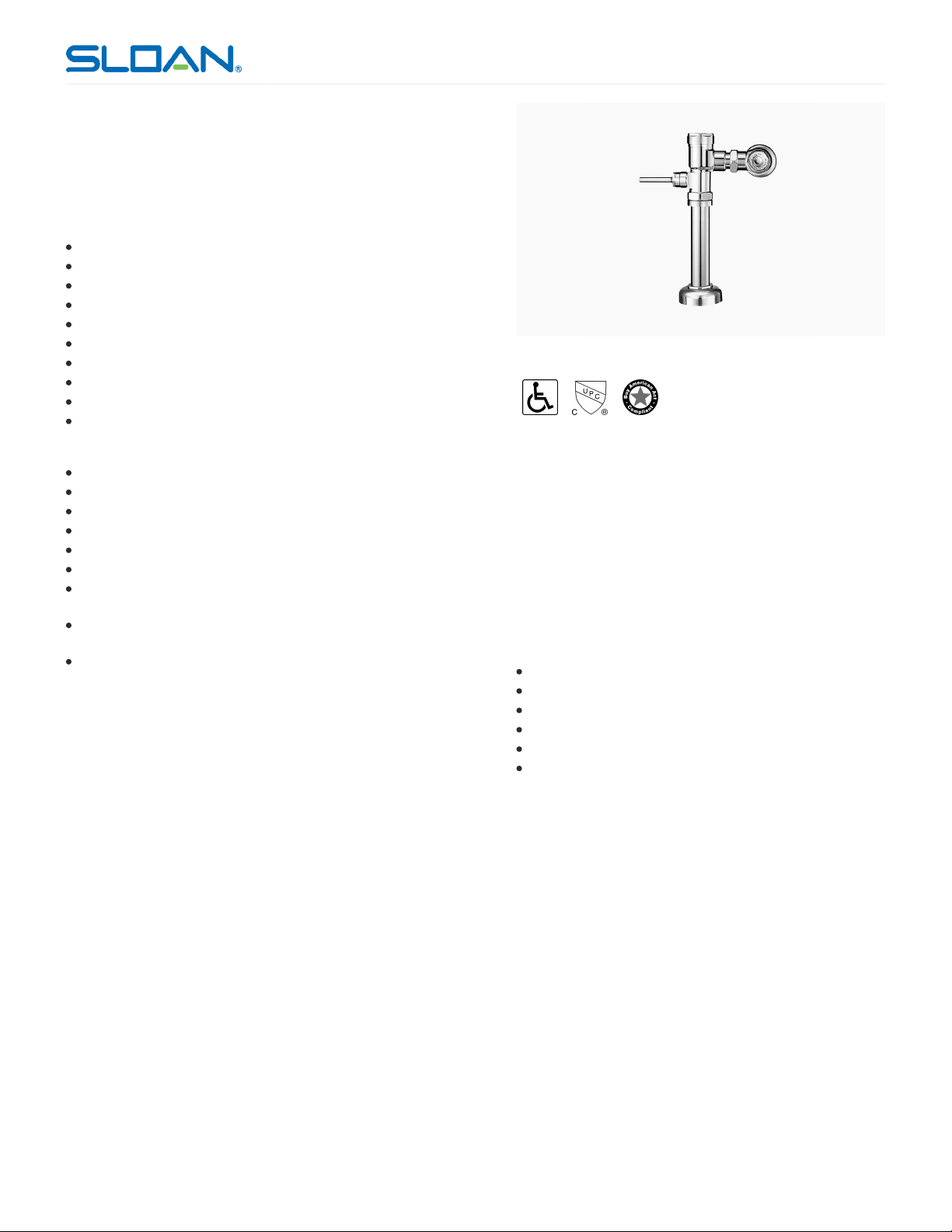

CODE NUMBER
3070004
DESCRIPTION
1.6 gpf, XL Sweat Solder Adapter Kit, Polished Chrome Finish, Single
Flush, GEM-2® Exposed Manual Water Closet Flushometer.
DETAILS
Flush Volume: 1.6 gpf (6.0 Lpf)
Finish: Polished Chrome (CP)
Valve: Piston
Valve Body Material: Semi-red Brass
Fixture Type: Water Closet
Fixture Connection: Top spud
Rough-In Dimension: 11 ½" (292mm)
Spud Coupling: 1 ½" (38mm)
Supply Pipe: 1" (25mm)
Adapter: XL Sweat Solder Adapter Kit (XL)
FEATURES
Fixed Volume Piston with Filtered O-ring Bypass
ADA Compliant Metal Oscillating Non-Hold-Open Handle
Control Stop Plug
Spud Coupling, Wall and Spud Flanges for 11⁄2” Top Spud
Cast Set Wall Flange with Set Screw
Sweat Solder Adaptor with cover tube
Non-Hold-Open Handle and No External Volume Adjustment to
Ensure Water Conservation
Handle Packing, Stop Seat and Vacuum Breaker Molded from
PERMEX® Rubber Compound for Chloramine Resistance
1” I.P.S. Screwdriver Bak-Chek® Angle Stop
GEM-2® MANUAL FLUSHOMETER
GEM-2 111-1.6-XL
COMPLIANCES & CERTIFICATIONS
(ADA Compliant, cUPC Certified, BAA Compliant)
RECOMMENDED SPECIFICATION
Valve Body, Cover, Tailpiece and Control Stop shall be in
conformance with ASTM Alloy Classification for Semi- Red
Brass. Valve shall be in compliance with the applicable
sections of ASSE 1037 and ANSI/ASME 112.19.2.
VALVE OPERATING PRESSURE (FLOWING)
15 – 80 PSI (103 – 552 kPa). Specific fixtures may require greater
minimum flowing pressure - consult manufacturer
requirements.
DOWNLOADS
GEM/GEM 2 Piston Type Exposed Installation Instructions
Control Stop Repair and Maintenance Guide
Flush Connections Flanges Repair and Maintenance Guide
Tail Piece Repair and Maintenance Guide
Gem 2 Repair and Maintenance Guide
Additional Downloads
Sloan 10500 Seymour Ave, Franklin Park, IL 60131
Phone: 800.982.5839 • Fax: 800.447.8329 • sloan.com
Code 3070004 • Downloaded 06/09/20 • Revised 10/24/19 • View Latest Version
NOTES
All information contained within this document subject to
change without notice.
Looking for other variations of the GEM-2 111 product? View
the general spec sheet with all options.
Find a compatible urinal for this flushometer.
Find a compatible water closet for this flushometer.
Page 1 of 2
Page 2

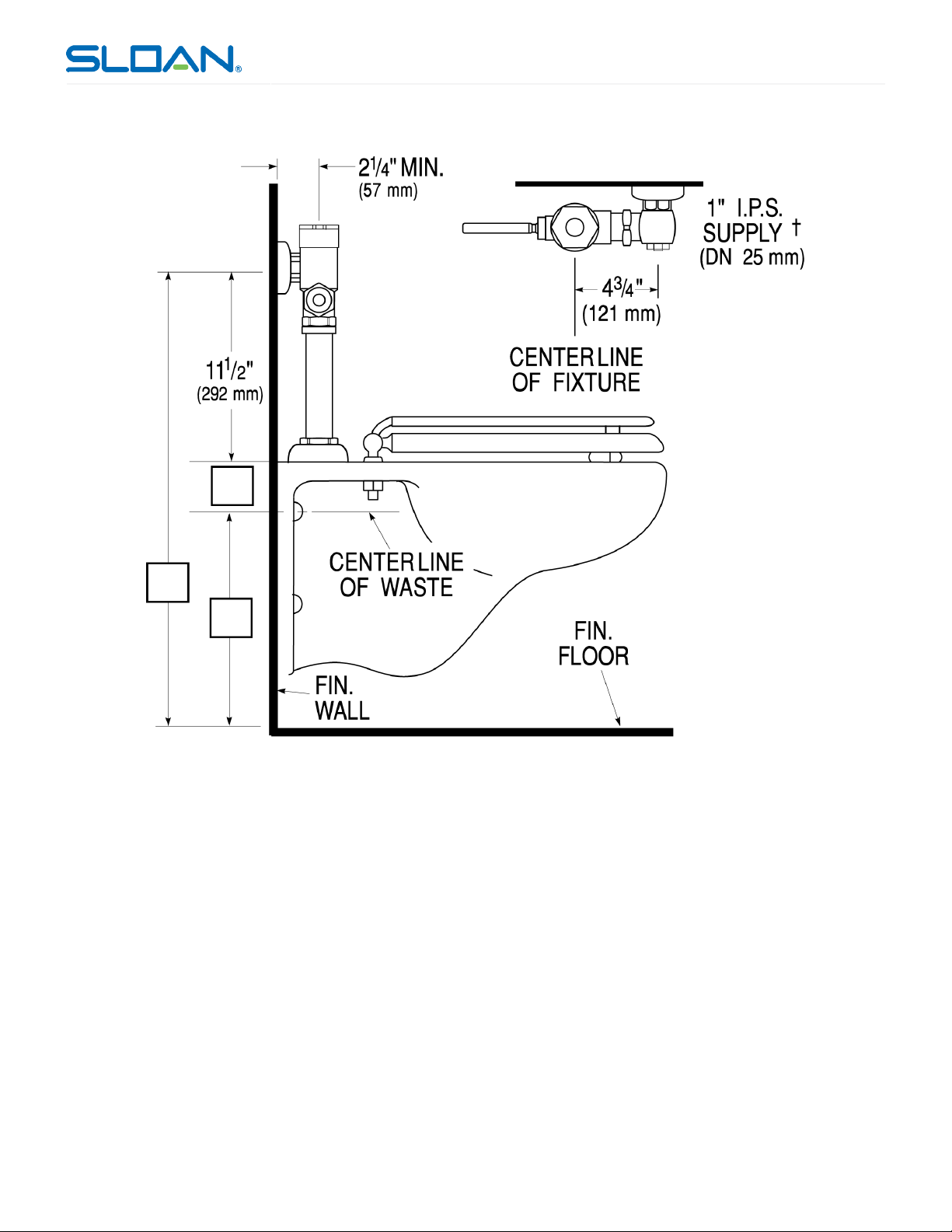

ROUGH-IN
