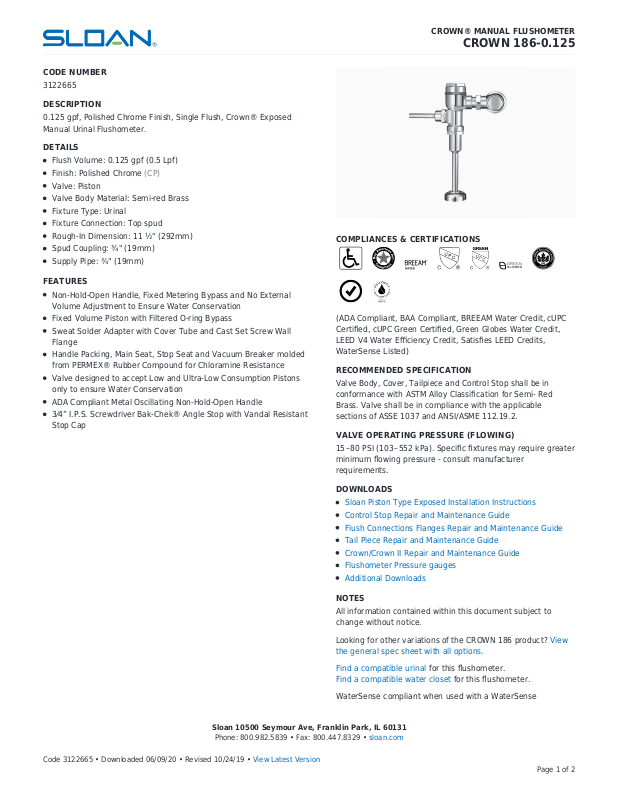

Page 1
CODE NUMBER
3122665
DESCRIPTION
0.125 gpf, Polished Chrome Finish, Single Flush, Crown® Exposed
Manual Urinal Flushometer.
DETAILS
Flush Volume: 0.125 gpf (0.5 Lpf)
Finish: Polished Chrome (CP)
Valve: Piston
Valve Body Material: Semi-red Brass
Fixture Type: Urinal
Fixture Connection: Top spud
Rough-In Dimension: 11 ½" (292mm)
Spud Coupling: ¾" (19mm)
Supply Pipe: ¾" (19mm)
FEATURES
Non-Hold-Open Handle, Fixed Metering Bypass and No External
Volume Adjustment to Ensure Water Conservation
Fixed Volume Piston with Filtered O-ring Bypass
Sweat Solder Adapter with Cover Tube and Cast Set Screw Wall
Flange
Handle Packing, Main Seat, Stop Seat and Vacuum Breaker molded
from PERMEX® Rubber Compound for Chloramine Resistance
Valve designed to accept Low and Ultra-Low Consumption Pistons
only to ensure Water Conservation
ADA Compliant Metal Oscillating Non-Hold-Open Handle
3⁄4” I.P.S. Screwdriver Bak-Chek® Angle Stop with Vandal Resistant
Stop Cap
CROWN® MANUAL FLUSHOMETER
CROWN 186-0.125
COMPLIANCES & CERTIFICATIONS
(ADA Compliant, BAA Compliant, BREEAM Water Credit, cUPC
Certified, cUPC Green Certified, Green Globes Water Credit,
LEED V4 Water Efficiency Credit, Satisfies LEED Credits,
WaterSense Listed)
RECOMMENDED SPECIFICATION
Valve Body, Cover, Tailpiece and Control Stop shall be in
conformance with ASTM Alloy Classification for Semi- Red
Brass. Valve shall be in compliance with the applicable
sections of ASSE 1037 and ANSI/ASME 112.19.2.
VALVE OPERATING PRESSURE (FLOWING)
15 – 80 PSI (103 – 552 kPa). Specific fixtures may require greater
minimum flowing pressure - consult manufacturer
requirements.
Sloan 10500 Seymour Ave, Franklin Park, IL 60131
Phone: 800.982.5839 • Fax: 800.447.8329 • sloan.com
Code 3122665 • Downloaded 06/09/20 • Revised 10/24/19 • View Latest Version
DOWNLOADS
Sloan Piston Type Exposed Installation Instructions
Control Stop Repair and Maintenance Guide
Flush Connections Flanges Repair and Maintenance Guide
Tail Piece Repair and Maintenance Guide
Crown/Crown II Repair and Maintenance Guide
Flushometer Pressure gauges
Additional Downloads
NOTES
All information contained within this document subject to
change without notice.
Looking for other variations of the CROWN 186 product? View
the general spec sheet with all options.
Find a compatible urinal for this flushometer.
Find a compatible water closet for this flushometer.
WaterSense compliant when used with a WaterSense
Page 1 of 2
Page 2
ROUGH-IN
CROWN® MANUAL FLUSHOMETER
CROWN 186-0.125
compliant fixture
Sloan 10500 Seymour Ave, Franklin Park, IL 60131
Phone: 800.982.5839 • Fax: 800.447.8329 • sloan.com
Code 3122665 • Downloaded 06/09/20 • Revised 10/24/19 • View Latest Version
Page 2 of 2
