Page 1
CODE NUMBER
3325500
DESCRIPTION
Polished Chrome Finish, Single Flush, Battery, Exposed Sensor
Urinal/Water Closet Retrofit Flushometer.
DETAILS
Finish: Polished Chrome (CP)
Power Type: Battery
Battery Life: 3 years
Valve: Diaphragm/Piston
Fixture Type: Urinal/Water Closet
Fixture Connection: Top spud
FEATURES
ADA Compliant Battery powered infrared side mount sensor for
automatic “No Hands” operation
Four (4) size C alkaline batteries included
Non-Hold-Open True Mechanical Override Full Flush Button
“Low Battery” Flashing LED
“User in View” Flashing LED
72-Hour Sentinel Flush
Estimated battery life - 3 years at 4000 cycles per month
Sensor with Automatic Range Adjustment
SENSOR FLUSHOMETER
EBV500A
COMPLIANCES & CERTIFICATIONS
(ADA Compliant, BREEAM Water Credit, cUPC Certified, Green
Globes Water Credit)
ELECTRICAL SPECIFICATIONS
Arming Delay: 1-3 seconds
Battery Life: 3 years
Control Circuit: 6 VDC Input/72 Hour Sentinel Flush/Solid
State
Sensor Range: 22" – 42" (559 – 1,067mm)
VALVE OPERATING PRESSURE (FLOWING)
15 – 80 PSI (103 – 552 kPa). Specific fixtures may require greater
minimum flowing pressure - consult manufacturer
requirements.
DOWNLOADS
EBV-500/550-A Installation Instructions
EBV500/EBV550 Repair and Maintenance Guide
Additional Downloads
NOTES
All information contained within this document subject to
change without notice.
Looking for other variations of the EBV500A product? View the
general spec sheet with all options.
Find a compatible urinal for this flushometer.
Find a compatible water closet for this flushometer.
Sloan 10500 Seymour Ave, Franklin Park, IL 60131
Phone: 800.982.5839 • Fax: 800.447.8329 • sloan.com
Code 3325500 • Downloaded 06/09/20 • Revised 05/15/20 • View Latest Version
Page 1 of 2
Page 2

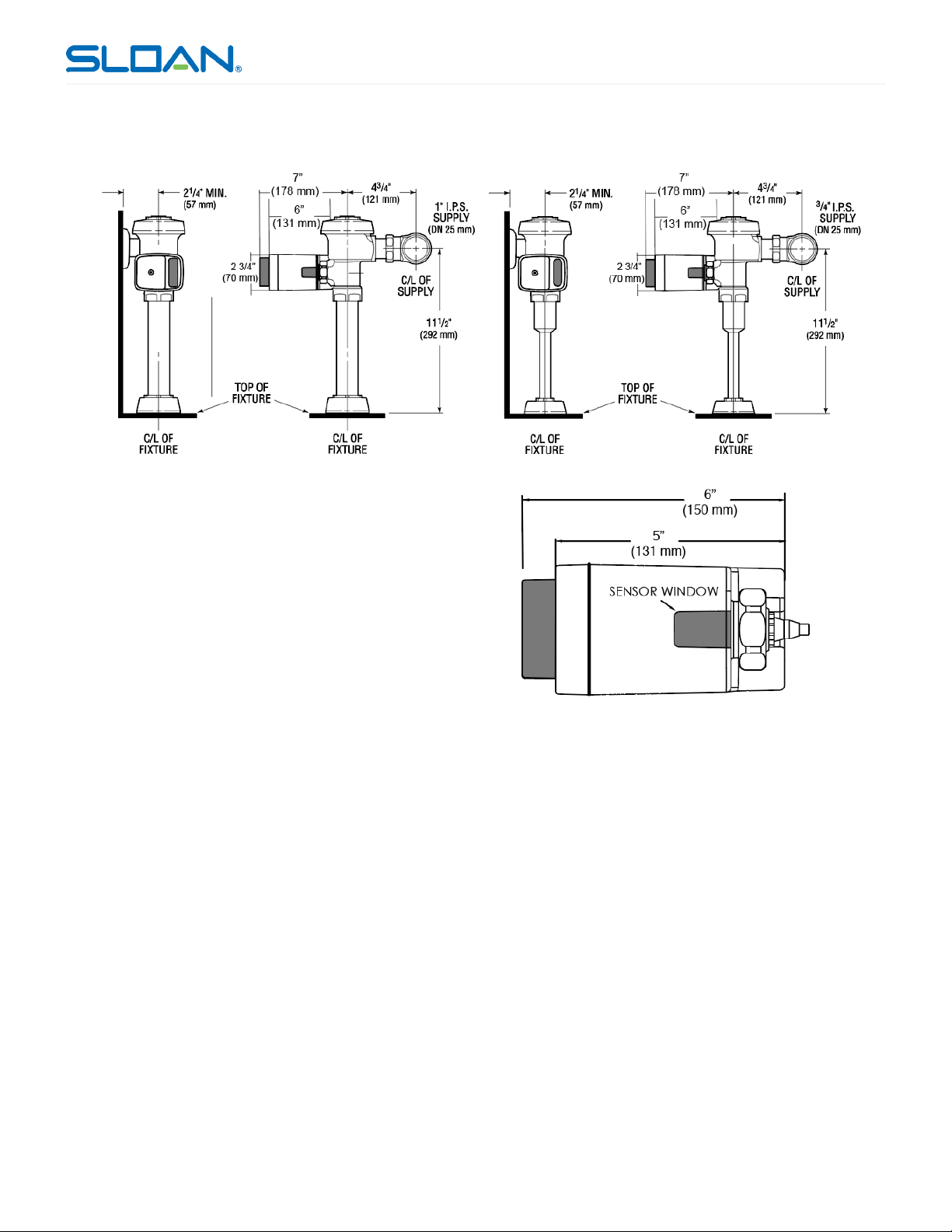

ROUGH-IN
SENSOR FLUSHOMETER
EBV500A
Sloan 10500 Seymour Ave, Franklin Park, IL 60131
Phone: 800.982.5839 • Fax: 800.447.8329 • sloan.com
Code 3325500 • Downloaded 06/09/20 • Revised 05/15/20 • View Latest Version
Page 2 of 2
