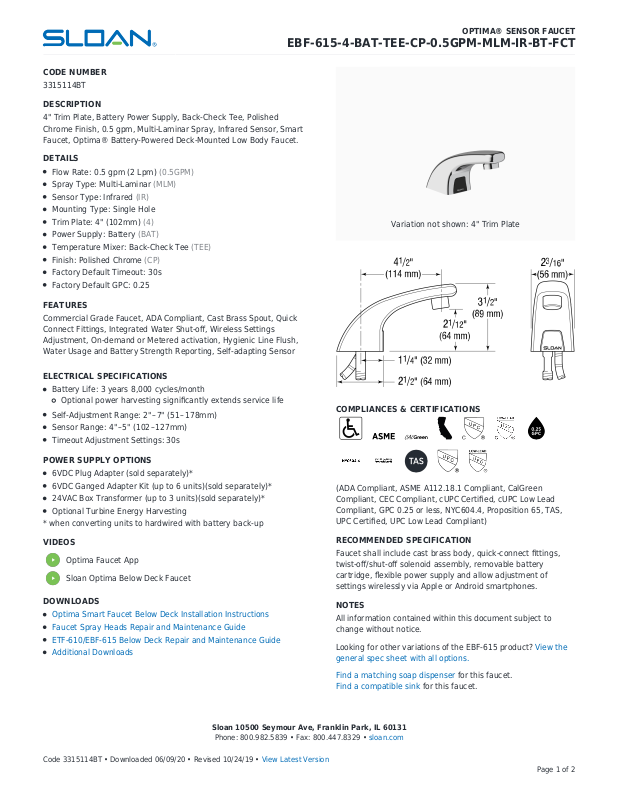

Page 1
EBF-615-4-BAT-TEE-CP-0.5GPM-MLM-IR-BT-FCT
CODE NUMBER
3315114BT
DESCRIPTION
4" Trim Plate, Battery Power Supply, Back-Check Tee, Polished
Chrome Finish, 0.5 gpm, Multi-Laminar Spray, Infrared Sensor, Smart
Faucet, Optima® Battery-Powered Deck-Mounted Low Body Faucet.
DETAILS
Flow Rate: 0.5 gpm (2 Lpm) (0.5GPM)
Spray Type: Multi-Laminar (MLM)
Sensor Type: Infrared (IR)
Mounting Type: Single Hole
Trim Plate: 4" (102mm) (4)
Power Supply: Battery (BAT)
Temperature Mixer: Back-Check Tee (TEE)
Finish: Polished Chrome (CP)
Factory Default Timeout: 30s
Factory Default GPC: 0.25
FEATURES
Commercial Grade Faucet, ADA Compliant, Cast Brass Spout, Quick
Connect Fittings, Integrated Water Shut-off, Wireless Settings
Adjustment, On-demand or Metered activation, Hygienic Line Flush,
Water Usage and Battery Strength Reporting, Self-adapting Sensor
OPTIMA® SENSOR FAUCET
Variation not shown: 4" Trim Plate
ELECTRICAL SPECIFICATIONS
Battery Life: 3 years 8,000 cycles/month
Optional power harvesting significantly extends service life
Self-Adjustment Range: 2" – 7" (51 – 178mm)
Sensor Range: 4" – 5" (102 – 127mm)
Timeout Adjustment Settings: 30s
POWER SUPPLY OPTIONS
6VDC Plug Adapter (sold separately)*
6VDC Ganged Adapter Kit (up to 6 units)(sold separately)*
24VAC Box Transformer (up to 3 units)(sold separately)*
Optional Turbine Energy Harvesting
* when converting units to hardwired with battery back-up
VIDEOS
Optima Faucet App
Sloan Optima Below Deck Faucet
DOWNLOADS
Optima Smart Faucet Below Deck Installation Instructions
Faucet Spray Heads Repair and Maintenance Guide
ETF-610/EBF-615 Below Deck Repair and Maintenance Guide
Additional Downloads
COMPLIANCES & CERTIFICATIONS
(ADA Compliant, ASME A112.18.1 Compliant, CalGreen
Compliant, CEC Compliant, cUPC Certified, cUPC Low Lead
Compliant, GPC 0.25 or less, NYC604.4, Proposition 65, TAS,
UPC Certified, UPC Low Lead Compliant)
RECOMMENDED SPECIFICATION
Faucet shall include cast brass body, quick-connect fittings,
twist-off/shut-off solenoid assembly, removable battery
cartridge, flexible power supply and allow adjustment of
settings wirelessly via Apple or Android smartphones.
NOTES
All information contained within this document subject to
change without notice.
Looking for other variations of the EBF-615 product? View the
general spec sheet with all options.
Find a matching soap dispenser for this faucet.
Find a compatible sink for this faucet.
Sloan 10500 Seymour Ave, Franklin Park, IL 60131
Phone: 800.982.5839 • Fax: 800.447.8329 • sloan.com
Code 3315114BT • Downloaded 06/09/20 • Revised 10/24/19 • View Latest Version
Page 1 of 2
Page 2

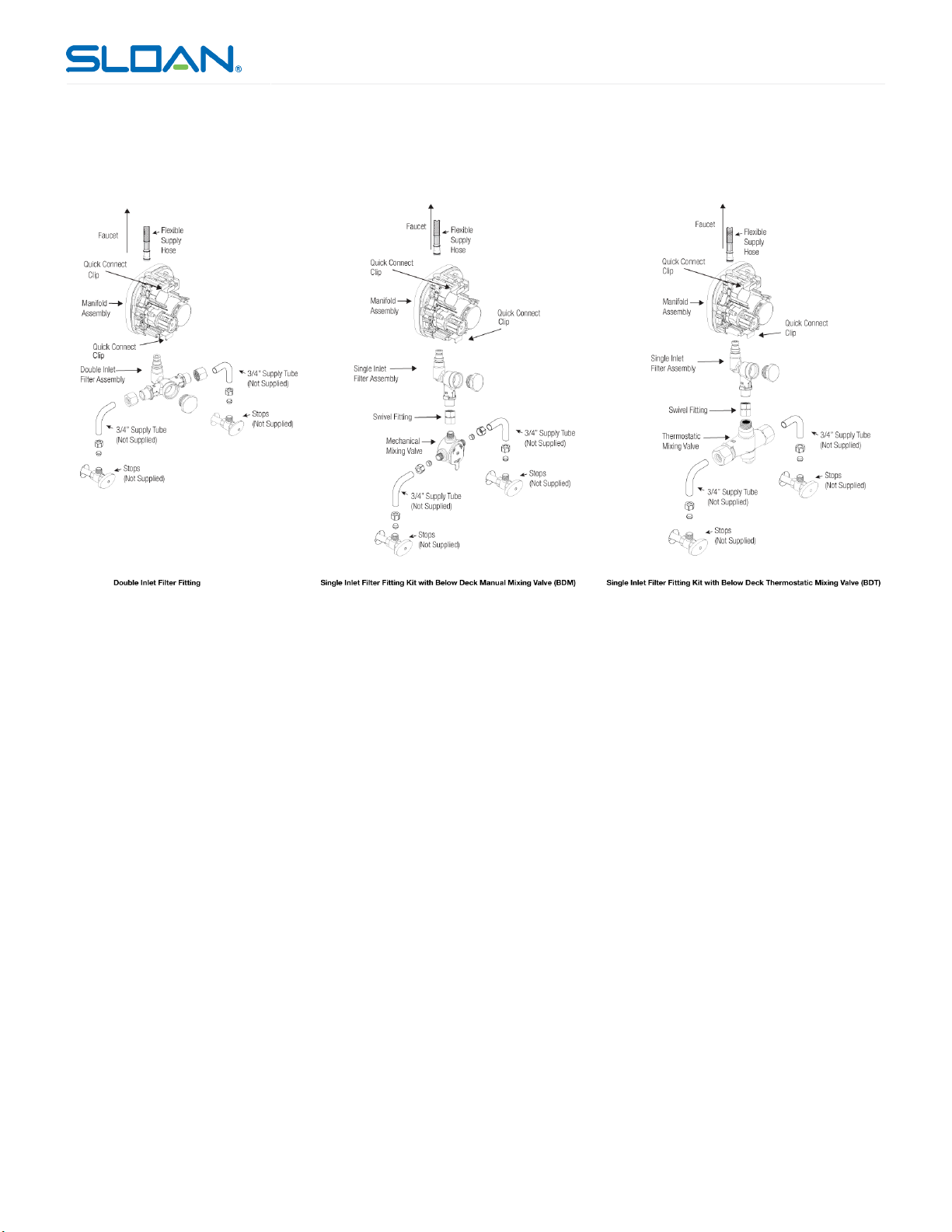

ROUGH-IN
OPTIMA® SENSOR FAUCET
EBF-615-4-BAT-TEE-CP-0.5GPM-MLM-IR-BT-FCT
WARRANTY
3 Year
Sloan 10500 Seymour Ave, Franklin Park, IL 60131
Phone: 800.982.5839 • Fax: 800.447.8329 • sloan.com
Code 3315114BT • Downloaded 06/09/20 • Revised 10/24/19 • View Latest Version
Page 2 of 2
