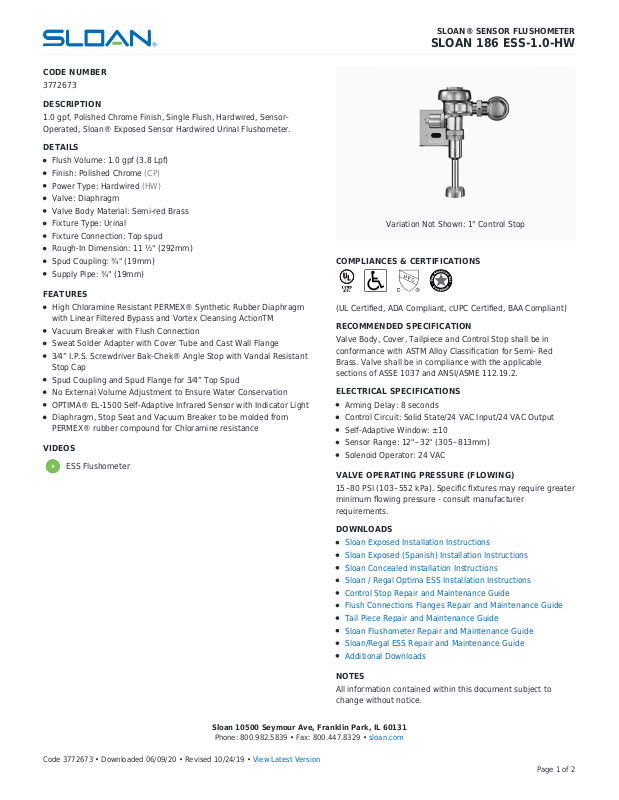

CODE NUMBER
3772673
DESCRIPTION
1.0 gpf, Polished Chrome Finish, Single Flush, Hardwired, SensorOperated, Sloan® Exposed Sensor Hardwired Urinal Flushometer.
DETAILS
Flush Volume: 1.0 gpf (3.8 Lpf)
Finish: Polished Chrome (CP)
Power Type: Hardwired (HW)
Valve: Diaphragm
Valve Body Material: Semi-red Brass
Fixture Type: Urinal
Fixture Connection: Top spud
Rough-In Dimension: 11 ½" (292mm)
Spud Coupling: ¾" (19mm)
Supply Pipe: ¾" (19mm)

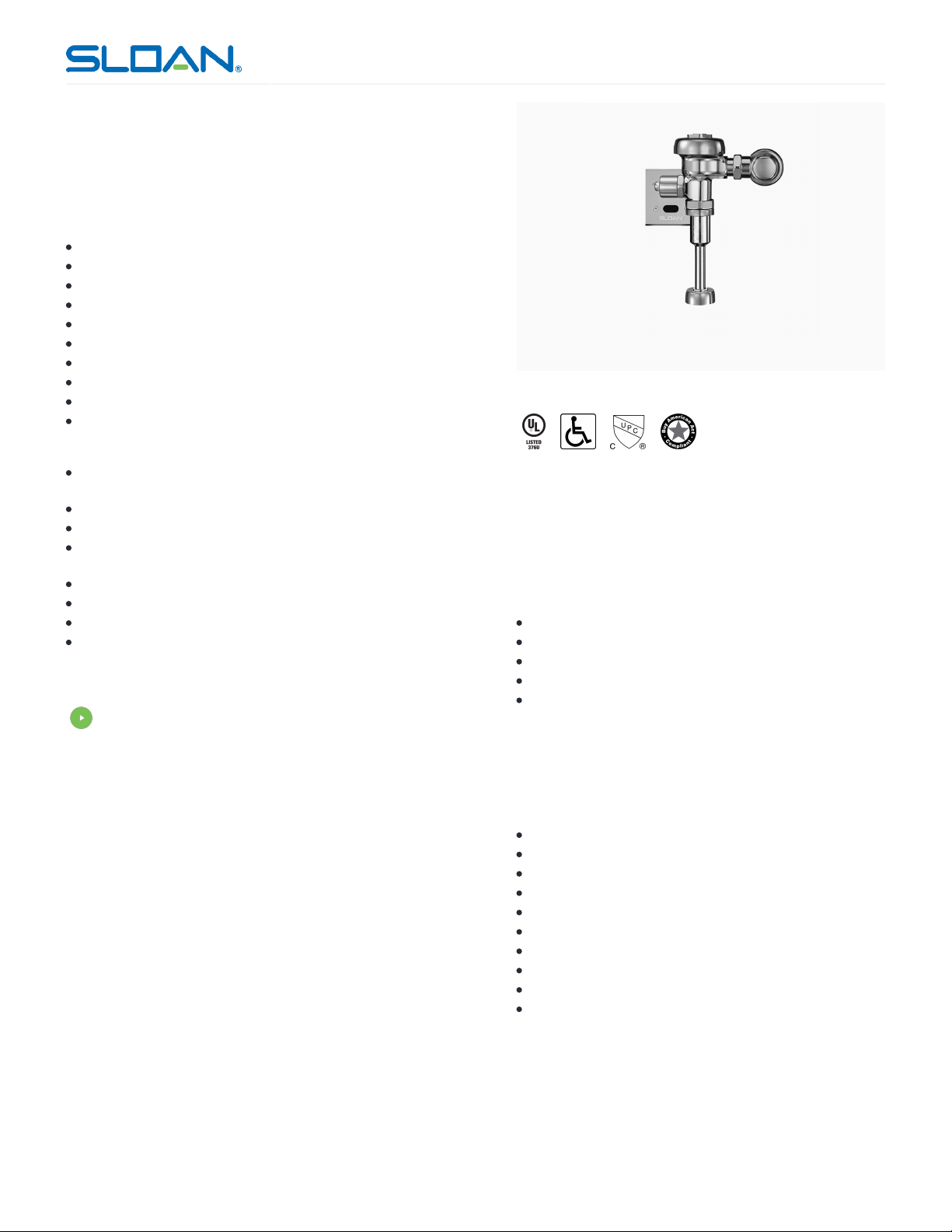

SLOAN® SENSOR FLUSHOMETER
SLOAN 186 ESS-1.0-HW
Variation Not Shown: 1" Control Stop
COMPLIANCES & CERTIFICATIONS
FEATURES
High Chloramine Resistant PERMEX® Synthetic Rubber Diaphragm
with Linear Filtered Bypass and Vortex Cleansing ActionTM
Vacuum Breaker with Flush Connection
Sweat Solder Adapter with Cover Tube and Cast Wall Flange
3⁄4” I.P.S. Screwdriver Bak-Chek® Angle Stop with Vandal Resistant
Stop Cap
Spud Coupling and Spud Flange for 3⁄4” Top Spud
No External Volume Adjustment to Ensure Water Conservation
OPTIMA® EL-1500 Self-Adaptive Infrared Sensor with Indicator Light
Diaphragm, Stop Seat and Vacuum Breaker to be molded from
PERMEX® rubber compound for Chloramine resistance
VIDEOS
ESS Flushometer
(UL Certified, ADA Compliant, cUPC Certified, BAA Compliant)
RECOMMENDED SPECIFICATION
Valve Body, Cover, Tailpiece and Control Stop shall be in
conformance with ASTM Alloy Classification for Semi- Red
Brass. Valve shall be in compliance with the applicable
sections of ASSE 1037 and ANSI/ASME 112.19.2.
ELECTRICAL SPECIFICATIONS
Arming Delay: 8 seconds
Control Circuit: Solid State/24 VAC Input/24 VAC Output
Self-Adaptive Window: ±10
Sensor Range: 12" – 32" (305 – 813mm)
Solenoid Operator: 24 VAC
VALVE OPERATING PRESSURE (FLOWING)
15 – 80 PSI (103 – 552 kPa). Specific fixtures may require greater
minimum flowing pressure - consult manufacturer
requirements.
DOWNLOADS
Sloan Exposed Installation Instructions
Sloan Exposed (Spanish) Installation Instructions
Sloan Concealed Installation Instructions
Sloan / Regal Optima ESS Installation Instructions
Control Stop Repair and Maintenance Guide
Flush Connections Flanges Repair and Maintenance Guide
Tail Piece Repair and Maintenance Guide
Sloan Flushometer Repair and Maintenance Guide
Sloan/Regal ESS Repair and Maintenance Guide
Additional Downloads
Sloan 10500 Seymour Ave, Franklin Park, IL 60131
Phone: 800.982.5839 • Fax: 800.447.8329 • sloan.com
Code 3772673 • Downloaded 06/09/20 • Revised 10/24/19 • View Latest Version
NOTES
All information contained within this document subject to
change without notice.
Page 1 of 2
Page 2

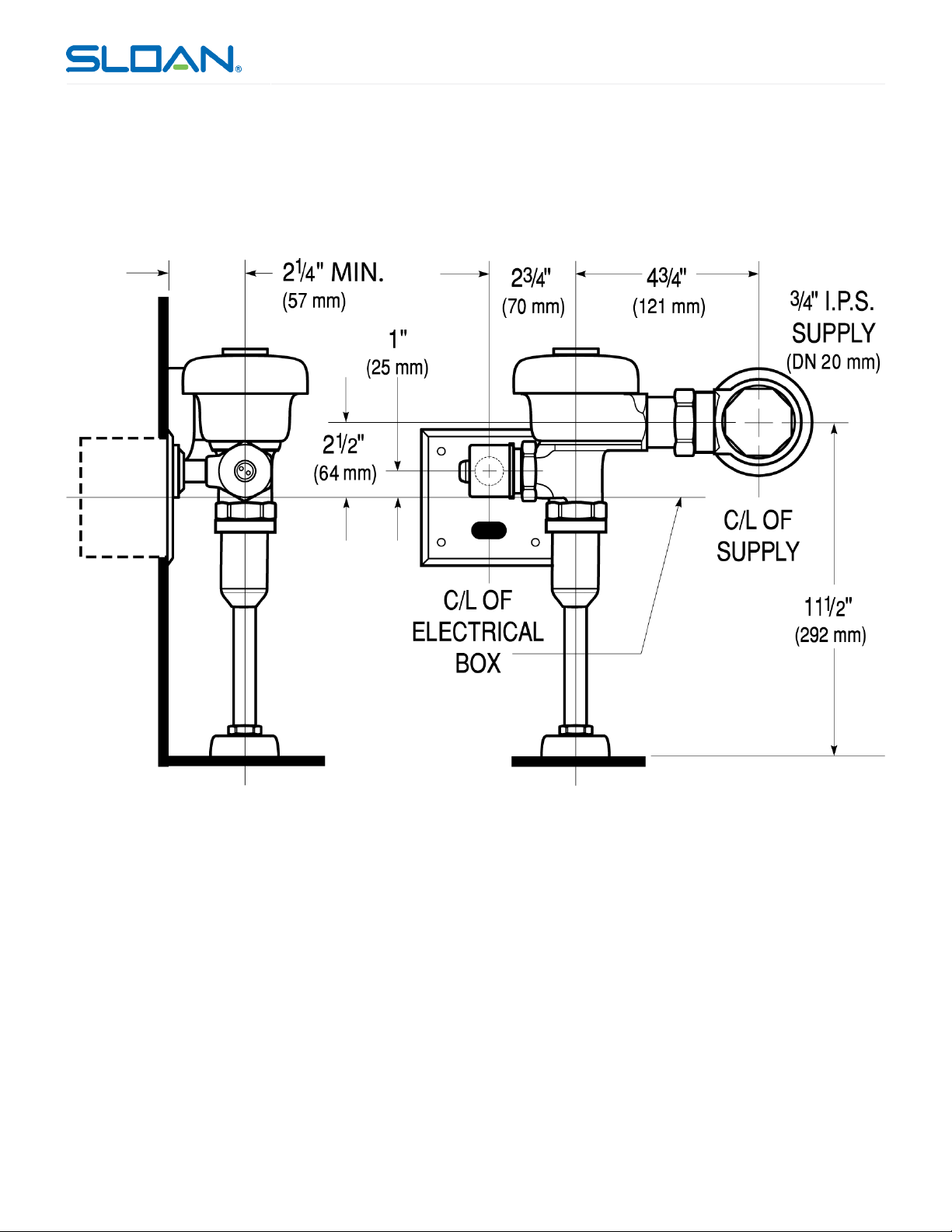

ROUGH-IN
SLOAN® SENSOR FLUSHOMETER
SLOAN 186 ESS-1.0-HW
Looking for other variations of the SLOAN 186 ESS product?
View the general spec sheet with all options.
Find a compatible urinal for this flushometer.
Find a compatible water closet for this flushometer.
