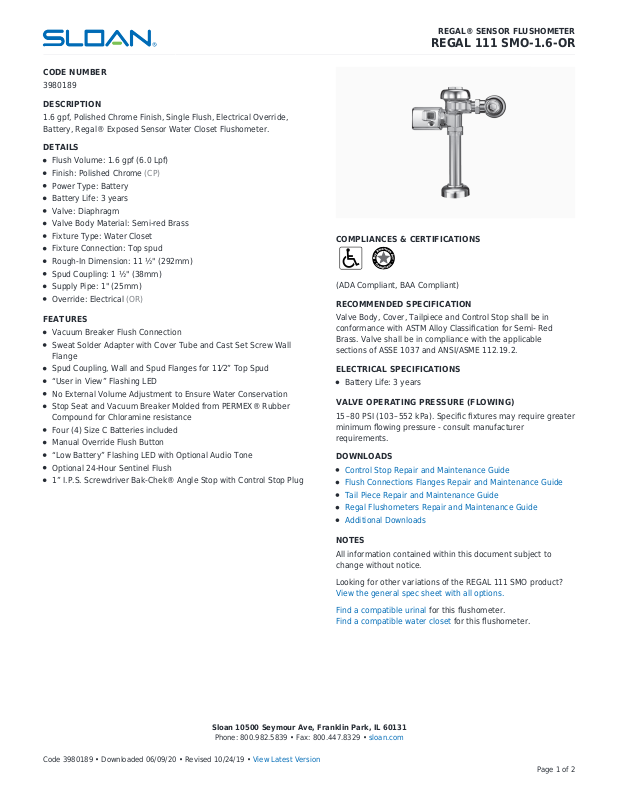

Page 1
CODE NUMBER
3980189
DESCRIPTION
1.6 gpf, Polished Chrome Finish, Single Flush, Electrical Override,
Battery, Regal® Exposed Sensor Water Closet Flushometer.
DETAILS
Flush Volume: 1.6 gpf (6.0 Lpf)
Finish: Polished Chrome (CP)
Power Type: Battery
Battery Life: 3 years
Valve: Diaphragm
Valve Body Material: Semi-red Brass
Fixture Type: Water Closet
Fixture Connection: Top spud
Rough-In Dimension: 11 ½" (292mm)
Spud Coupling: 1 ½" (38mm)
Supply Pipe: 1" (25mm)
Override: Electrical (OR)
FEATURES
Vacuum Breaker Flush Connection
Sweat Solder Adapter with Cover Tube and Cast Set Screw Wall
Flange
Spud Coupling, Wall and Spud Flanges for 11⁄2” Top Spud
“User in View” Flashing LED
No External Volume Adjustment to Ensure Water Conservation
Stop Seat and Vacuum Breaker Molded from PERMEX® Rubber
Compound for Chloramine resistance
Four (4) Size C Batteries included
Manual Override Flush Button
“Low Battery” Flashing LED with Optional Audio Tone
Optional 24-Hour Sentinel Flush
1” I.P.S. Screwdriver Bak-Chek® Angle Stop with Control Stop Plug
REGAL® SENSOR FLUSHOMETER
REGAL 111 SMO-1.6-OR
COMPLIANCES & CERTIFICATIONS
(ADA Compliant, BAA Compliant)
RECOMMENDED SPECIFICATION
Valve Body, Cover, Tailpiece and Control Stop shall be in
conformance with ASTM Alloy Classification for Semi- Red
Brass. Valve shall be in compliance with the applicable
sections of ASSE 1037 and ANSI/ASME 112.19.2.
ELECTRICAL SPECIFICATIONS
Battery Life: 3 years
VALVE OPERATING PRESSURE (FLOWING)
15 – 80 PSI (103 – 552 kPa). Specific fixtures may require greater
minimum flowing pressure - consult manufacturer
requirements.
DOWNLOADS
Control Stop Repair and Maintenance Guide
Flush Connections Flanges Repair and Maintenance Guide
Tail Piece Repair and Maintenance Guide
Regal Flushometers Repair and Maintenance Guide
Additional Downloads
Sloan 10500 Seymour Ave, Franklin Park, IL 60131
Phone: 800.982.5839 • Fax: 800.447.8329 • sloan.com
Code 3980189 • Downloaded 06/09/20 • Revised 10/24/19 • View Latest Version
NOTES
All information contained within this document subject to
change without notice.
Looking for other variations of the REGAL 111 SMO product?
View the general spec sheet with all options.
Find a compatible urinal for this flushometer.
Find a compatible water closet for this flushometer.
Page 1 of 2
Page 2

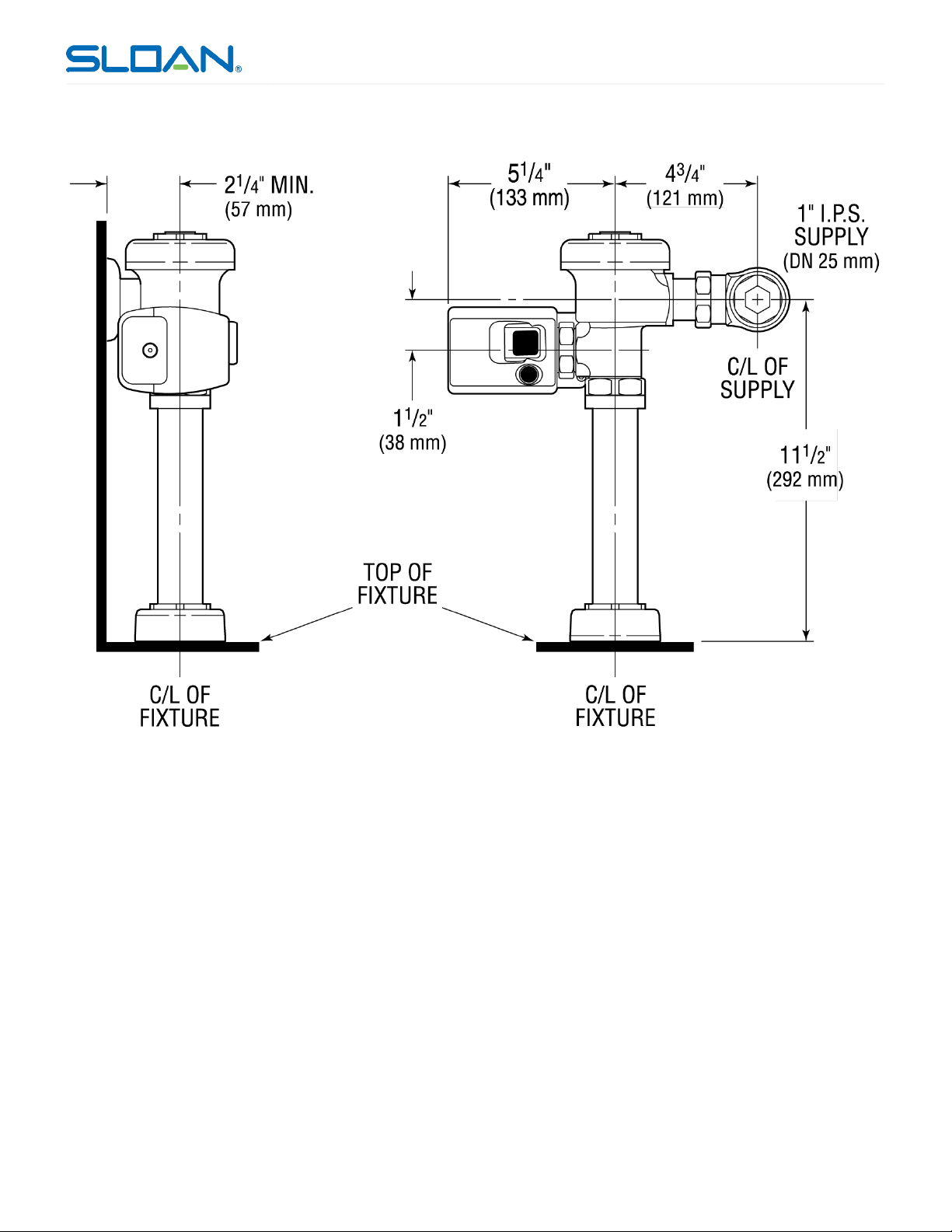

ROUGH-IN
REGAL® SENSOR FLUSHOMETER
REGAL 111 SMO-1.6-OR
