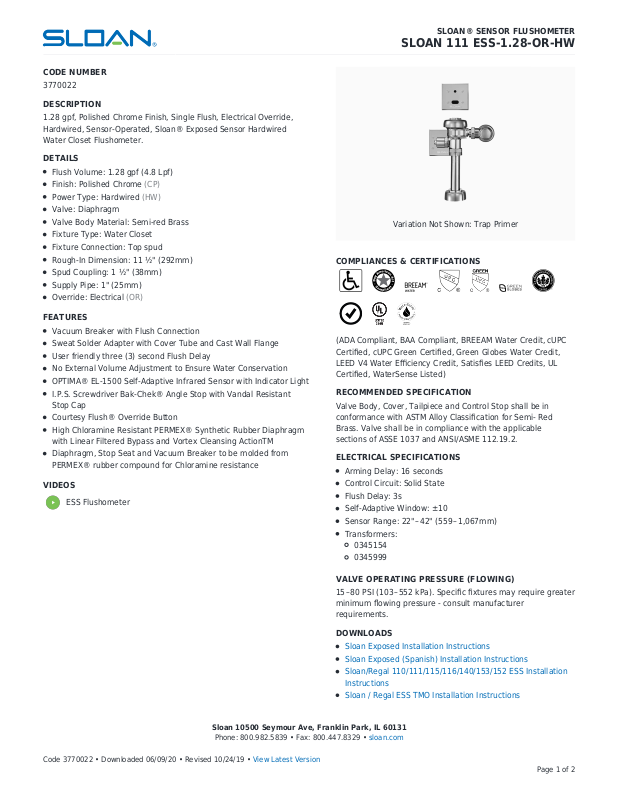

CODE NUMBER
3770022
DESCRIPTION
1.28 gpf, Polished Chrome Finish, Single Flush, Electrical Override,
Hardwired, Sensor-Operated, Sloan® Exposed Sensor Hardwired
Water Closet Flushometer.
DETAILS
Flush Volume: 1.28 gpf (4.8 Lpf)
Finish: Polished Chrome (CP)
Power Type: Hardwired (HW)
Valve: Diaphragm
Valve Body Material: Semi-red Brass
Fixture Type: Water Closet
Fixture Connection: Top spud
Rough-In Dimension: 11 ½" (292mm)
Spud Coupling: 1 ½" (38mm)
Supply Pipe: 1" (25mm)
Override: Electrical (OR)
FEATURES
Vacuum Breaker with Flush Connection
Sweat Solder Adapter with Cover Tube and Cast Wall Flange
User friendly three (3) second Flush Delay
No External Volume Adjustment to Ensure Water Conservation
OPTIMA® EL-1500 Self-Adaptive Infrared Sensor with Indicator Light
I.P.S. Screwdriver Bak-Chek® Angle Stop with Vandal Resistant
Stop Cap
Courtesy Flush® Override Button
High Chloramine Resistant PERMEX® Synthetic Rubber Diaphragm
with Linear Filtered Bypass and Vortex Cleansing ActionTM
Diaphragm, Stop Seat and Vacuum Breaker to be molded from
PERMEX® rubber compound for Chloramine resistance
VIDEOS
ESS Flushometer
SLOAN® SENSOR FLUSHOMETER
SLOAN 111 ESS-1.28-OR-HW

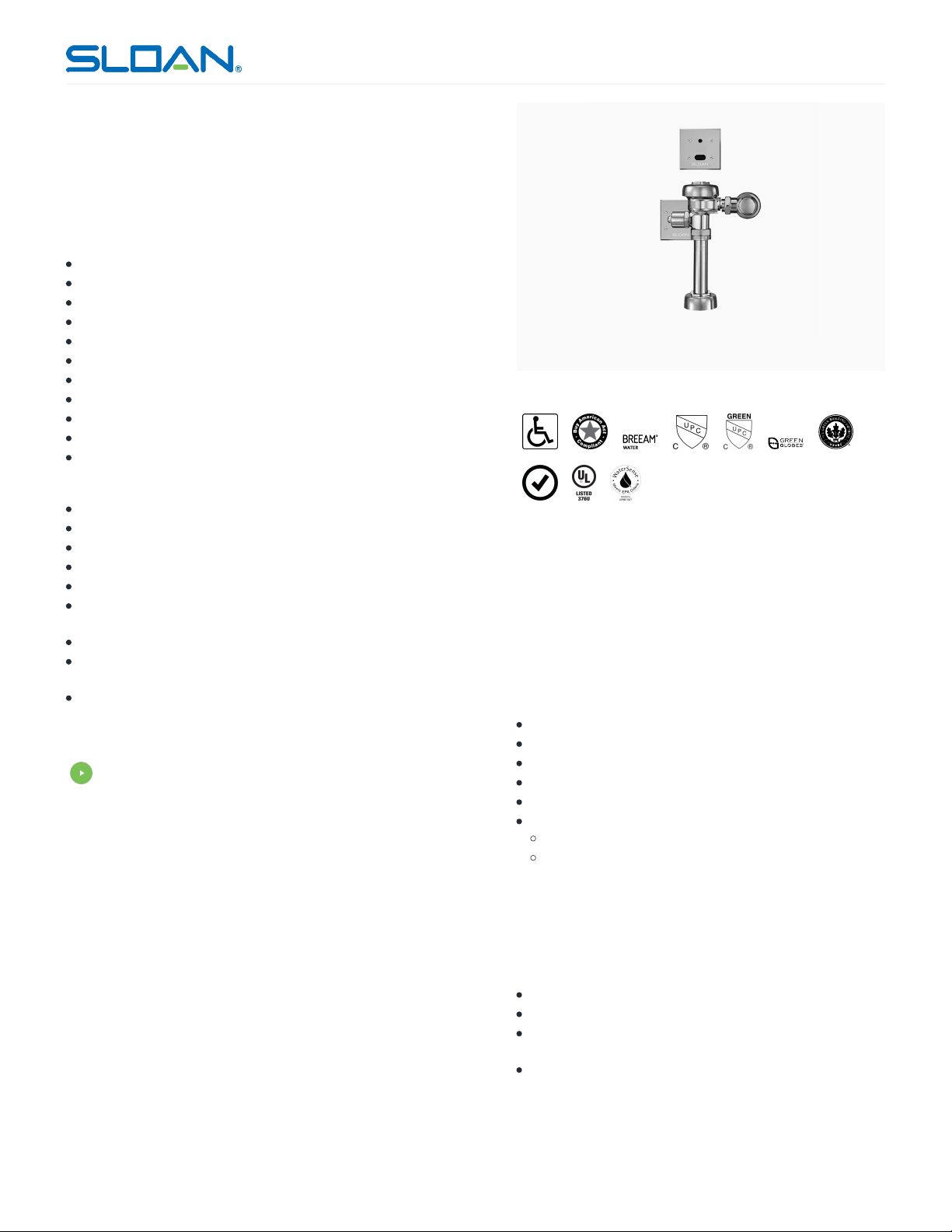

Variation Not Shown: Trap Primer
COMPLIANCES & CERTIFICATIONS
(ADA Compliant, BAA Compliant, BREEAM Water Credit, cUPC
Certified, cUPC Green Certified, Green Globes Water Credit,
LEED V4 Water Efficiency Credit, Satisfies LEED Credits, UL
Certified, WaterSense Listed)
RECOMMENDED SPECIFICATION
Valve Body, Cover, Tailpiece and Control Stop shall be in
conformance with ASTM Alloy Classification for Semi- Red
Brass. Valve shall be in compliance with the applicable
sections of ASSE 1037 and ANSI/ASME 112.19.2.
ELECTRICAL SPECIFICATIONS
Arming Delay: 16 seconds
Control Circuit: Solid State
Flush Delay: 3s
Self-Adaptive Window: ±10
Sensor Range: 22" – 42" (559 – 1,067mm)
Transformers:
0345154
0345999
Sloan 10500 Seymour Ave, Franklin Park, IL 60131
Phone: 800.982.5839 • Fax: 800.447.8329 • sloan.com
Code 3770022 • Downloaded 06/09/20 • Revised 10/24/19 • View Latest Version
VALVE OPERATING PRESSURE (FLOWING)
15 – 80 PSI (103 – 552 kPa). Specific fixtures may require greater
minimum flowing pressure - consult manufacturer
requirements.
DOWNLOADS
Sloan Exposed Installation Instructions
Sloan Exposed (Spanish) Installation Instructions
Sloan/Regal 110/111/115/116/140/153/152 ESS Installation
Instructions
Sloan / Regal ESS TMO Installation Instructions
Page 1 of 2
Page 2

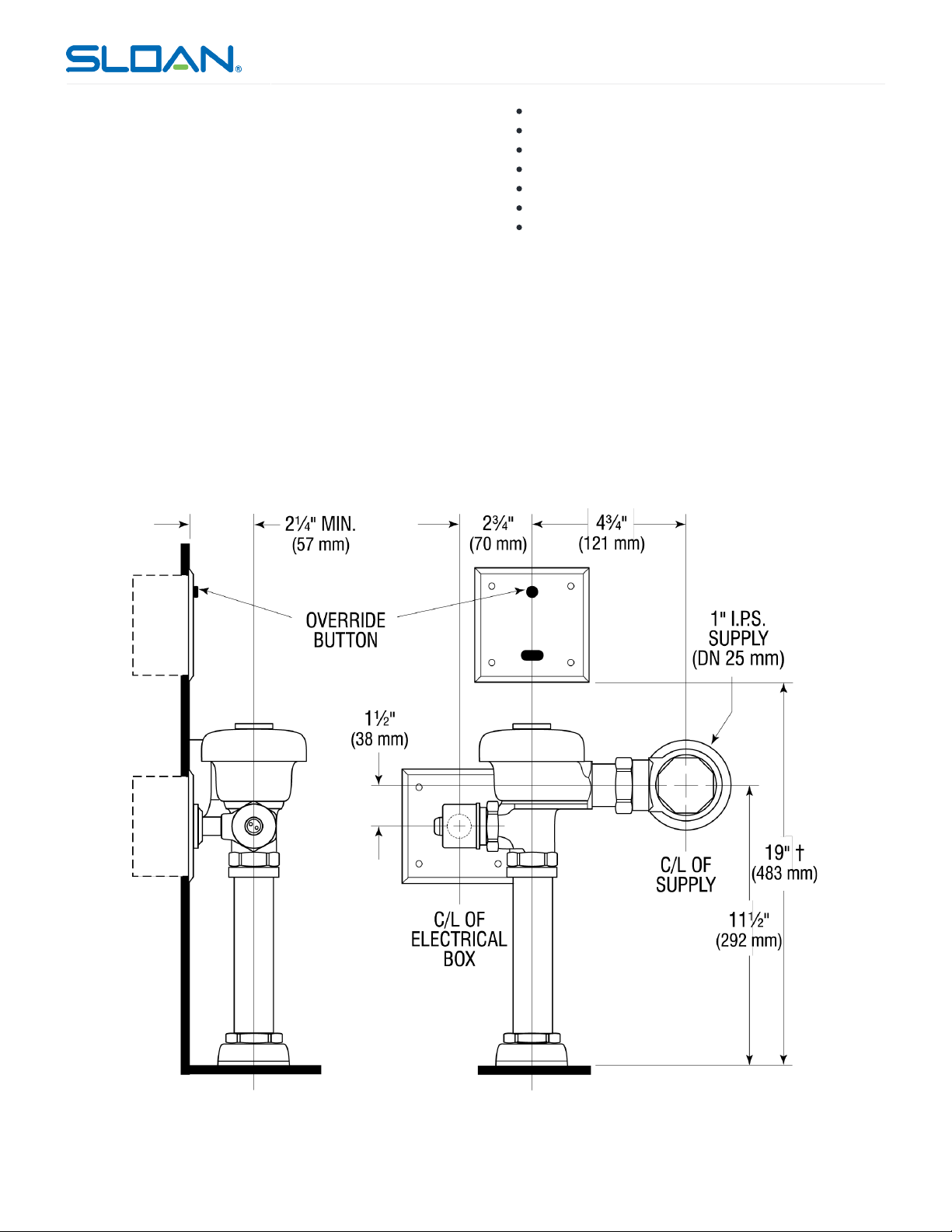

ROUGH-IN
SLOAN® SENSOR FLUSHOMETER
SLOAN 111 ESS-1.28-OR-HW
Control Stop Repair and Maintenance Guide
Flush Connections Flanges Repair and Maintenance Guide
Tail Piece Repair and Maintenance Guide
Sloan Flushometer Repair and Maintenance Guide
Optima ESS Repair and Maintenance Guide
Sloan/Regal ESS Repair and Maintenance Guide
Additional Downloads
NOTES
All information contained within this document subject to
change without notice.
Looking for other variations of the SLOAN 111 ESS product?
View the general spec sheet with all options.
Find a compatible urinal for this flushometer.
Find a compatible water closet for this flushometer.
WaterSense compliant when used with a WaterSense
compliant fixture
