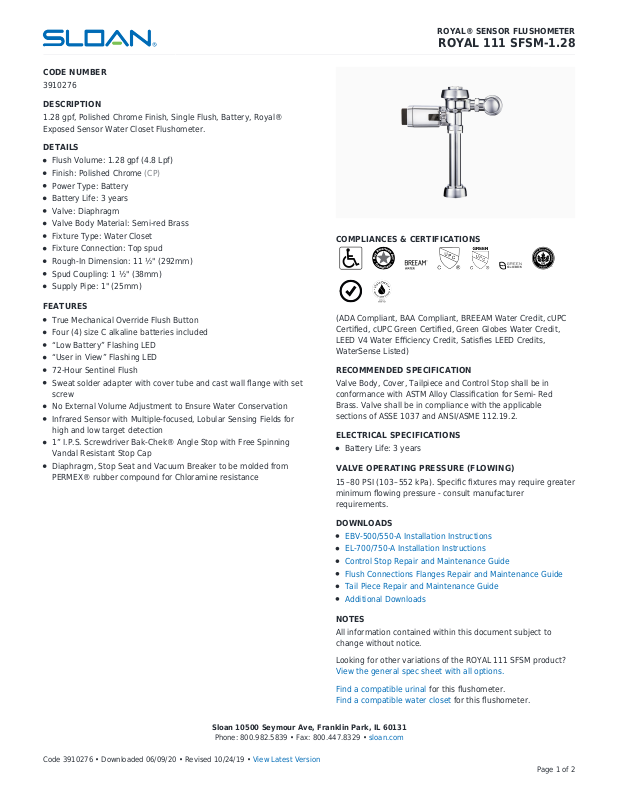

Page 1
CODE NUMBER
3910276
DESCRIPTION
1.28 gpf, Polished Chrome Finish, Single Flush, Battery, Royal®
Exposed Sensor Water Closet Flushometer.
DETAILS
Flush Volume: 1.28 gpf (4.8 Lpf)
Finish: Polished Chrome (CP)
Power Type: Battery
Battery Life: 3 years
Valve: Diaphragm
Valve Body Material: Semi-red Brass
Fixture Type: Water Closet
Fixture Connection: Top spud
Rough-In Dimension: 11 ½" (292mm)
Spud Coupling: 1 ½" (38mm)
Supply Pipe: 1" (25mm)
ROYAL® SENSOR FLUSHOMETER
ROYAL 111 SFSM-1.28
COMPLIANCES & CERTIFICATIONS
FEATURES
True Mechanical Override Flush Button
Four (4) size C alkaline batteries included
“Low Battery” Flashing LED
“User in View” Flashing LED
72-Hour Sentinel Flush
Sweat solder adapter with cover tube and cast wall flange with set
screw
No External Volume Adjustment to Ensure Water Conservation
Infrared Sensor with Multiple-focused, Lobular Sensing Fields for
high and low target detection
1” I.P.S. Screwdriver Bak-Chek® Angle Stop with Free Spinning
Vandal Resistant Stop Cap
Diaphragm, Stop Seat and Vacuum Breaker to be molded from
PERMEX® rubber compound for Chloramine resistance
(ADA Compliant, BAA Compliant, BREEAM Water Credit, cUPC
Certified, cUPC Green Certified, Green Globes Water Credit,
LEED V4 Water Efficiency Credit, Satisfies LEED Credits,
WaterSense Listed)
RECOMMENDED SPECIFICATION
Valve Body, Cover, Tailpiece and Control Stop shall be in
conformance with ASTM Alloy Classification for Semi- Red
Brass. Valve shall be in compliance with the applicable
sections of ASSE 1037 and ANSI/ASME 112.19.2.
ELECTRICAL SPECIFICATIONS
Battery Life: 3 years
VALVE OPERATING PRESSURE (FLOWING)
15 – 80 PSI (103 – 552 kPa). Specific fixtures may require greater
minimum flowing pressure - consult manufacturer
requirements.
DOWNLOADS
EBV-500/550-A Installation Instructions
EL-700/750-A Installation Instructions
Control Stop Repair and Maintenance Guide
Flush Connections Flanges Repair and Maintenance Guide
Tail Piece Repair and Maintenance Guide
Additional Downloads
Sloan 10500 Seymour Ave, Franklin Park, IL 60131
Phone: 800.982.5839 • Fax: 800.447.8329 • sloan.com
Code 3910276 • Downloaded 06/09/20 • Revised 10/24/19 • View Latest Version
NOTES
All information contained within this document subject to
change without notice.
Looking for other variations of the ROYAL 111 SFSM product?
View the general spec sheet with all options.
Find a compatible urinal for this flushometer.
Find a compatible water closet for this flushometer.
Page 1 of 2
Page 2

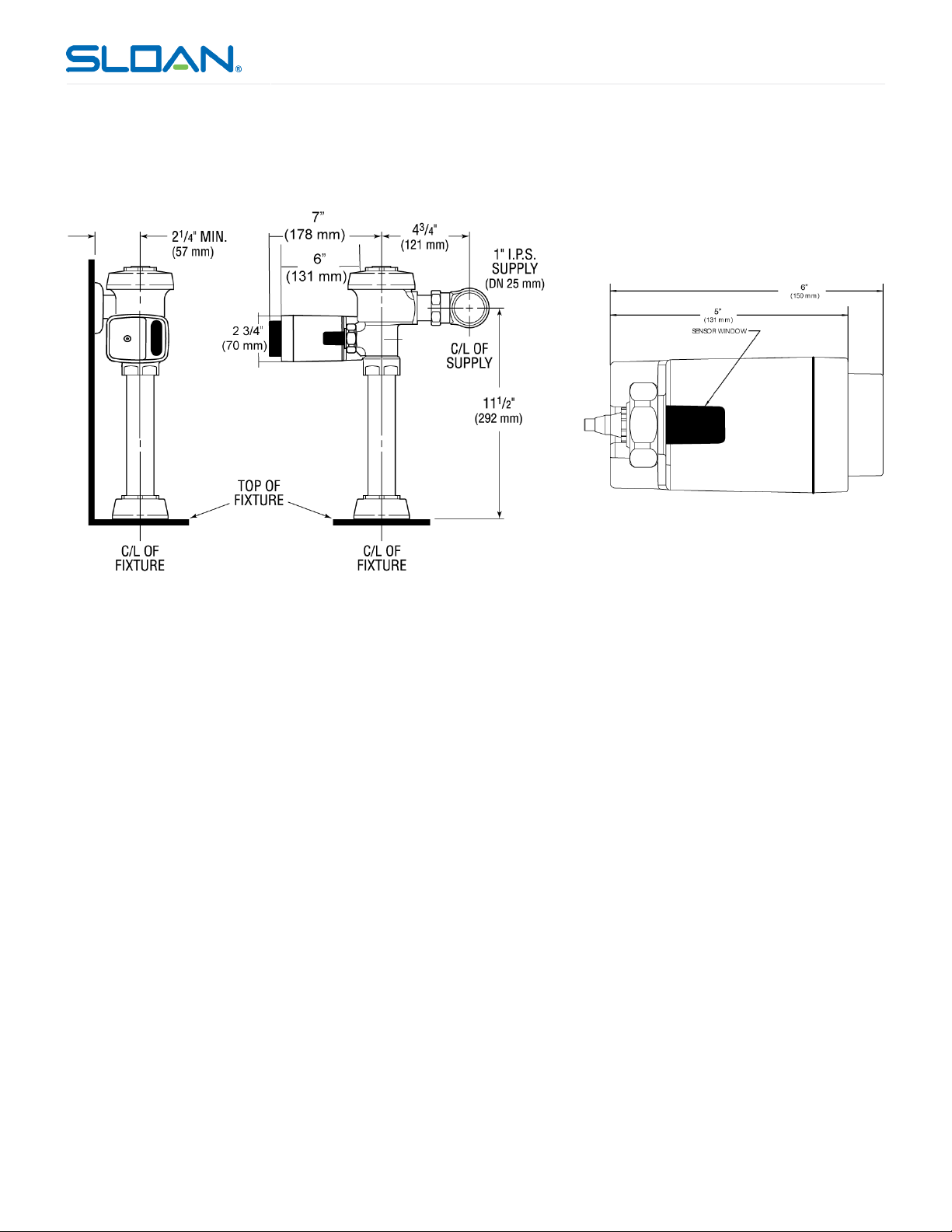

ROUGH-IN
ROYAL® SENSOR FLUSHOMETER
ROYAL 111 SFSM-1.28
WaterSense compliant when used with a WaterSense
compliant fixture
Sloan 10500 Seymour Ave, Franklin Park, IL 60131
Phone: 800.982.5839 • Fax: 800.447.8329 • sloan.com
Code 3910276 • Downloaded 06/09/20 • Revised 10/24/19 • View Latest Version
Page 2 of 2
