CODE NUMBER
3335079
DESCRIPTION
Plug Adapter Power Supply, Integrated Side Mixer, Polished Chrome
Finish, 1.5 gpm, Laminar Spray, Infrared Sensor, Optima® HardwiredPowered Deck-Mounted Gooseneck Body Faucet.
DETAILS
Flow Rate: 1.5 gpm (6 Lpm) (1.5GPM)
Spray Type: Laminar (LAM)
Sensor Type: Infrared (IR)
Mounting Type: Single Hole
Power Supply: Plug Adapter (PLG)
Temperature Mixer: Integrated Side Mixer (ISM)
Finish: Polished Chrome (CP)
Factory Default Timeout: 30s
Factory Default GPC: 0.75
FEATURES
Commercial Grade, ADA Compliant, Electronic, Sensor-Activated, Cast
Brass Gooseneck Hand Washing Faucet with the following features:
12/24 hour Hygienic Rinse Line Purge Function – Field Settable
Unitary Spout Housing Assembly for Easy Cleaning
Modular One-piece Construction with all Concealed Components
above deck
Double Infrared Sensors with Automatic Setting Feature and
Microprocessor
Bi-stable Magnetic Solenoid Valve
Water Supply Connection with Flexible High-pressure Hose and
Strainer
123 VAC/6.75 VDC Plug-in Adapter (must be ordered separately for
Less Adapter (-LT) faucets)
IQ-Click feature permits activation of continuous run and temporary
off modes
Appropriate Mounting Hardware included
IQ-Click feature permits activation of continuous run and temporary
off modes
OPTIMA® SENSOR FAUCET
EAF-700-PLG-ISM-CP-1.5GPM-LAM-IR-IQ-FCT
(General Model Name: EAF700-P-ISM CP ELECT FAUCET)
Variation not shown: Integrated Side Mixer
COMPLIANCES & CERTIFICATIONS
ELECTRICAL SPECIFICATIONS
Timeout Adjustment Settings: 30s
DOWNLOADS
EAF 700/750 Installation Instructions
Faucet Spray Heads Repair and Maintenance Guide
Optima Plus EAF 700 Repair and Maintenance Guide
Additional Downloads
Sloan 10500 Seymour Ave, Franklin Park, IL 60131
Phone: 800.982.5839 • Fax: 800.447.8329 • sloan.com
Code 3335079 • Downloaded 06/09/20 • Revised 04/23/20 • View Latest Version
(ADA Compliant, ASME A112.18.1 Compliant, CEC Compliant,
cUPC Certified, cUPC Low Lead Compliant, Proposition 65, TAS,
UPC Certified, UPC Low Lead Compliant)
NOTES
All information contained within this document subject to
change without notice.
Looking for other variations of the EAF-700 product? View the
general spec sheet with all options.
Find a matching soap dispenser for this faucet.
Find a compatible sink for this faucet.
Page 1 of 2
Page 2

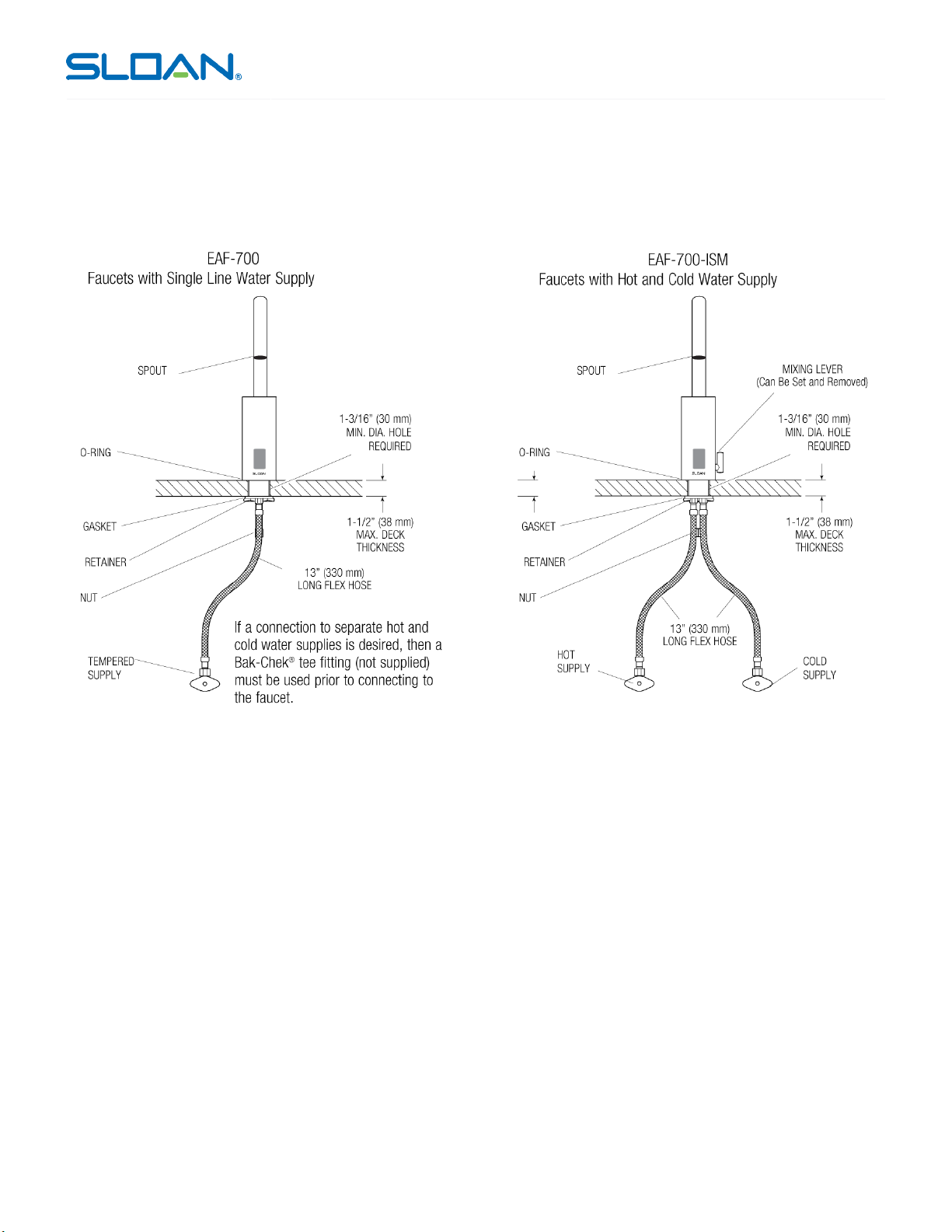

ROUGH-IN
OPTIMA® SENSOR FAUCET
EAF-700-PLG-ISM-CP-1.5GPM-LAM-IR-IQ-FCT
(General Model Name: EAF700-P-ISM CP ELECT FAUCET)
WARRANTY
3 Year
