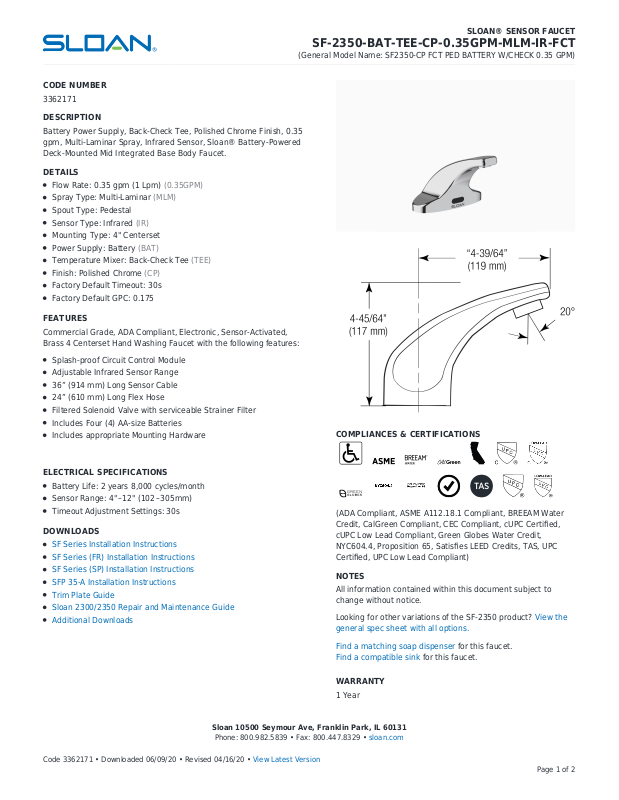

Page 1
CODE NUMBER
3362171
DESCRIPTION
Battery Power Supply, Back-Check Tee, Polished Chrome Finish, 0.35
gpm, Multi-Laminar Spray, Infrared Sensor, Sloan® Battery-Powered
Deck-Mounted Mid Integrated Base Body Faucet.
DETAILS
Flow Rate: 0.35 gpm (1 Lpm) (0.35GPM)
Spray Type: Multi-Laminar (MLM)
Spout Type: Pedestal
Sensor Type: Infrared (IR)
Mounting Type: 4" Centerset
Power Supply: Battery (BAT)
Temperature Mixer: Back-Check Tee (TEE)
Finish: Polished Chrome (CP)
Factory Default Timeout: 30s
Factory Default GPC: 0.175
FEATURES
Commercial Grade, ADA Compliant, Electronic, Sensor-Activated,
Brass 4 Centerset Hand Washing Faucet with the following features:
Splash-proof Circuit Control Module
Adjustable Infrared Sensor Range
36” (914 mm) Long Sensor Cable
24” (610 mm) Long Flex Hose
Filtered Solenoid Valve with serviceable Strainer Filter
Includes Four (4) AA-size Batteries
Includes appropriate Mounting Hardware
SLOAN® SENSOR FAUCET
SF-2350-BAT-TEE-CP-0.35GPM-MLM-IR-FCT
(General Model Name: SF2350-CP FCT PED BATTERY W/CHECK 0.35 GPM)
COMPLIANCES & CERTIFICATIONS
ELECTRICAL SPECIFICATIONS
Battery Life: 2 years 8,000 cycles/month
Sensor Range: 4" – 12" (102 – 305mm)
Timeout Adjustment Settings: 30s
DOWNLOADS
SF Series Installation Instructions
SF Series (FR) Installation Instructions
SF Series (SP) Installation Instructions
SFP 35-A Installation Instructions
Trim Plate Guide
Sloan 2300/2350 Repair and Maintenance Guide
Additional Downloads
Sloan 10500 Seymour Ave, Franklin Park, IL 60131
Phone: 800.982.5839 • Fax: 800.447.8329 • sloan.com
Code 3362171 • Downloaded 06/09/20 • Revised 04/16/20 • View Latest Version
(ADA Compliant, ASME A112.18.1 Compliant, BREEAM Water
Credit, CalGreen Compliant, CEC Compliant, cUPC Certified,
cUPC Low Lead Compliant, Green Globes Water Credit,
NYC604.4, Proposition 65, Satisfies LEED Credits, TAS, UPC
Certified, UPC Low Lead Compliant)
NOTES
All information contained within this document subject to
change without notice.
Looking for other variations of the SF-2350 product? View the
general spec sheet with all options.
Find a matching soap dispenser for this faucet.
Find a compatible sink for this faucet.
WARRANTY
1 Year
Page 1 of 2
Page 2

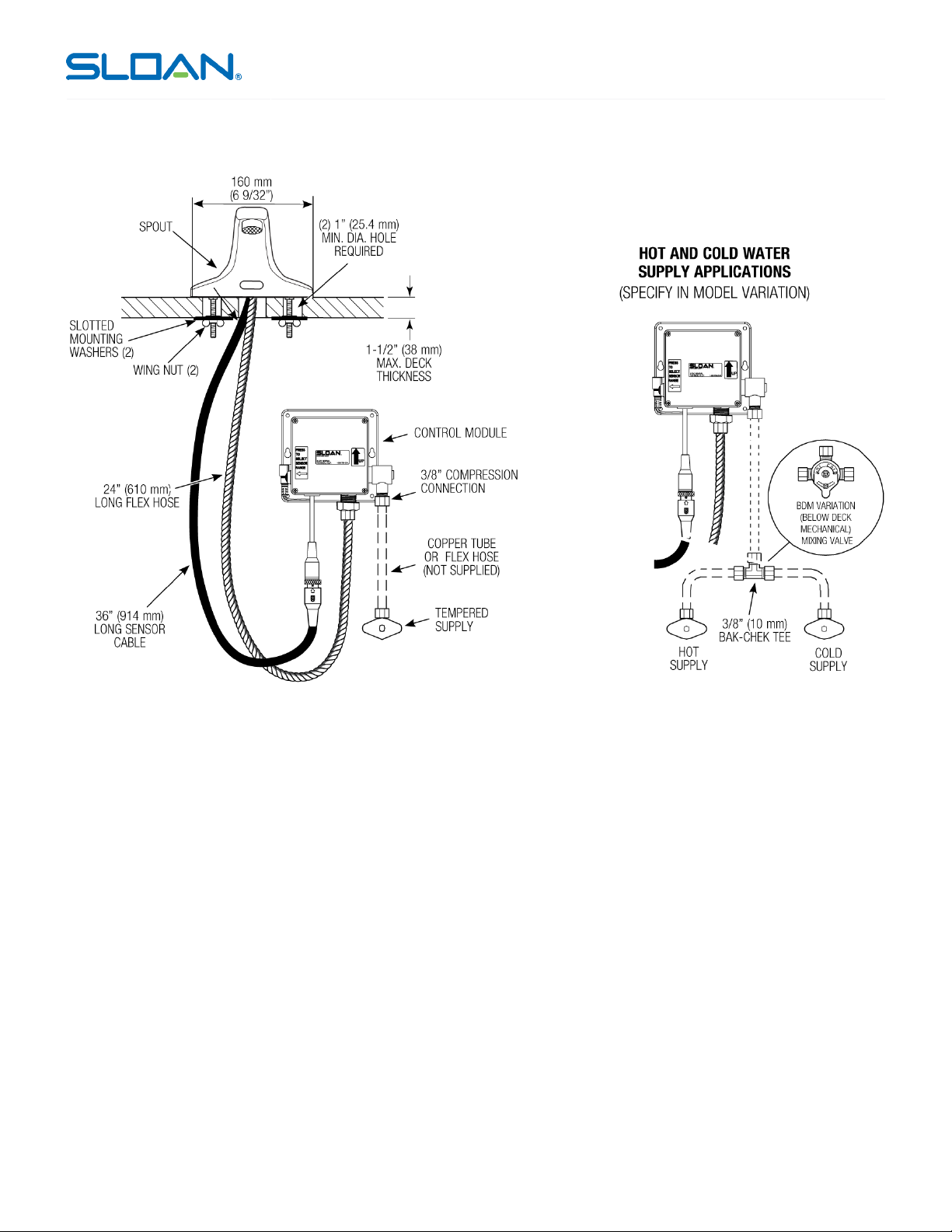

ROUGH-IN
SLOAN® SENSOR FAUCET
SF-2350-BAT-TEE-CP-0.35GPM-MLM-IR-FCT
(General Model Name: SF2350-CP FCT PED BATTERY W/CHECK 0.35 GPM)
Sloan 10500 Seymour Ave, Franklin Park, IL 60131
Phone: 800.982.5839 • Fax: 800.447.8329 • sloan.com
Code 3362171 • Downloaded 06/09/20 • Revised 04/16/20 • View Latest Version
Page 2 of 2
