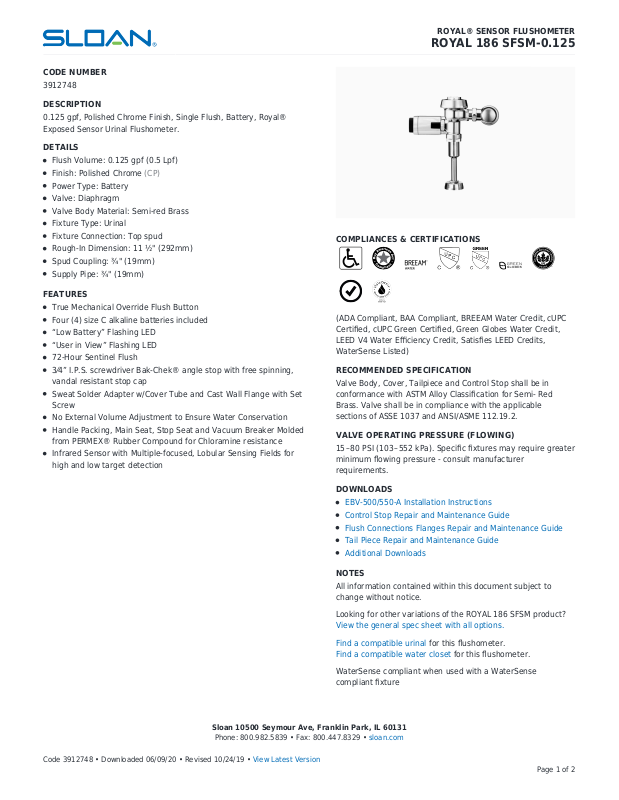

Page 1
CODE NUMBER
3912748
DESCRIPTION
0.125 gpf, Polished Chrome Finish, Single Flush, Battery, Royal®
Exposed Sensor Urinal Flushometer.
DETAILS
Flush Volume: 0.125 gpf (0.5 Lpf)
Finish: Polished Chrome (CP)
Power Type: Battery
Valve: Diaphragm
Valve Body Material: Semi-red Brass
Fixture Type: Urinal
Fixture Connection: Top spud
Rough-In Dimension: 11 ½" (292mm)
Spud Coupling: ¾" (19mm)
Supply Pipe: ¾" (19mm)
FEATURES
True Mechanical Override Flush Button
Four (4) size C alkaline batteries included
“Low Battery” Flashing LED
“User in View” Flashing LED
72-Hour Sentinel Flush
3⁄4” I.P.S. screwdriver Bak-Chek® angle stop with free spinning,
vandal resistant stop cap
Sweat Solder Adapter w/Cover Tube and Cast Wall Flange with Set
Screw
No External Volume Adjustment to Ensure Water Conservation
Handle Packing, Main Seat, Stop Seat and Vacuum Breaker Molded
from PERMEX® Rubber Compound for Chloramine resistance
Infrared Sensor with Multiple-focused, Lobular Sensing Fields for
high and low target detection
ROYAL® SENSOR FLUSHOMETER
ROYAL 186 SFSM-0.125
COMPLIANCES & CERTIFICATIONS
(ADA Compliant, BAA Compliant, BREEAM Water Credit, cUPC
Certified, cUPC Green Certified, Green Globes Water Credit,
LEED V4 Water Efficiency Credit, Satisfies LEED Credits,
WaterSense Listed)
RECOMMENDED SPECIFICATION
Valve Body, Cover, Tailpiece and Control Stop shall be in
conformance with ASTM Alloy Classification for Semi- Red
Brass. Valve shall be in compliance with the applicable
sections of ASSE 1037 and ANSI/ASME 112.19.2.
VALVE OPERATING PRESSURE (FLOWING)
15 – 80 PSI (103 – 552 kPa). Specific fixtures may require greater
minimum flowing pressure - consult manufacturer
requirements.
Sloan 10500 Seymour Ave, Franklin Park, IL 60131
Phone: 800.982.5839 • Fax: 800.447.8329 • sloan.com
Code 3912748 • Downloaded 06/09/20 • Revised 10/24/19 • View Latest Version
DOWNLOADS
EBV-500/550-A Installation Instructions
Control Stop Repair and Maintenance Guide
Flush Connections Flanges Repair and Maintenance Guide
Tail Piece Repair and Maintenance Guide
Additional Downloads
NOTES
All information contained within this document subject to
change without notice.
Looking for other variations of the ROYAL 186 SFSM product?
View the general spec sheet with all options.
Find a compatible urinal for this flushometer.
Find a compatible water closet for this flushometer.
WaterSense compliant when used with a WaterSense
compliant fixture
Page 1 of 2
Page 2

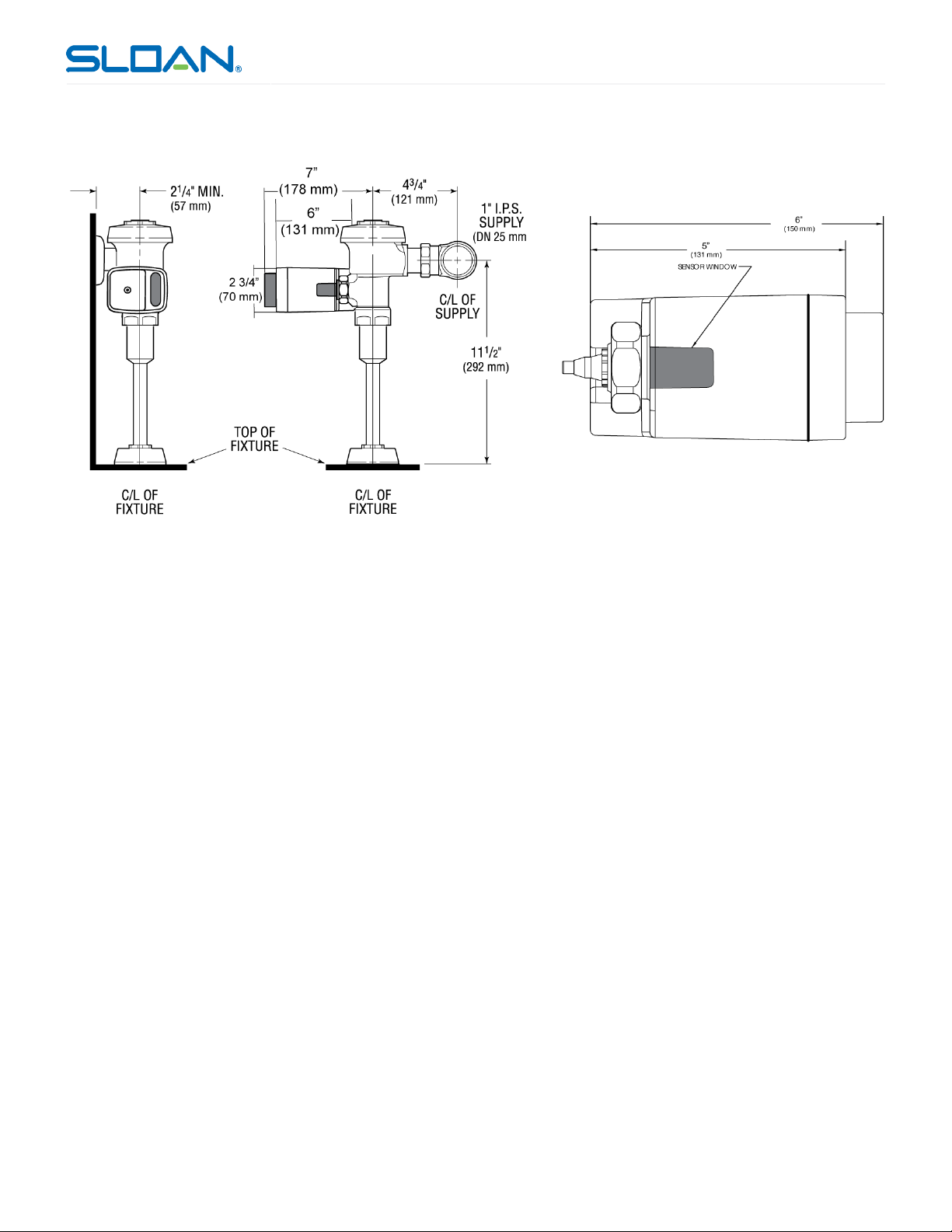

ROUGH-IN
ROYAL® SENSOR FLUSHOMETER
ROYAL 186 SFSM-0.125
Sloan 10500 Seymour Ave, Franklin Park, IL 60131
Phone: 800.982.5839 • Fax: 800.447.8329 • sloan.com
Code 3912748 • Downloaded 06/09/20 • Revised 10/24/19 • View Latest Version
Page 2 of 2
