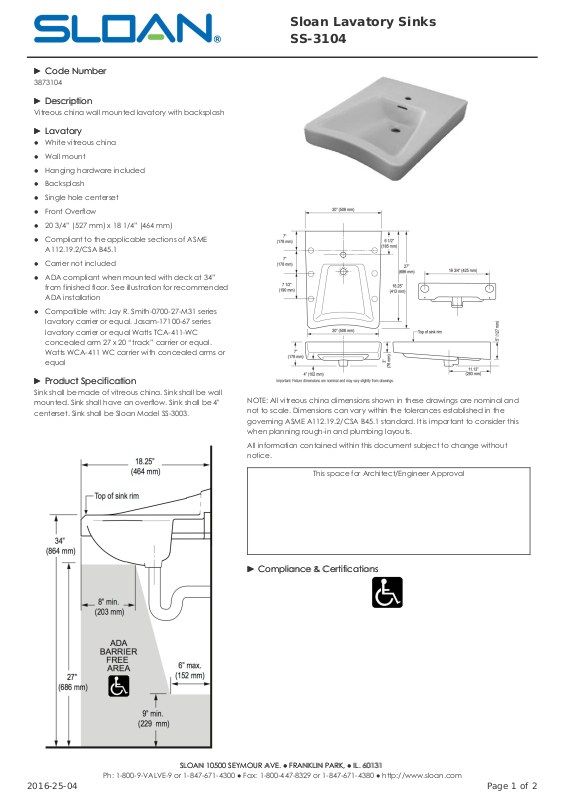

Sloan SS-3104 User Manual

►► Code NumberCode Number

3873104

►► DescriptionDescription

Vitreous china wall mounted lavatory with backsplash

►► LavatoryLavatory

● ● White vitreous china

● ● Wall mount

● ● Hanging hardware included

● ● Backsplash

● ● Single hole centerset

● ● Front Overflow

● ● 20 3/4” (527 mm) x 18 1/4” (464 mm)

● ● Compliant to the applicable sections of ASME
A112.19.2/CSA B45.1

● ● Carrier not included

● ● ADA compliant when mounted with deck at 34”
from finished floor. See illustration for recommended
ADA installation

● ● Compatible with: Jay R. Smith-0700-27-M31 series
lavatory carrier or equal. Josam-17100-67 series
lavatory carrier or equal Watts TCA-411-WC
concealed arm 27 x 20 “track” carrier or equal.
Watts WCA-411 WC carrier with concealed arms or
equal

►► Product SpecificationProduct Specification

Sink shall be made of vitreous china. Sink shall be wall
mounted. Sink shall have an overflow. Sink shall be 4"
centerset. Sink shall be Sloan Model SS-3003.

NOTE: All vitreous china dimensions shown in these drawings are nominal and
not to scale. Dimensions can vary within the tolerances established in the
governing ASME A112.19.2/CSA B45.1 standard. It is important to consider this
when planning rough-in and plumbing layouts.

All information contained within this document subject to change without
notice.

This space for Architect/Engineer Approval

►► Compliance & CertificationsCompliance & Certifications

Sloan Lavatory Sinks
SS-3104

2016-25-04 Page 1 of 2
