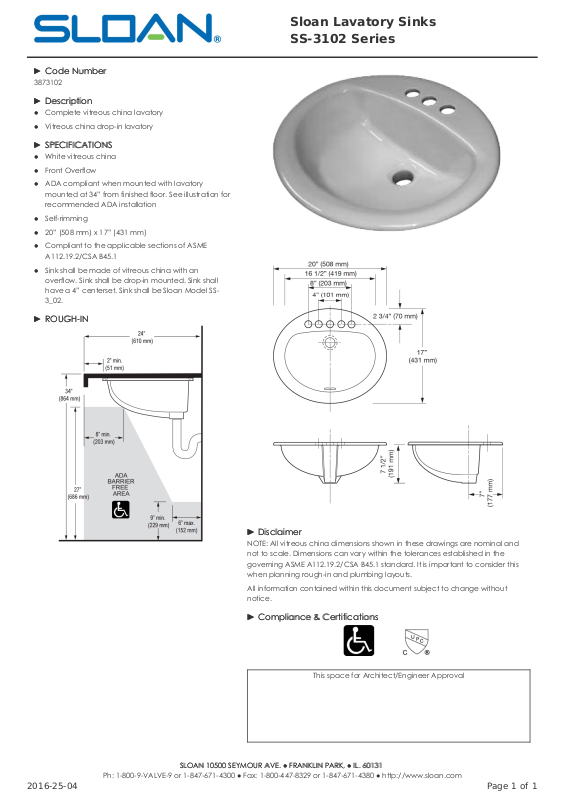

Sloan SS-3102 User Manual

►► Code NumberCode Number

3873102

►► DescriptionDescription

● ● Complete vitreous china lavatory

● ● Vitreous china drop-in lavatory

►► SPECIFICATIONSSPECIFICATIONS

● ● White vitreous china

● ● Front Overflow

● ● ADA compliant when mounted with lavatory
mounted at 34” from finished floor. See illustration for
recommended ADA installation

● ● Self-rimming

● ● 20” (508 mm) x 17” (431 mm)

● ● Compliant to the applicable sections of ASME
A112.19.2/CSA B45.1

● ● Sink shall be made of vitreous china with an
overflow. Sink shall be drop-in mounted. Sink shall
have a 4” centerset. Sink shall be Sloan Model SS­3_02.

►► ROUGH-INROUGH-IN

►► DisclaimerDisclaimer

NOTE: All vitreous china dimensions shown in these drawings are nominal and
not to scale. Dimensions can vary within the tolerances established in the
governing ASME A112.19.2/CSA B45.1 standard. It is important to consider this
when planning rough-in and plumbing layouts.

All information contained within this document subject to change without
notice.

►► Compliance & CertificationsCompliance & Certifications

This space for Architect/Engineer Approval

Sloan Lavatory Sinks
SS-3102 Series

2016-25-04 Page 1 of 1

SLOAN 10500 SEYMOUR AVE. ● FRANKLIN PARK, ● IL. SLOAN 10500 SEYMOUR AVE. ● FRANKLIN PARK, ● IL. 60131 60131

Ph: 1-800-9-VALVE-9 or 1-847-671-4300 ● Fax: [phone] or 1-847-671-4380 ● http://www.sloan.com
