Page 1
Model
T
op of sink rim
1
8.25”
(464 mm)
34”
(864 mm)
27”
(686 mm)
8” min.
(
203 mm)
6” max.
(152 mm)
9” min.
(229 mm)
A
DA
BARRIER
FREE
AREA
8.00”
(203 mm)
12.25” (311 mm)
8.63” (219 mm)
4
”
(
1
0
2
m
m
)
4
”
(
1
0
2
m
m
)
4”
(102 mm)
1
.
2
”
(
3
1
m
m
)
31”
(787 mm)
34”
(864 mm)
ADA
3/8”
(10 mm)
Diameter
Anchor Screw
Holes
3
/8”
(10 mm)
Diameter
Anchor Screw
Holes
1 1/4”
(32 mm)
O.D. Drain
Outlet
Finished Floor
8”
(203 mm)
10 1/4”
(260 mm)
1 3/8”
(298 mm)
Water
Supply
1
.
7
5
”
(
4
5
m
m
)
1
20.75” (527 mm)
16.75” (426 mm)
16.75” (426 mm)
6”
(152.4 mm)
4”(102 mm)
8” (203 mm)
6”
(152.4 mm)
20.75” (527 mm)
18.25”
(464 mm)
4”
(
102 mm)

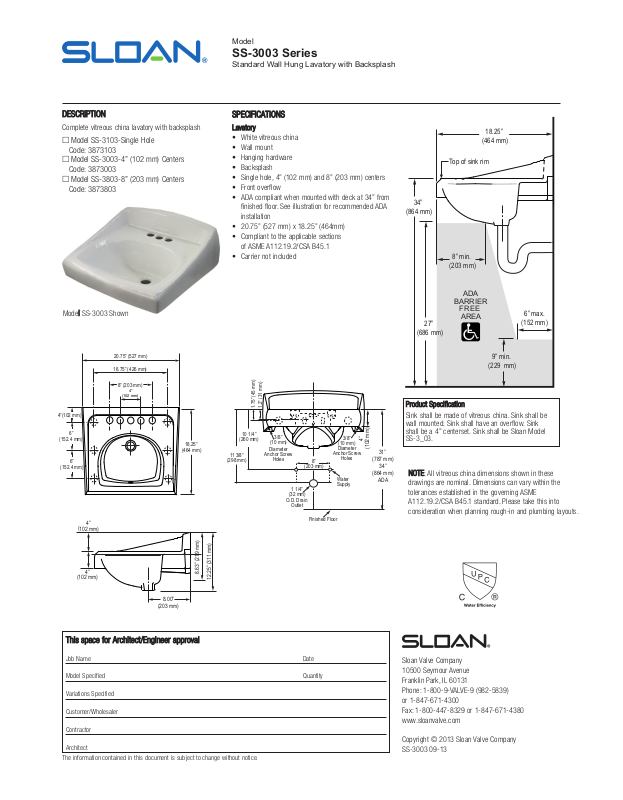

SS-3003 Series
Standard Wall Hung Lavatory with Backsplash
DESCRIPTION
Complete vitreous china lavatory with backsplash
£ Model SS-3103-Single Hole
Code: 3873103
£ Model SS-3003-4” (102 mm) Centers
Code: 3873003
£ Model SS-3803-8” (203 mm) Centers
Code: 3873803
ModelSS-3003 Shown
SPECIFICATIONS
Lavatory
• White vitreous china
• Wall mount
• Hanging hardware
• Backsplash
• Single hole, 4” (102 mm) and 8” (203 mm) centers
• Front overflow
• ADA compliant when mounted with deck at 34” from
finished floor. See illustration for recommended ADA
installation
• 20.75” (527 mm) x 18.25” (464mm)
• Compliant to the applicable sections
of ASME A112.19.2/CSA B45.1
• Carrier not included
This space for Architect/Engineer approval
Job Name Date
Model Specified Quantity
Variations Specified
Customer/Wholesaler
Contractor
Architect
The information contained in this document is subject to change without notice.
Product Specification
Sink shall be made of vitreous china. Sink shall be
wall mounted. Sink shall have an overflow. Sink
shall be a 4” centerset. Sink shall be Sloan Model
SS-3_03.
NOTE
: All vitreous china dimensions shown in these
drawings are nominal. Dimensions can vary within the
tolerances established in the governing ASME
A112.19.2/CSA B45.1 standard. Please take this into
consideration when planning rough-in and plumbing layouts.
Sloan Valve Company
10500 Seymour Avenue
Franklin Park, IL 60131
Phone: 1-800-9-VALVE-9 (982-5839)
or 1-847-671-4300
Fax: 1-800-447-8329 or 1-847-671-4380
www.sloanvalve.com
Copyright © 2013 Sloan Valve Company
SS-3003 09-13
