Page 1

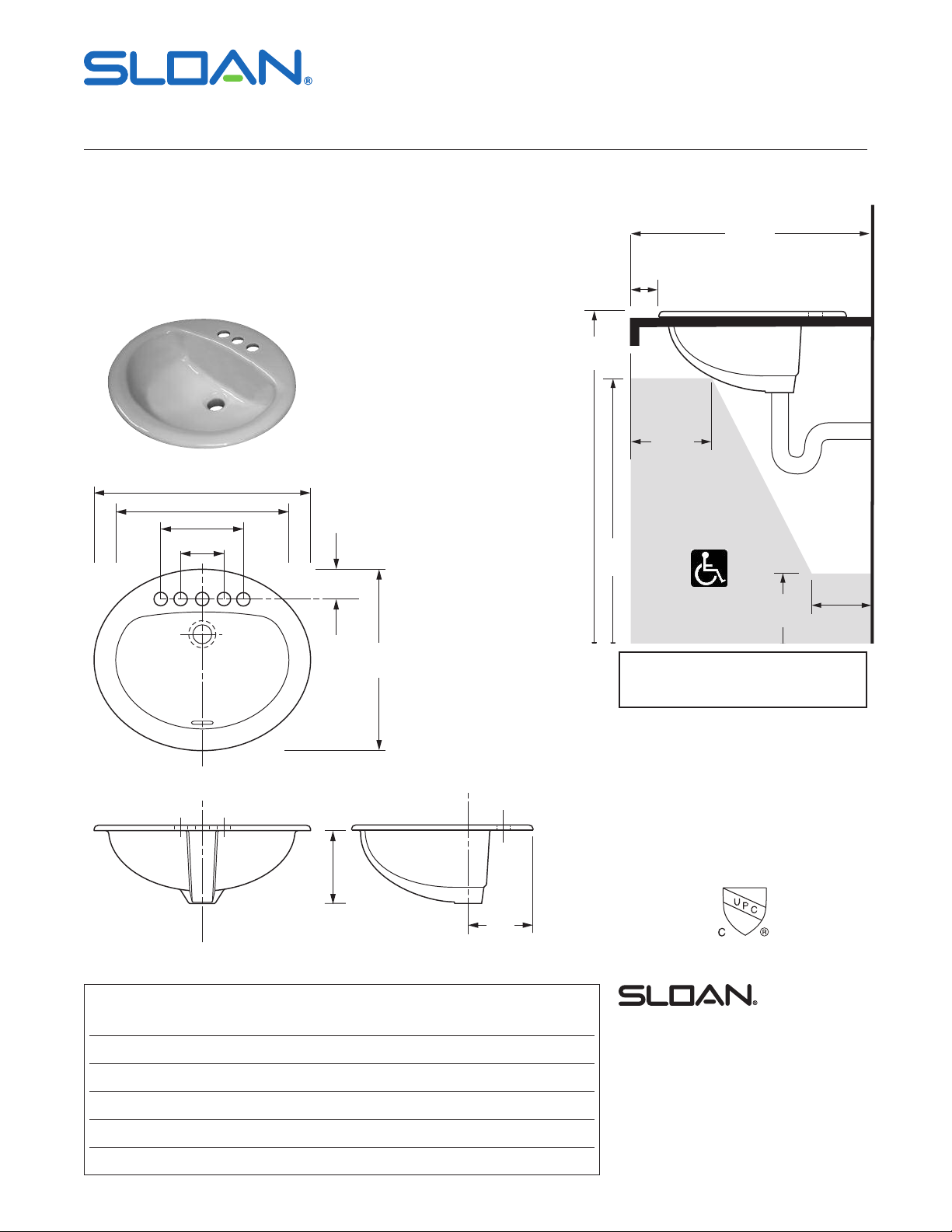

24”
(
610 mm)
8” min.
(203 mm)
6” max.
(152 mm)
9” min.
(229 mm)
ADA
BARRIER
FREE
AREA
34”
(864 mm)
27”
(686 mm)
2” min.
(
51 mm)
2 3/4” (70 mm)
17”
(431 mm)
20” (508 mm)
7”
(177 mm)
7 1/2”
(191 mm)
16 1/2” (419 mm)
8” min.
(203 mm)
BARRIER
FREE
AREA
34”
(864 mm)
27”
(686 mm)
2” min.
(51 mm)
4” (101 mm)
8” (203 mm)

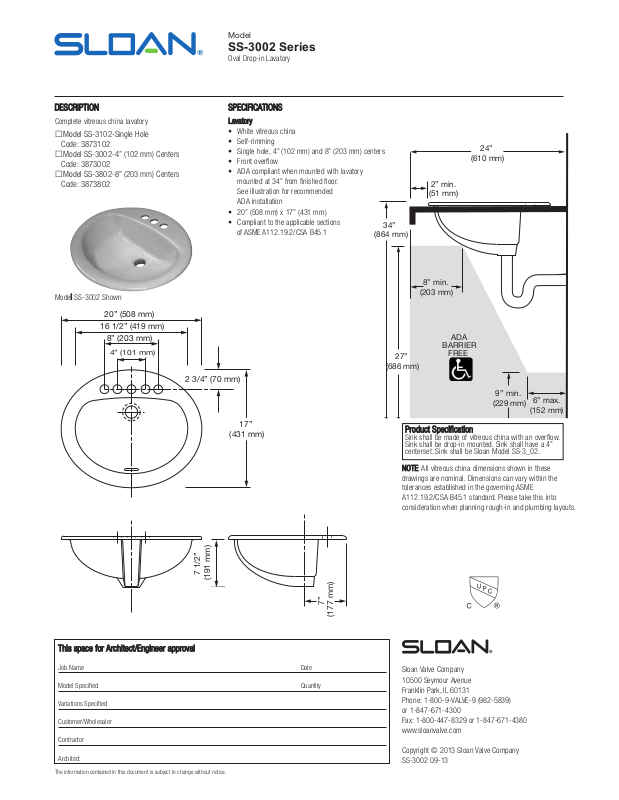

Model
SS-3002 Series
Oval Drop-in Lavatory
DESCRIPTION
Complete vitreous china lavatory
£ Model SS-3102-Single Hole
Code: 3873102
£ Model SS-3002-4” (102 mm) Centers
Code: 3873002
£ Model SS-3802-8” (203 mm) Centers
Code: 3873802
l
SS-3002 Shown
Mode
SPECIFICATIONS
Lavatory
• White vitreous china
• Self-rimming
• Single hole, 4” (102 mm) and 8” (203 mm) centers
• Front overflow
• ADA compliant when mounted with lavatory
mounted at 34” from finished floor.
See illustration for recommended
ADA installation
• 20” (508 mm) x 17” (431 mm)
• Compliant to the applicable sections
of ASME A112.19.2/CSA B45.1
This space for Architect/Engineer approval
Job Name Date
Model Specified Quantity
Variations Specified
Customer/Wholesaler
Contractor
Architect
The information contained in this document is subject to change without notice.
Product Specification
Sink shall be made of vitreous china with an overflow.
Sink shall be drop-in mounted. Sink shall have a 4”
centerset. Sink shall be Sloan Model SS-3_02.
NOTE
: All vitreous china dimensions shown in these
drawings are nominal. Dimensions can vary within the
tolerances established in the governing ASME
A112.19.2/CSA B45.1 standard. Please take this into
consideration when planning rough-in and plumbing layouts.
Sloan Valve Company
10500 Seymour Avenue
Franklin Park, IL 60131
Phone: 1-800-9-VALVE-9 (982-5839)
or 1-847-671-4300
Fax: 1-800-447-8329 or 1-847-671-4380
www.sloanvalve.com
Copyright © 2013 Sloan Valve Company
SS-3002 09-13
