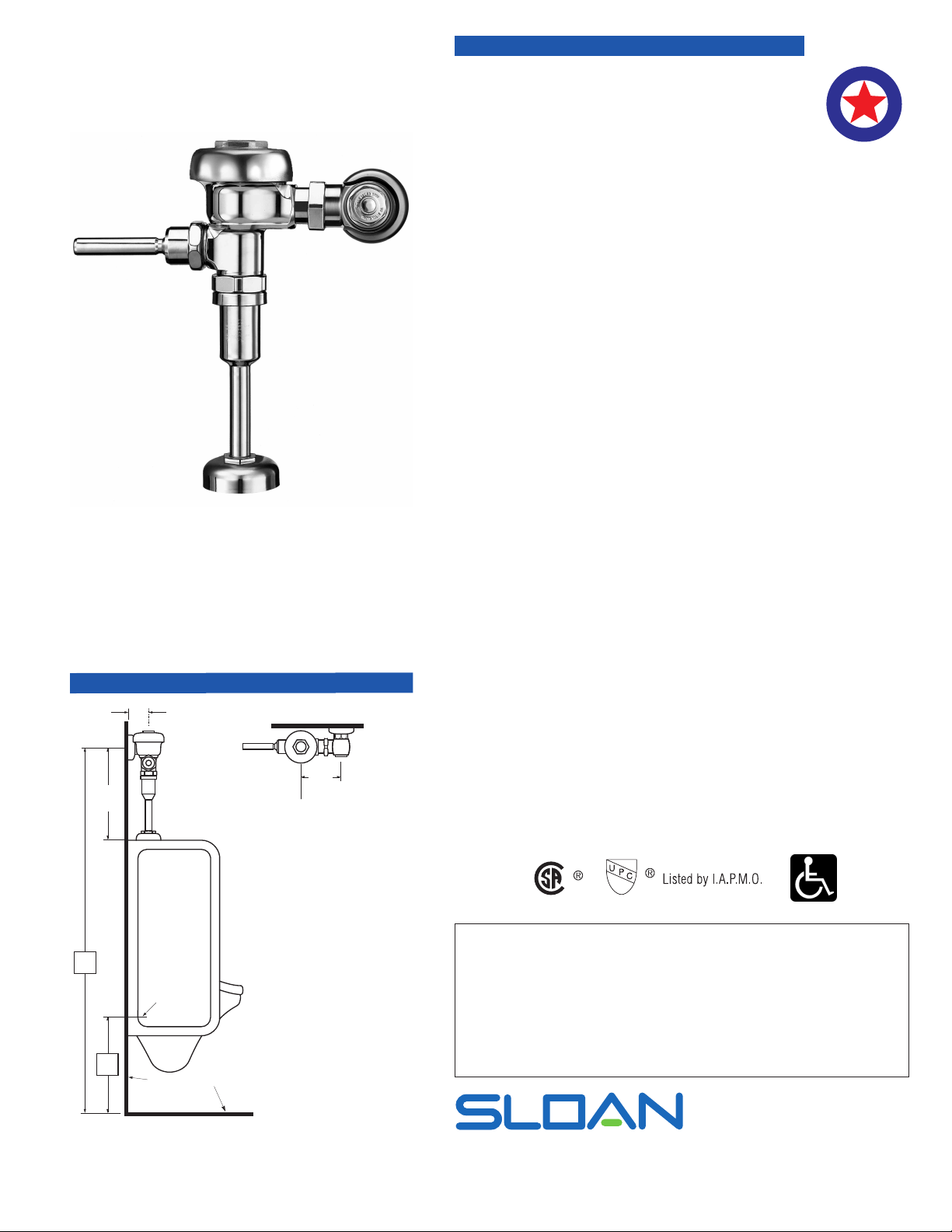

Page 1
111/2"
(292 mm)
21/4" MIN.
(57 mm)
43/4"
(121 mm)
3
/4" I.P.S.
SUPPLY
(DN 20 mm)
CENTERLINE
OF FIXTURE
FIN.
WALL
FIN.
FLOOR
CENTERLINE
OF WASTE
®
B
u
y
A
m
e
r
i
c
a
n
A
c
t
•
•
C
o
m
p
l
i
a
n
t

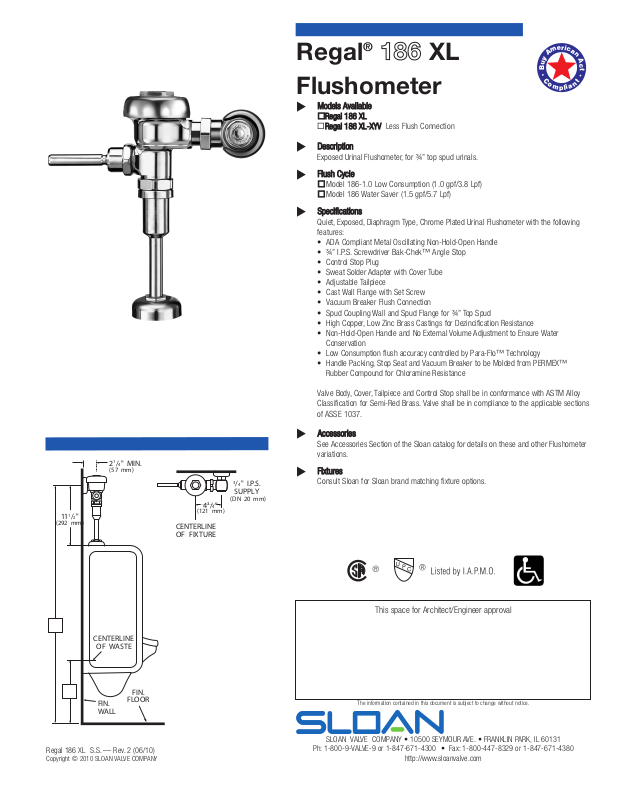

Regal
186
XL
Flushometer
Models Available
u
£Regal 186 XL
Regal 186 XL-XYV
Description
u
Exposed Urinal Flushometer, for ¾” top spud urinals.
Flush Cycle
u
£
Model 186-1.0 Low Consumption (1.0 gpf/3.8 Lpf)
£
Model 186 Water Saver (1.5 gpf/5.7 Lpf)
Specifications
u
Quiet, Exposed, Diaphragm Type, Chrome Plated Urinal Flushometer with the following
eatures:
f
• ADA Compliant Metal Oscillating Non-Hold-Open Handle
•¾” I.P.S. Screwdriver Bak-Chek™ Angle Stop
• Control Stop Plug
• Sweat Solder Adapter with Cover Tube
• Adjustable Tailpiece
• Cast Wall Flange with Set Screw
• Vacuum Breaker Flush Connection
• Spud Coupling Wall and Spud Flange for ¾” Top Spud
• High Copper, Low Zinc Brass Castings for Dezincification Resistance
• Non-Hold-Open Handle and No External Volume Adjustment to Ensure Water
Conservation
• Low Consumption flush accuracy controlled by Para-Flo™ Technology
• Handle Packing, Stop Seat and Vacuum Breaker to be Molded from PERMEX™
Rubber Compound for Chloramine Resistance
ess Flush Connection
L
Valve Body, Cover, Tailpiece and Control Stop shall be in conformance with ASTM Alloy
Classification for Semi-Red Brass. Valve shall be in compliance to the applicable sections
of ASSE 1037.
Accessories
u
See Accessories Section of the Sloan catalog for details on these and other Flushometer
variations.
Fixtures
u
Consult Sloan for Sloan brand matching fixture options.
This space for Architect/Engineer approval
The information contained in this document is subject to change without notice.
SLOAN VALVE COMPANY • 10500 SEYMOUR AVE. • FRANKLIN PARK, IL 60131
Copyright © 2010 SLOAN VALVE COMPANY
Regal 186 XL S.S. — Rev. 2 (06/10)
Ph: 1-800-9-VALVE-9 or 1-847-671-4300 • Fax: 1-800-447-8329 or 1-847-671-4380
http://www.sloanvalve.com
