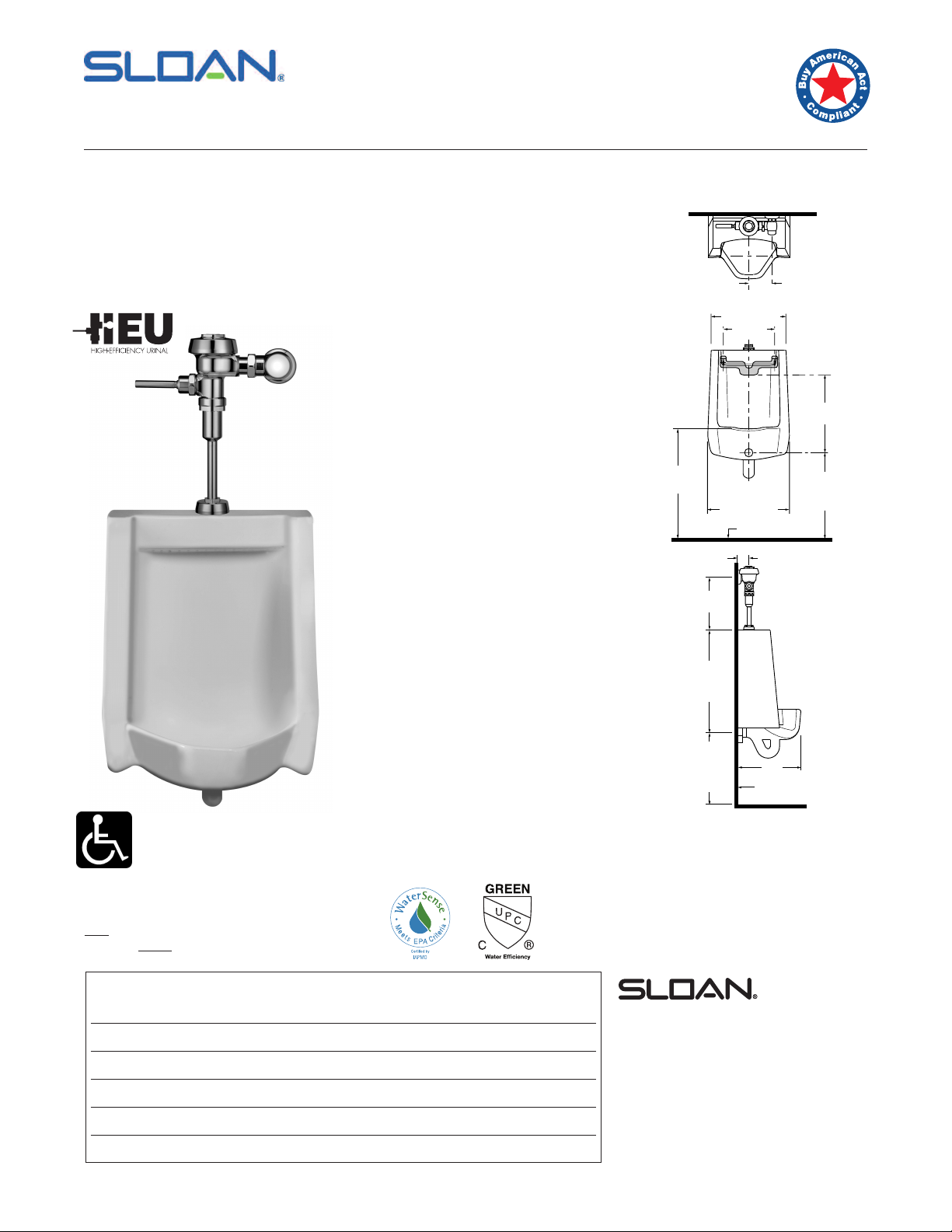

Page 1
20 3/4”
(527 mm)
(Centerline
of outlet)
11 1/2”
(292 mm)
2 1/4” (57 mm)
4 3/4” (121 mm)
3/4” IPS Supply
(
DN 20 mm)
C
enterline of Fixture
C
enterline
o
f outlet to floor
1
9” (483 mm)
(
12” for ADA)
Finished Wall
F
inished Floor
14 1/4”
(362 mm)
15 5/8” (397 mm)
12”
(305 mm)
16”
(
406 mm)
24”
(
610 mm)
(17” for ADA)
C
L
CL
17 1/4” (438 mm)
Centerline
of outlet
to oor
19” (483 mm)
(12” for ADA)
Centerline
of outlet
to floor
19” (483 mm)
(12” for ADA)

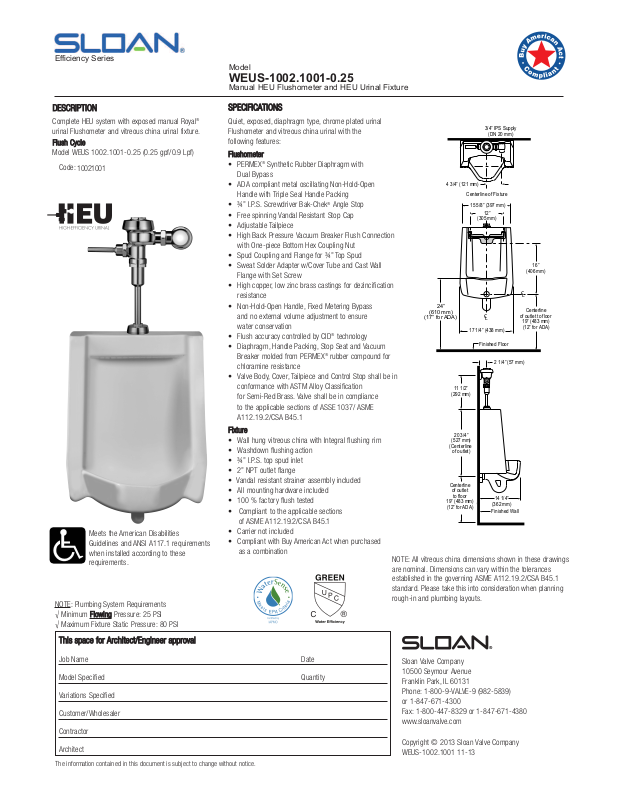

Efficiency Series
Model
WEUS-1002.1001-0.25
Manual HEU Flushometer and HEU Urinal Fixture
DESCRIPTION
Complete HEU system with exposed manual Royal
urinal Flushometer and vitreous china urinal fixture.
Flush Cycle
Model WEUS 1002.1001-0.25 (0.25 gpf/0.9 Lpf)
Code:
10021001
®
SPECIFICATIONS
Quiet, exposed, diaphragm type, chrome plated urinal
Flushometer and vitreous china urinal with the
following features:
Flushometer
• PERMEX®Synthetic Rubber Diaphragm with
Dual Bypass
• ADA compliant metal oscillating Non-Hold-Open
Handle with Triple Seal Handle Packing
• ¾” I.P.S. Screwdriver Bak-Chek®Angle Stop
• Free spinning Vandal Resistant Stop Cap
• Adjustable Tailpiece
• High Back Pressure Vacuum Breaker Flush Connection
with One-piece Bottom Hex Coupling Nut
• Spud Coupling and Flange for ¾” Top Spud
• Sweat Solder Adapter w/Cover Tube and Cast Wall
Flange with Set Screw
• High copper, low zinc brass castings for dezincification
resistance
• Non-Hold-Open Handle, Fixed Metering Bypass
and no external volume adjustment to ensure
water conservation
• Flush accuracy controlled by CID®technology
• Diaphragm, Handle Packing, Stop Seat and Vacuum
Breaker molded from PERMEX®rubber compound for
chloramine resistance
• Valve Body, Cover, Tailpiece and Control Stop shall be in
conformance with ASTM Alloy Classification
for Semi-Red Brass. Valve shall be in compliance
to the applicable sections of ASSE 1037/ ASME
A112.19.2/CSA B45.1
Fixture
• Wall hung vitreous china with Integral flushing rim
• Washdown flushing action
• ¾” I.P.S. top spud inlet
• 2” NPT outlet flange
• Vandal resistant strainer assembly included
• All mounting hardware included
• 100 % factory flush tested
Meets the American Disabilities
Guidelines and ANSI A117.1 requirements
when installed according to these
requirements.
• Compliant to the applicable sections
of ASME A112.19.2/CSA B45.1
• Carrier not included
• Compliant with Buy American Act when purchased
as a combination
NOTE: Plumbing System Requirements
√ Minimum
Flowing
Pressure: 25 PSI
√ Maximum Fixture Static Pressure: 80 PSI
This space for Architect/Engineer approval
Job Name Date
Model Specified Quantity
Variations Specified
Customer/Wholesaler
Contractor
Architect
The information contained in this document is subject to change without notice.
NOTE: All vitreous china dimensions shown in these drawings
are nominal. Dimensions can vary within the tolerances
established in the governing ASME A112.19.2/CSA B45.1
standard. Please take this into consideration when planning
rough-in and plumbing layouts.
Sloan Valve Company
10500 Seymour Avenue
Franklin Park, IL 60131
Phone: 1-800-9-VALVE-9 (982-5839)
or 1-847-671-4300
Fax: 1-800-447-8329 or 1-847-671-4380
www.sloanvalve.com
Copyright © 2013 Sloan Valve Company
WEUS-1002.1001 11-13
