This space for Architect/Engineer approval
Job Name Date
Model Specified Quantity
Variations Specified
Customer/Wholesaler
Contractor
Architect
The information contained in this document is subject to change without notice.
X
Featuring Falcon Waterfree Technology
The New Sloan Waterfree Urinal Cartridge
Preserves our Natural Resources and
saves costs
There are four primary functions of the cartridge
system. First, the cartridge acts as a funnel, allowing
liquid from the bowl to flow into the cartridge. Second,
the cartridge holds the sealant liquid. As liquid waste
enters the cartridge, our sealant liquid creates a barrier
between the waste and open air, thus eliminating all
odors. Third, the cartridge acts as a filter for uric
sediment. Much of the sediment that can cause
drainage pipe corrosion is trapped at the bottom of the
cartridge. Fourth, the cartridge allows the remaining
waste to be freely disposed of down the drain.
Description
Cartridge Kit replacement for Sloan Waterfree Urinals.
Features
• Uses no water
• Mechanical-free design
• Patented, Sealed Locking Cartridge
• Biodegradable Cartridge Sealant Liquid eliminates all odors
Benefits
• Improved hygiene and safety
• Reduced water and sewer costs
• Water supply piping not required
• Odor-free
• Easy installation and replacement
Savings
An average tanker truck holds approximately 4,500 gallons of
water. Amazingly, one cartridge alone saves more than two full
tanker trucks of water. This means one of our urinals can save
almost nine tanker trucks of water in a single year.
Specifications
• Cartridge Kit — Engineered to last for at least 7000 uses
• Cartridge is made from recyclable ABS
• Sealant Liquid — 100% biodegradable
• Cartridge Installation/Removal Tool (Key)
• Protective Glove
• Disposal Bag
The Cartridge is engineered to last for at least 7000 uses and to
receive waste through drain holes. Waste passes through an
emissible layer of Sealant, continues through a Siphon Trap
System, and flows out through a Patented Baffle to prevent the
loss of Sealant. A Discharge Tube in the housing directs the flow
of waste into the building drain system. The Cartridge is designed
as a replaceable component when its function has been
exhausted.
SLOAN VALVE COMPANY • 10500 SEYMOUR AVENUE • FRANKLIN PARK, IL 60131
Phone: 1-800-9-VALVE-9 or 1-847-671-4300 • Fax: 1-800-447-8329 or 1-847-671-4380 • http://www.sloanvalve.com
Copyright © 2004 Sloan Valve Company Printed in the U.S.A. Made in the U.S.A. Waterfree WES-150 Universal Urinal Cartridge S.S. — Rev. 0a (02/04)
IAPMO 1GC 161-2000 and ANSI Z124.9-94
X
CARTRIDGE
SHOWN
INSTALLED

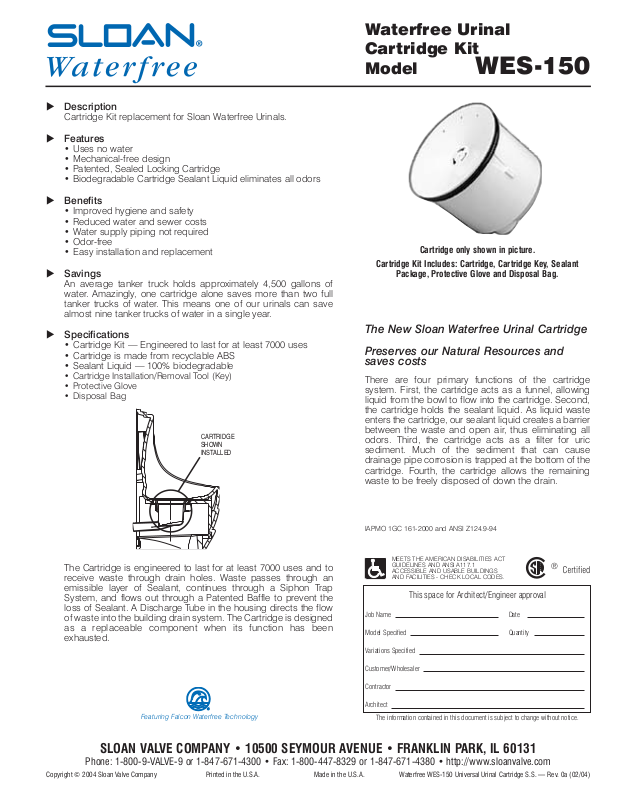

Waterfree Urinal
Cartridge Kit
Model
WES-150
MEETS THE AMERICAN DISABILITIES ACT
GUIDELINES AND ANSI A117.1
ACCESSIBLE AND USABLE BUILDINGS
AND FACILITIES - CHECK LOCAL CODES.
Cartridge only shown in picture.
Cartridge Kit Includes: Cartridge, Cartridge Key, Sealant
Package, Protective Glove and Disposal Bag.
