Description

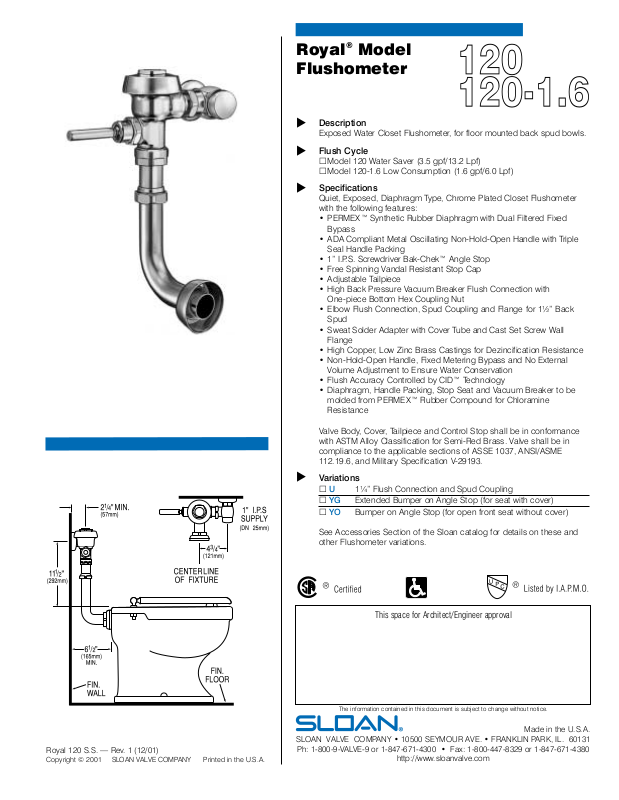

Exposed Water Closet Flushometer, for floor mounted back spud bowls.
Flush Cycle
! Model 120 Water Saver (3.5 gpf/13.2 Lpf)
! Model 120-1.6 Low Consumption (1.6 gpf/6.0 Lpf)
Specifications
Quiet, Exposed, Diaphragm Type, Chrome Plated Closet Flushometer
with the following features:
• PERMEX™ Synthetic Rubber Diaphragm with Dual Filtered Fixed
Bypass
• ADA Compliant Metal Oscillating Non-Hold-Open Handle with Triple
Seal Handle Packing
• 1” I.P.S. Screwdriver Bak-Chek™ Angle Stop
• Free Spinning Vandal Resistant Stop Cap
• Adjustable Tailpiece
• High Back Pressure Vacuum Breaker Flush Connection with
One-piece Bottom Hex Coupling Nut
• Elbow Flush Connection, Spud Coupling and Flange for 1½” Back
Spud
• Sweat Solder Adapter with Cover Tube and Cast Set Screw Wall
Flange
• High Copper, Low Zinc Brass Castings for Dezincification Resistance
• Non-Hold-Open Handle, Fixed Metering Bypass and No External
Volume Adjustment to Ensure Water Conservation
• Flush Accuracy Controlled by CID™ Technology
• Diaphragm, Handle Packing, Stop Seat and Vacuum Breaker to be
molded from PERMEX™ Rubber Compound for Chloramine
Resistance
Valve Body, Cover, Tailpiece and Control Stop shall be in conformance
with ASTM Alloy Classification for Semi-Red Brass. Valve shall be in
compliance to the applicable sections of ASSE 1037, ANSI/ASME
112.19.6, and Military Specification V-29193.
Variations
! U 1¼” Flush Connection and Spud Coupling
! YG Extended Bumper on Angle Stop (for seat with cover)
! YO Bumper on Angle Stop (for open front seat without cover)
See Accessories Section of the Sloan catalog for details on these and
other Flushometer variations.
SLOAN VALVE COMPANY • 10500 SEYMOUR AVE. • FRANKLIN PARK, IL. 60131
Ph: 1-800-9-VALVE-9 or 1-847-671-4300 • Fax: 1-800-447-8329 or 1-847-671-4380
http://www.sloanvalve.com
Royal®Model
Flushometer
!
!
!
!
This space for Architect/Engineer approval
The information contained in this document is subject to change without notice.
Royal 120 S.S. — Rev. 1 (12/01)
Copyright © 2001 SLOAN VALVE COMPANY Printed in the U.S.A.
Made in the U.S.A.
