Page 1

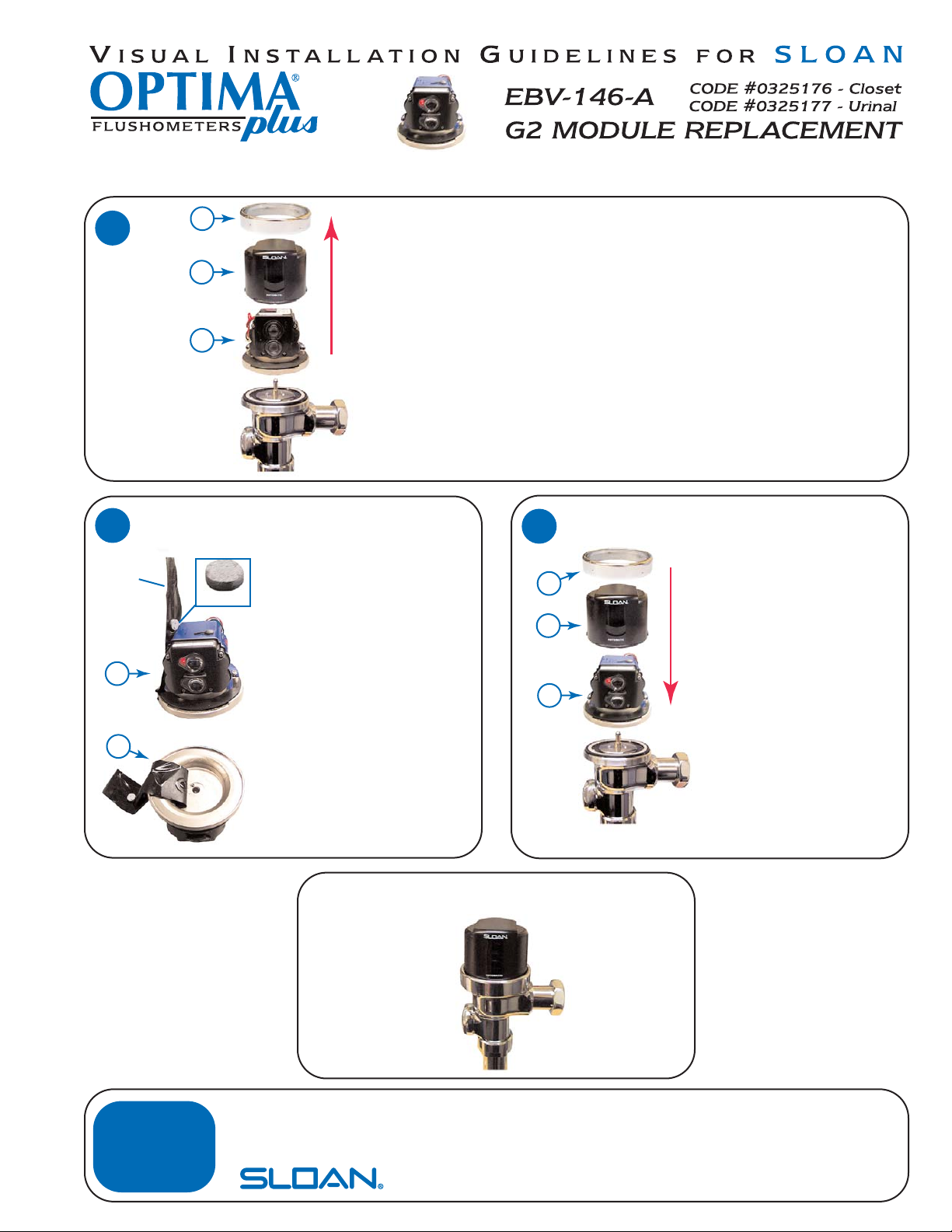

Removal of Optima Plus RESS Module
A. With water supply and pressure turned off, remove Locking Ring
by turning counterclockwise.
B. Remove Outer Cover.
C. Remove RESS Module.
1
A. Seat G2 Module onto
Diaphragm Assembly.
B. Seat Outer Cover over G2
Module.
C. Install and tighten
Locking Ring securely.
3
Completed Assembly
any
questions
?
• We recommend that you review our Regal PRO OPTIMA Plus Installation Instructions and Maintenance Guides for complete
instructions including Rough-in Dimensions, Specifications, Troubleshooting Guide, and Replacement Parts.
• Call our Installation Engineers for additional information at 1-888-SLOAN-14 or fax them at 1-800-737-3061.
SLOAN VALVE COMPANY • 10500 SEYMOUR AVENUE • FRANKLIN PARK, IL 60131
Phone: 1-800-9-VALVE-9 or 1-847-671-4300 • Fax: 1-800-447-8329 or 1-847-671-4380 • http://www.sloanvalve.com
Copyright © 2003 Sloan Valve Company • Printed in the U.S.A. • Made in the U.S.A. • Module Replacement V.I.G. 0816482 — Rev. 0 (11/03)
The information contained in this document is subject to change without notice.

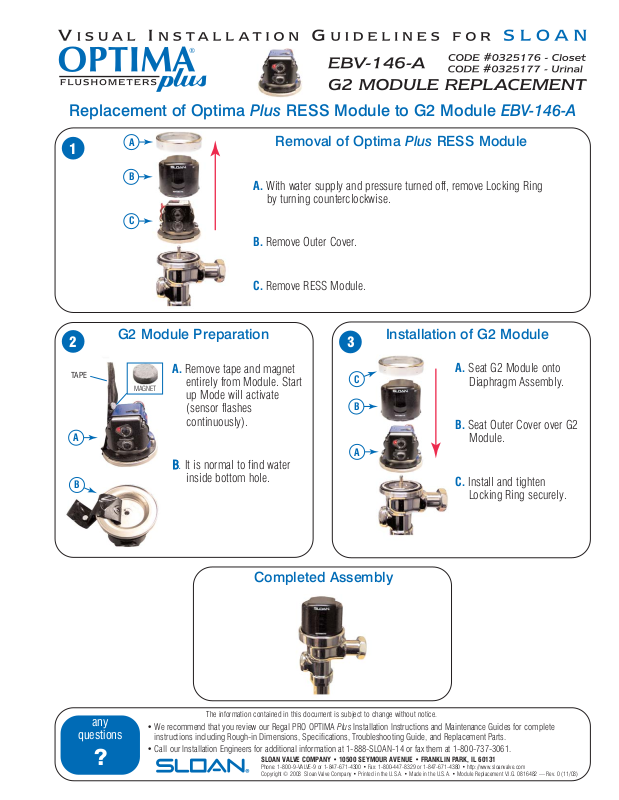

Replacement of Optima Plus RESS Module to G2 Module EBV-146-A
A. Remove tape and magnet
entirely from Module. Start
up Mode will activate
(sensor flashes
continuously).
B
. It is normal to find water
inside bottom hole.
G2 Module Preparation Installation of G2 Module
2
A
B
C
A
B
MAGNET
A
B
C
TAPE
