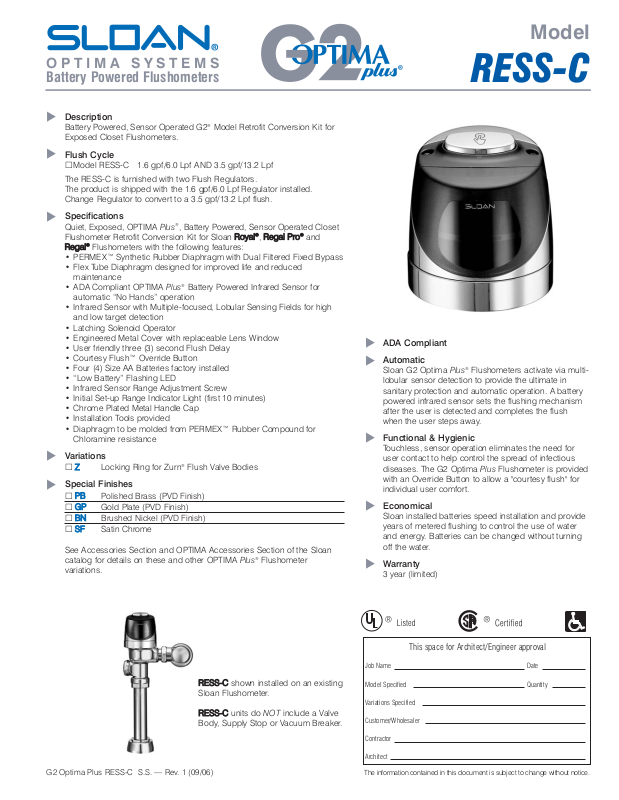

Page 1
Description
Battery Powered, Sensor Operated G2®Model Retrofit Conversion Kit for
Exposed Closet Flushometers.
Flush Cycle
Model RESS-C 1.6 gpf/6.0 Lpf AND 3.5 gpf/13.2 Lpf
The RESS-C is furnished with two Flush Regulators.
The product is shipped with the 1.6 gpf/6.0 Lpf Regulator installed.
Change Regulator to convert to a 3.5 gpf/13.2 Lpf flush.
Specifications
Quiet, Exposed, OPTIMA Plus®, Battery Powered, Sensor Operated Closet
Flushometer Retrofit Conversion Kit for Sloan Royal
®
, Regal Pro®and
Regal
®
Flushometers with the following features:
• PERMEX™ Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
• Flex Tube Diaphragm designed for improved life and reduced
maintenance
• ADA Compliant OPTIMA Plus
®
Battery Powered Infrared Sensor for
automatic “No Hands” operation
• Infrared Sensor with Multiple-focused, Lobular Sensing Fields for high
and low target detection
• Latching Solenoid Operator
• Engineered Metal Cover with replaceable Lens Window
• User friendly three (3) second Flush Delay
• Courtesy Flush™ Override Button
• Four (4) Size AA Batteries factory installed
• “Low Battery” Flashing LED
• Infrared Sensor Range Adjustment Screw
• Initial Set-up Range Indicator Light (first 10 minutes)
• Chrome Plated Metal Handle Cap
• Installation Tools provided
• Diaphragm to be molded from PERMEX™ Rubber Compound for
Chloramine resistance
Variations
Z Locking Ring for Zurn®Flush Valve Bodies
Special Finishes
PB Polished Brass (PVD Finish)
GP Gold Plate (PVD Finish)
BN
Brushed Nickel (PVD Finish)
SF Satin Chrome
See Accessories Section and OPTIMA Accessories Section of the Sloan
catalog for details on these and other OPTIMA Plus
®
Flushometer
variations.
This space for Architect/Engineer approval
Job Name Date
Model Specified Quantity
Variations Specified
Customer/Wholesaler
Contractor
Architect
The information contained in this document is subject to change without notice.
OPTIMA SYSTEMS
Battery Powered Flushometers
G2 Optima Plus RESS-C S.S. — Rev. 1 (09/06)
Model
RESS-C
RESS-C shown installed on an existing
Sloan Flushometer.
RESS-C units do NOT include a Valve
Body, Supply Stop or Vacuum Breaker.
ADA Compliant
Automatic
Sloan G2 Optima Plus®Flushometers activate via multilobular sensor detection to provide the ultimate in
sanitary protection and automatic operation. A battery
powered infrared sensor sets the flushing mechanism
after the user is detected and completes the flush
when the user steps away.
Functional & Hygienic
Touchless, sensor operation eliminates the need for
user contact to help control the spread of infectious
diseases. The G2 Optima Plus Flushometer is provided
with an Override Button to allow a "courtesy flush" for
individual user comfort.
Economical
Sloan installed batteries speed installation and provide
years of metered flushing to control the use of water
and energy. Batteries can be changed without turning
off the water.
Warranty
3 year (limited)
Page 2
SLOAN VALVE COMPANY • 10500 SEYMOUR AVENUE • FRANKLIN PARK, IL 60131
Phone: 1-800-9-VALVE-9 or 1-847-671-4300 • Fax: 1-800-447-8329 or 1-847-671-4380 • www.sloanvalve.com
Copyright © 2006 Sloan Valve Company Printed in the U.S.A. Made in the U.S.A. G2 Optima Plus RESS-C S.S. — Rev. 1 (09/06)
Description
Battery Powered, Sensor Operated G2®Model Retrofit Conversion Kit for
Exposed Water Closet Flushometers.
Flush Cycle
Model RESS-C 1.6 gpf/6.0 Lpf AND 3.5 gpf/13.2 Lpf
The RESS-C is furnished with two Flush Regulators.
The product is shipped with the 1.6 gpf/6.0 Lpf Regulator installed.
Change Regulator to convert to a 3.5 gpf/13.2 Lpf flush.
ELECTRICAL SPECIFICATIONS
1. A continuous, invisible light
beam is emitted from the
OPTIMA Plus Sensor.
2. As the user enters the beam’s
effective range (22” to 42”)
the beam is reflected into the
OPTIMA Plus Scanner
Window and transformed into
a low voltage electrical
circuit. Once activated, the
Output Circuit continues in a
“hold” mode for as long as
the user remains within the
effective range of the Sensor.
3. When the user steps away
from the OPTIMA Plus
Sensor, the circuit waits 3
seconds (to prevent false
flushing) then initiates an
electrical signal that operates
the Solenoid. This initiates
the flushing cycle to flush the
fixture. The Circuit then
automatically resets and is
ready for the next user.
Control Circuit
Solid State
6 VDC Input
8 Second Arming Delay
3 Second Flush Delay
OPTIMA Sensor Type
Active Infrared
OPTIMA Sensor Range
Nominal 22” - 42” (559 mm -1067
mm), Adjustable ± 8” (203 mm)
OPERATION
Battery Type
(4) AA Alkaline
Battery Life
3 Years @ 4,000 Flushes/Month
Indicator Lights
Range Adjustment/Low Battery
Operating Pressure
15 - 100 psi (104 - 689 kPa)
Sentinel Flush
Once Every 24 Hours After the Last
Flush
Model
RESS-C

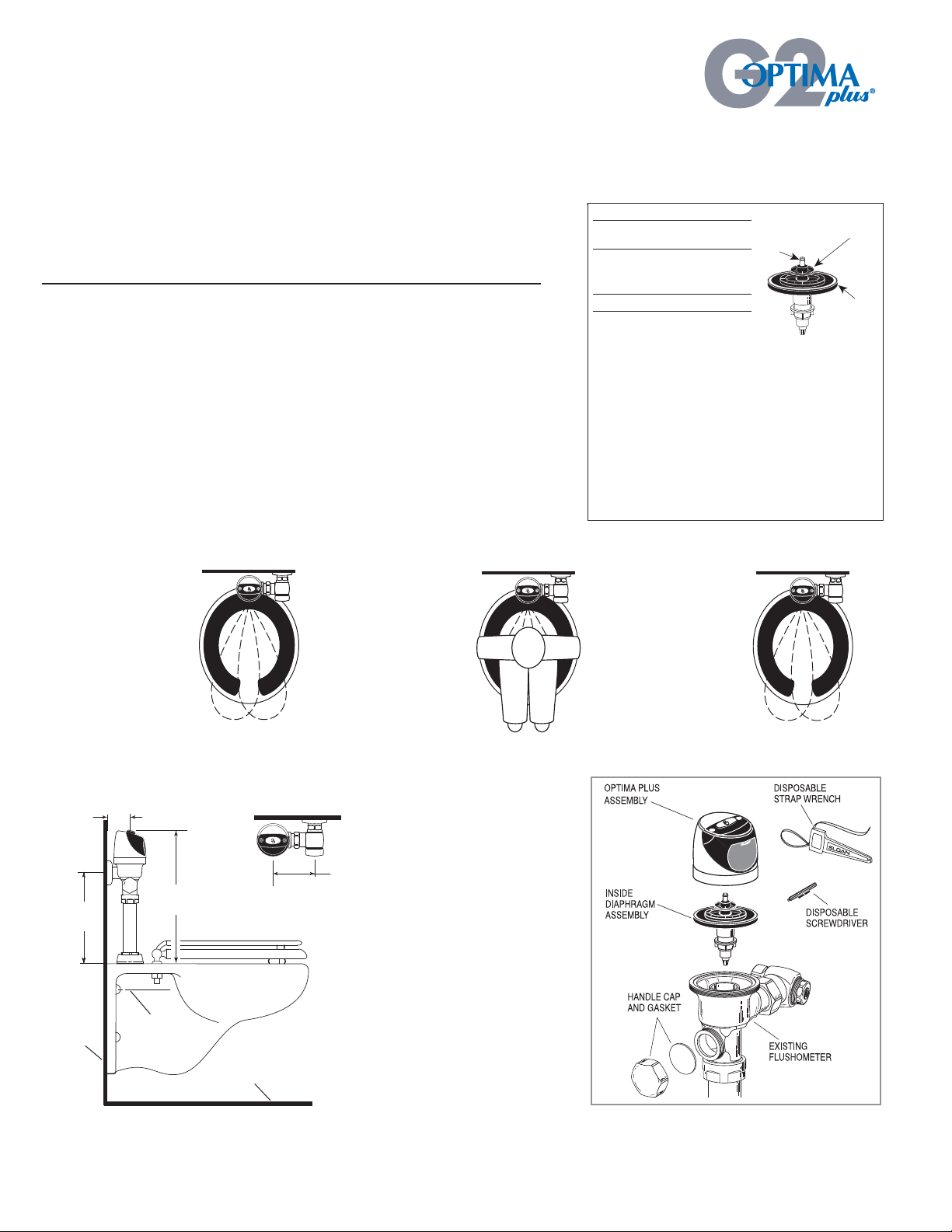

VALVE ROUGH-IN
G2 Optima Plus Flush Volume
For RESS-C Retrofit Models
The Flush Volume of the Optima Plus is controlled by the
Regulator in the Flex Tube Diaphragm Kit. Regulators are
identified by color.
Reference Chart
Fixture & Flush Regulator
Color
1.6 gpf (6.0 Lpf) ClosetGreen
3.5 gpf (13.2 Lpf) ClosetWhite
4.5 gpf (17.0 Lpf) Closet White
2.4 gpf (9.0 Lpf) Closet Blue
Notes: For a 4.5 gpf (17.0 Lpf)
Water Closet flush, use the EBV-1020-A kit with the White
Regulator. Cut and remove the A-164 Flow Ring from the Guide.
RESS-C G2 Optima Plus valves are supplied with multiple
Regulators to address multiple flushing applications. The product
is shipped with it’s lowest flush volume configuration. To convert
the flush to a higher flushing volume, simply change the
Regulator.
When installing a new Regulator on a Flex Tube Diaphragm Kit,
be sure to push the Regulator past the O-ring when Installing.
Note: Never use more water than needed. Low Consumption
water closets and urinals will not function properly on excess
water.
0-RING
REGULATOR
(MUST BE INSTALLED
PAST 0-RING)
FLEX TUBE
DIAPHRAGM
When installing the G2 Optima
Plus in a handicap stall:
Per the ADA Guidelines (section
604.9.4) it is recommended that
the grab bars be split or shifted to
the wide side of the stall.
11½”
(292 mm)
2¼” (57 mm) MIN.
16½”
(419 mm)
C/L OF WASTE
FINISHED
WALL
FINISHED
FLOOR
C/L OF
FIXTURE
4¾”
(121 mm)
