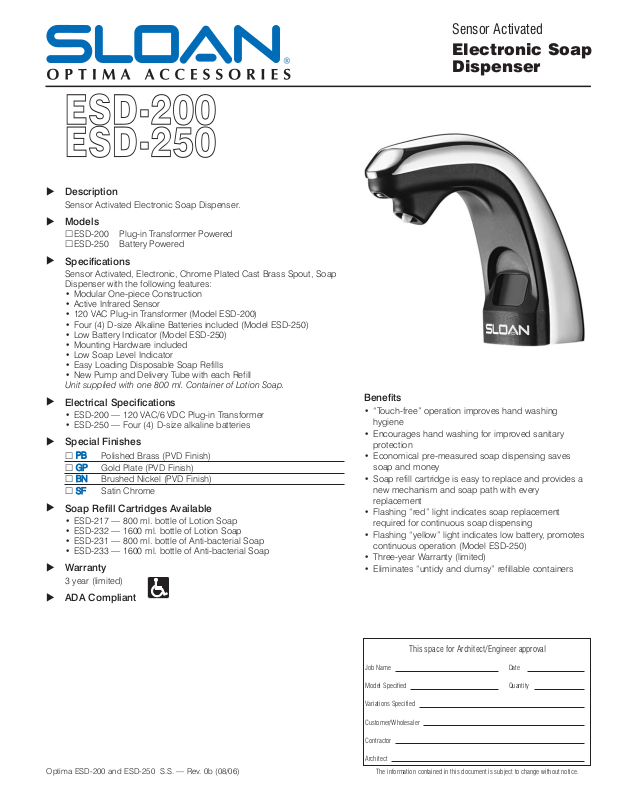

Description
Sensor Activated Electronic Soap Dispenser.
Models
ESD-200 Plug-in Transformer Powered
ESD-250 Battery Powered
Specifications
Sensor Activated, Electronic, Chrome Plated Cast Brass Spout, Soap
Dispenser with the following features:
• Modular One-piece Construction
• Active Infrared Sensor
• 120 VAC Plug-in Transformer (Model ESD-200)
• Four (4) D-size Alkaline Batteries included (Model ESD-250)
• Low Battery Indicator (Model ESD-250)
• Mounting Hardware included
• Low Soap Level Indicator
• Easy Loading Disposable Soap Refills
• New Pump and Delivery Tube with each Refill
Unit supplied with one 800 ml. Container of Lotion Soap.
Electrical Specifications
• ESD-200 — 120 VAC/6 VDC Plug-in Transformer
• ESD-250 — Four (4) D-size alkaline batteries
Special Finishes
PPBB
Polished Brass (PVD Finish)
GGPP
Gold Plate (PVD Finish)
BBNN
Brushed Nickel (PVD Finish)
SSFF
Satin Chrome
Soap Refill Cartridges Available
• ESD-217 — 800 ml. bottle of Lotion Soap
• ESD-232 — 1600 ml. bottle of Lotion Soap
• ESD-231 — 800 ml. bottle of Anti-bacterial Soap
• ESD-233 — 1600 ml. bottle of Anti-bacterial Soap
Warranty
3 year (limited)
ADA Compliant
The information contained in this document is subject to change without notice.
This space for Architect/Engineer approval
Job Name Date
Model Specified Quantity
Variations Specified
Customer/Wholesaler
Contractor
Architect
Optima ESD-200 and ESD-250 S.S. — Rev. 0b (08/06)
Benefits
• “Touch-free” operation improves hand washing
hygiene
• Encourages hand washing for improved sanitary
protection
• Economical pre-measured soap dispensing saves
soap and money
• Soap refill cartridge is easy to replace and provides a
new mechanism and soap path with every
replacement
• Flashing “red” light indicates soap replacement
required for continuous soap dispensing
• Flashing “yellow” light indicates low battery, promotes
continuous operation (Model ESD-250)
• Three-year Warranty (limited)
• Eliminates “untidy and clumsy” refillable containers
Sensor Activated
Electronic Soap
Dispenser
Page 2
OPERATION
As the user’s hands enter the beam’s effective range, the beam is
reflected back into the sensor receiver and activates the solenoid
valve allowing a single soap application to flow from the spout.
• Flashing “red” light in the sensor window indicates low refill
• Flashing “yellow” light in the sensor window indicates low
battery (Model ESD-250)
SOAP REPLACEMENT
When the soap Bottle is empty, a new Bottle must be used. The Bottle
furnished with the unit is not designed to be refilled. Altering the Bottle
and refilling it with soap will void the warranty of the product.
To order Replacement Soap Cartridges:
1-866-700-CLEAN (1-866-700-2532)
Or go to our website: www
.optimasoap.com
Refills are also available through your local plumbing or janitorial supply
distributor.
Soap Refill Cartridges Available
• ESD-217 — 800 ml. bottle of Lotion Soap
• ESD-232 — 1600 ml. bottle of Lotion Soap
• ESD-231 — 800 ml. bottle of Anti-bacterial Soap
• ESD-233 — 1600 ml. bottle of Anti-bacterial Soap
Can also be replaced with TC
®
OneShot®Soap Bottles listed below.

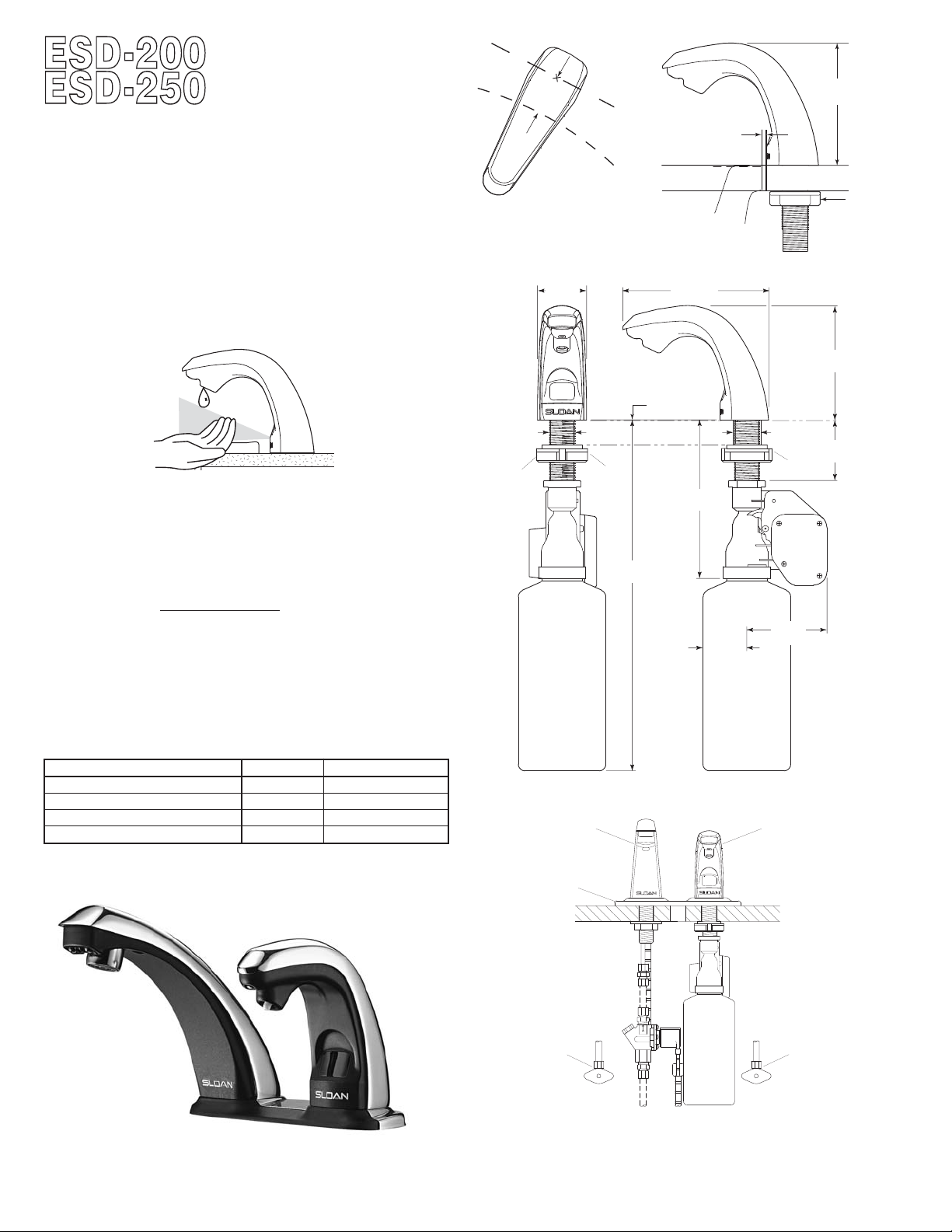

1½”
(38 mm)
4-1/4”
(108 mm)
1/8”
(3 mm)
SINK
COUNTER
5-3/8”
(137 mm)
4-1/4”
(108 mm)
1/32”
(1 mm)
15/16”
(24 mm)
ADJUST
TO
COUNTER
HOLE
3-5/16”
(84 mm)
6-15/16”
(176 mm)
14-1/16”
(357 mm)
1-5/8”
(41 mm)
2-31/32”
(75 mm)
1”
(25 mm)
FLANGE
NUT
FLANGE
NUT
BRASS
SHANK
FLANGE
NUT
1-13/16”
(46 mm)
Description
Sensor Activated Electronic Soap Dispenser.
Models
ESD-200 Plug-in Transformer Powered
ESD-250 Battery Powered
FAUCET SOAP DISPENSER
HOT
WATER
SUPPLY
COLD
WATER
SUPPLY
ETF-299-A
2 PIECE
TRIM PLATE
SLOAN VALVE COMPANY • 10500 SEYMOUR AVENUE • FRANKLIN PARK, IL 60131
Phone: 1-800-9-VALVE-9 or 1-847-671-4300 • Fax: 1-800-447-8329 or 1-847-671-4380 • www.sloanvalve.com
Copyright © 2006 Sloan Valve Company Printed in the U.S.A. Optima ESD-200 and ESD-250 S.S. — Rev. 0b (08/06)
Models ESD-20080 and ESD-25085
Soap Dispenser and Faucet Combination
Description Sloan®Part No. TC®OneShot®Stock No.
800 ml. bottle of Lotion Soap ESD-217 401311
1600 ml. bottle of Lotion Soap ESD-232 401541
800 ml. bottle of Anti-bacterial Soap ESD-231 401312
1600 ml. bottle of Anti-bacterial Soap ESD-233 401542
